Volkswagen New Beetle. Manual - part 464

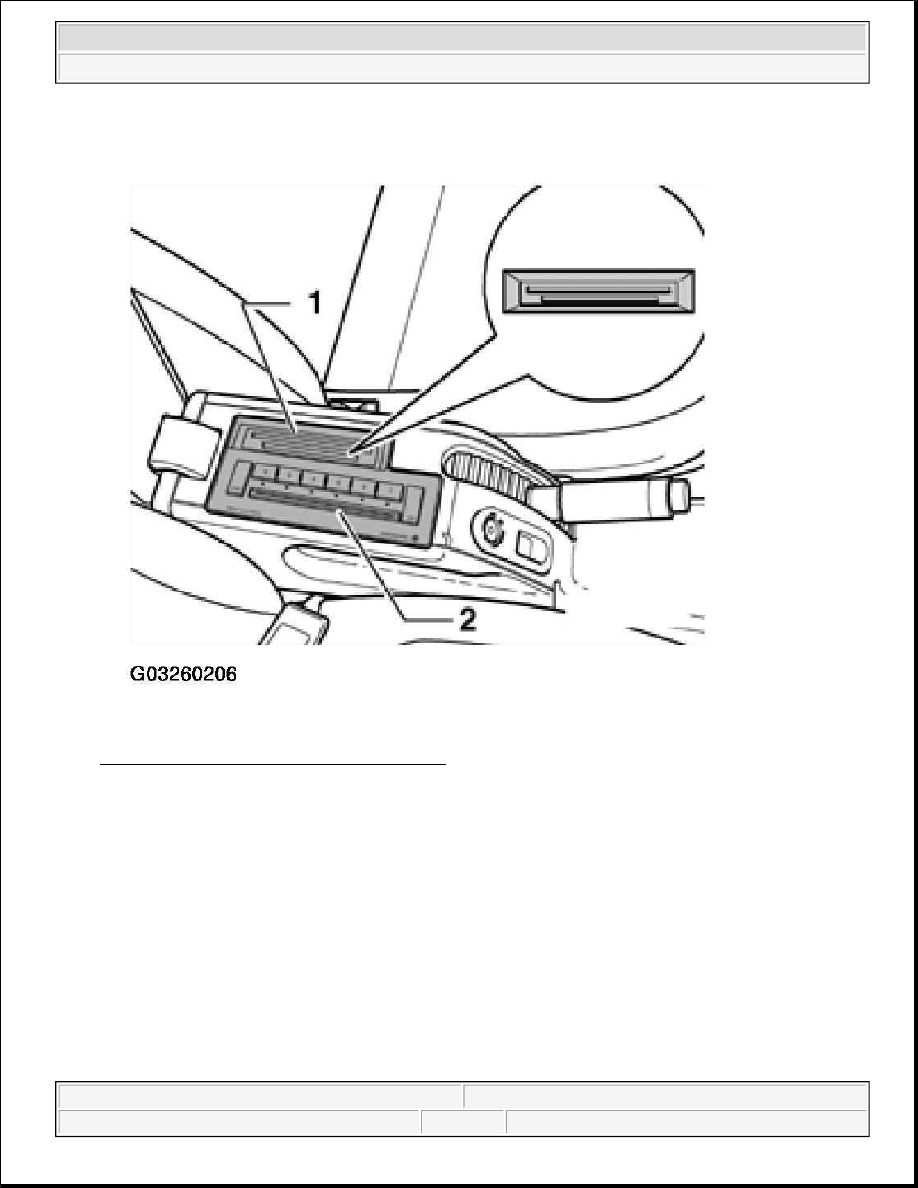

Fig. 81: Identifying Coin Holder/Storage Box
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Unclip and remove CD preparation terminal blank connection and discard.

z

Use adapter cable to lengthen harness where applicable

z

Connect CD changer harness connection -1- to CD preparation cable -2- located earlier.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



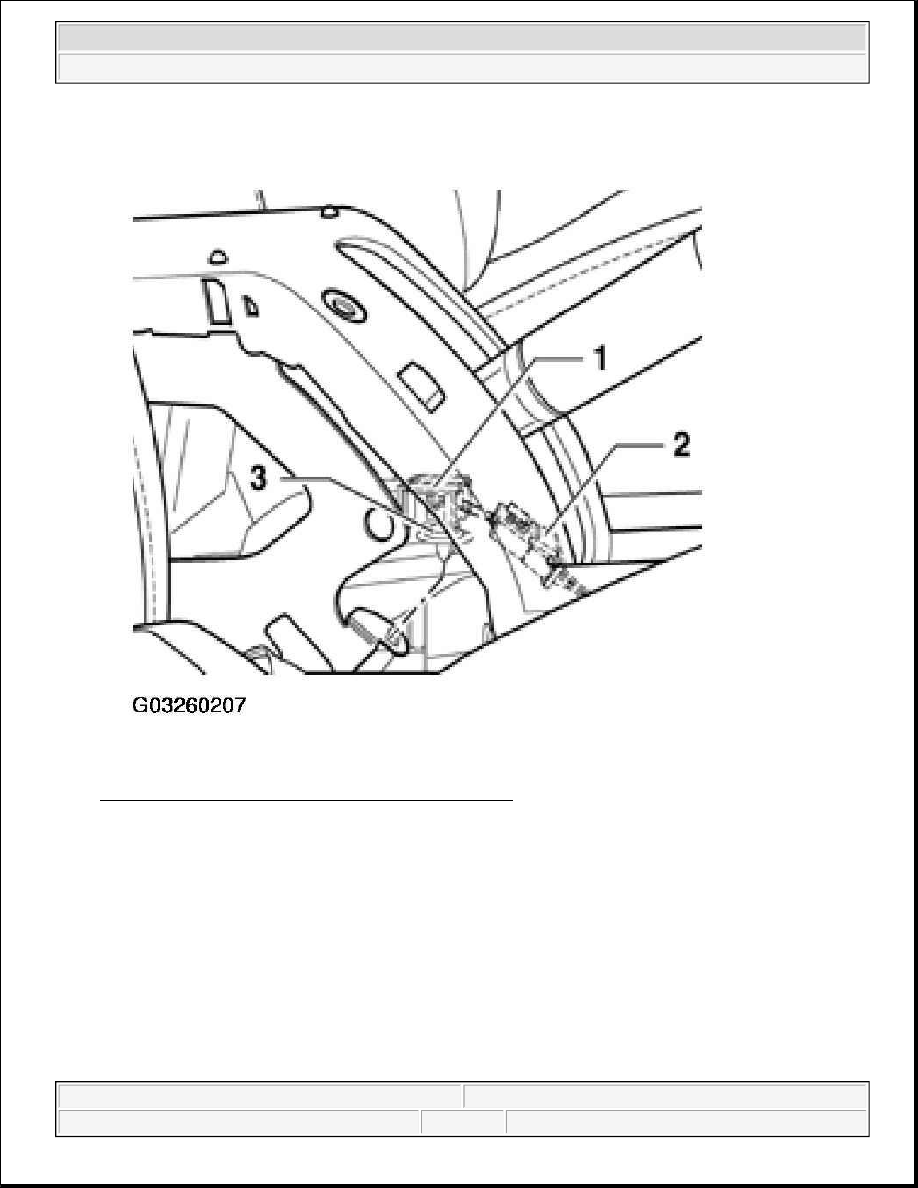

Fig. 82: Connecting CD Changer Harness Connection
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Attach completed connection -1- to clip -3-.

z

Clip connector/clip assembly to inner console frame -1-.

CAUTION:

z

Ensure proper electrical connection is made - check for terminal
push-outs.

z

In order to avoid noises and rattles, always ensure connector
assembly with harness is properly secured.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



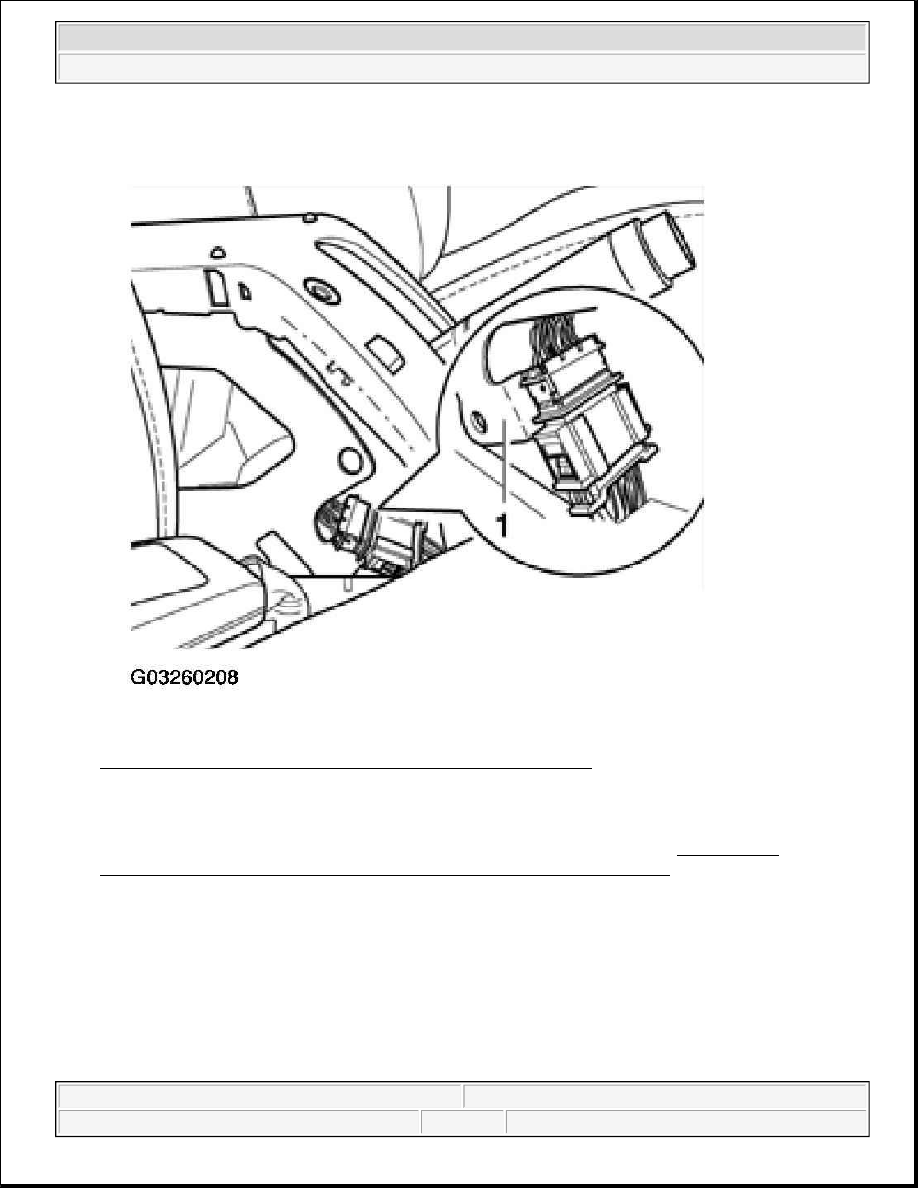

Fig. 83: Clip Connector/Clip Assembly To Inner Console Frame
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Continue with reassembly of all console-mounted components and trim in reverse order of removal

z

Code "Sound System" for CD operation using VAG 1551/1552 Scan Tool (ST) Radio system
"Premium V" and "Premium V - Monsoon", On Board Diagnostic (OBD)

z

Refer to Radio/CD changer owner's guide and check proper operation of CD changer.

Removing

Special tools, testers and auxiliary items needed.

NOTE:

Radio/CD OBD function is inoperative if radio system is not coded for CD
operation.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



z

Radio removal tool 3316 (two identical pieces).

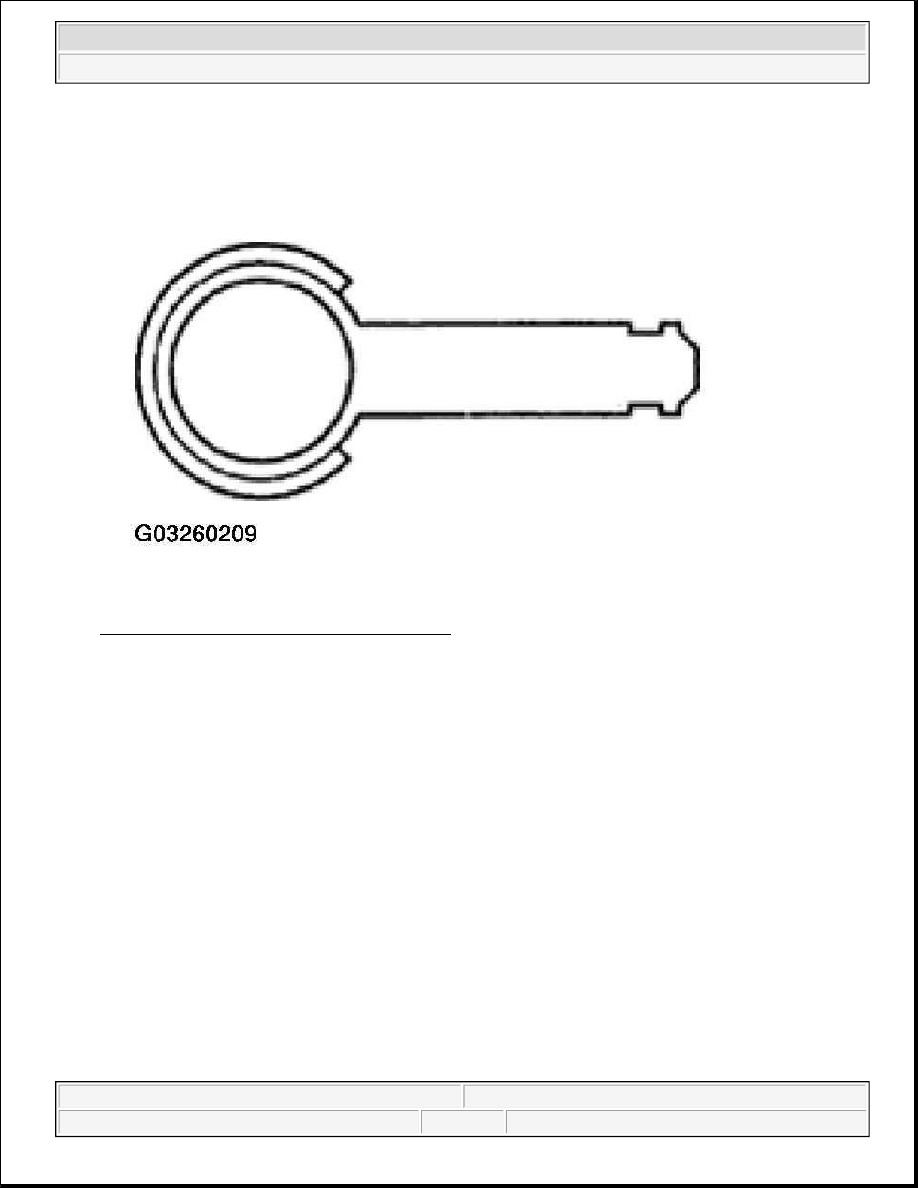

Fig. 84: Identifying Radio Removal Tool 3316
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removing

z

Insert CD changer removal tools into CD changer as illustrated -arrow- until they are felt to engage.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle
