Volkswagen New Beetle. Manual - part 440

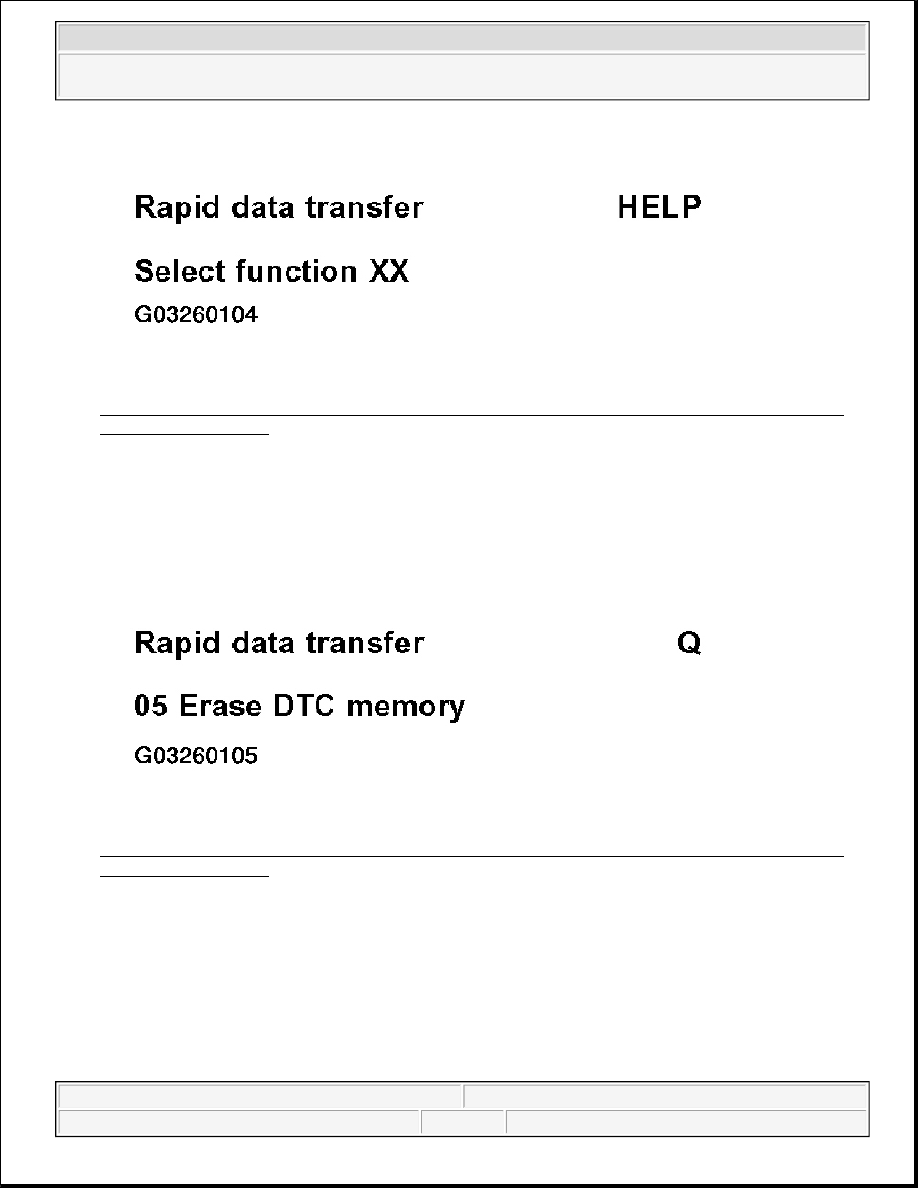

Fig. 205: VAG 1551 Scan Tool Display - Diagnostic Trouble Code (DTC) Memory Erasing, From
06.99 And Up (1 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.

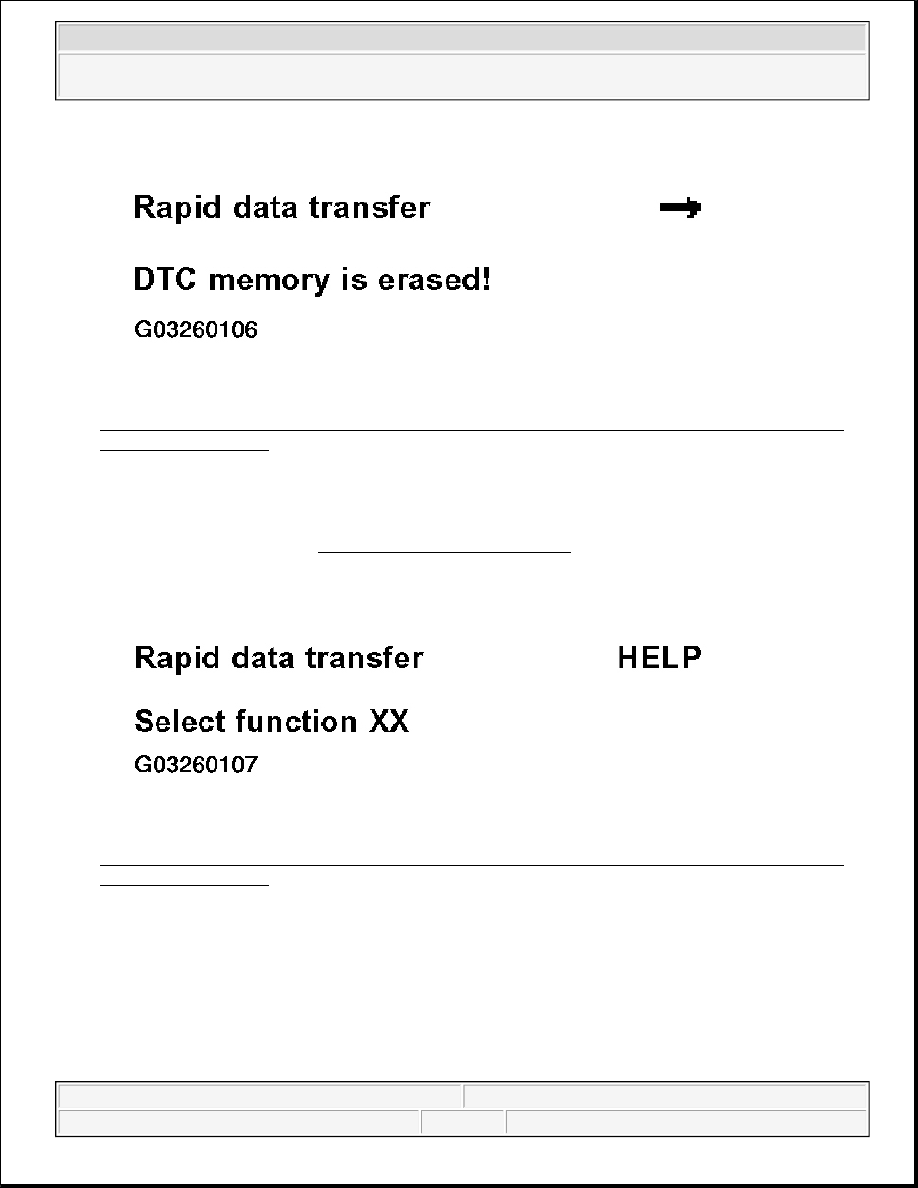

Fig. 206: VAG 1551 Scan Tool Display - Diagnostic Trouble Code (DTC) Memory Erasing, From
06.99 And Up (2 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display (DTC memory is now erased).

z

Press --> button.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 207: VAG 1551 Scan Tool Display - Diagnostic Trouble Code (DTC) Memory Erasing, From
06.99 And Up (3 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display (select function):

z

End output (function 06). See END OUTPUT (FUNCTION 06) .

Fig. 208: VAG 1551 Scan Tool Display - Diagnostic Trouble Code (DTC) Memory Erasing, From
06.99 And Up (4 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

z

If this appears in the display, test sequence is faulty.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



END OUTPUT (FUNCTION 06)

z

Press buttons -0- and -6- to select function "End output."

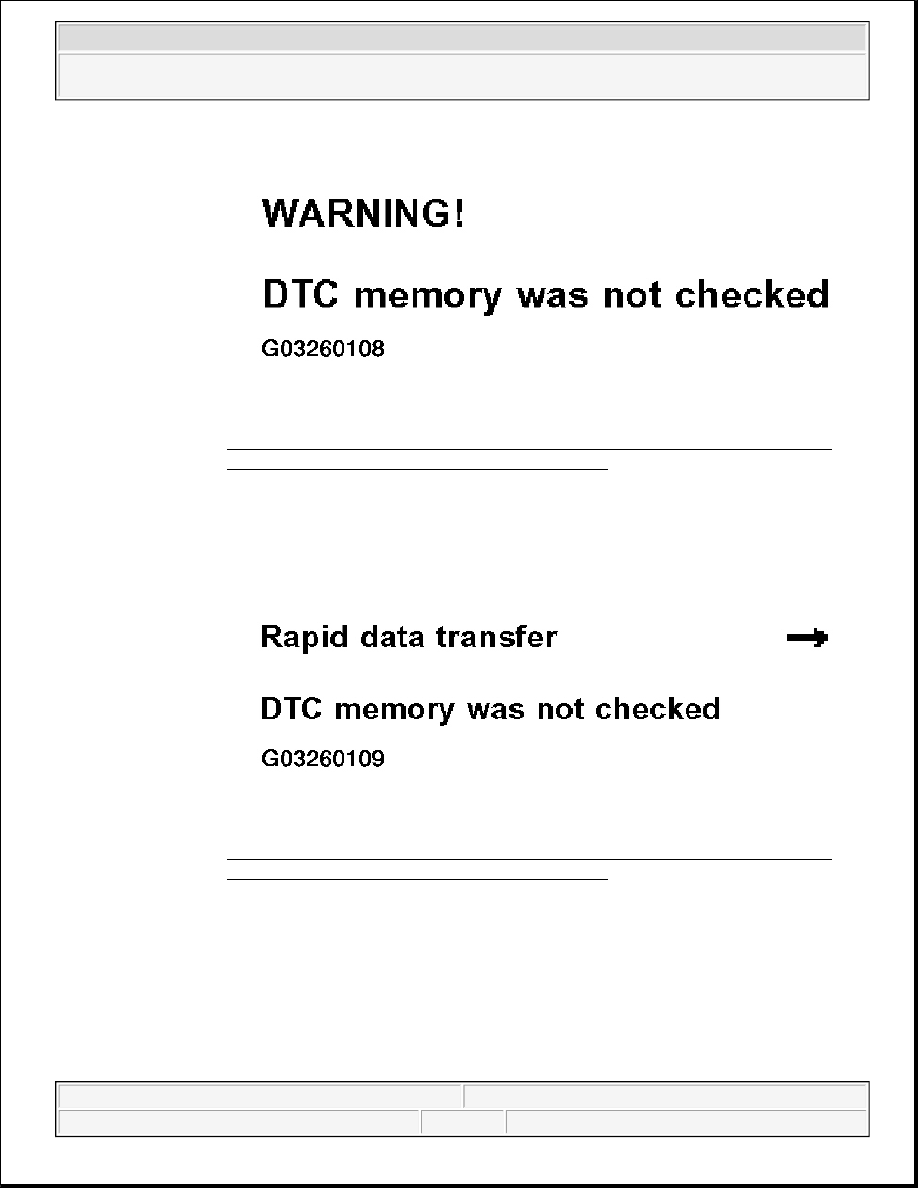

Fig. 209: VAG 1551 Scan Tool Display - Diagnostic Trouble Code (DTC)
Memory Erasing, From 06.99 And Up (5 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

If this appears in the display, test sequence is faulty.

Fig. 210: VAG 1551 Scan Tool Display - Diagnostic Trouble Code (DTC)
Memory Erasing, From 06.99 And Up (6 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Adhere exactly to test sequence: First check DTC memory, repair
malfunctions if necessary, then erase.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Indicated on display:

z

Press -Q- button to confirm input.

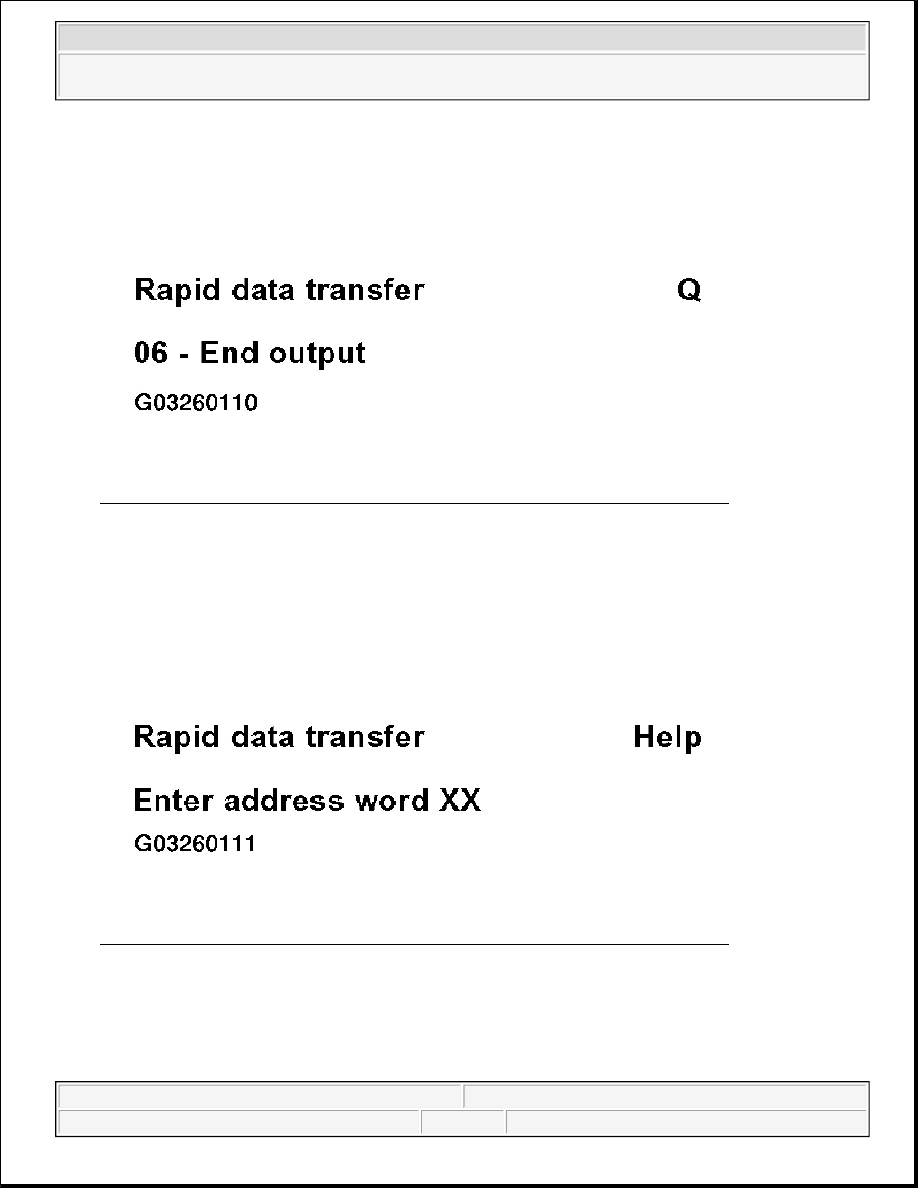

Fig. 211: VAG 1551 Scan Tool Display - End Output, From 06.99 And Up (1 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Switch off ignition.

z

Disconnect VAG 1551 Scan Tool (ST) from Data Link Connector (DLC)

Fig. 212: VAG 1551 Scan Tool Display - End Output, From 06.99 And Up (2 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

DATA BUS ON BOARD DIAGNOSTIC INTERFACE -J533- UP TO 10.00 MODELS, CODING
(FUNCTION 07)

z

Connect VAG 1551 Scan Tool (ST), input address word 19 "Gateway" and then press --> button until



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
