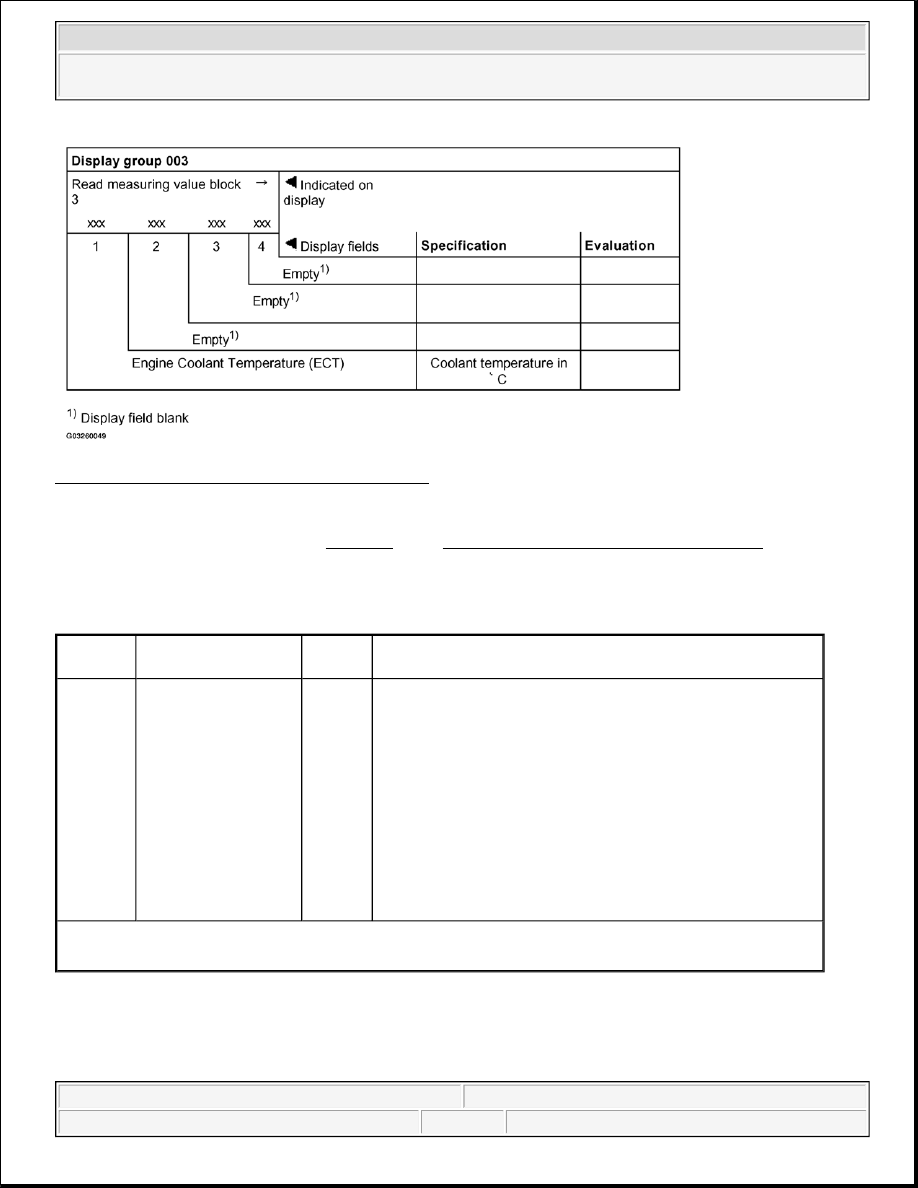

Fig. 150: Display Group 003, From 10.00 Models
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Evaluating display group number 003

EVALUATING DISPLAY GROUP NUMBER 003 (FROM 10.00 MODELS)

Display Group 050

NOTE:

For evaluation of Fig. 150 , see Evaluating display group number 003 .

Display
field

Description

Display

Corrective Action

1

Engine Coolant

Temperature (ECT)

(1)

ECT in °

C

z

Perform visual check of wiring and connections

z

Check wiring and connections of affected circuit for

correct connection and tight fit while simultaneously

observing display

z

If display does not change after checking connections,

troubleshoot wiring using wiring diagram

z

Replace relevant component if necessary

z

Erase DTC memory

z

Perform functional check

z

Check DTC memory again

(1)

The coolant temperature value steadily indicates 90° C (194 °F) whenever the actual coolant
temperature varies between approx. 75°C (167°F) and 107°C (225 °F).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



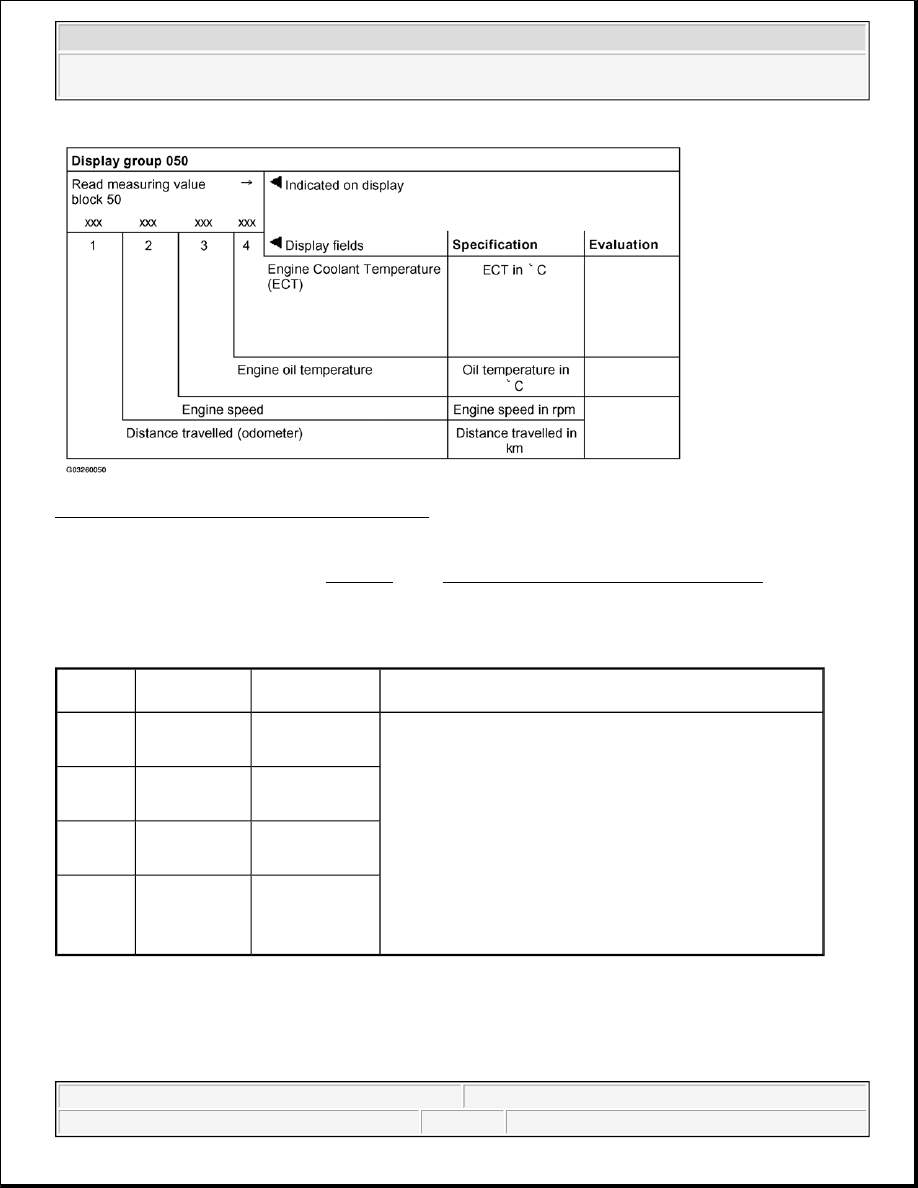

Fig. 151: Display Group 050, From 10.00 Models
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Evaluating display group number 050

EVALUATING DISPLAY GROUP NUMBER 050 (FROM 10.00 MODELS)

ADAPTATION (FUNCTION 10)

Use this function to initiate and store the following changes:

z

Adaptation of odometer reading when replacing/exchanging instrument cluster

NOTE:

For evaluation of Fig. 151 , see Evaluating display group number 050 .

Display
field

Description

Display

Corrective Action

1

Distance
travelled

Distance

travelled in km

z

Perform visual check of wiring and connections

z

Check wiring and connections of affected circuit for
correct connection and tight fit while simultaneously
observing display

z

If display does not change after checking connections,
troubleshoot wiring using wiring diagram

z

Replace relevant component, if necessary

z

Erase DTC memory

z

Perform functional check

z

Check DTC memory again

2

Engine speed

Engine speed in

rpm

3

Oil

temperature

Oil temperature

in °C

4

Coolant

temperature

Coolant

temperature in °

C



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



z

Adaptation of fuel gauge reading

z

Adaptation of fuel consumption indicator (MFI)

Individual functions are called up using the appropriate adaptation channel number from adaptation table. See
ADAPTATION TABLE (FROM 10.00 MODELS) .

Adaptation table:

ADAPTATION

ODOMETER, ADAPTATION

Example:

The malfunctioning instrument cluster has an odometer display of 89627 (either kilometers or miles). The

Adaptation
channel

Adaptation functions

09

Odometer, adaptation, See Odometer, adaptation

16

Distance impulse number (K number): Read only, cannot be changed, See Distance

impulse number (K number), reading

30

Fuel gauge, checking (adaptation), See Fuel gauge, checking (adaptation)

NOTE:

After changing an adaptation value or ending an adaptation channel the
function "10 - adaptation" must be performed to select another adaptation
channel!

NOTE:

z

Total distance travelled by the vehicle can be read from the malfunctioning
instrument cluster or determined by vehicle service history.

z

Total distance travelled display of new instrument cluster must not be
more than 100 km (63 mi) before adaptation.

z

Total distance travelled to be transferred to the new instrument cluster
must exceed 100 km (63 mi).

z

Adapting total distance travelled is only possible once and only in a
positive (upwards) direction.

z

Adaptation can be interrupted with the "C" button of the VAG 1551/1552
Scan Tool (ST)

z

Correcting a false entry which has been confirmed is not possible. The
instrument cluster must be exchanged for a new one.

z

For US models, the country code must first be changed to "Canada"
before entering the adaptation value.

z

Adaptation value on instrument clusters must be entered in kilometers.
For US models, adaptation value must be converted from miles to
kilometers first (miles x 1.609 = kilometers).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



odometer display can be transferred to the new instrument cluster as follows:

z

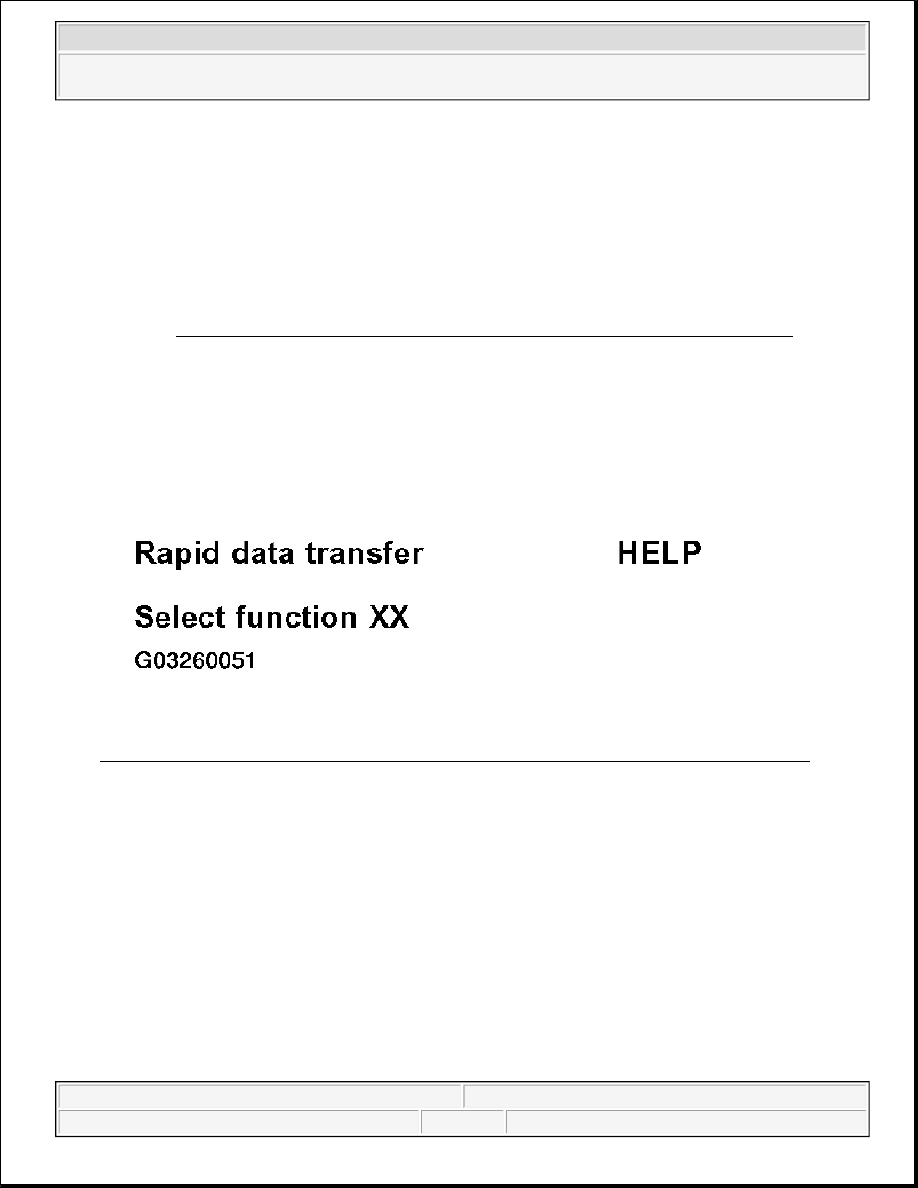

Connect VAG 1551 Scan Tool (ST), select 1 "Rapid Data Transfer", switch on ignition, input address
word 17 "Instrument cluster".

z

Press -Q- button to confirm input.

Various data appears in the display. The manufacturer's code is also displayed.

Indicated on display:

z

Press button -1- twice to select "Login Procedure" function 11

z

Press -Q- button to confirm input.

Fig. 152: VAG 1551 Scan Tool Display - Odometer Adaptation, From 10.00 Models (1 Of 26)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.

NOTE:

US vehicles from 1999 m.y. must temporarily be changed to "Canada". See
INSTRUMENT CLUSTER UP TO 10.00 MODELS, CODING (FUNCTION 07) .
