Press --> button.

Fig. 109: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode Initiating (4 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

Seat belt warning lamp -K19- lights (when activated by code).

z

Press --> button.

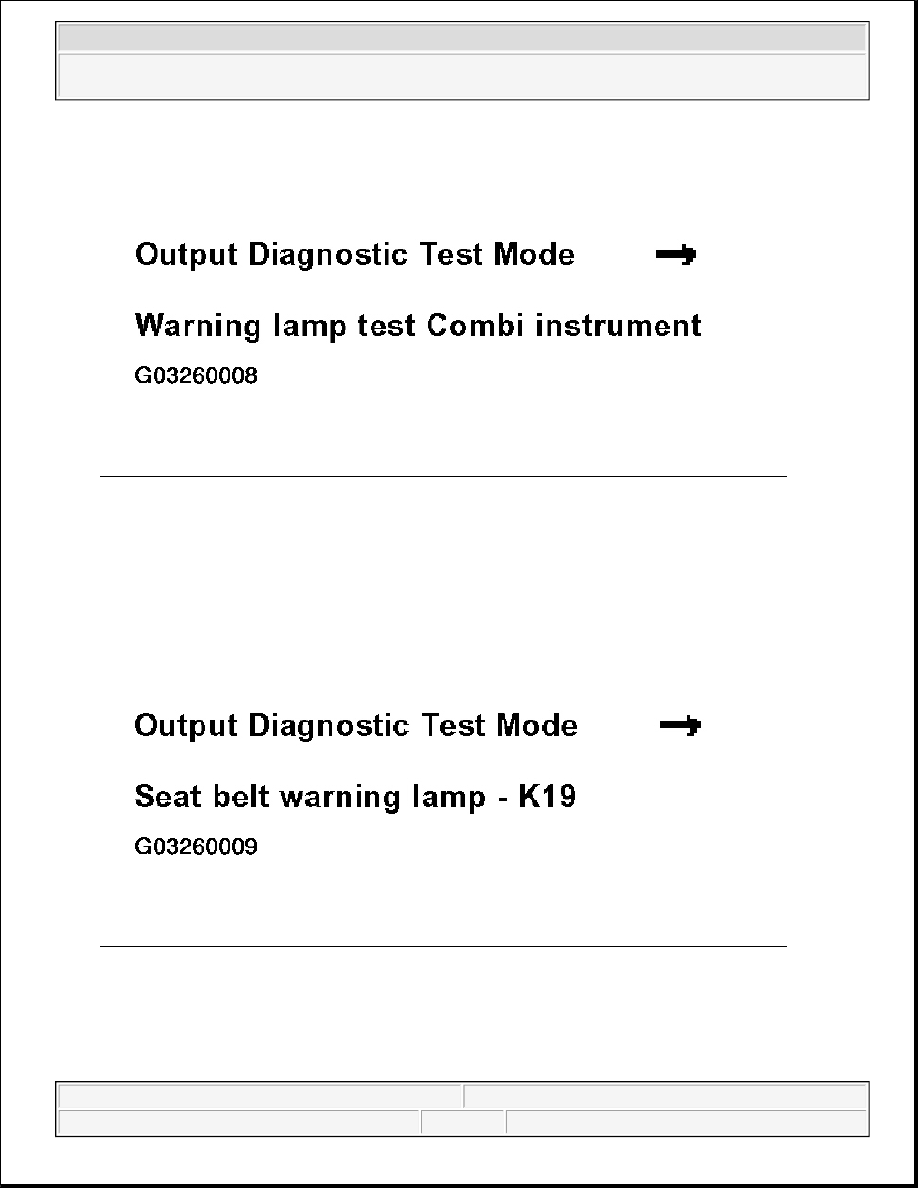

Fig. 110: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode Initiating (5 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

The buzzer/gong is activated and a warning tone is emitted at intervals.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



z

Press --> button.

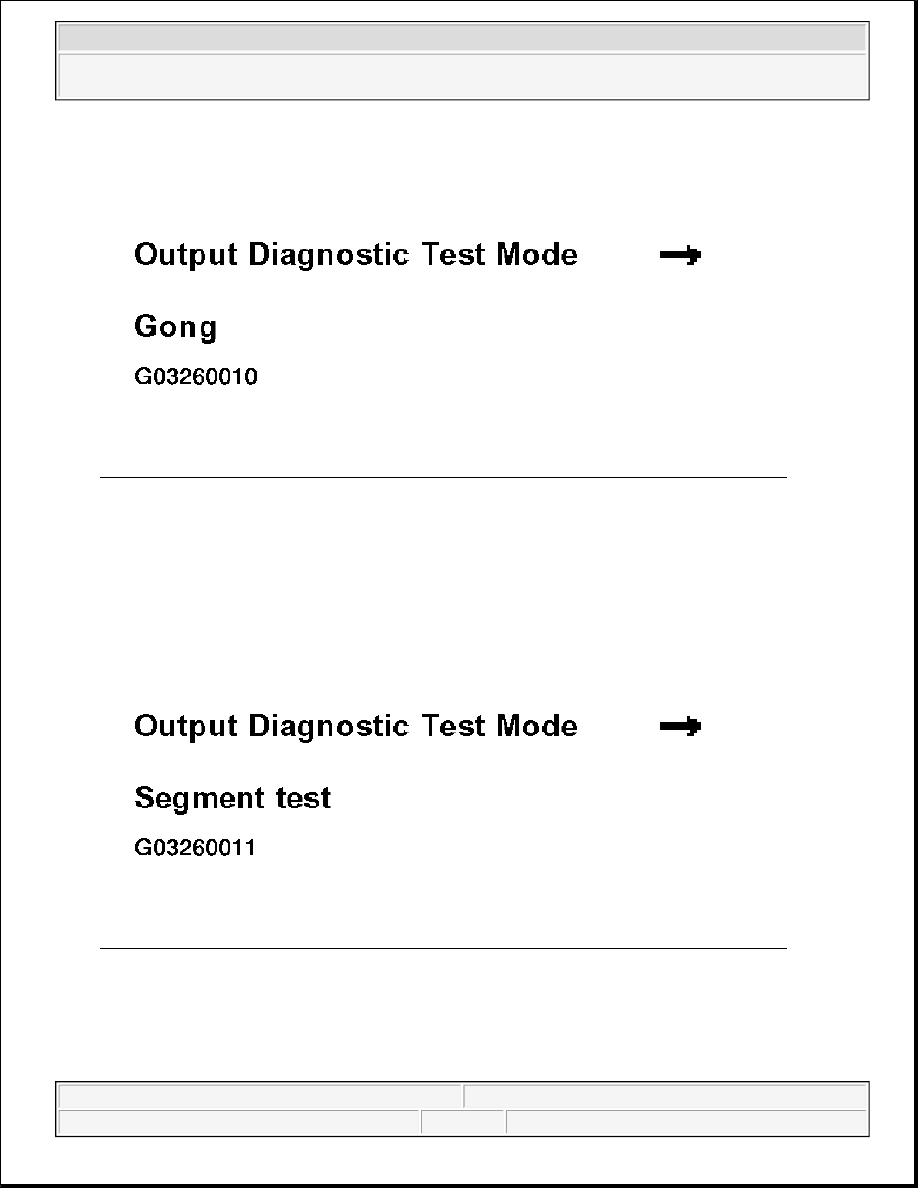

Fig. 111: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode Initiating (6 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

All liquid crystal segments in the speedometer display and tachometer are activated and appear on the display.

z

Press --> button.

Fig. 112: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode Initiating (7 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

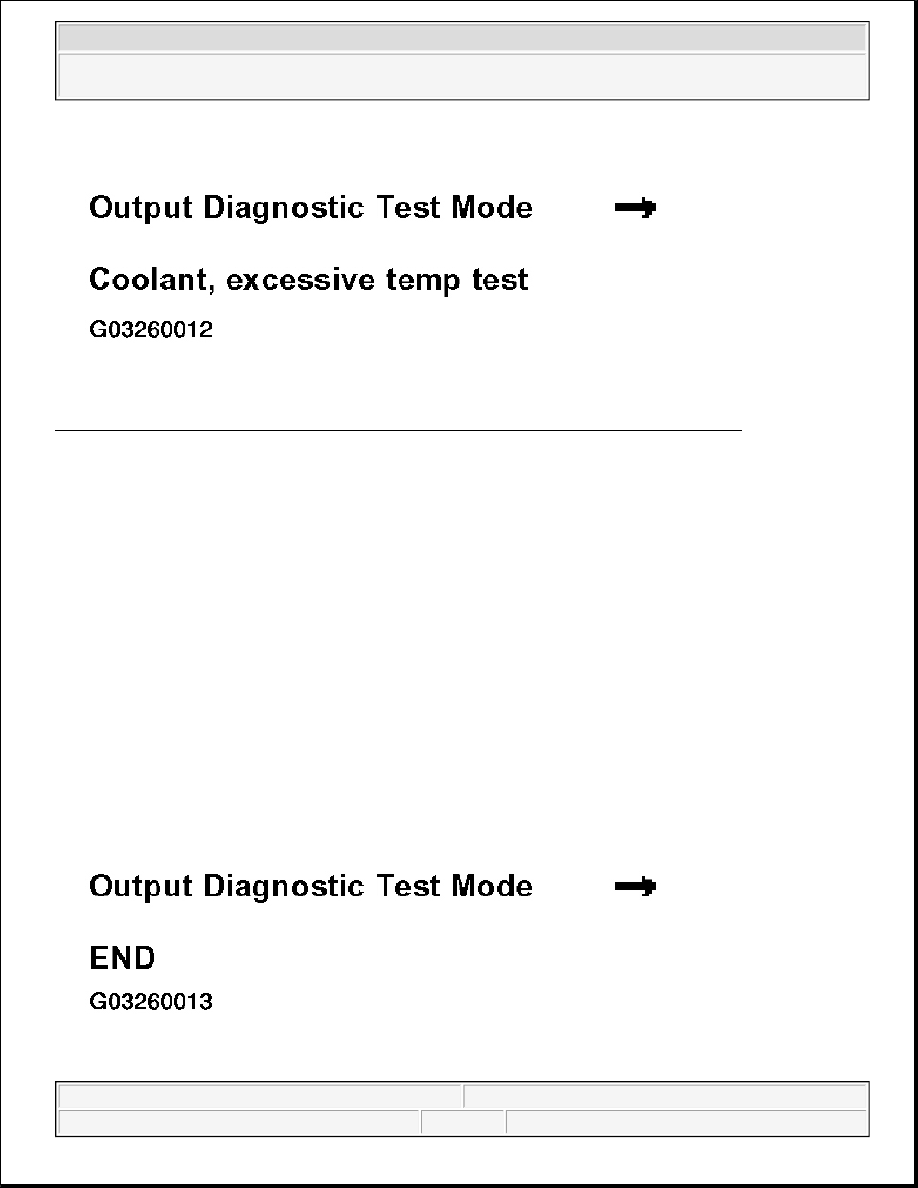

Fig. 113: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode Initiating (8 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

VDO Instrument cluster:

No display in instrument cluster!

High coolant temperature cut-out for the A/C clutch is activated approx. 5 seconds later.

MMO Instrument cluster:

Coolant temperature warning lamp lights and warning tone sounds.

High coolant temperature cut-out for the A/C clutch is activated approx. 5 seconds later.

z

Press --> button.

Indicated on display for instrument clusters with manufacturer code MMO:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 114: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode Initiating (9 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display for instrument clusters with manufacturer code VDO:

Fig. 115: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode Initiating (10 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

End Output Diagnostic Test Mode for VDO instrument clusters by pressing --> button.

All actual values are displayed again.

Indicated on display (select function):

z

Press buttons -0- and -6- to select function 06 "End output".

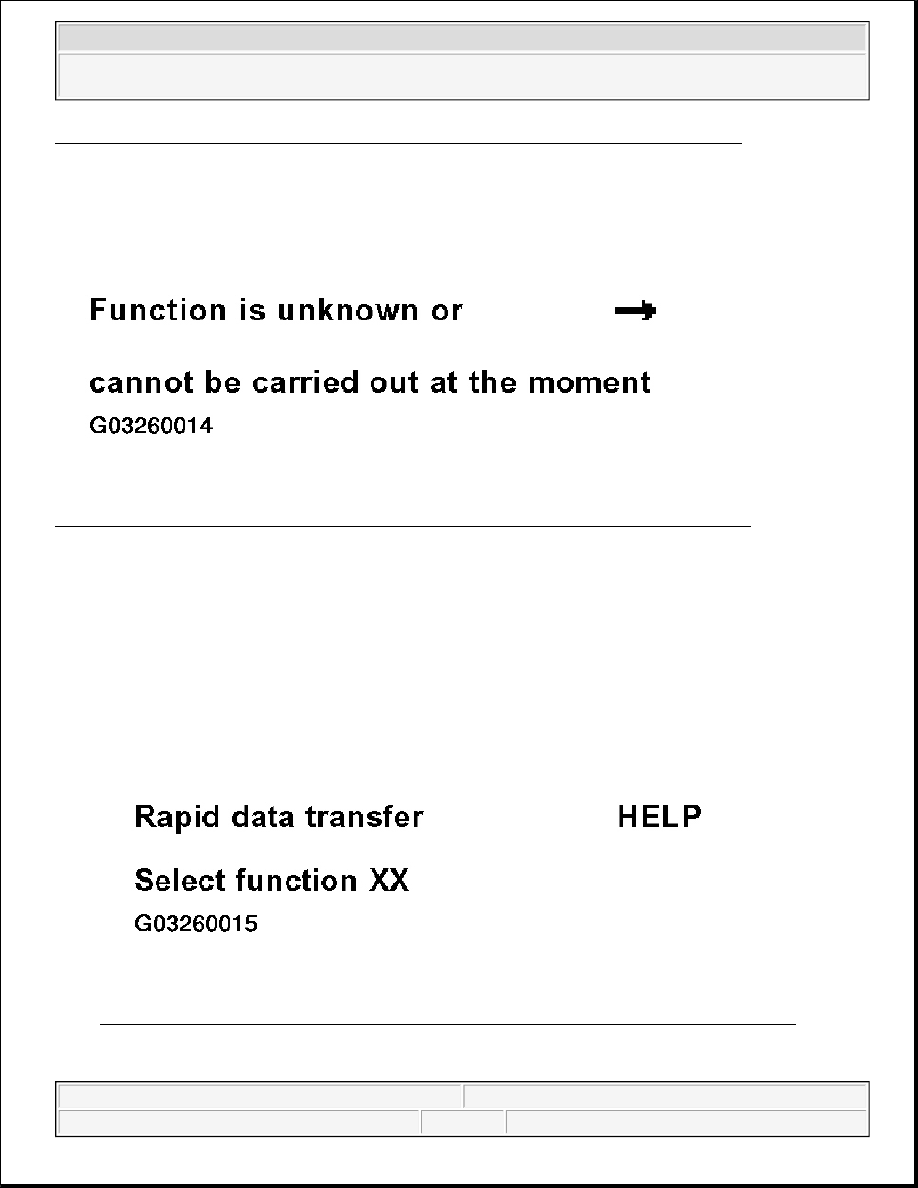

Fig. 116: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode Initiating (11 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
