Volkswagen New Beetle. Manual - part 421

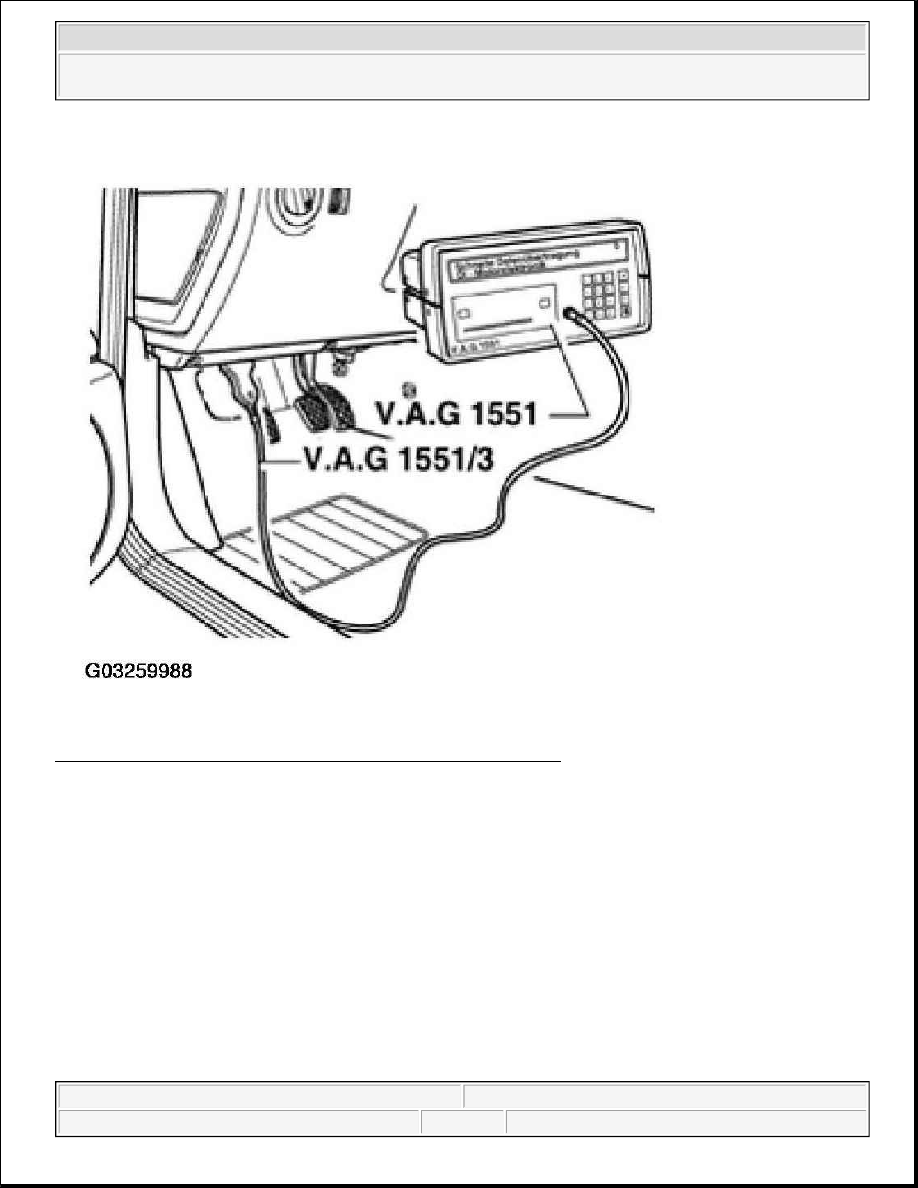

Fig. 89: connecting VAG 1551 Scan Tool To Data Link Connector
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

*Is displayed alternately



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

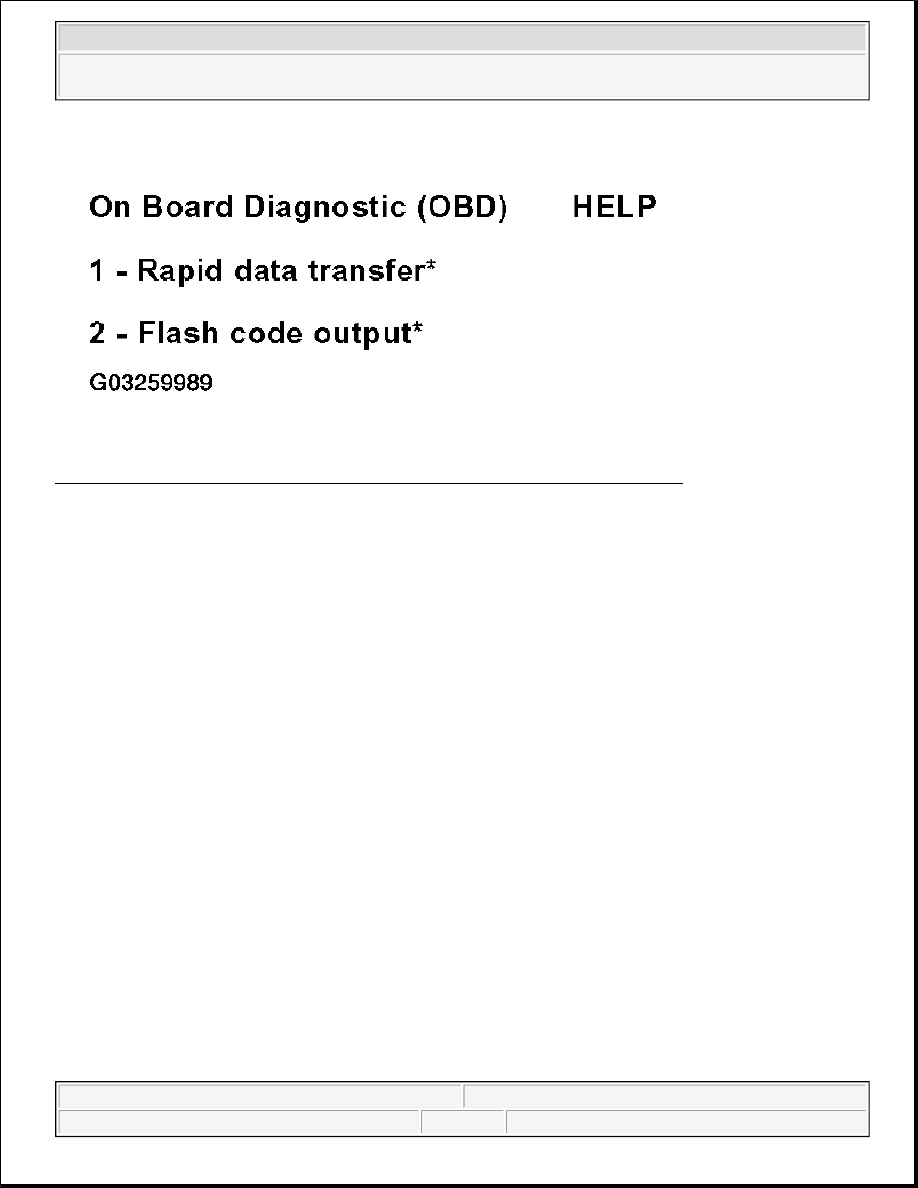

Fig. 90: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (1 Of 11)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch on ignition.

z

Switch on printer with the Print button (indicator lamp in button lights up).

z

Press button 1 for "Rapid data transfer" mode.

Indicated on display:

z

Press buttons -1- and -7- to select instrument cluster address word 17.

NOTE:

z

If display remains blank, check Scan Tool (ST) voltage supply according to
wiring diagram.

z

Additional operating instructions can be called up by pressing HELP
button.

z

The --> button is used to advance through program sequence.

z

In operating mode 1 "Rapid data transfer," function 00 "Automatic test
sequence" can be carried out. The DTC memory of all control modules
with OBD capability are checked automatically.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

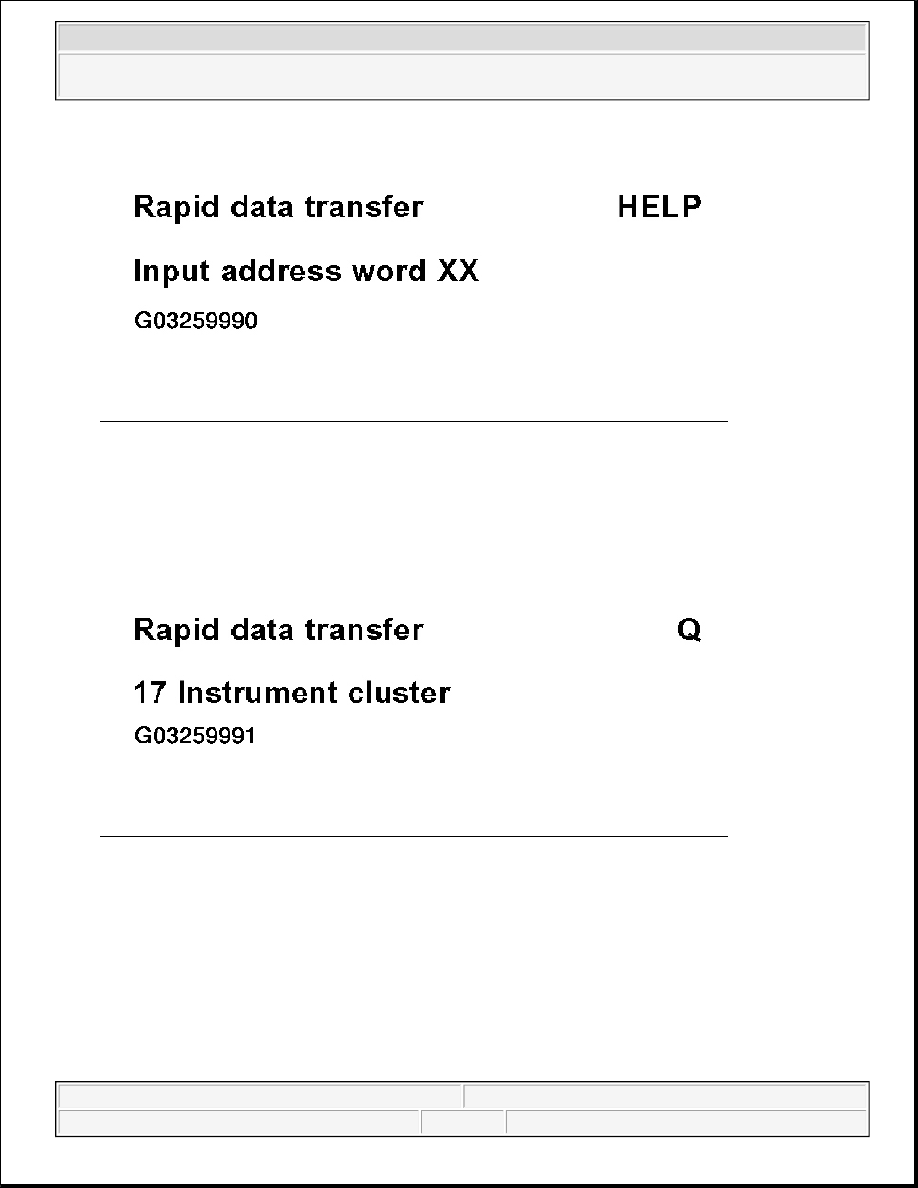

Fig. 91: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (2 Of 11)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.

Fig. 92: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (3 Of 11)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

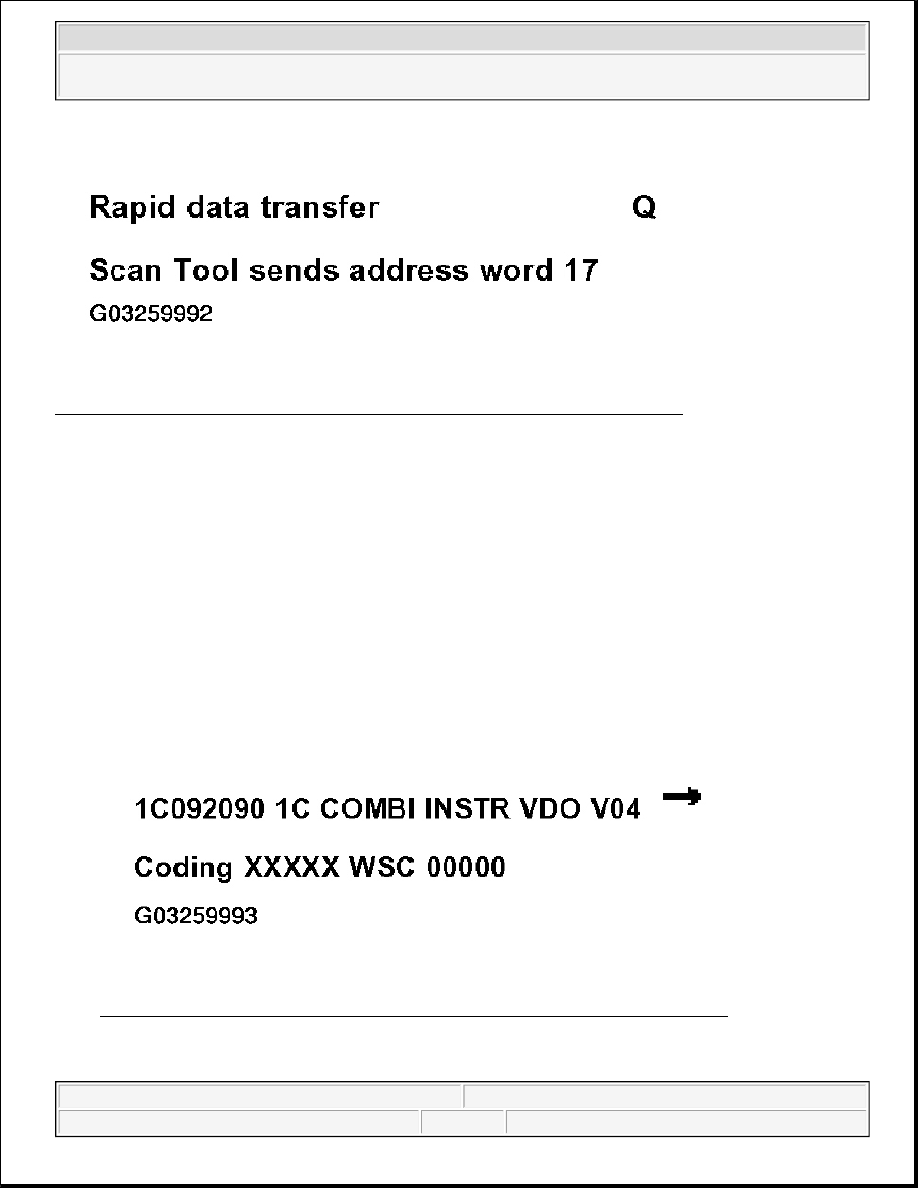

Fig. 93: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (4 Of 11)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Control module version, checking

Indicated on display (example only: instrument cluster with manufacturer code VDO):

Readout, top line

z

1CO 920 90 = Control module part number.

z

1C Combi instrument = Model & system designation

z

VDO (VDO), MMO (Motometer) M73 (Magneti Marelli) = Manufacturer's code (On new instrument
clusters manufacturer code BOO may appear.)

z

V04 = Software version

Fig. 94: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (5 Of 11)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Readout, bottom line



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
