Volkswagen New Beetle. Manual - part 396

Fig. 77: View Of CD Changer
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Switches must move completely to their end positions.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



z

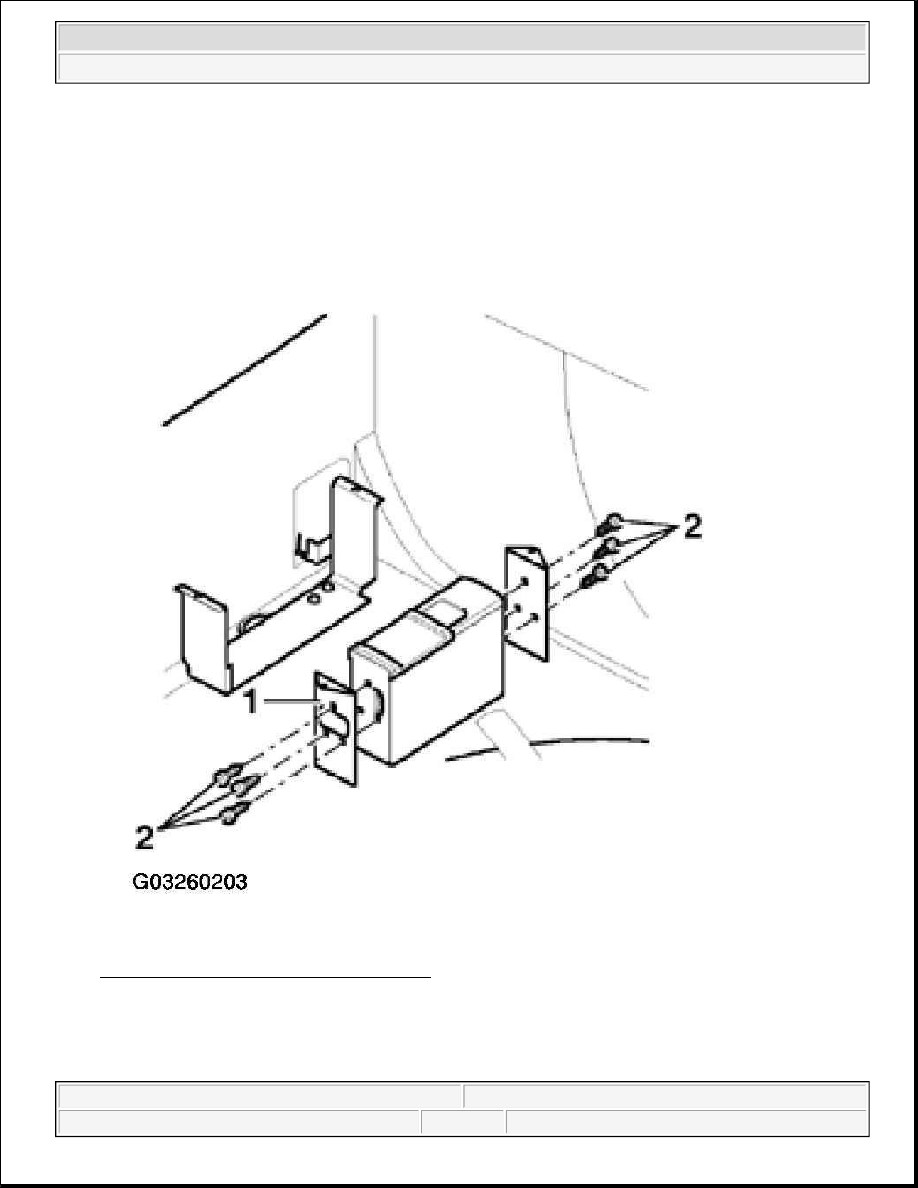

Attach support -1- to CD, install with screws -2-.

z

Tightening torque: 3 N.m (27 in lb)

z

Connect CD Changer harness cable connector (arrow).

z

Place connectors -1- in bracket and CD Changer in bracket.

Fig. 78: Installing Support To CD Changer
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Connectors should be in same side of harness support (arrow).

z

Install CD cover -1- and ensure tips at bottom of cover align with slots in bracket.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



Fig. 79: Installing CD Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Secure with phillips screws on top.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



z

Code "Sound System" for CD operation using VAG 1551/1552 Scan Tool (ST), See Code Control
Module (function 07)

z

Refer to Radio/CD changer owner's guide and check proper operation of CD changer.

CD CHANGER - FROM 08.02 PRODUCTION, INSTALLING AND REMOVING

The following describes the factory approved service installation (and /or removal) of Volkswagen CD changers
into all New Beetle models from 08.02 production, equipped with "Premium V" or "Premium V - Monsoon"
radios and appropriate center console.

CD changer: 1J0 057110, Harness: 3B0 051 592B, Storage box/coin holder: 1C0 857 058A Parts catalog.

Removing previously installed unit

See REMOVING .

Installing

NOTE:

Radio/CD OBD function is inoperative if radio system is not coded for CD
operation.

CAUTION: Before beginning repairs on the electrical system:

z

Obtain the anti-theft radio security code.

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.

z

Disconnect negative (-) battery terminal.

z

When disconnecting and reconnecting battery terminals, observe all
applicable Notes and torque specifications, as well as instructions on
performing OBD program and electrical system function checks as
specified.

CAUTION:

z

Part numbers are for reference only. Always check with your Parts
Department for the most up to date information.

z

Always confirm CD changer and radio compatibility with your Parts
Department.

NOTE:

z

Carefully review all of the following instructions before proceeding with
installation.

z

Never install CD changer in a location, position, or manner other than
specified by these instructions.

z

Radio must be coded in order to support CD changer functions. After
