Volkswagen New Beetle. Manual - part 382

Coding

z

Press buttons -0- and -7- to select function 07 "Code Control Module"..

z

Press -Q- button to confirm input.

z

Indicated on display

Fig. 32: VAG 1551 Scan Tool Display - Code Control Module (1 Of 7)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Radio coding (non-Monsoon)

Monsoon coding, See RADIO CODING (MONSOON)

z

06401- for vehicles without CD-changer (if CD-changer is installed later, radio code must be changed
accordingly)

z

06403- for vehicles with CD-changer

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



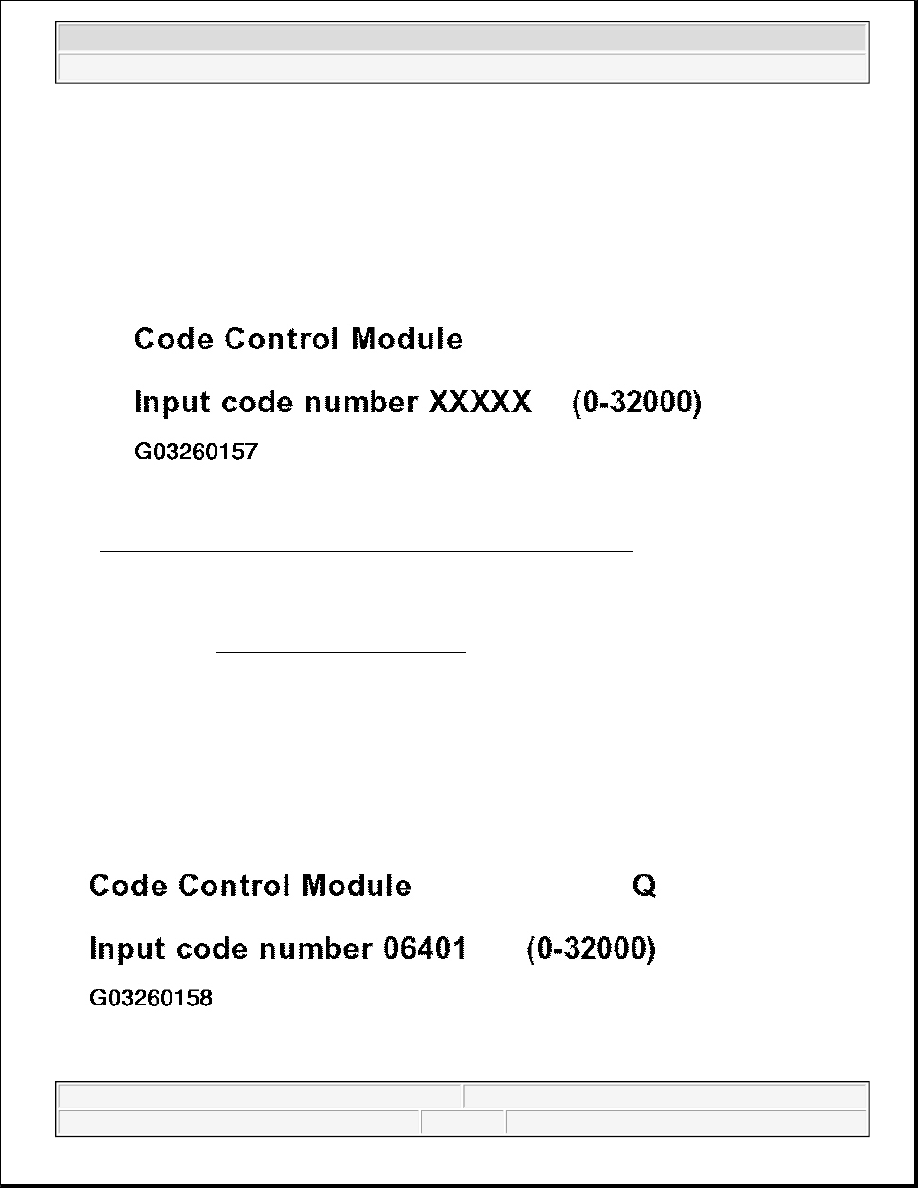

Fig. 33: VAG 1551 Scan Tool Display - Code Control Module (2 Of 7)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press -Q- button to confirm input.

Indicated on display

Fig. 34: VAG 1551 Scan Tool Display - Code Control Module (3 Of 7)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Radio coding (Monsoon)

z

06031- for New Beetle USA, no passive loudspeakers, Monsoon 2-door, active antenna and no CD
changer

z

06033- for New Beetle USA, no passive loudspeakers, Monsoon 2-door, active antenna and CD changer

Indicated on display

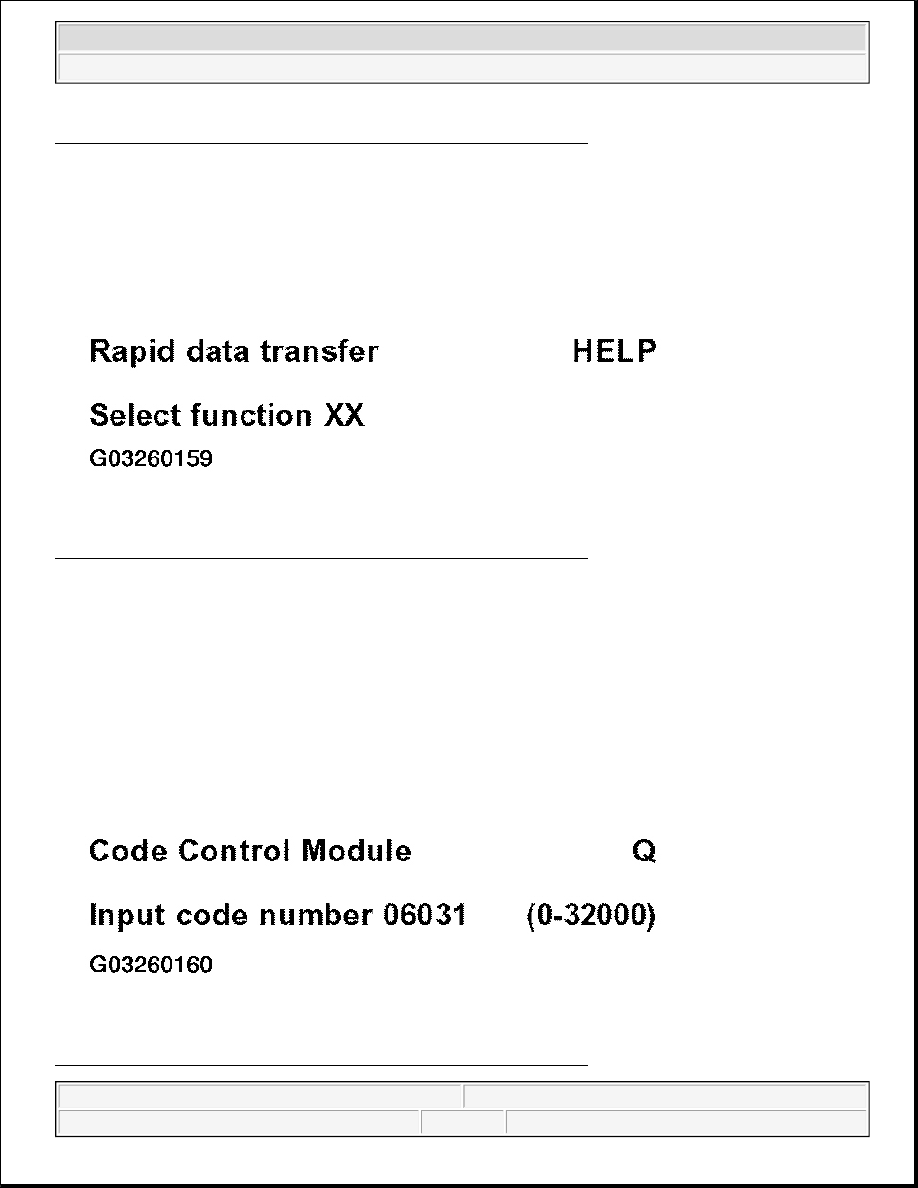

Fig. 35: VAG 1551 Scan Tool Display - Code Control Module (4 Of 7)



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press -Q- button to confirm input.

Indicated on display

Fig. 36: VAG 1551 Scan Tool Display - Code Control Module (5 Of 7)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Continuation for all radios

End function:

z

Press buttons -0- and -6- to select function 06 "End Output".

z

End coding by pressing --> button.

Indicated on display

Fig. 37: VAG 1551 Scan Tool Display - Code Control Module (6 Of 7)



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press -Q- button to confirm input.

Indicated on display

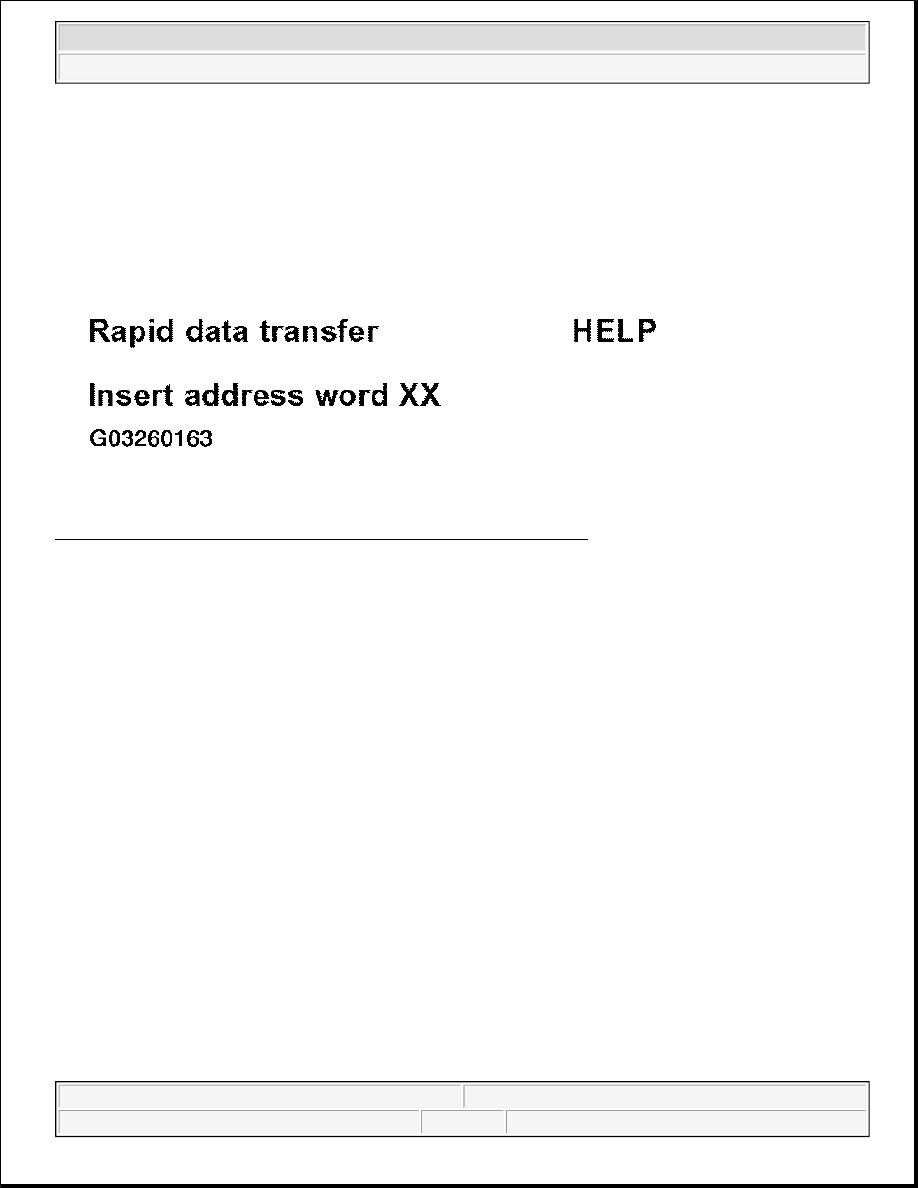

Fig. 38: VAG 1551 Scan Tool Display - Code Control Module (7 Of 7)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Scan tool returns to start of program sequence.

READ MEASURING VALUE BLOCK (FUNCTION 08)

6 display groups, with up to 4 display fields, can be displayed.

Requirement

z

Connect VAG1551 scan tool, input address word 56 "Radio" and press --> button, until "Select function
XX" appears on display.

Read Measuring Value Block

Indicated on display
