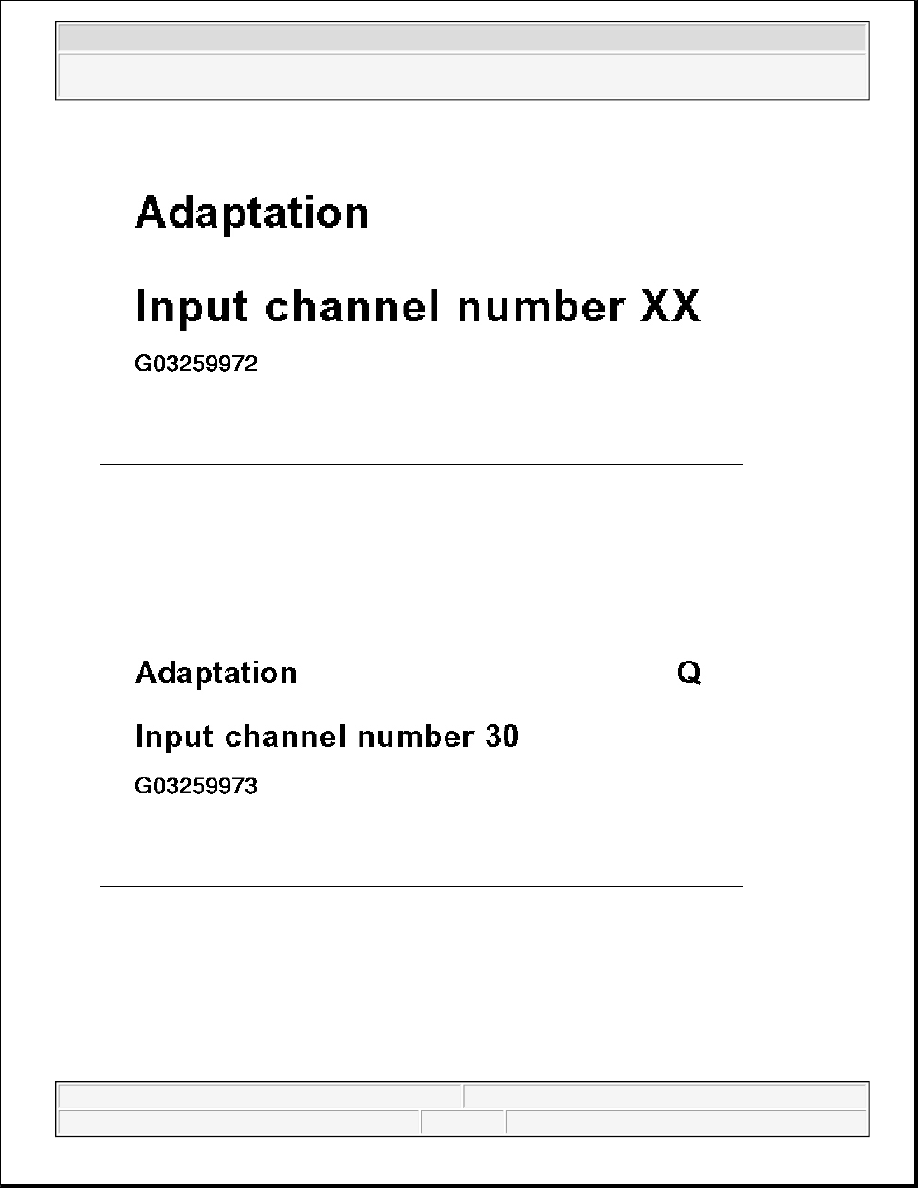

Fig. 73: VAG 1551 Scan Tool Display - Fuel Gauge Checking, Up To 06.99 (5 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

Press -Q- button to confirm input.

Fig. 74: VAG 1551 Scan Tool Display - Fuel Gauge Checking, Up To 06.99 (6 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

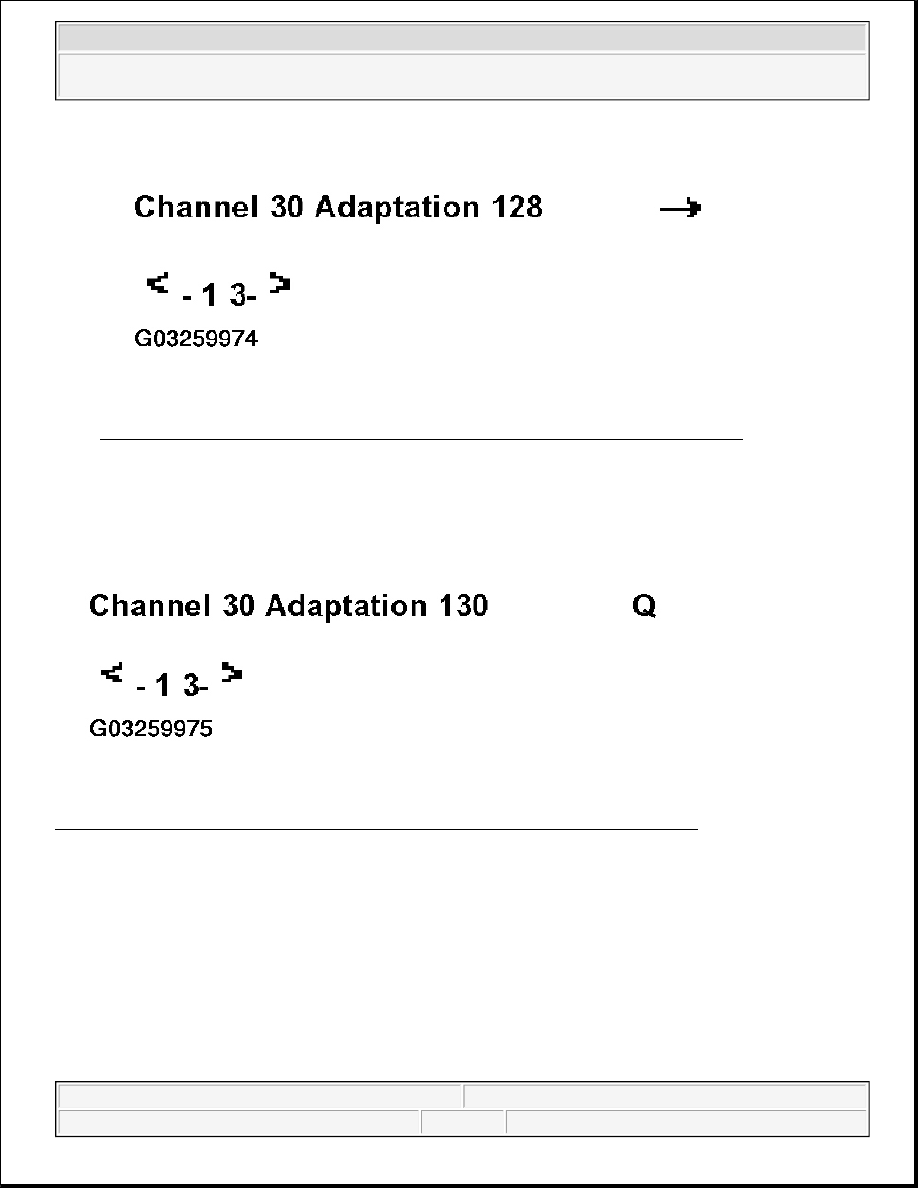

Use button -1- to decrease adaptation value down to 120.

Use button -3- to increase adaptation value up to 136, e.g.130.

2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

Fig. 75: VAG 1551 Scan Tool Display - Fuel Gauge Checking, Up To 06.99 (7 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

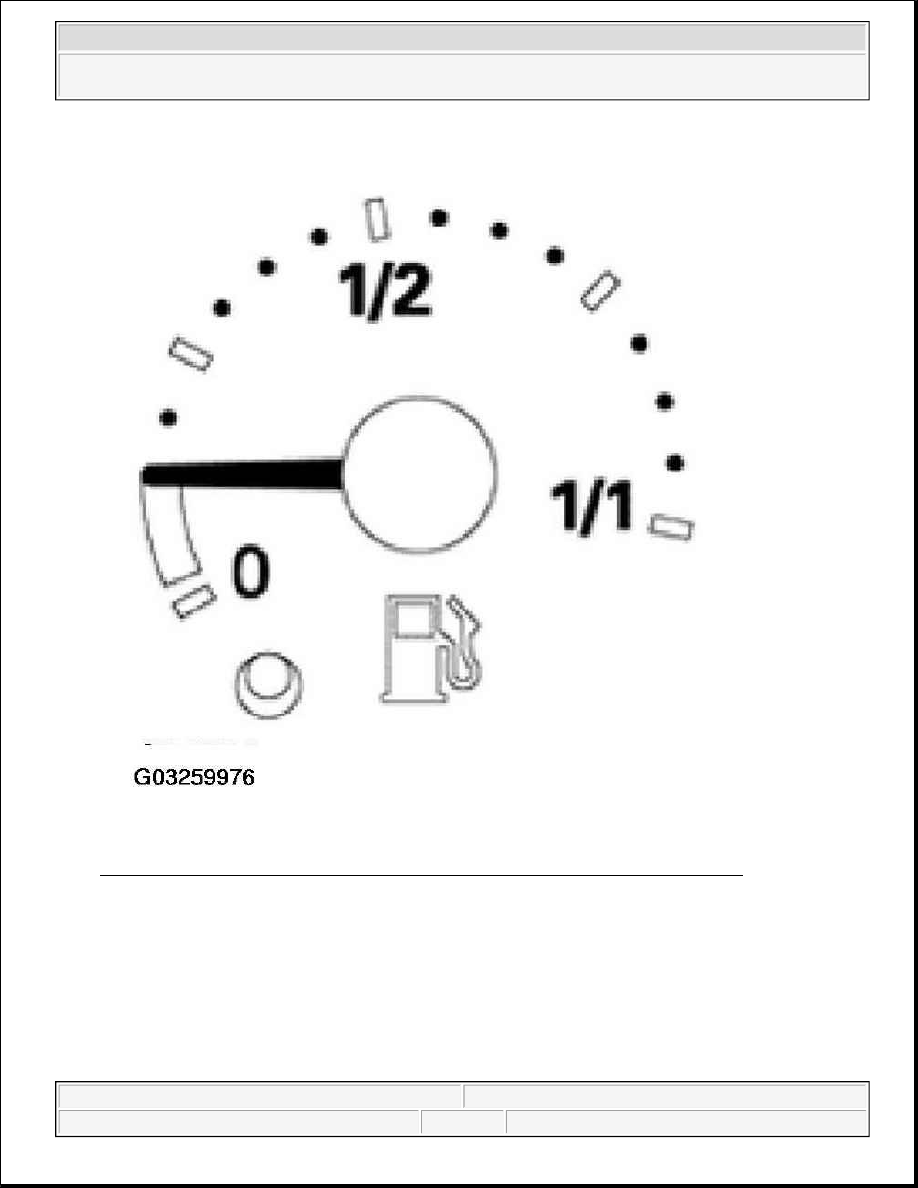

Fig. 76: VAG 1551 Scan Tool Display - Fuel Gauge Checking, Up To 06.99 (8 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Adaptation is correct when the fuel gauge needle is positioned on the right-hand red graduation (reserve), as
illustrated.

When needle position is OK:

Press -Q- button to confirm input.

2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

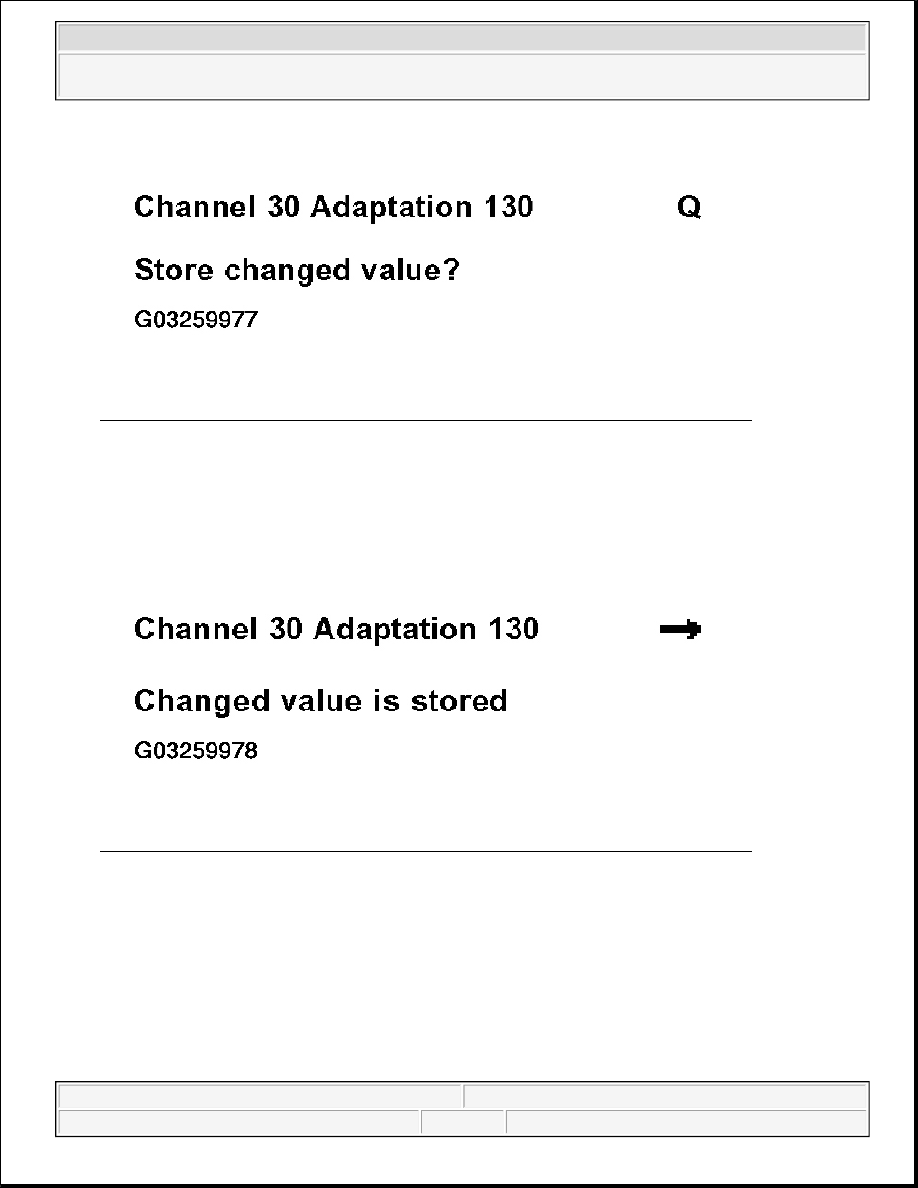

Fig. 77: VAG 1551 Scan Tool Display - Fuel Gauge Checking, Up To 06.99 (9 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display (example only):

Press -Q- button to confirm input .

2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

Fig. 78: VAG 1551 Scan Tool Display - Fuel Gauge Checking, Up To 06.99 (10 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

Press --> button to complete adaptation sequence.

Fig. 79: VAG 1551 Scan Tool Display - Fuel Gauge Checking, Up To 06.99 (11 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

Press buttons -0- and -6- to select function 06 "End Output".

NOTE:

If fuel gauge cannot be adapted correctly, replace fuel gauge sender.
