Fig. 14: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (7 Of 9)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press "HELP" button to print out a list of possible malfunction causes.

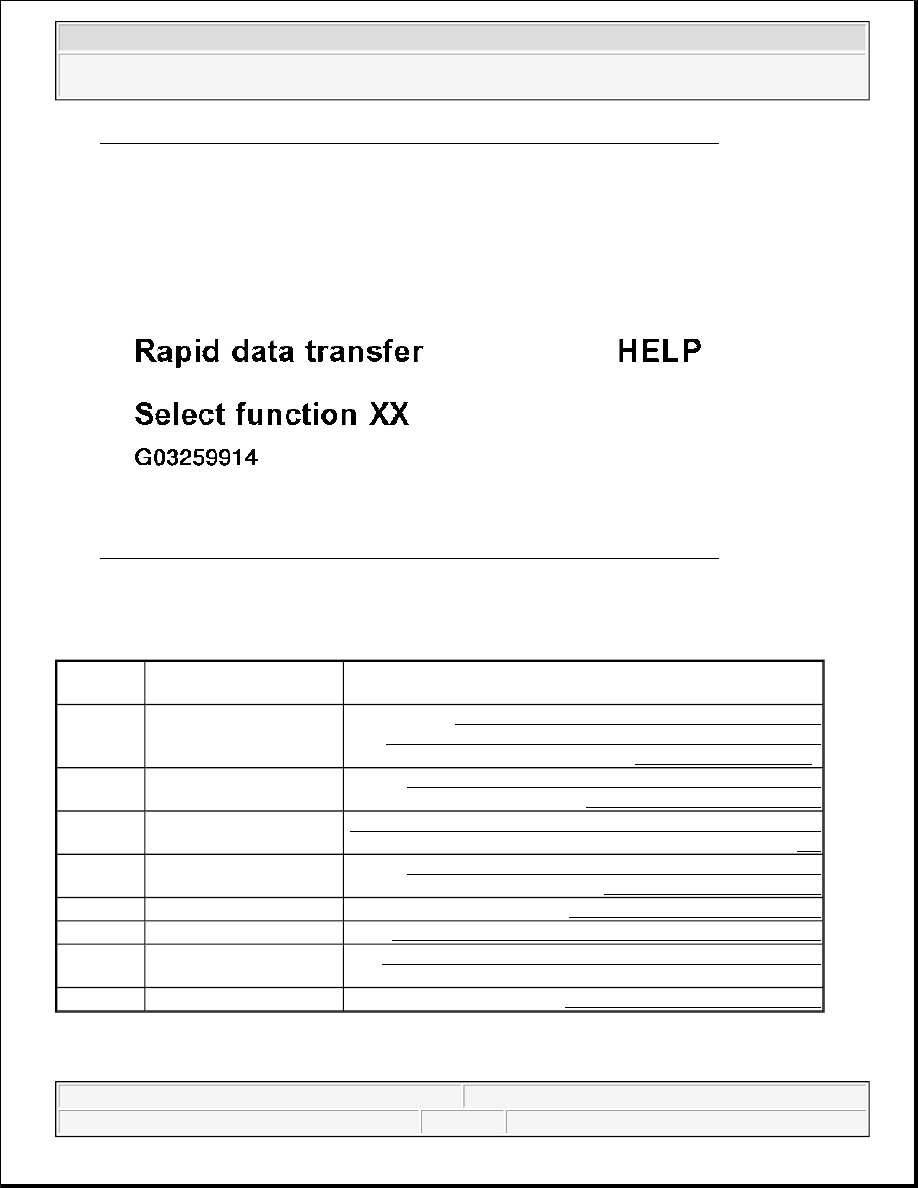

Fig. 15: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (8 Of 9)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

List of available functions

LIST OF AVAILABLE FUNCTIONS (UP TO 06.99)

Function
No.

Function Description

See

01 -

Check control module

version

VAG 1551 SCAN TOOL (ST), CONNECTING,

SELECTING FUNCTIONS & CHECKING CONTROL

MODULE VERSIONS .

02 -

Check Diagnostic Trouble

Code (DTC) memory

DIAGNOSTIC TROUBLE CODE (DTC) MEMORY,

CHECKING (FUNCTION 02)

03 -

Output Diagnostic Test

Mode (DTM)

OUTPUT DIAGNOSTIC TEST MODE (DTM) (FUNCTION

03)

05 -

Erase DTC memory

DIAGNOSTIC TROUBLE CODE (DTC) MEMORY,

ERASING (FUNCTION 05)

06 -

End output

END OUTPUT (FUNCTION 06)

07 -

Code control module

INSTRUMENT CLUSTER, CODING (FUNCTION 07)

08 -

Read measuring value

block

READ MEASURING VALUE BLOCK (FUNCTION 08)

10 -

Adaptation

ADAPTATION (FUNCTION 10)

NOTE:

z

Press HELP button to print out a complete list of available functions. This



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Indicated on display (select function):

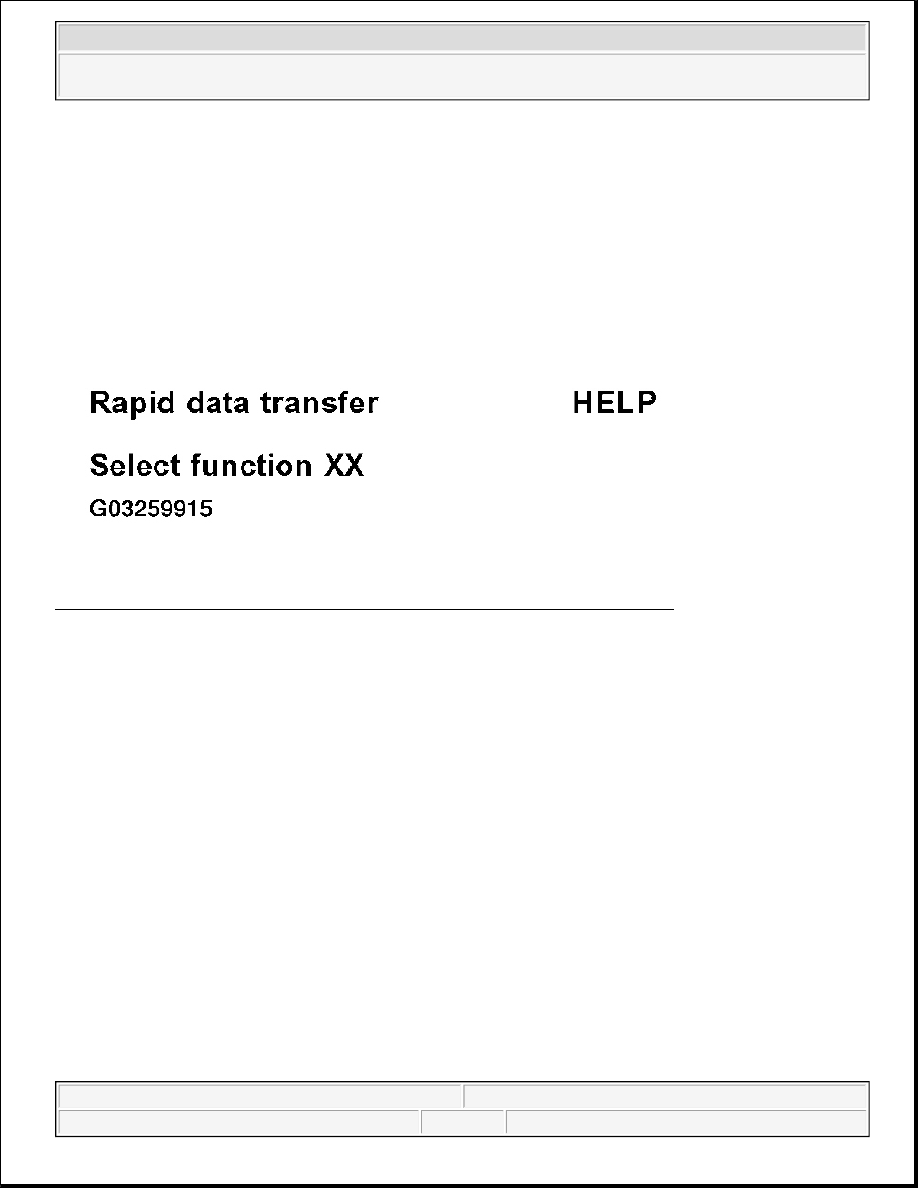

Fig. 16: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (9 Of 9)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, CHECKING (FUNCTION 02)

z

Switch printer on by pressing PRINT button (indicator lamp in button lights up).

Indicated on display

z

Press buttons -0- and -2- to select "Check DTC Memory" function 02.

list indicates function capability of VAG 1551 Scan Tool (ST) only, and
does not necessarily reflect function capability of vehicle systems
equipped with OBD. For instrument cluster address word 17, do not
attempt to select functions other than those listed above.

z

After function is completed and forwarded with --> button, VAG 1551 Scan
Tool (ST) returns to following start position:

NOTE:

The displayed DTC information is updated only when initiating OBD or with
"Erase DTC Memory" function 05.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



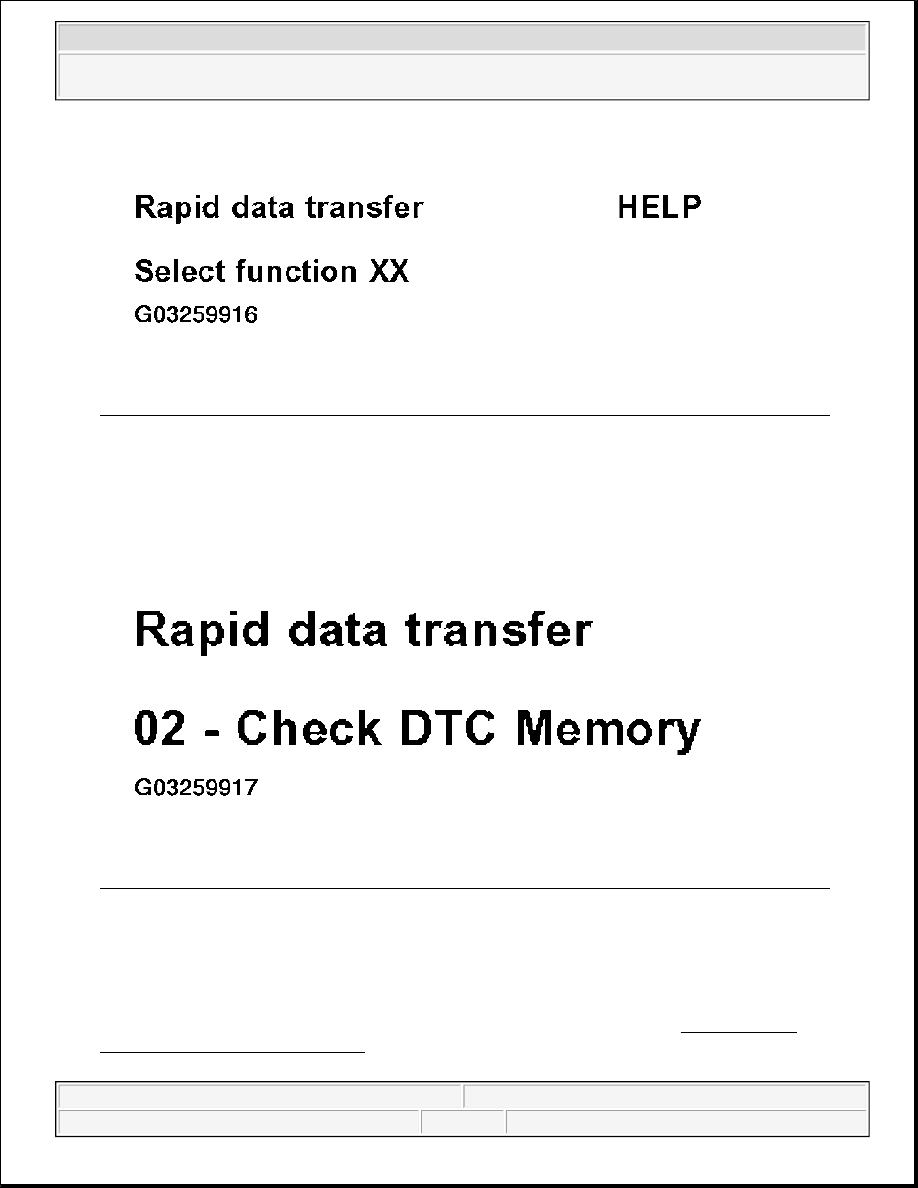

Fig. 17: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory, Up To 06.99 (1 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -Q- button to confirm input.

Fig. 18: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory, Up To 06.99 (2 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The number of stored DTCs appears on the display.

Stored DTCs are displayed and printed out one after another.

z

Check print-out against DTC table and repair all malfunctions as necessary. See DIAGNOSTIC
TROUBLE CODE (DTC) TABLE .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



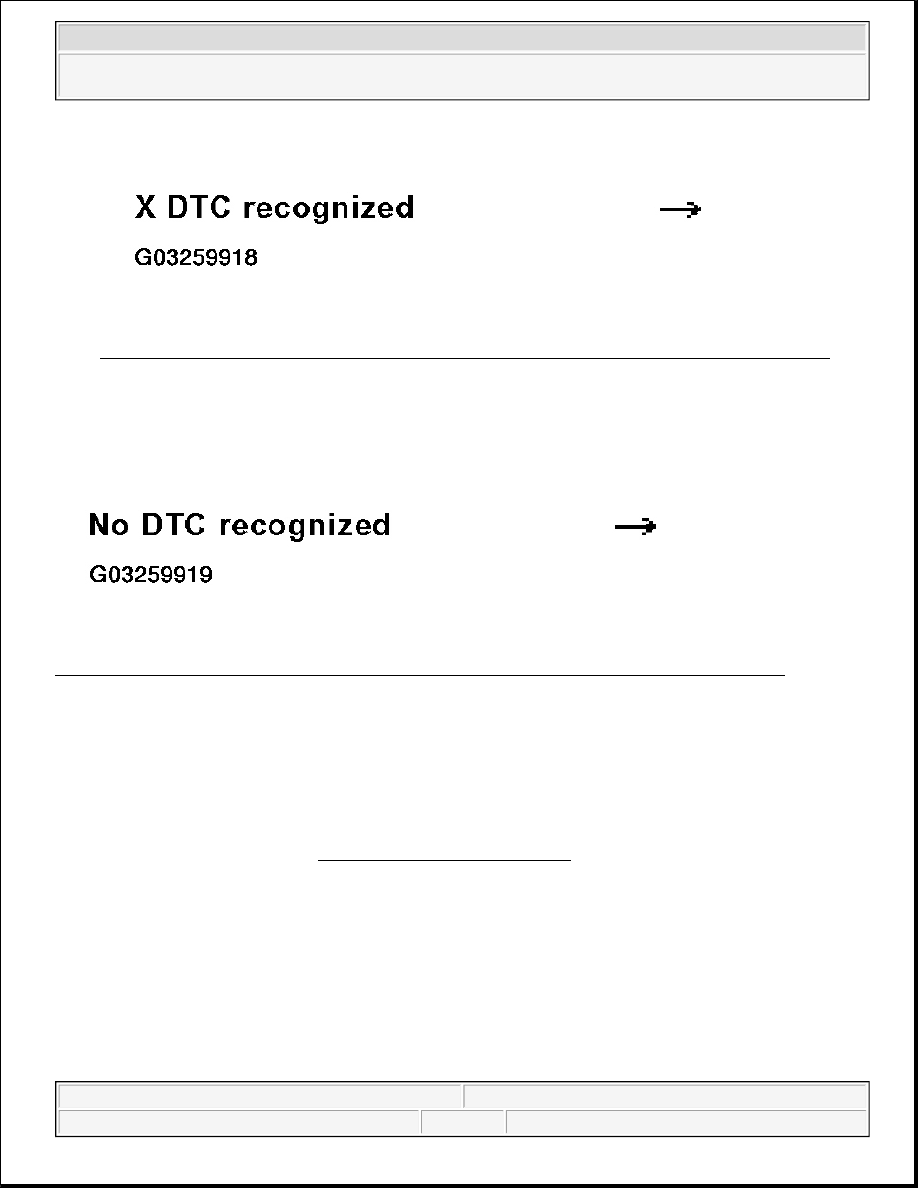

Fig. 19: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory, Up To 06.99 (3 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If "No DTC recognized" is displayed the program will return to the initial position after pressing --> button.

Fig. 20: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory, Up To 06.99 (4 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

If something else is displayed:

See Scan Tool operating instructions

z

End output (function 06). See END OUTPUT (FUNCTION 06) .

z

Switch ignition off.

z

Disconnect Data Link Connector (DLC).
