1. Instrument cluster -K-

z

Monitored by OBD

2. Engine Coolant Temperature (ECT) sensor -G2-

z

Location, See Fig. 2

z

Monitored by OBD

3. Speedometer Vehicle Speed Sensor (VSS) -G22-

z

Location, See Fig. 3

z

Monitored by OBD

4. Sender for fuel gauge -G-

z

Location, See Fig. 4

z

Monitored by OBD

CAUTION: Before beginning repairs on the electrical system:

z

Obtain the anti-theft radio security code.

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.

z

Disconnect negative (-) battery terminal.

z

When disconnecting and reconnecting battery terminals, observe all
applicable Notes and torque specifications, as well as instructions on
performing OBD program and electrical system function checks as
specified.

NOTE:

The following list refers to items in Fig. 1 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

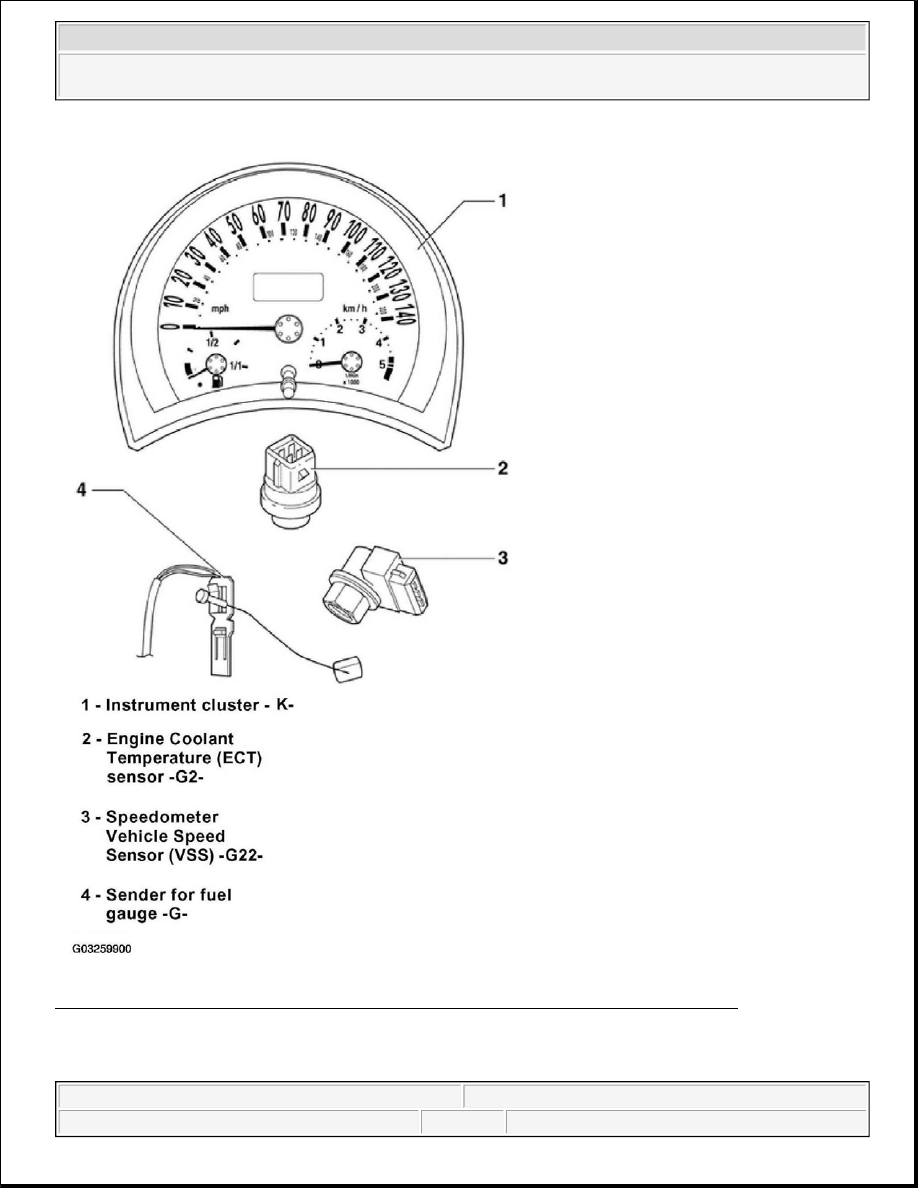

Fig. 1: Identifying Instrument Cluster Electrical & Electronic Components - Up To 06.99
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

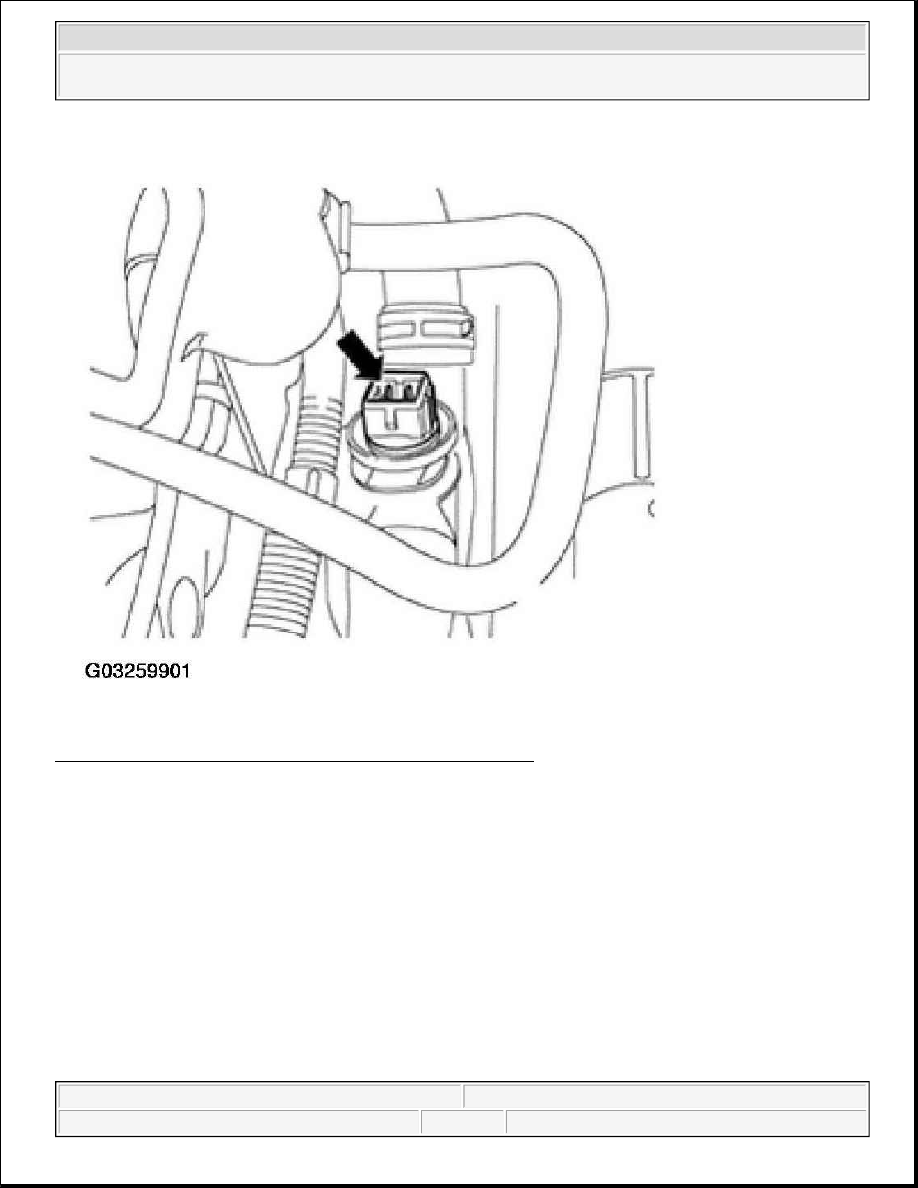

Fig. 2: Identifying Engine Coolant Temperature (ECT) Sensor
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The engine coolant temperature sensor is installed in the coolant return (arrow), located between the cylinder
head and the radiator.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

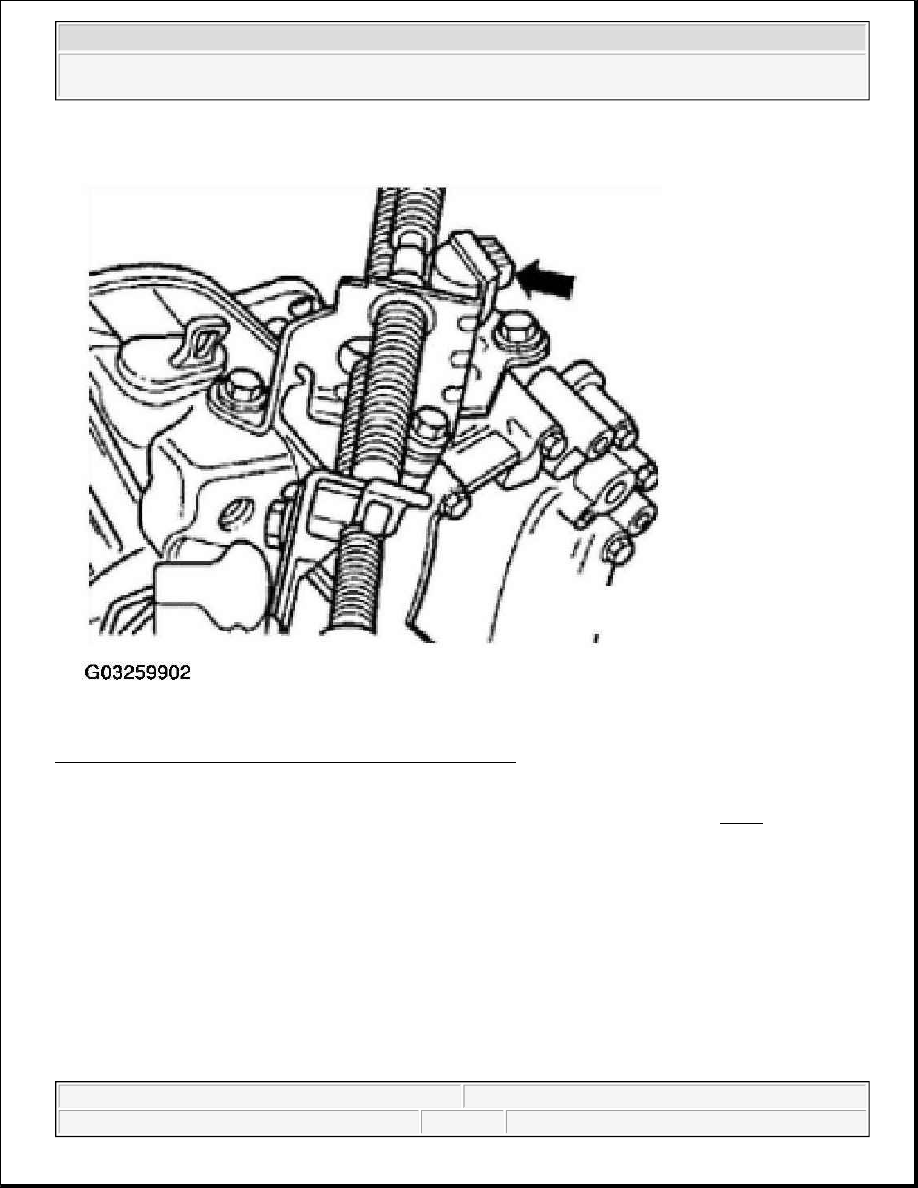

Fig. 3: Identifying Speedometer Vehicle Speed Sensor (VSS)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The speedometer vehicle speed sensor (arrow) is located at the rear of the transmission. See Fig. 3 .
