Volkswagen New Beetle. Manual - part 333

Fig. 237: Scan Tool Display - Rear Spoiler (5 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Press --> button

Indicated on display:

Fig. 238: Scan Tool Display - Rear Spoiler (6 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If one of the malfunction messages opposite appears in the display, the possible causes of the malfunction
can be printed out with the HELP button.

2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

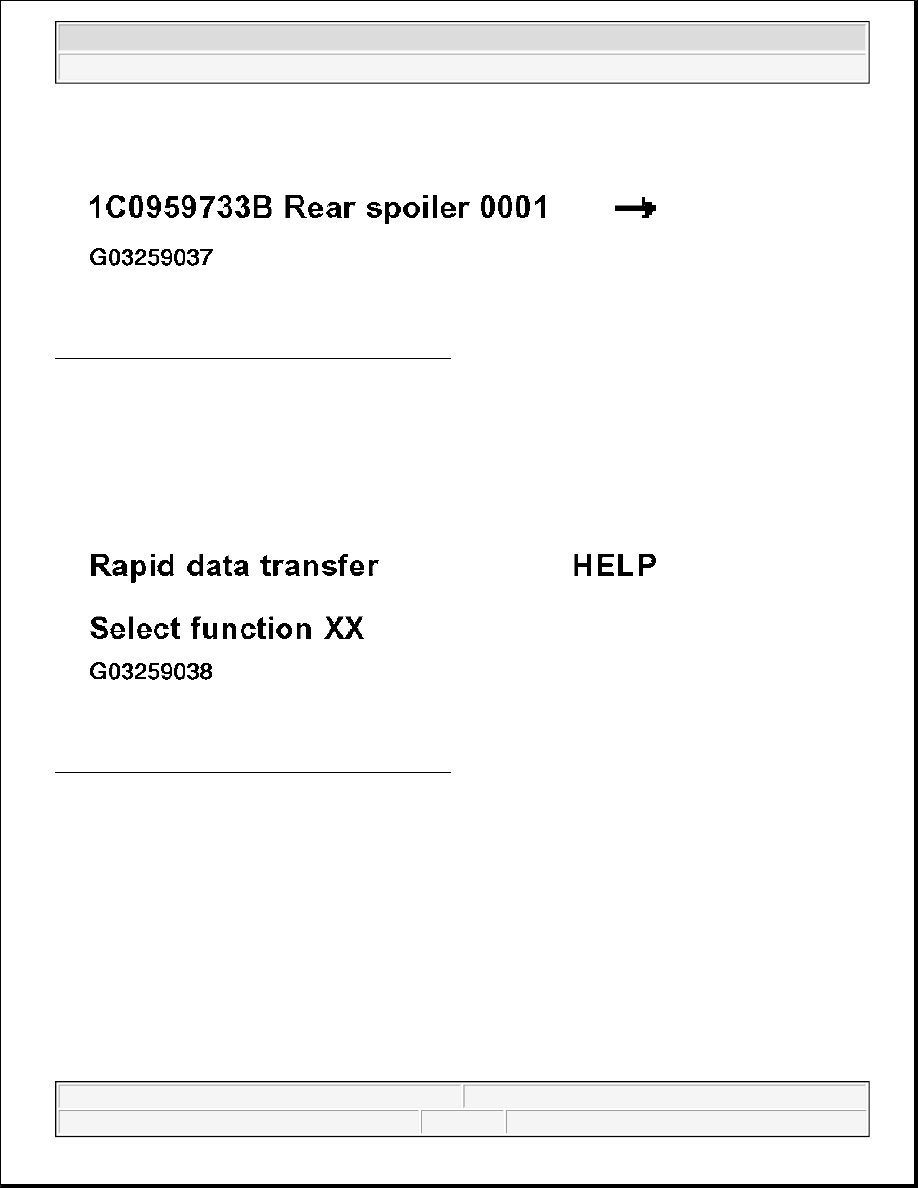

Fig. 239: Scan Tool Display - Rear Spoiler (7 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

When doing this the ignition must be switched on. See Fig. 240 .

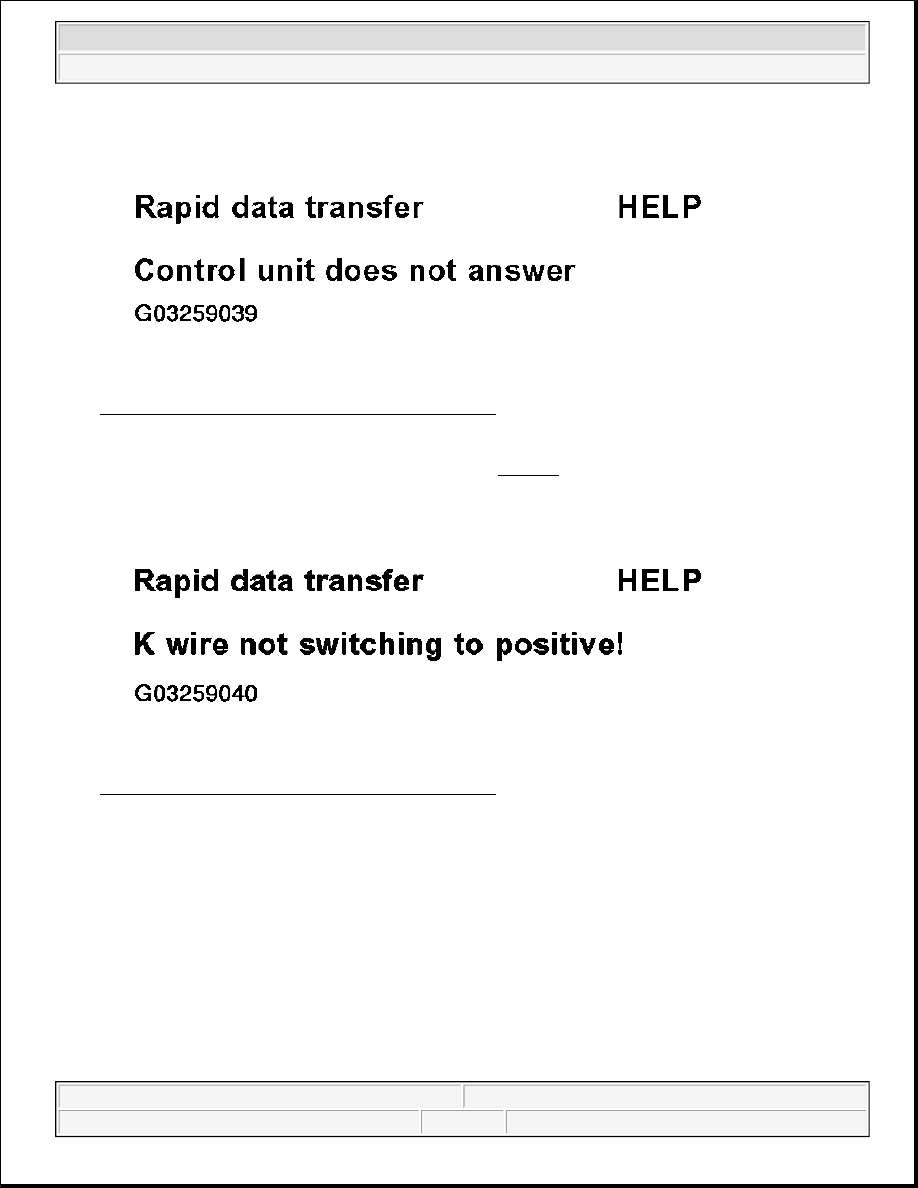

Fig. 240: Scan Tool Display - Rear Spoiler (8 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Malfunctions have occurred at the start of or during the program (external interference?).

2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

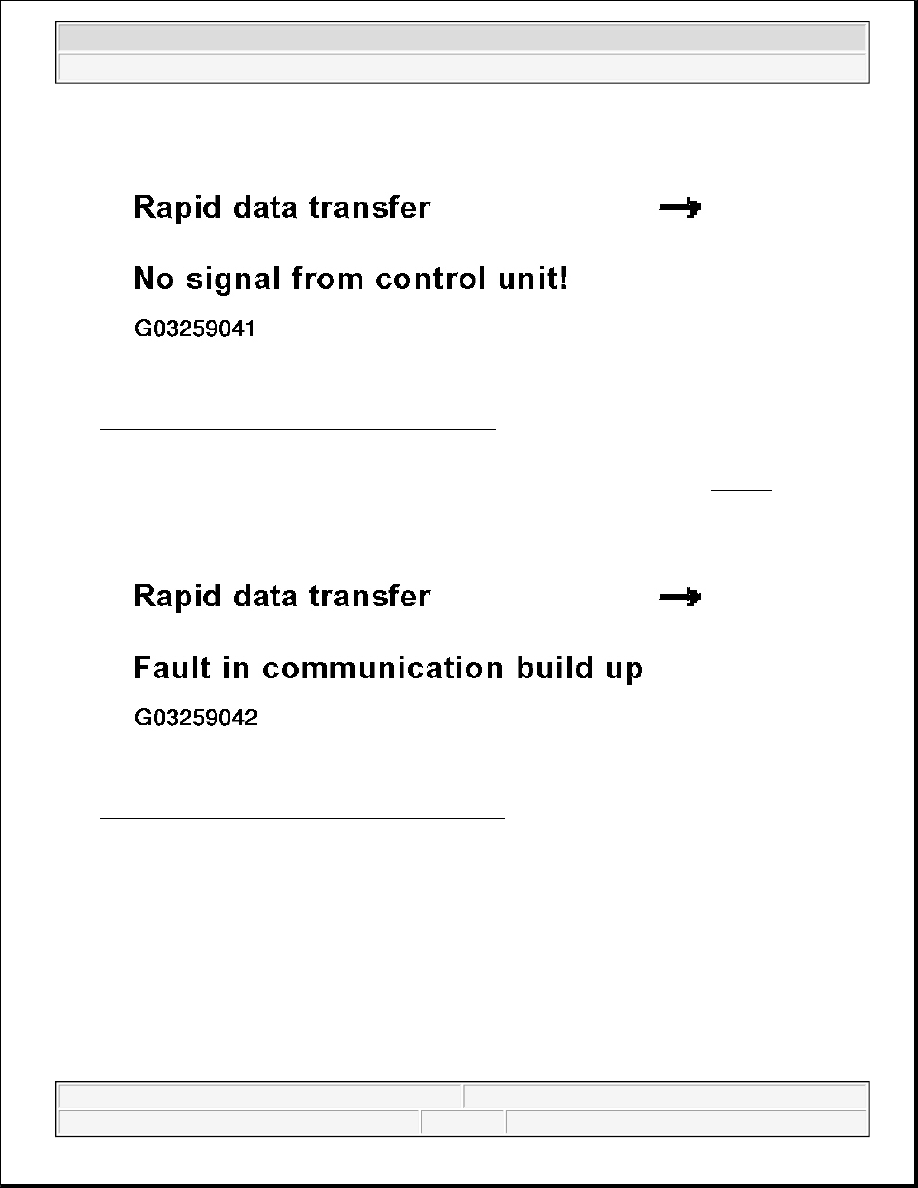

Fig. 241: Scan Tool Display - Rear Spoiler (9 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Check diagnosis wires as well as voltage supply and ground (GND) connection. See Fig. 242 .

Fig. 242: Scan Tool Display - Rear Spoiler (10 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

After repairing the possible causes of the malfunction, once again enter the address word 54 for "Rear
spoiler" and confirm with the -Q- button.

2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

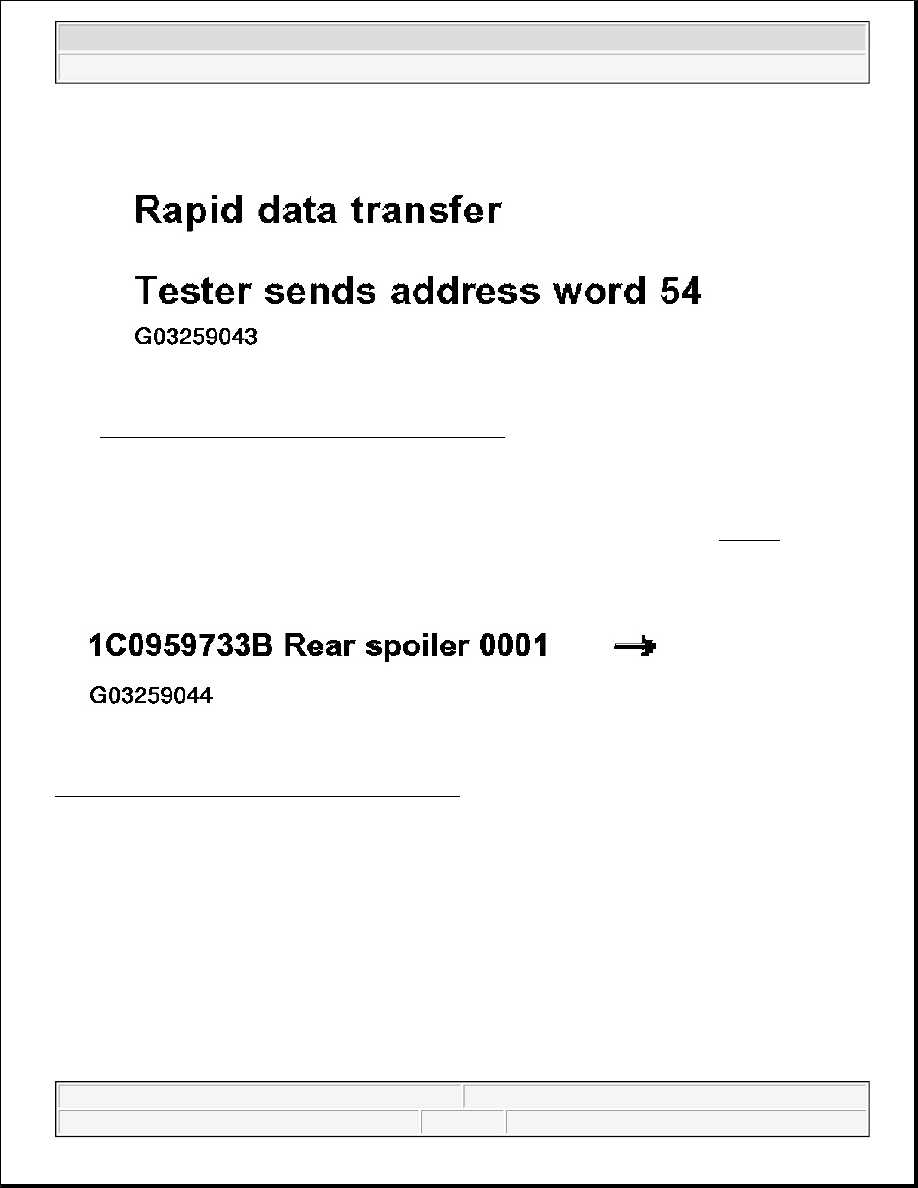

Fig. 243: Scan Tool Display - Rear Spoiler (11 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display after entering the address word 54:

The scan tool V.A.G 1551 display will show the control unit identification, for example see Fig. 244 .

Fig. 244: Scan Tool Display - Rear Spoiler (12 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Press --> button.

Indicated on display:
