Volkswagen New Beetle. Manual - part 330

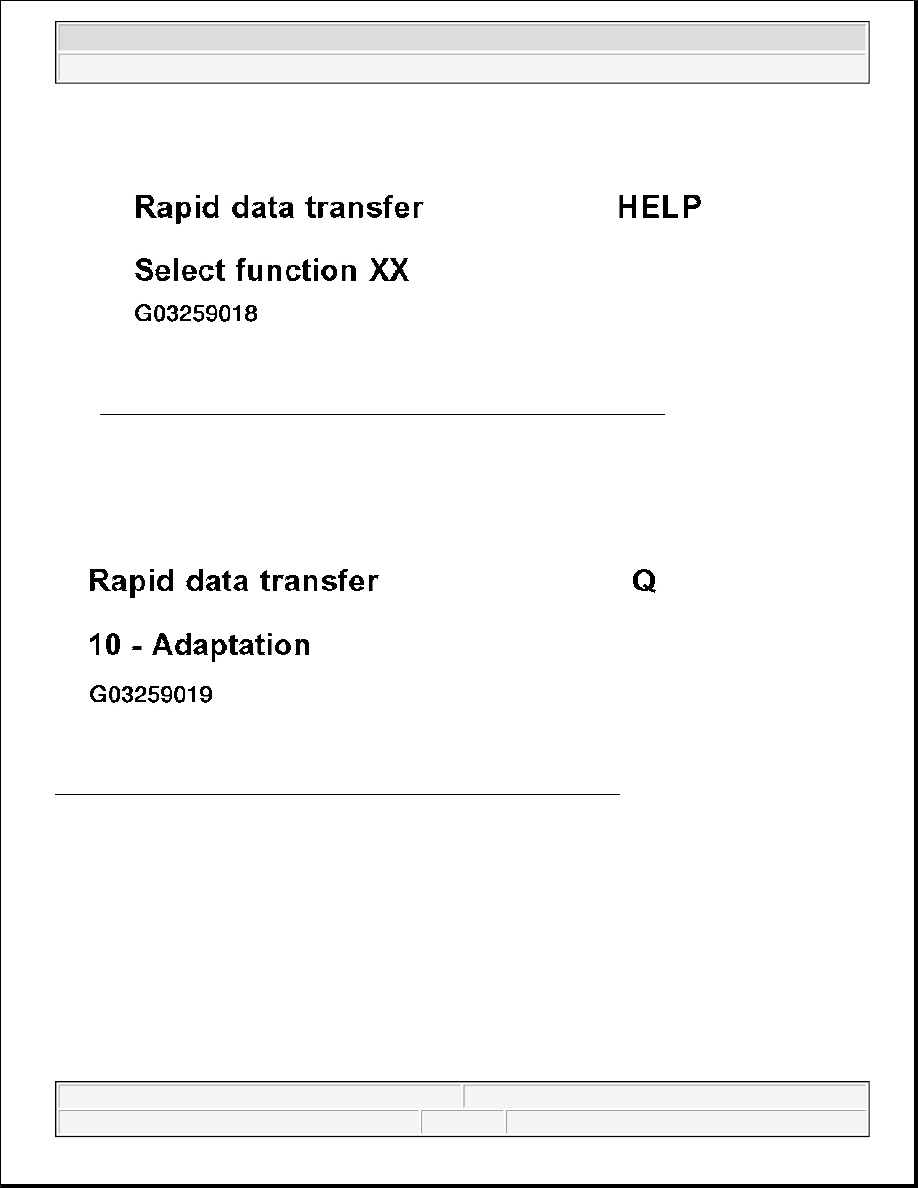

Fig. 218: Scan Tool Display - Central Locking System Functions (1 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

Fig. 219: Scan Tool Display - Central Locking System Functions (2 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

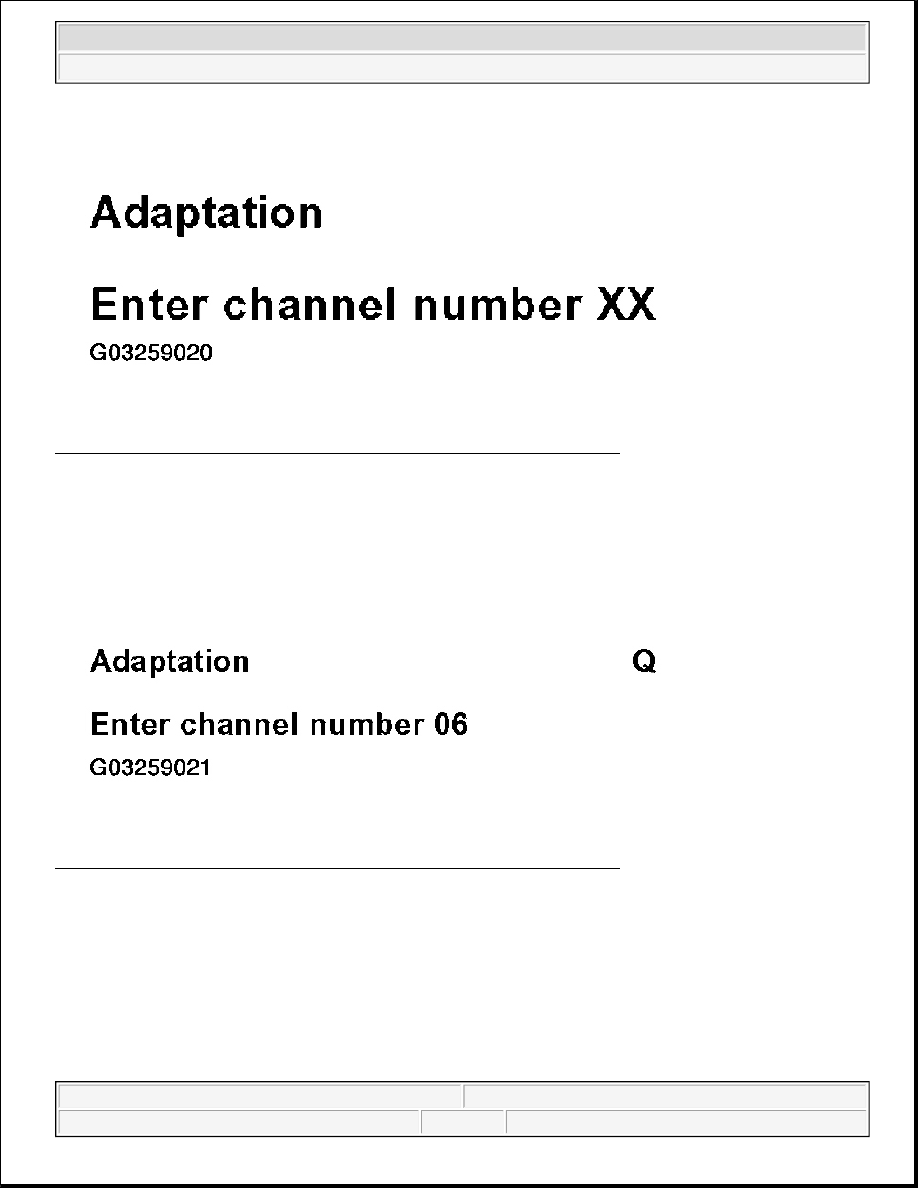

Fig. 220: Scan Tool Display - Central Locking System Functions (3 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -6- (channel number 06 switches the horn on or off when locking).

Indicated on display:

Fig. 221: Scan Tool Display - Central Locking System Functions (4 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

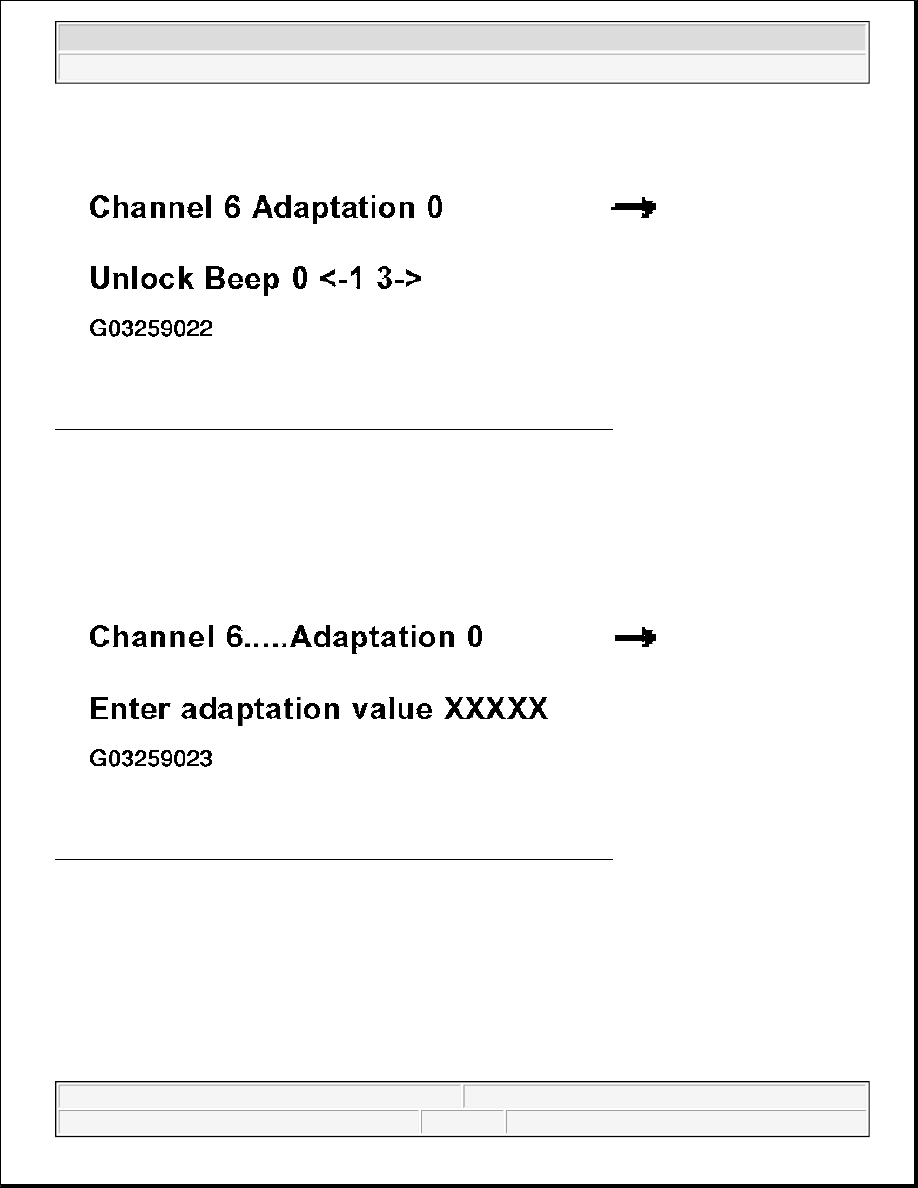

Fig. 222: Scan Tool Display - Central Locking System Function (5 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button.

Indicated on display:

Fig. 223: Scan Tool Display - Central Locking System Function (6 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button.

z

Press the -0- button four times and then the -1- button (e.g. 00001).

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

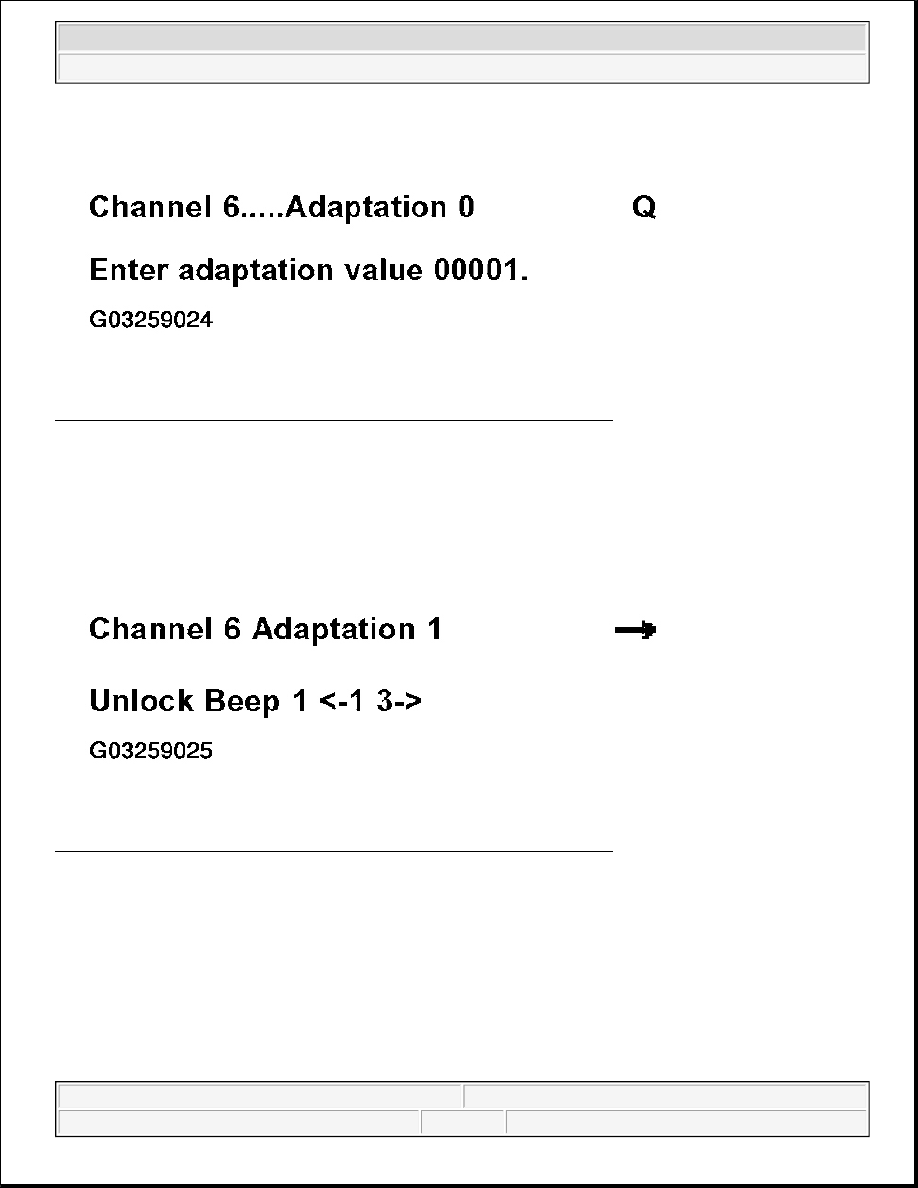

Fig. 224: Scan Tool Display - Central Locking System Function (7 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:

Fig. 225: Scan Tool Display - Central Locking System Function (8 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle
