Press buttons -0- and -6- to end the output.

z

Confirm entry with -Q- button.

Indicated on display:

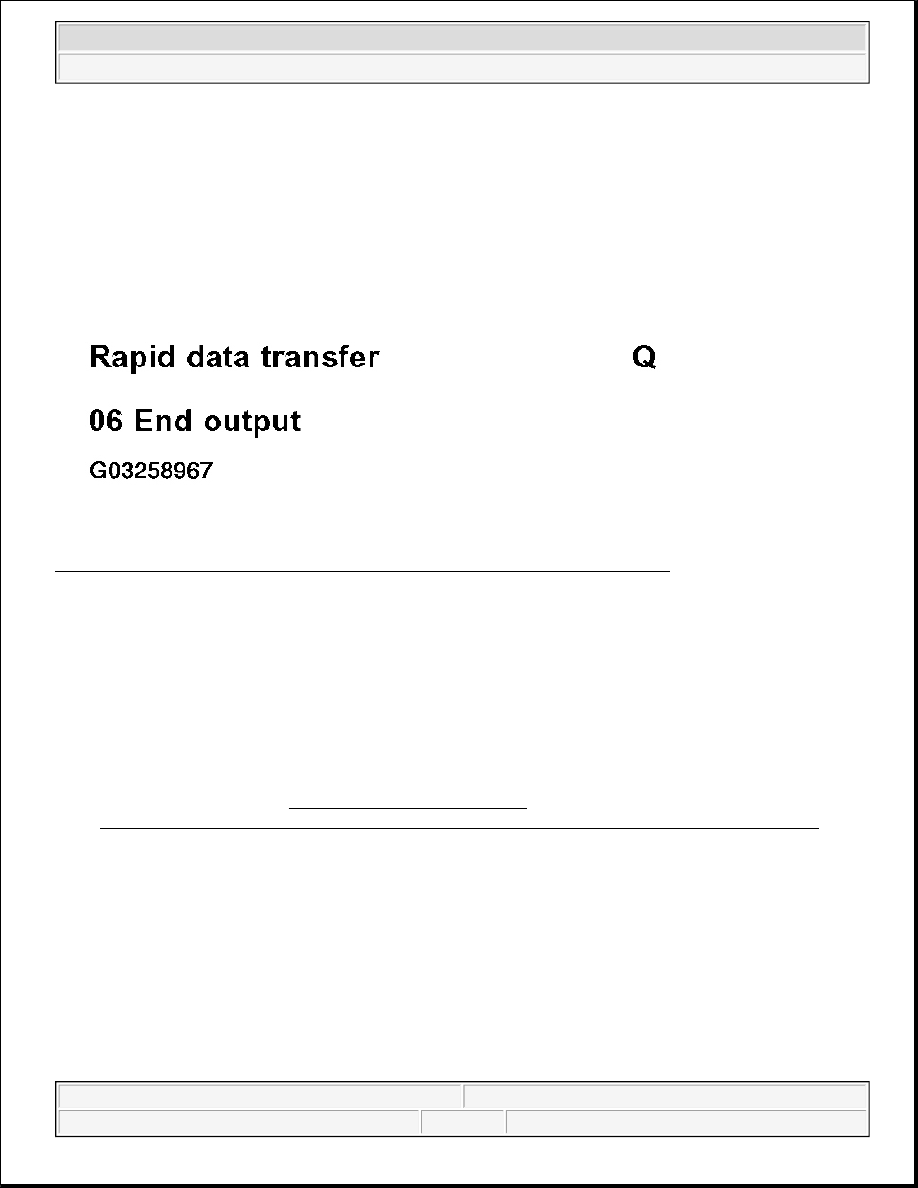

Fig. 167: Scan Tool Display - Central Locking Control Unit Function 07 (8 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch off ignition.

z

Disconnect connection to scan tool V.A.G 1551.

DTC MEMORY, CHECKING (FUNCTION 02)

z

Connecting scan tool, see SCAN TOOL, CONNECTING . Initiating On Board Diagnosis (OBD), see
ON BOARD DIAGNOSIS (OBD) FOR THE CENTRAL LOCKING SYSTEM, INITIATING .

Indicated on display:

NOTE:

The vehicle system tester V.A.G 1552 can be used instead of the scan tool
V.A.G 1551, however a print-out is not possible.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

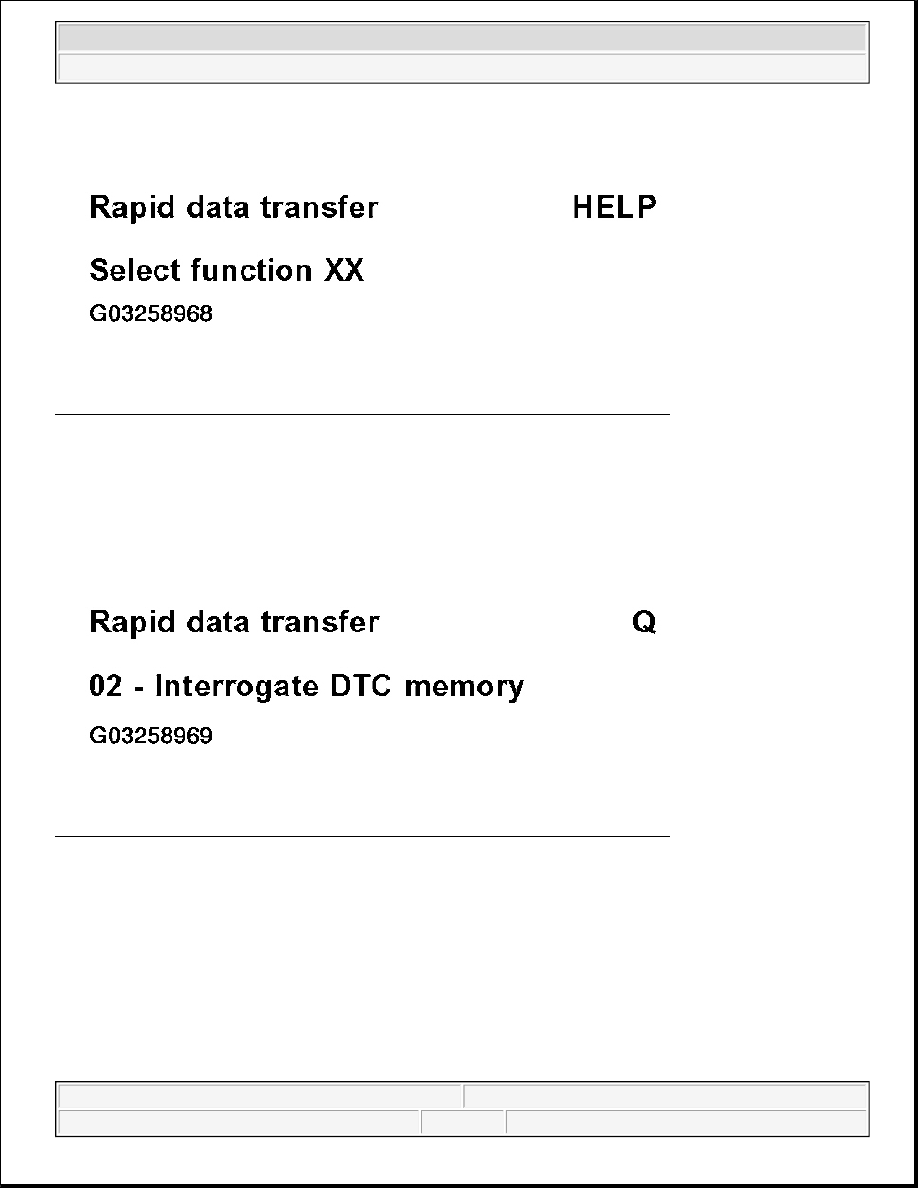

Fig. 168: Scan Tool Display - Central Locking Control Unit Function 02 (1 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -2-. (Function "Interrogate DTC memory" is selected with 02).

Indicated on display:

Fig. 169: Scan Tool Display - Central Locking Control Unit Function 02 (2 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press Print button.

z

Confirm entry with -Q- button.

The number of stored malfunctions appears in the display.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Fig. 170: Scan Tool Display - Central Locking Control Unit Function 02 (3 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The stored malfunctions will be displayed and printed out one after the other.

z

The malfunctions printed out can be corrected with aid of Diagnostic Trouble Code (DTC) table, from,
see DIAGNOSTIC TROUBLE CODE (DTC) TABLE .

z

The function MEASURED VALUE (DATA) BLOCK, READING and DISPLAY GROUP
OVERVIEW are additional aids.

The measured value block is divided into 10 display group numbers. The assignment of the individual display
zones can be taken from the display group overview see DISPLAY GROUP OVERVIEW .

If "No fault detected" is displayed the program will return to the initial position after pressing the --> button.

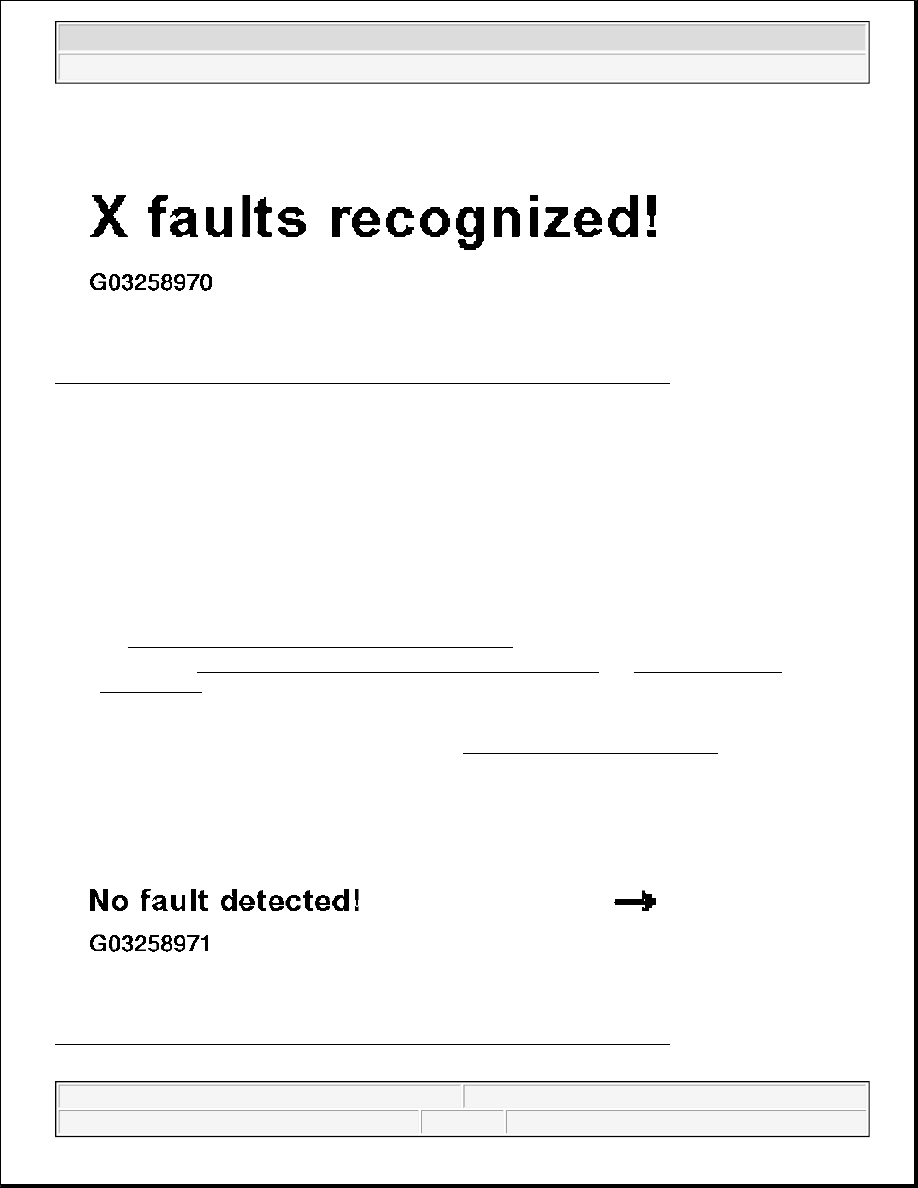

Fig. 171: Scan Tool Display - Central Locking Control Unit Function 02 (4 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

If a malfunction is recognized:

z

Correct malfunction

z

Erase DTC memory (function 05)

z

Interrogate DTC memory again (function J 02).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Indicated on display:

Fig. 172: Scan Tool Display - Central Locking Control Unit Function 02 (5 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If something else is displayed:

See Scan tool operating instructions

z

Press buttons -0- and -6- to end the output.

Indicated on display:

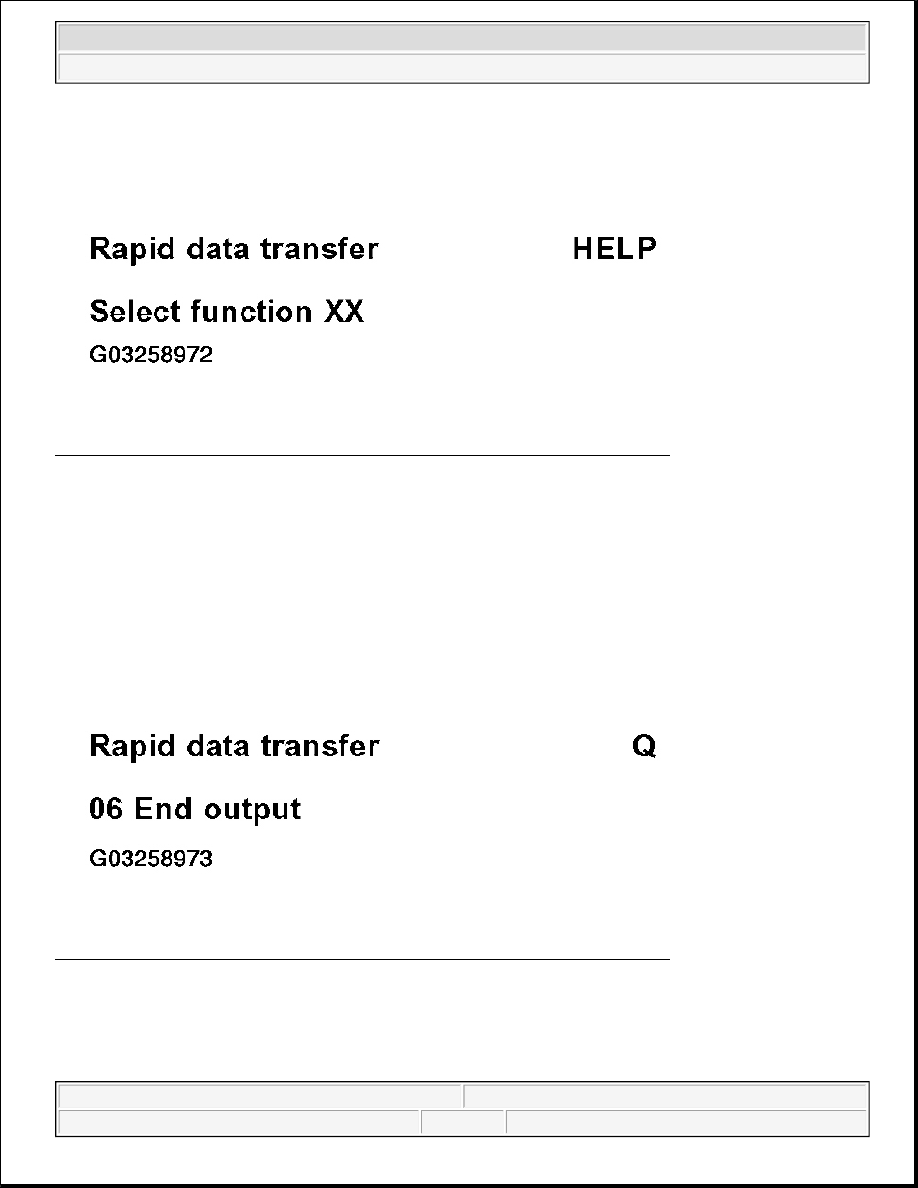

Fig. 173: Scan Tool Display - Central Locking Control Unit Function 02 (6 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:
