Removing

1. Knurled nut

2. Washer

3. Spacer

4. Retaining bolt

5. Rear light

NOTE:

The following list refers to items in Fig. 77 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle





2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

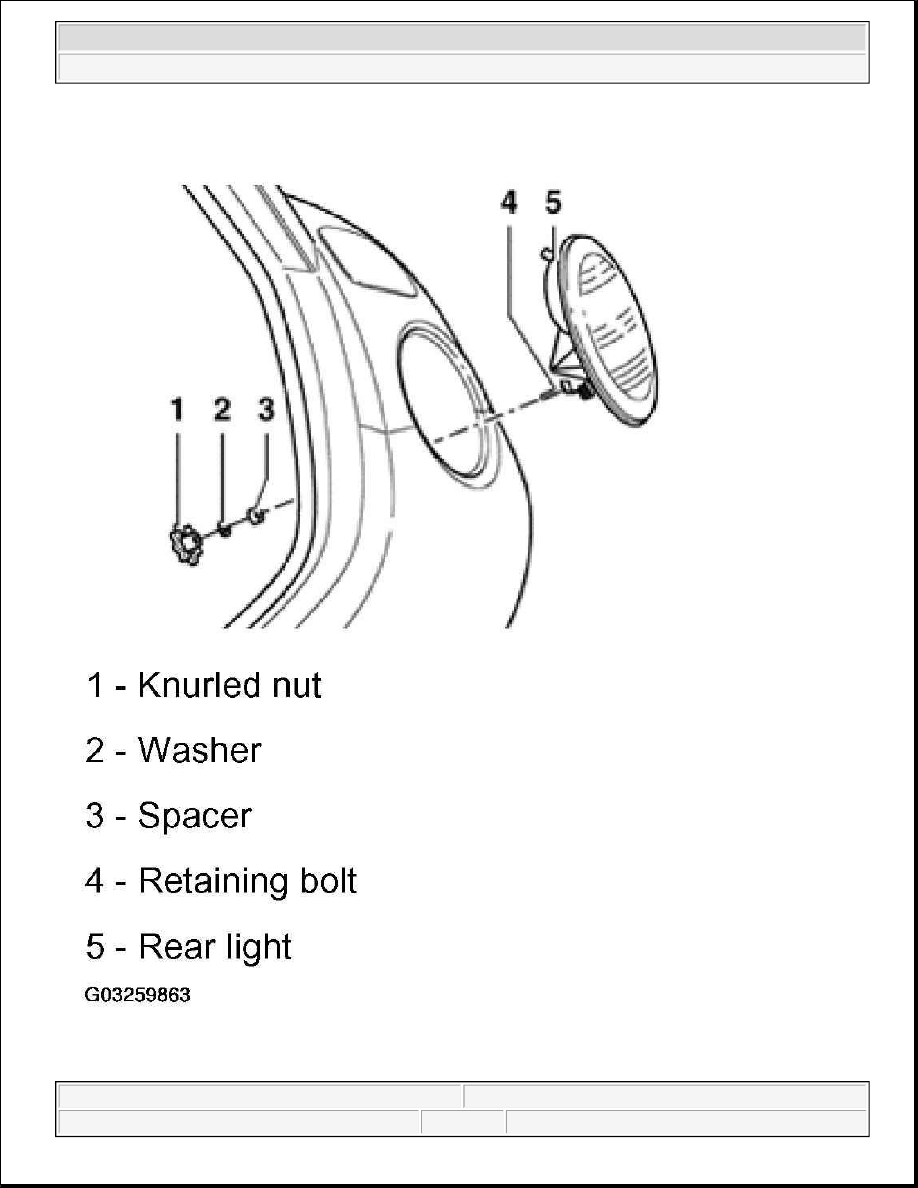

Fig. 77: Rear Light Housing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove rear striker mount cover.

See LOAD AND LUGGAGE AREA TRIMS .

z

Reach behind respective quarter panel trim and unscrew knurled nut -1-. Make sure washer -2- and spacer
-3- do not fall down. See Fig. 77 .

z

Remove rear light -5- and disconnect electrical connector.

Installing

z

Connect electrical connector.

z

Insert rear light housing into body opening.

z

Insert retaining bolt -4- into body opening.

z

Insert rear light into cutout -arrow-.

CAUTION:

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

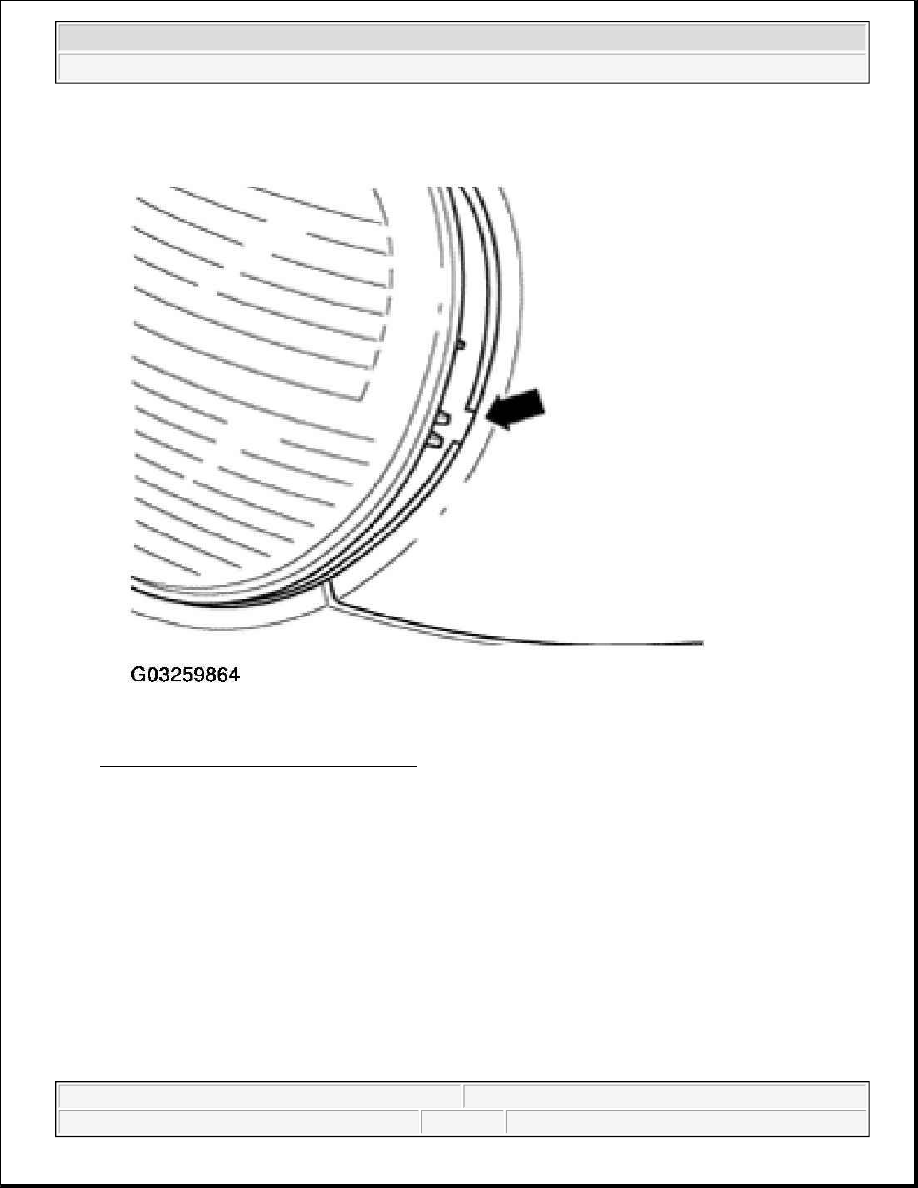

Fig. 78: Inserting Rear Light Into Cutout
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Slide spacer -3- and washer -2- onto retaining bolt -4-, attach knurled nut -1- and tighten by hand.
