Fig. 62: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (11 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -Q- button to confirm input.

Indicated on display:

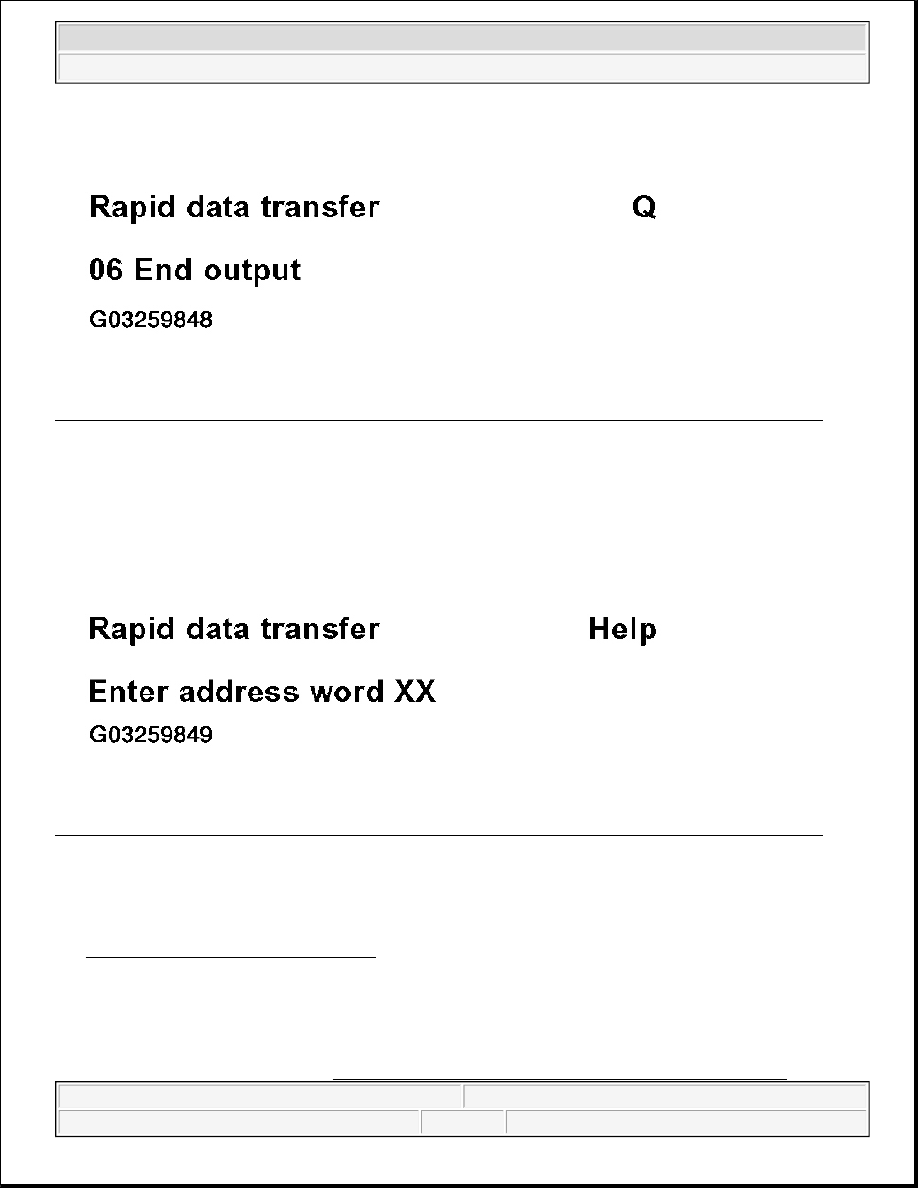

Fig. 63: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (12 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

After checking the adjustment of the coupling rod, the related electrical components must adjusted to the
revised settings. Perform basic settings of the automatic headlight range control to adjust to the revised settings.

See On Board Diagnostic (OBD), function .

HEADLIGHT BEAM ADJUSTING MOTOR -V48- / -V49-, REMOVING AND INSTALLING

Removing

z

Remove headlight housing. See HEADLIGHT HOUSING WITH HIGH INTENSITY GAS



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



DISCHARGE (HID) LAMP, REMOVING AND INSTALLING .

z

Remove sealing cap. See HEADLIGHTS WITH HIGH INTENSITY GAS DISCHARGE (HID)
LAMP, REPLACING BULBS .

z

Remove screws -arrows- on motor.

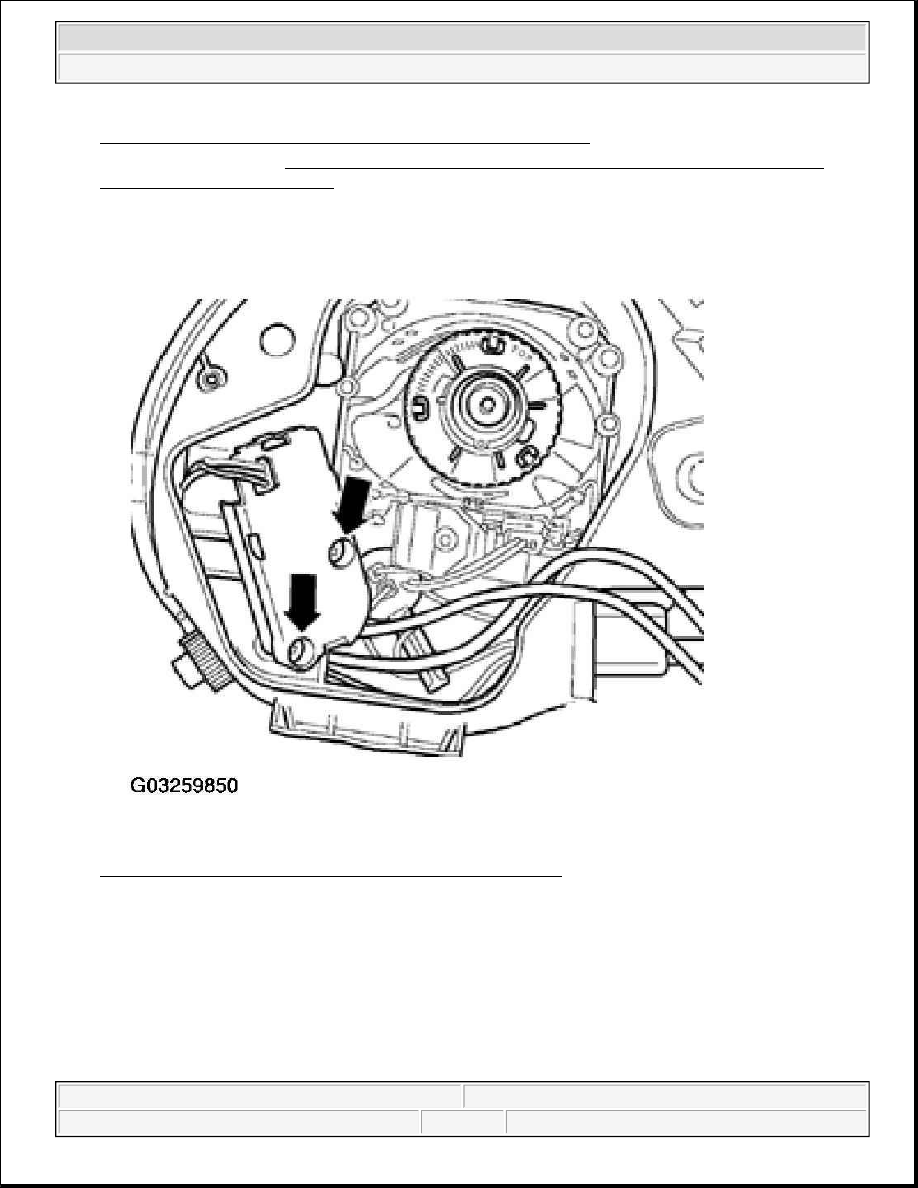

Fig. 64: Removing Headlight Beam Adjusting Motor Screws
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Pull positioning rod ball head out from locking device on reflector.

z

Disconnect electrical connection.

Installing

Installation in reverse sequence or removal.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

Check headlight function.

z

Perform headlight basic setting (function 04) using On Board Diagnostic program, See ON BOARD
DIAGNOSTIC (OBD), FUNCTION .

FRONT TURN SIGNAL AND SIDE MARKER LIGHTS

FRONT TURN SIGNAL AND SIDE MARKER LIGHTS, REMOVING AND INSTALLING

Removing

z

Remove screw cover.

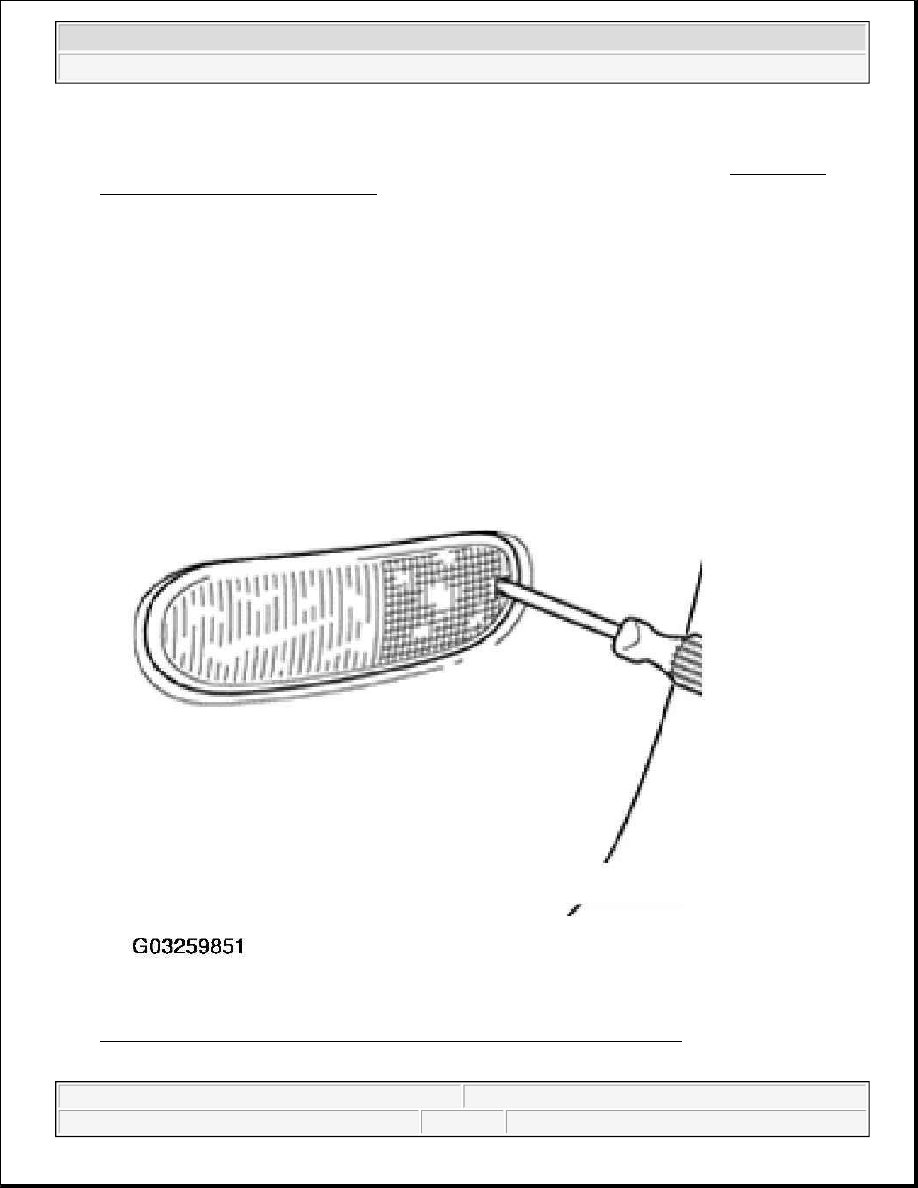

Fig. 65: Removing Front Turn Signal And Side Marker Lights Screw Cover
Courtesy of VOLKSWAGEN OF AMERICA, INC.

CAUTION:

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

Remove securing screw.

z

Pull turn signal out forwards.

z

Disconnect electrical connector.

Installing

z

Connect electrical connector.

z

Slide turn signal into fender opening.

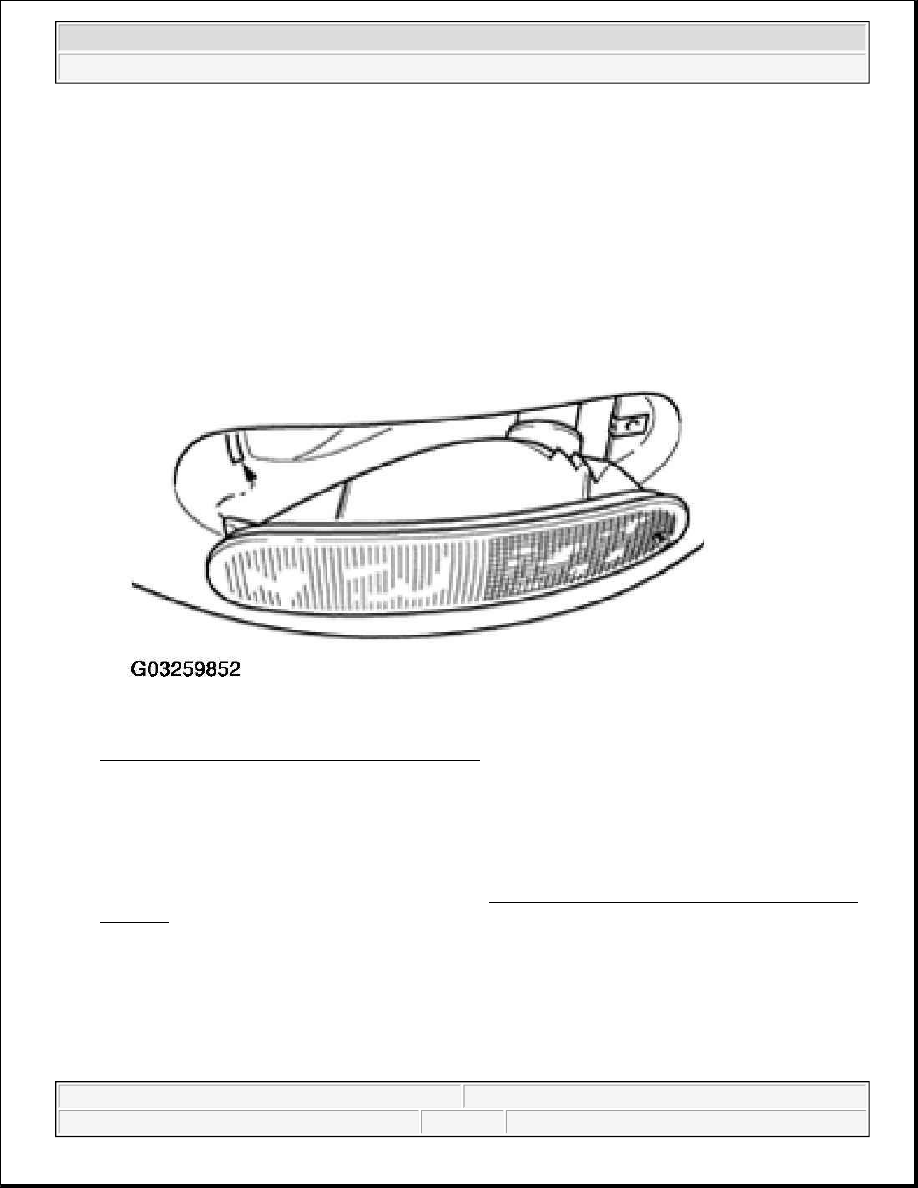

Fig. 66: Sliding Turn Signal Into Fender Opening
Courtesy of VOLKSWAGEN OF AMERICA, INC.

FRONT TURN SIGNAL AND SIDE MARKER LIGHT BULB, REPLACING

Removing

z

Remove turn signal lights and side marker lights. See FRONT TURN SIGNAL AND SIDE MARKER
LIGHTS .

z

Turn bulb holder in direction shown -arrow- and pull out from housing.

z

Remove bulb from holder.



2003 Volkswagen New Beetle GLS
