Volkswagen New Beetle. Manual - part 264

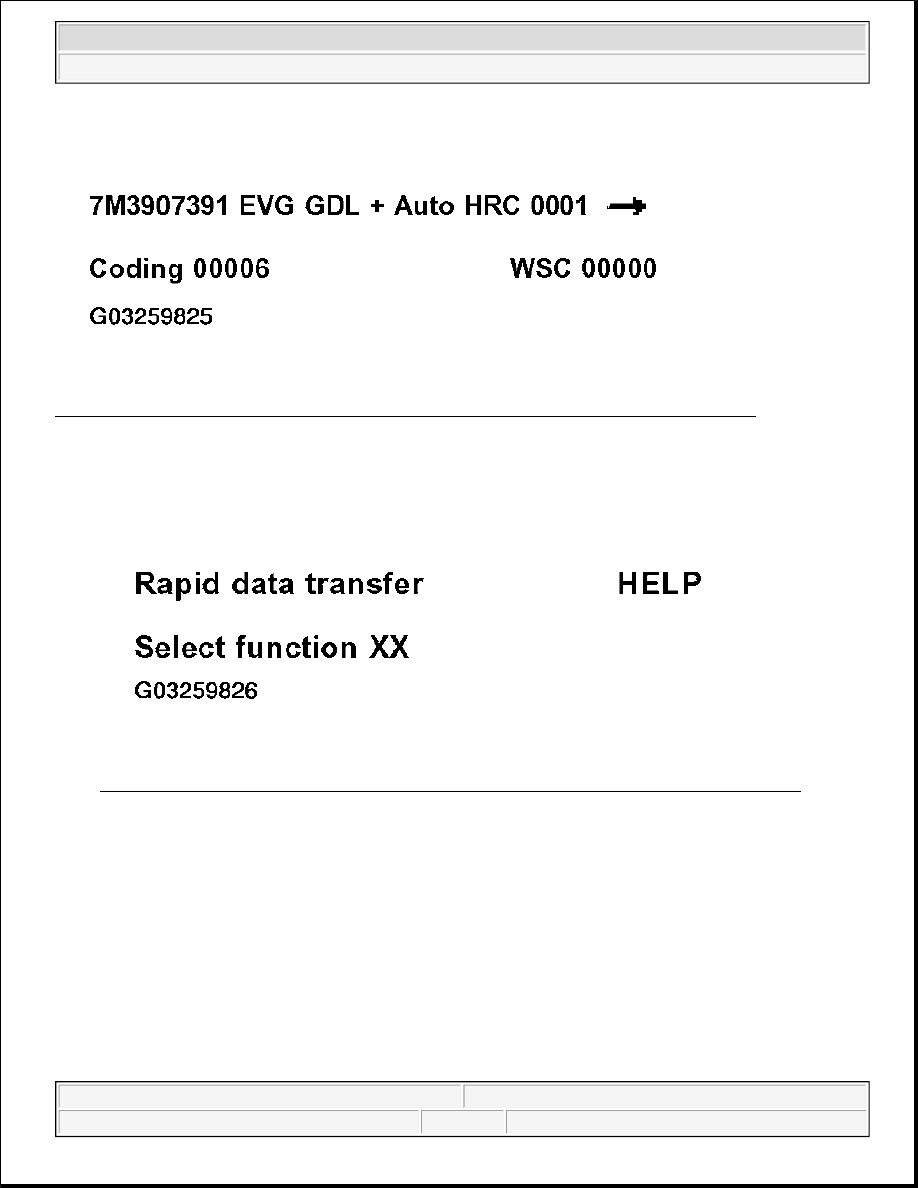

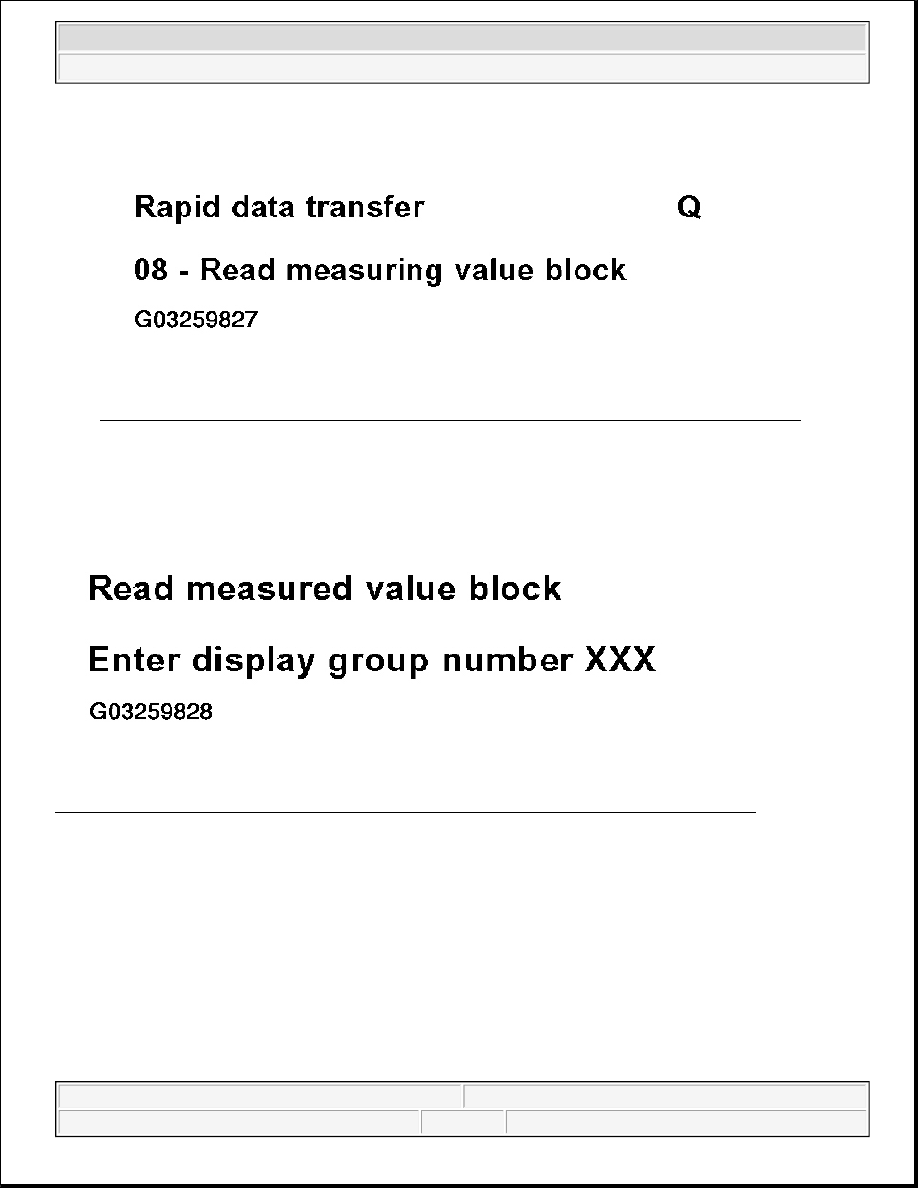

Fig. 39: VAG 1551/1552 Scan Tool Display - Connecting VAG 1551/1552 Scan Tool (5 Of 9)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press keys -0- and -8- to select "Read measuring value block" address word 08.

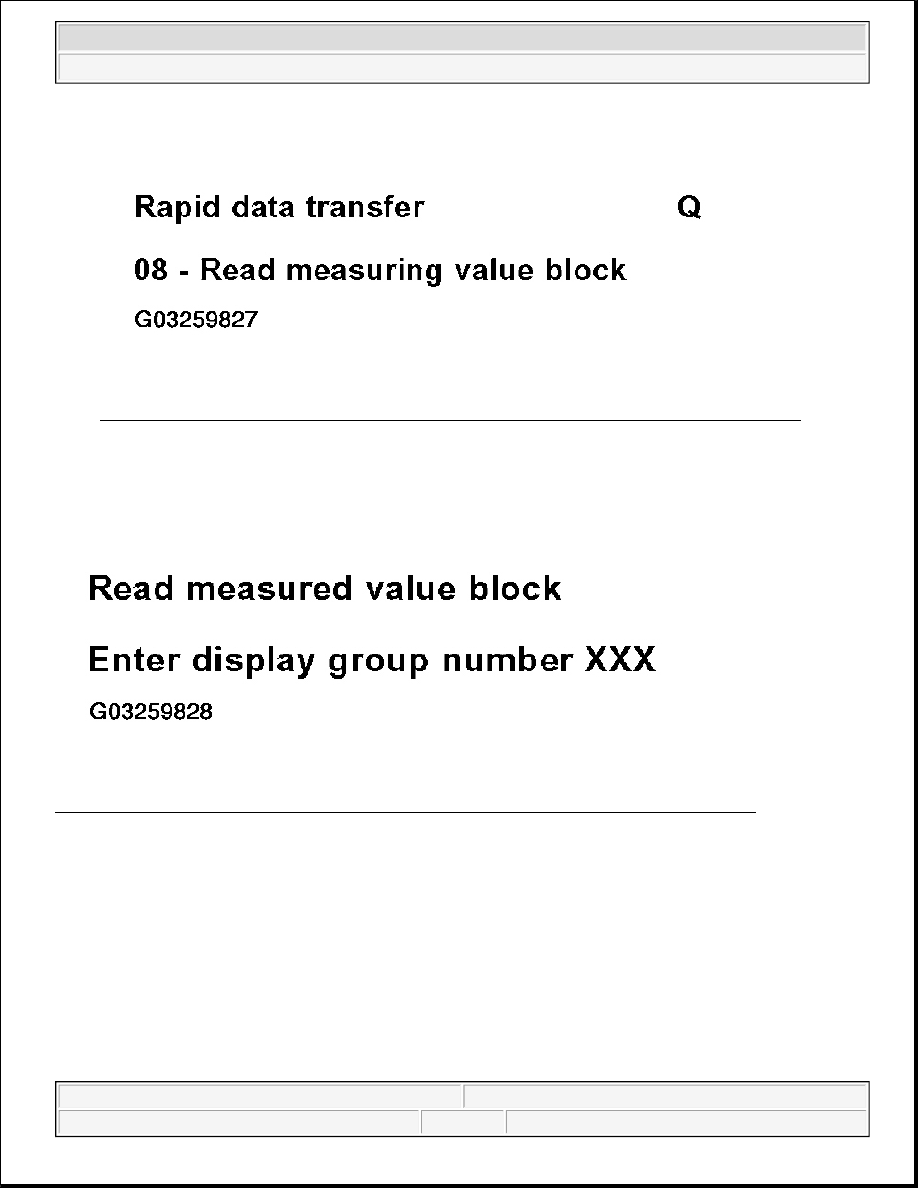

Fig. 40: VAG 1551/1552 Scan Tool Display - Connecting VAG 1551/1552 Scan Tool (6 Of 9)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

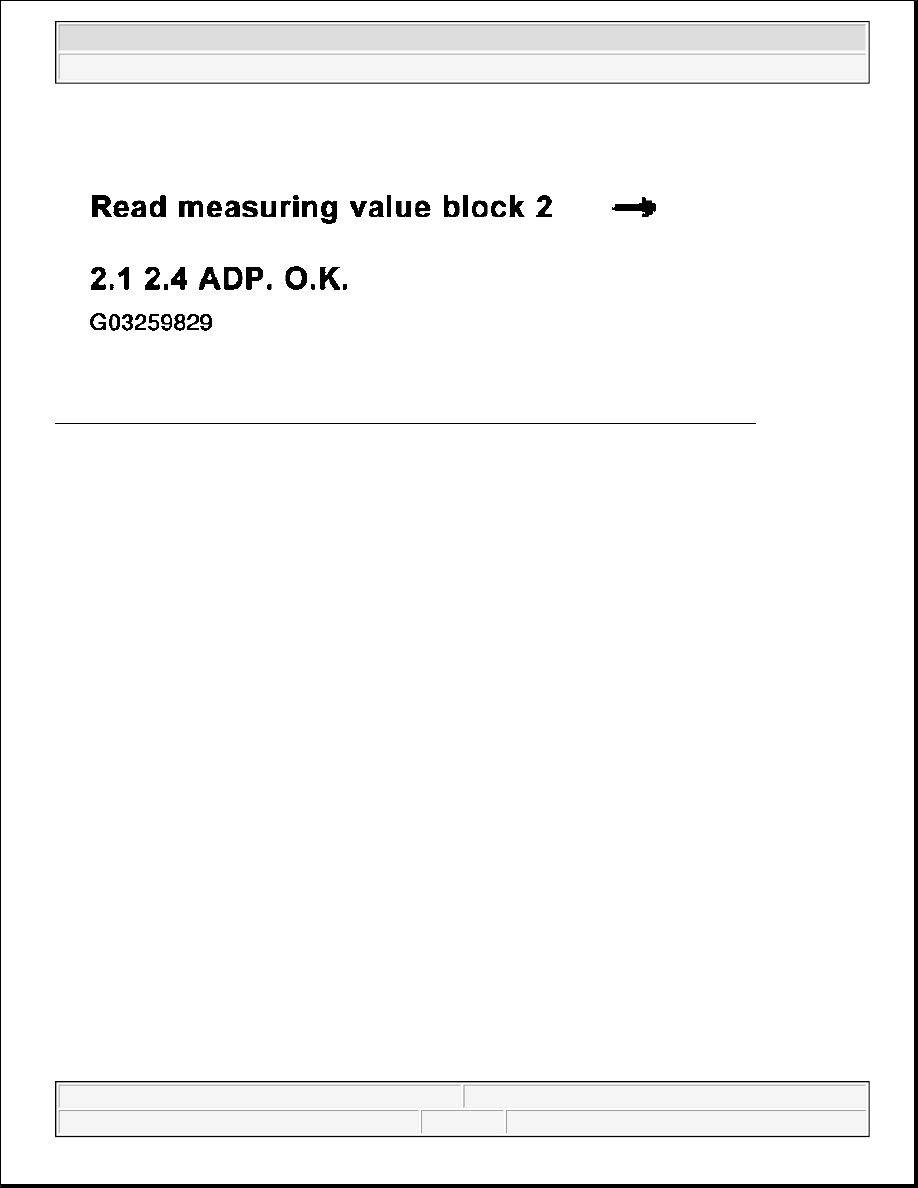

Fig. 41: VAG 1551/1552 Scan Tool Display - Connecting VAG 1551/1552 Scan Tool (7 Of 9)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display.

Fig. 42: VAG 1551/1552 Scan Tool Display - Connecting VAG 1551/1552 Scan Tool (8 Of 9)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press key 0 twice and press key 2 once to select display group number 002.

z

Press -Q- button to confirm input.

Indicated on display.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



Fig. 43: VAG 1551/1552 Scan Tool Display - Connecting VAG 1551/1552 Scan Tool (9 Of 9)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Loosen lower securing bolt -arrow- on coupling rod of front axle.

z

Move coupling rod within elongated hole until specification of 1.0 to 2.0 Volt is displayed in display zone
1 of the Read measuring value block. Optimum specification = 1.0 Volt (if possible).

z

Tighten securing bolt. When doing this ensure voltage remains as close to optimum tolerance of 1.0 Volt
as possible.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

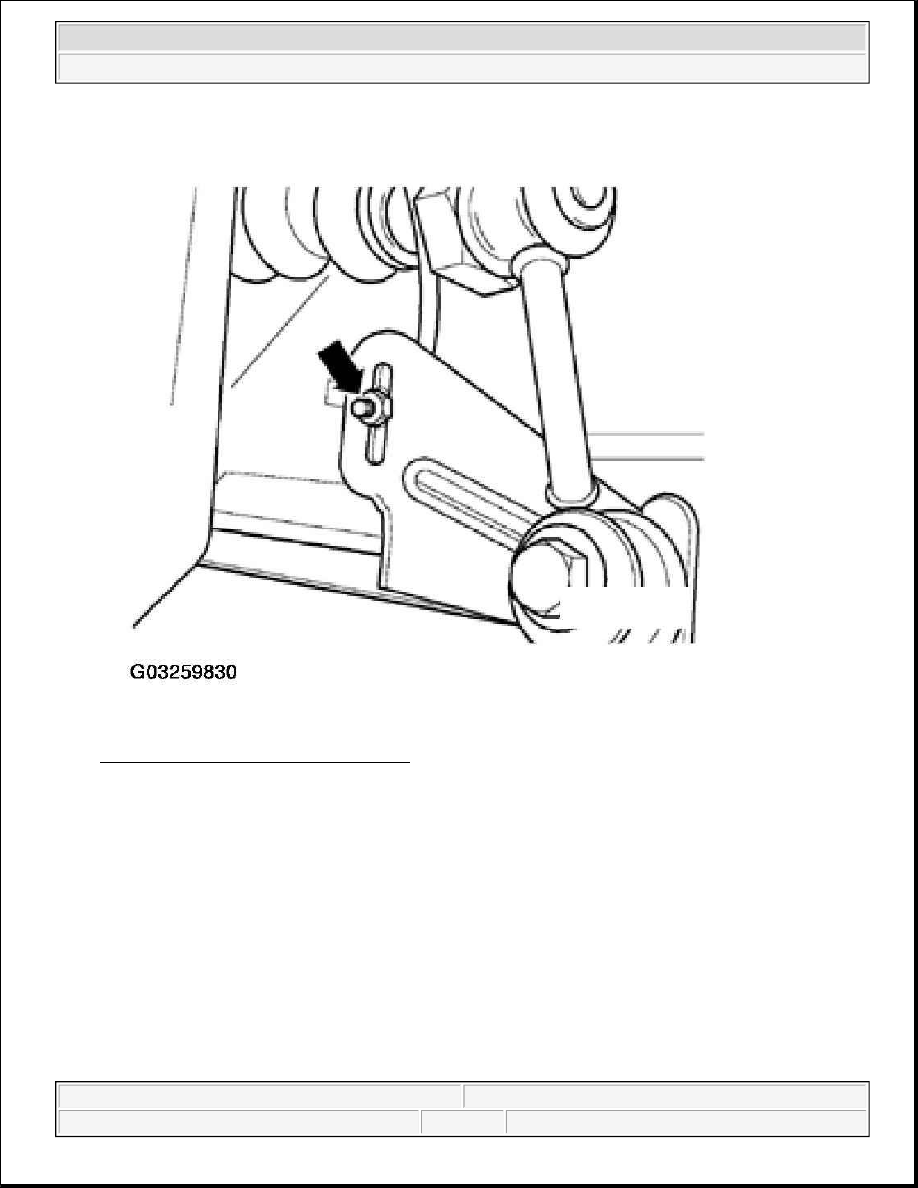

Fig. 44: Tightening Lower Securing Bolt
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display after completion of adjustments.
