Volkswagen New Beetle. Manual - part 260

z

Disconnect battery. See BATTERY, DISCONNECTING AND RECONNECTING .

z

Disengage retainer -1- downwards and slide lever -2- upwards.

z

Pull headlight housing -3- forward slightly.

z

Disconnect electrical connector from headlight.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

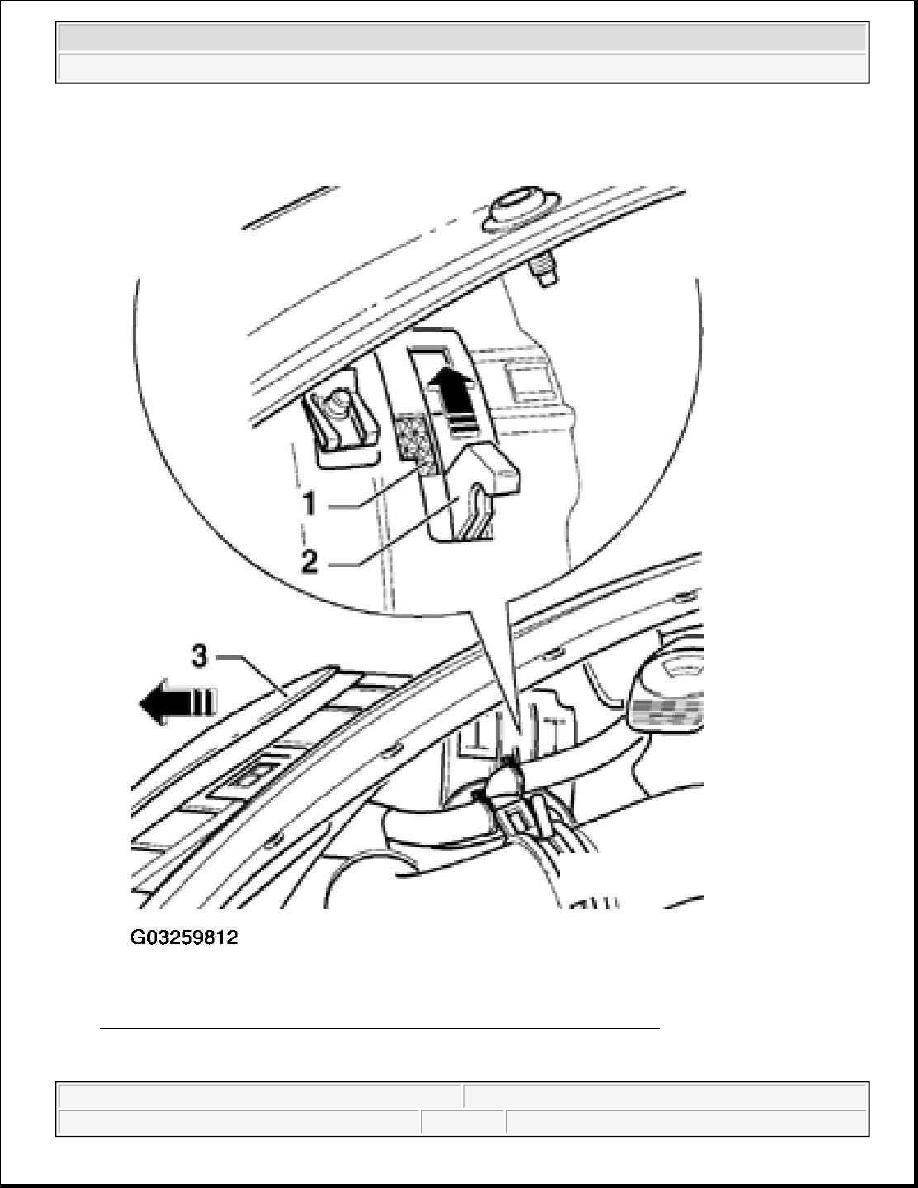

Fig. 26: Disconnecting Electrical Connector From Headlight (Right Side)
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

Slide headlight housing forward and out from fender opening.

Right HID headlight, installing

z

Reconnect electrical connection -1- to headlight.

z

Position headlight insert in guide rails -arrows- and slide unit to rear.

z

Move lever in engine compartment downwards again to engage retainer.

z

Reconnect battery. See BATTERY, DISCONNECTING AND RECONNECTING .

z

Checking headlight aim. See HEADLIGHTS WITH HIGH INTENSITY GAS DISCHARGE (HID)
LAMP, ADJUSTING

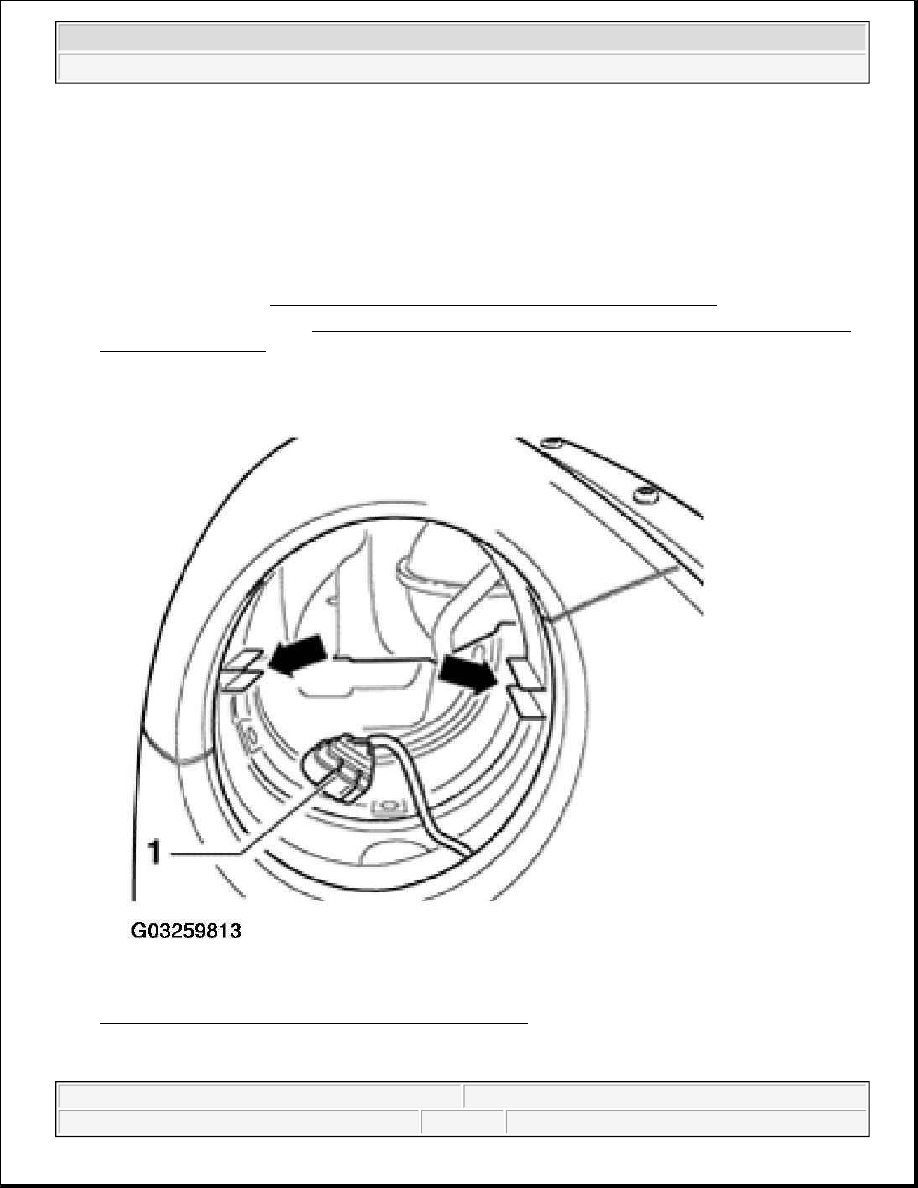

Fig. 27: Connecting Electrical Connection To Headlight
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



HEADLIGHTS WITH HIGH INTENSITY GAS DISCHARGE (HID) LAMP, ADJUSTING

Where applicable, also check/confirm position of driving direction selector on headlight housing. Confirm
setting for the USA/CDN: "left-hand drive as follows:

Driving direction setting, checking (where applicable)

HID lamps may have a mechanism that allows beam patterns to be changed according to market. Potential glare
is thus minimized.

z

Remove headlight housing, See HEADLIGHT HOUSING WITH HIGH INTENSITY GAS
DISCHARGE (HID) LAMP, REMOVING AND INSTALLING .

z

Remove sealing cap. See HEADLIGHTS WITH HIGH INTENSITY GAS DISCHARGE (HID)
LAMP, REPLACING BULBS .

z

Confirm selector -1- to be in lower setting -down arrow-.

z

Selector up -A-: right-hand drive (e.g.: Great Britain - Australia etc.)

z

Selector down -B-: left-hand drive (e.g.: USA -Canada - Europe etc.)

NOTE:

z

Aiming must be done in conjunction with On Board Diagnostic (OBD)
program "Basic Setting" (function 04). Use VAS 5051 Vehicle Diagnostic
Testing and Information System in mode "Guided Fault Finding"

z

Always adjust lights with optical headlight aimer VAS 5107, using detailed
aiming procedure and specifications

See HEADLIGHT ADJUSTMENT, CHECKING .

z

Low and high beams are adjusted simultaneously.
