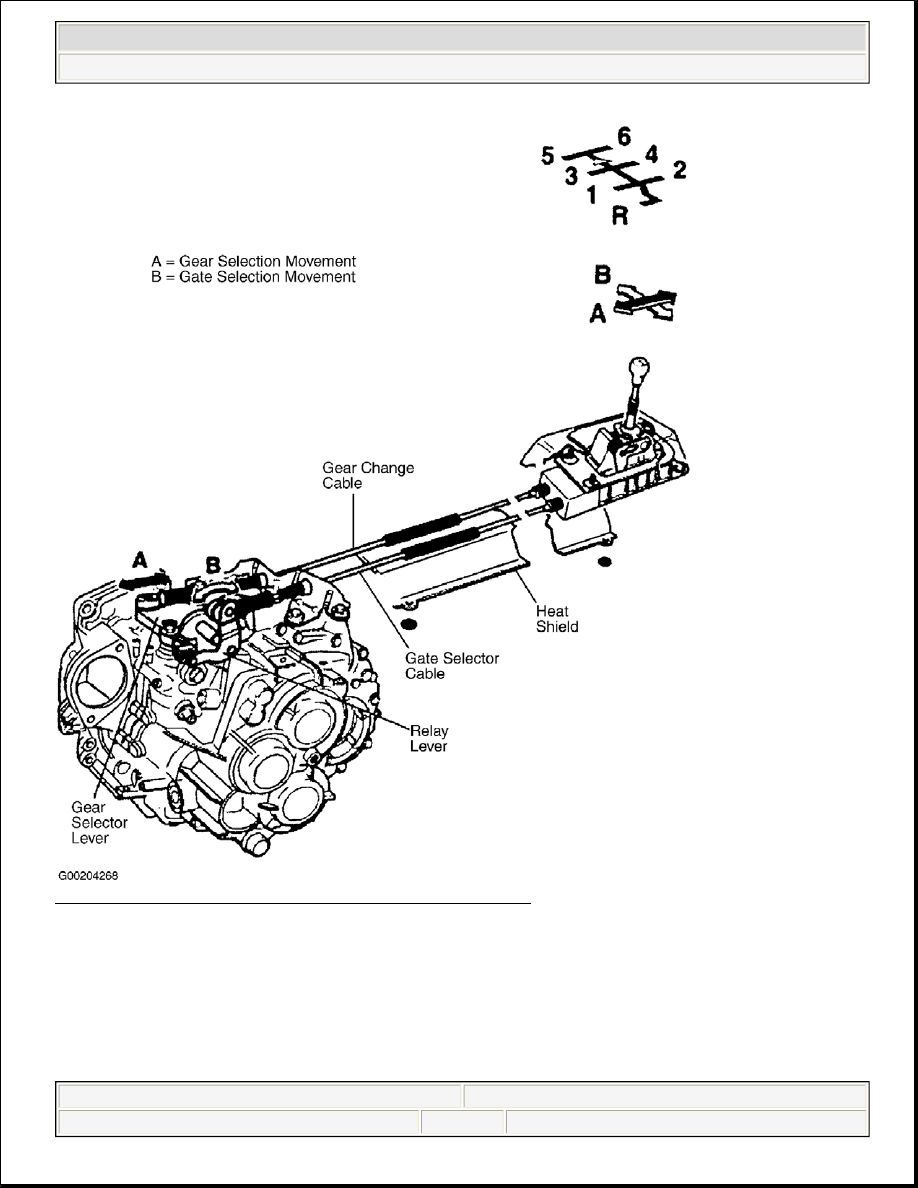

Fig. 24: Shift Selector Mechanism Operation (02M Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

LOCKING UNIT

Removal

NOTE:

The following information applies to 012 model transaxle. In the following
information, numbers and letters in parenthesis are located in illustrations.



2003 Volkswagen New Beetle GLS

2001-03 MANUAL TRANSMISSIONS Servicing - Volkswagen



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:07:23 AM

Page 25

© 2004 Mitchell Repair Information Company, LLC.

To replace locking unit, remove small cover plate located above large cover plate at right hand drive axle. Press
down on large cover plate above the right-hand drive shaft. Remove locking unit. See Fig. 25 .

Inspection

1. Place spring (1) into housing (2) and while exerting light pressure, turn to left until the spring locates in

the base of the housing. Insert bushing (3) onto the spring so that the bent end of the spring locates in the
groove. See Fig. 26 .

2. Push bushing (3) against spring and turn about one turn to left, until the lug on the bushing aligns with the

groove in the housing (2). Press lug on bushing (3) onto stop in the groove in the housing (2). Turn
bushing (3) to right and release. See Fig. 26 . Bushing will jump into correct position.

Installation

Prior to installation, ensure the lug (A) on the unit bushing is opposite the groove in the unit housing (B). See
Fig. 27 . To install locking unit, ensure recess area (A) on locking unit faces downward toward bolt (B) below
locking unit. See Fig. 28 .

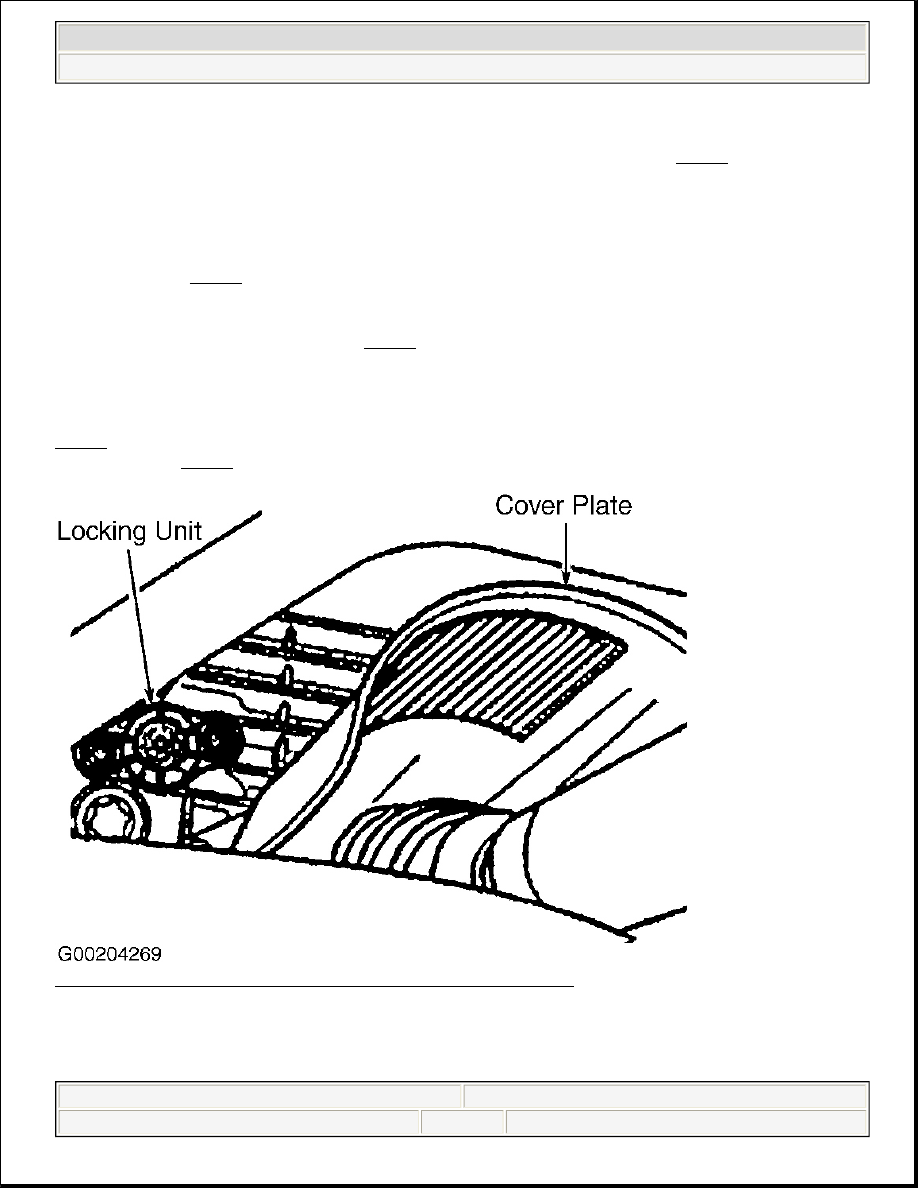

Fig. 25: Removing Locking Unit For 5th & Reverse (012 Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-03 MANUAL TRANSMISSIONS Servicing - Volkswagen



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:07:23 AM

Page 26

© 2004 Mitchell Repair Information Company, LLC.

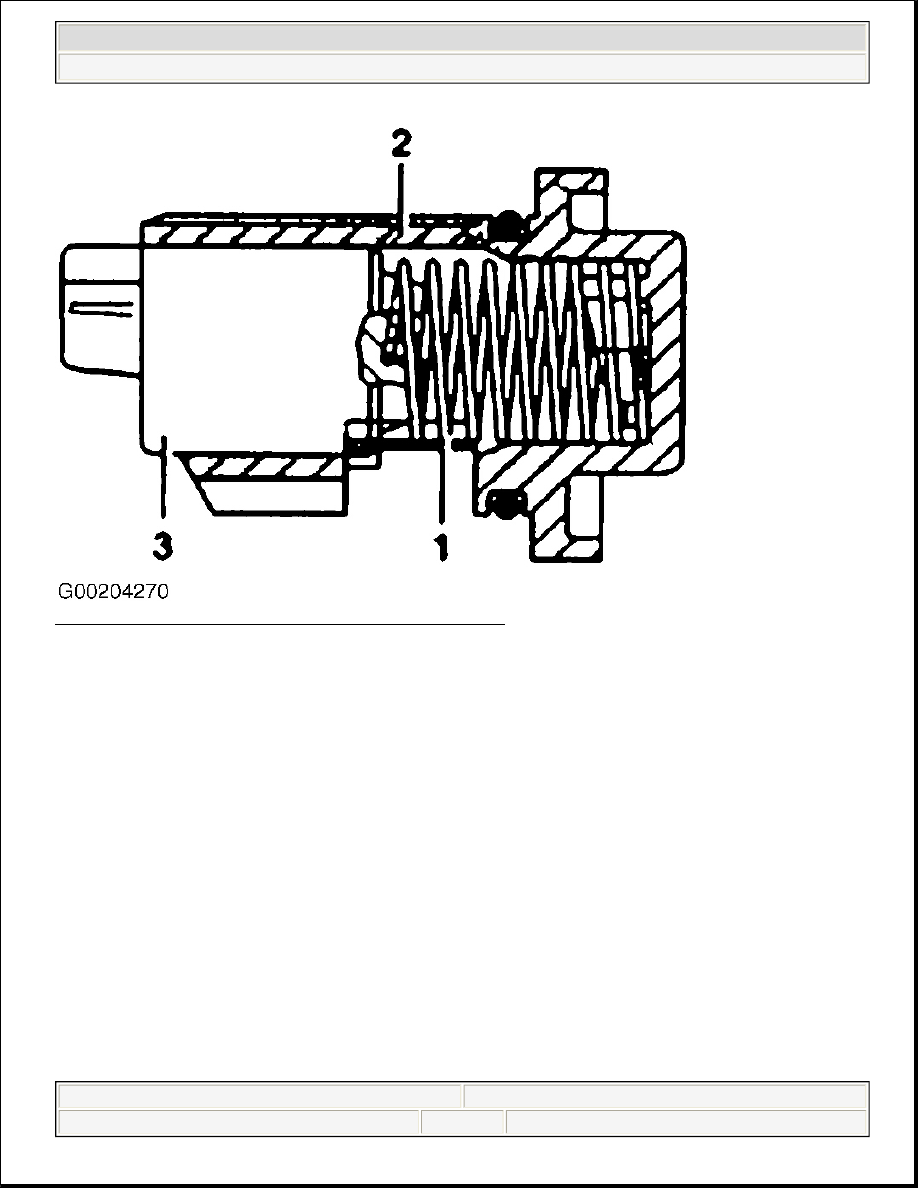

Fig. 26: Checking Locking Unit Operation (012 Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-03 MANUAL TRANSMISSIONS Servicing - Volkswagen



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:07:23 AM

Page 27

© 2004 Mitchell Repair Information Company, LLC.

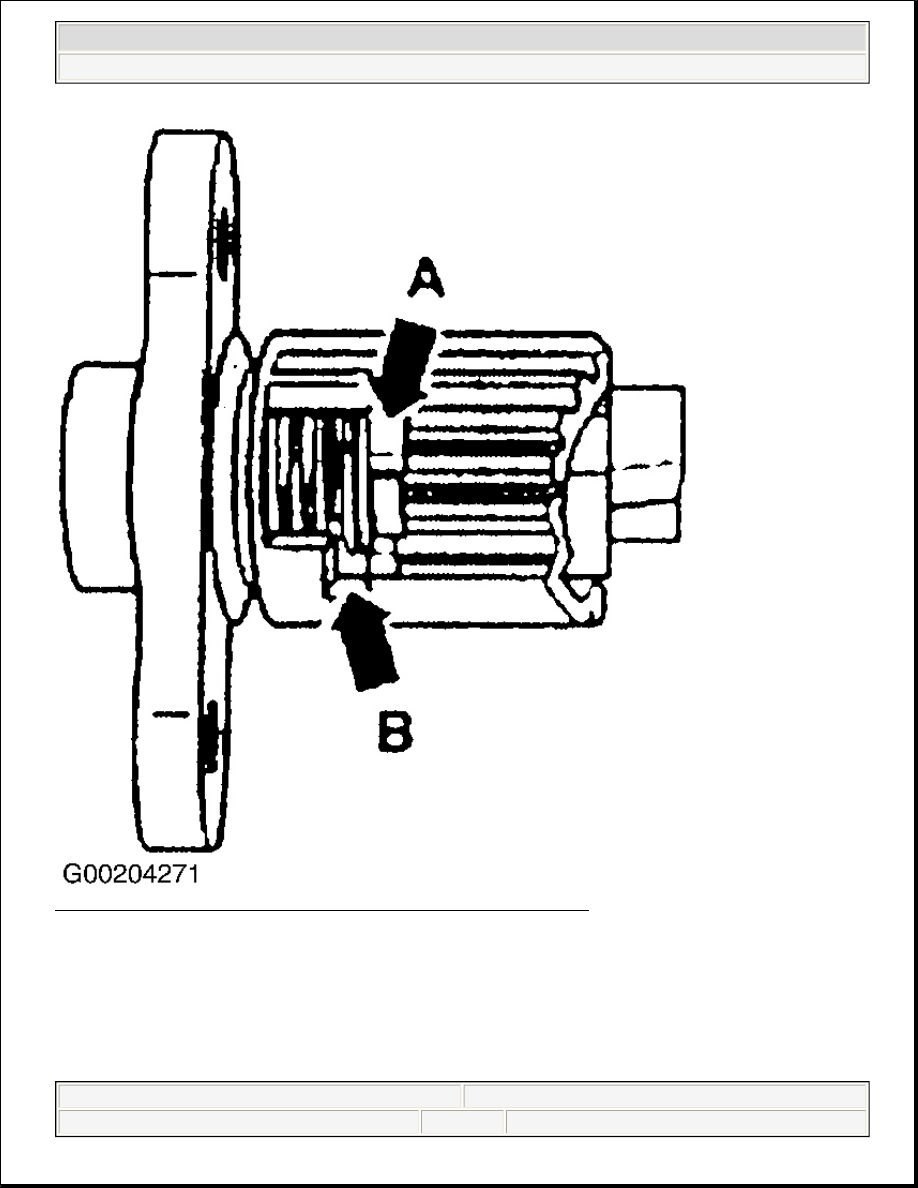

Fig. 27: Positioning Lug Opposite Groove In Housing (012 Transaxle)
