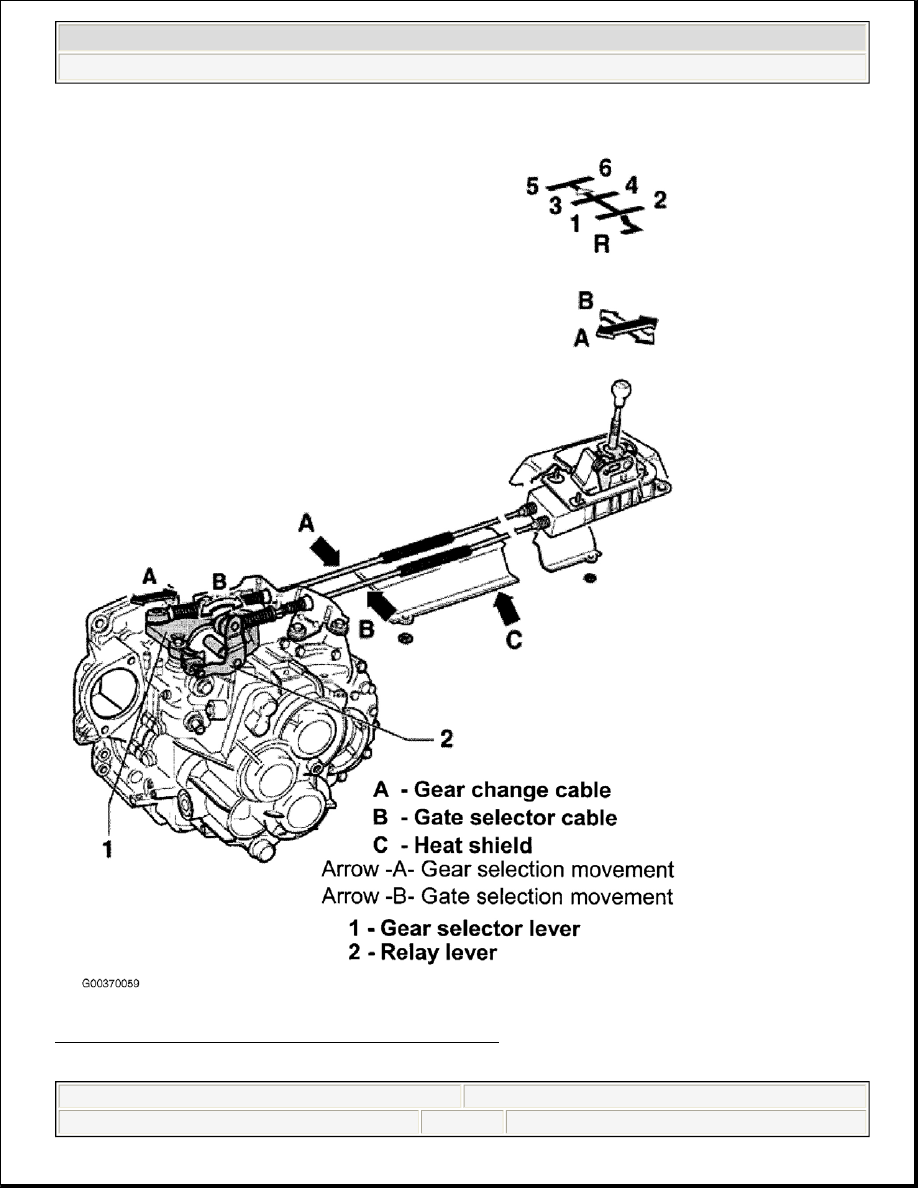

Fig. 6: Identifying Gear Selector Mechanism Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:11:27 AM

Page 8

© 2004 Mitchell Repair Information Company, LLC.

1. Secure locking mechanism on gear selector cable, and gate selector cable, by pulling forward until stop

(arrow 1) and then turning to left to lock (arrow 2). See Fig. 7 .

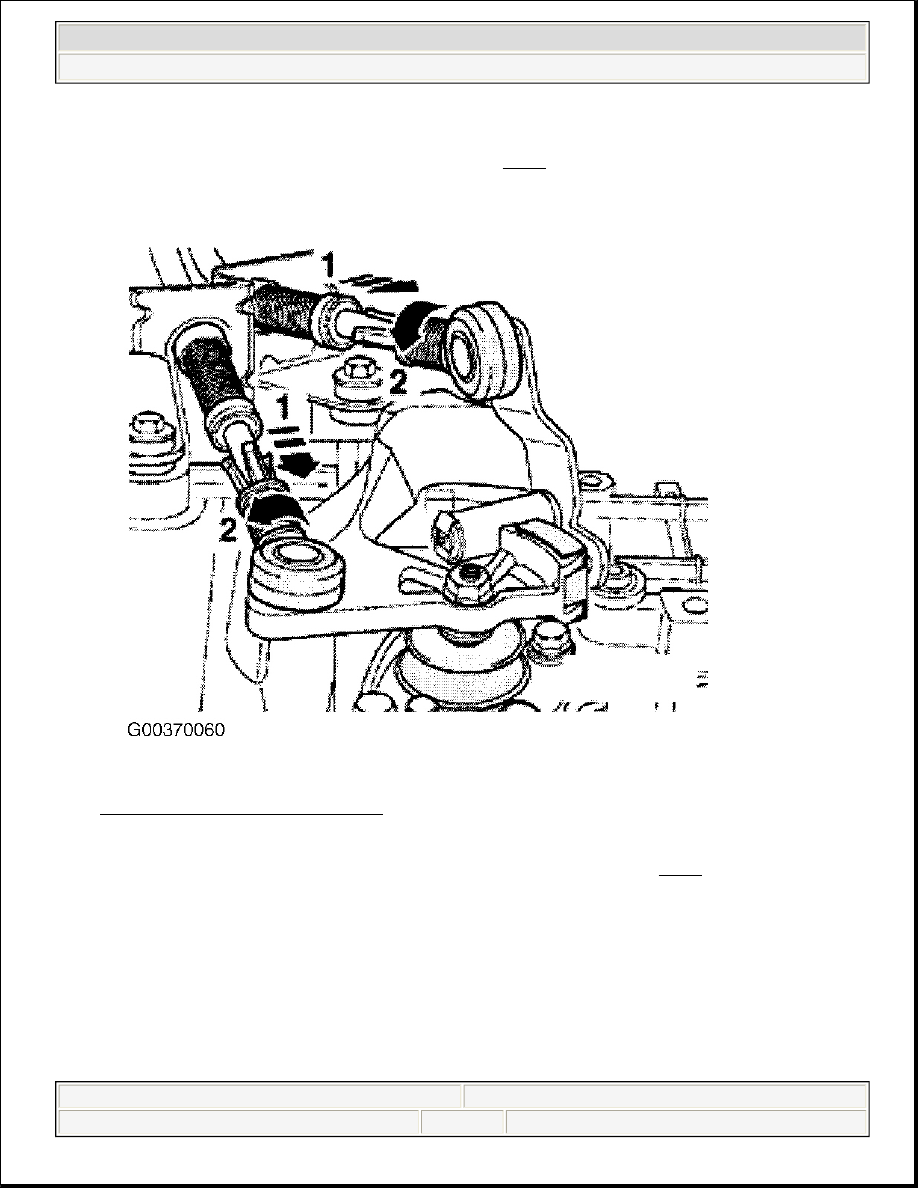

Fig. 7: Securing Locking Mechanism
Courtesy of VOLKSWAGEN UNITED STATES, INC.

2. Set selector shaft, by pressing selector shaft down (direction of arrow 1). See Fig. 8 . While pressing

selector shaft down, push locking pin (A) into transmission (direction of arrow 2) until it engages.



2003 Volkswagen New Beetle GLS

2002-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:11:27 AM

Page 9

© 2004 Mitchell Repair Information Company, LLC.

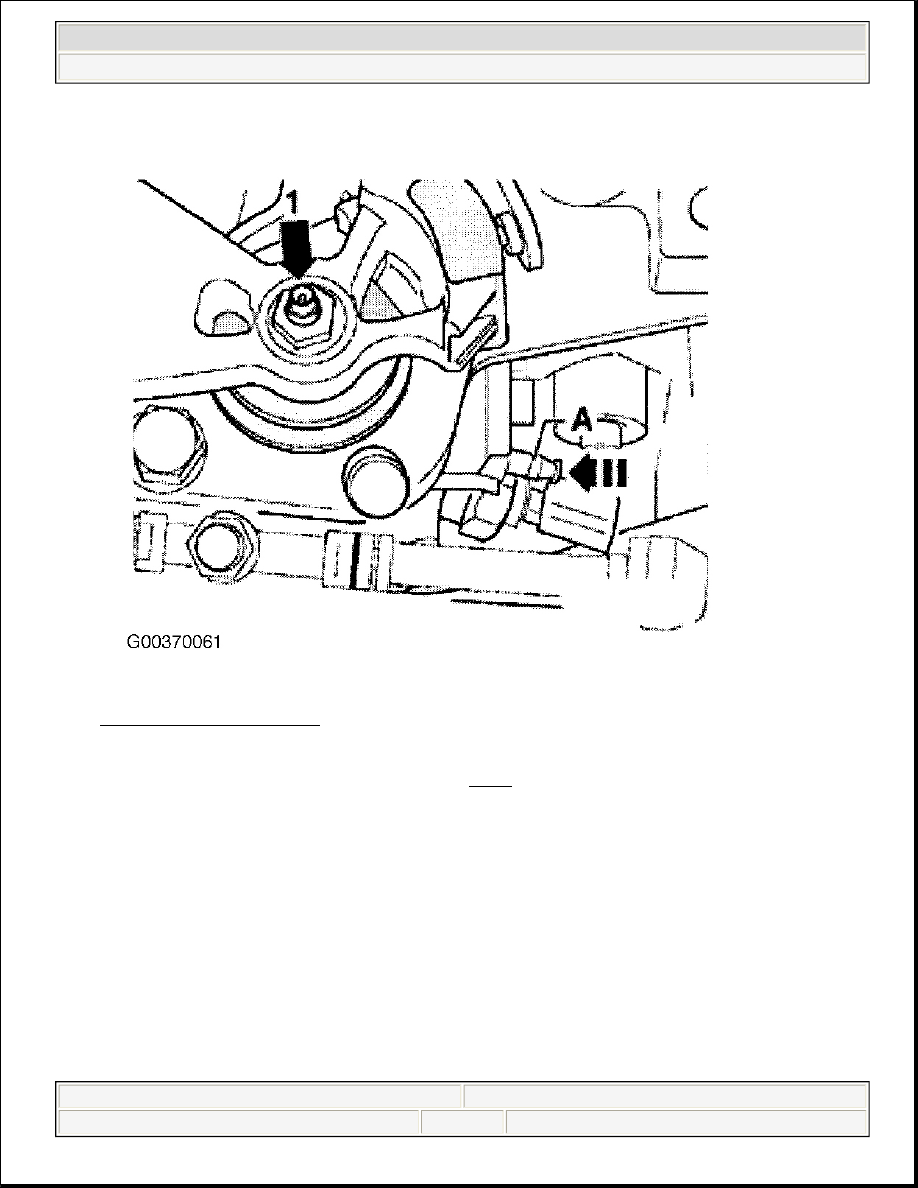

Fig. 8: Setting Selector Shaft
Courtesy of VOLKSWAGEN UNITED STATES, INC.

3. Pull gear shift boot off center console (arrow). See Fig. 9 . Pull cover to rear off center console.



2003 Volkswagen New Beetle GLS

2002-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:11:27 AM

Page 10

© 2004 Mitchell Repair Information Company, LLC.

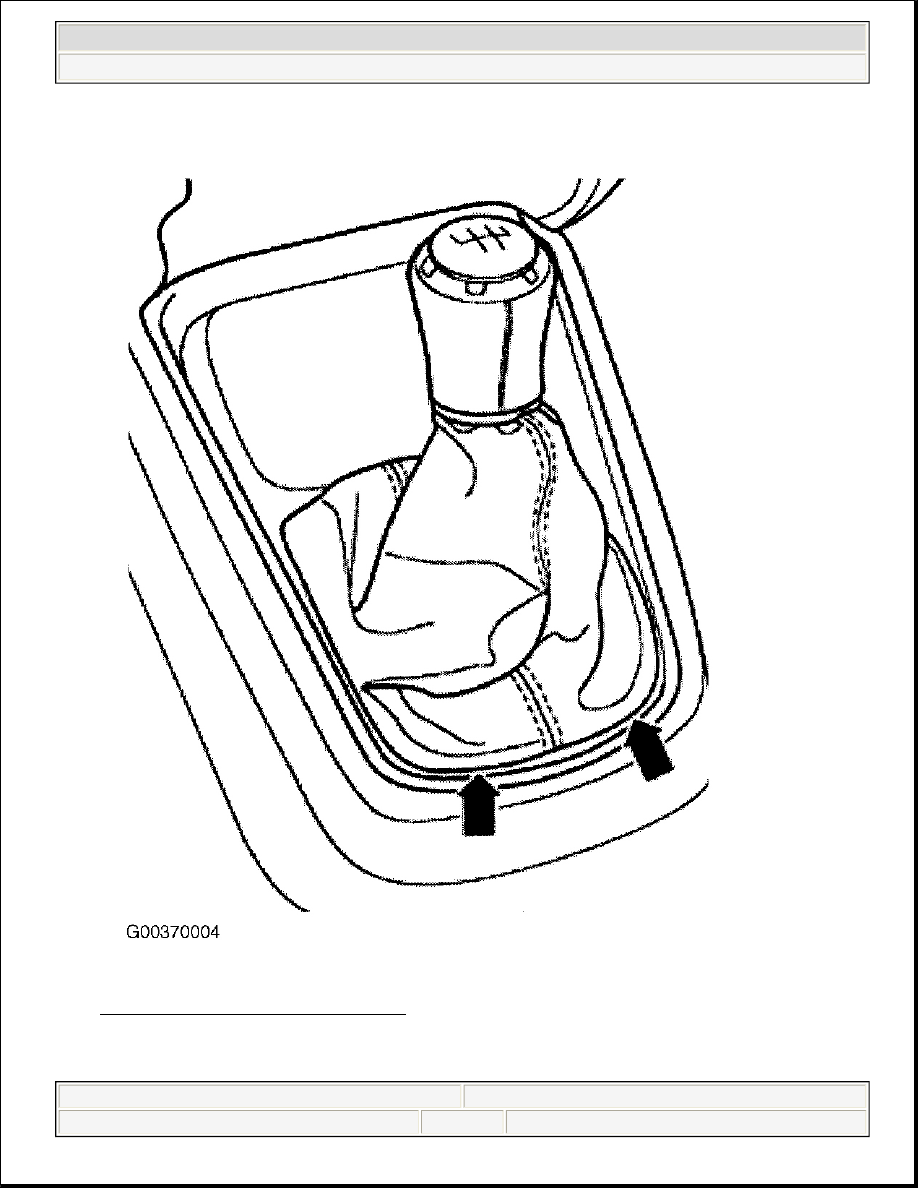

Fig. 9: Removing Center Console Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.

4. Guide shift lever in Neutral to left into gate for 1st/2nd gear. Guide pin (T10027) through hole (A) and
