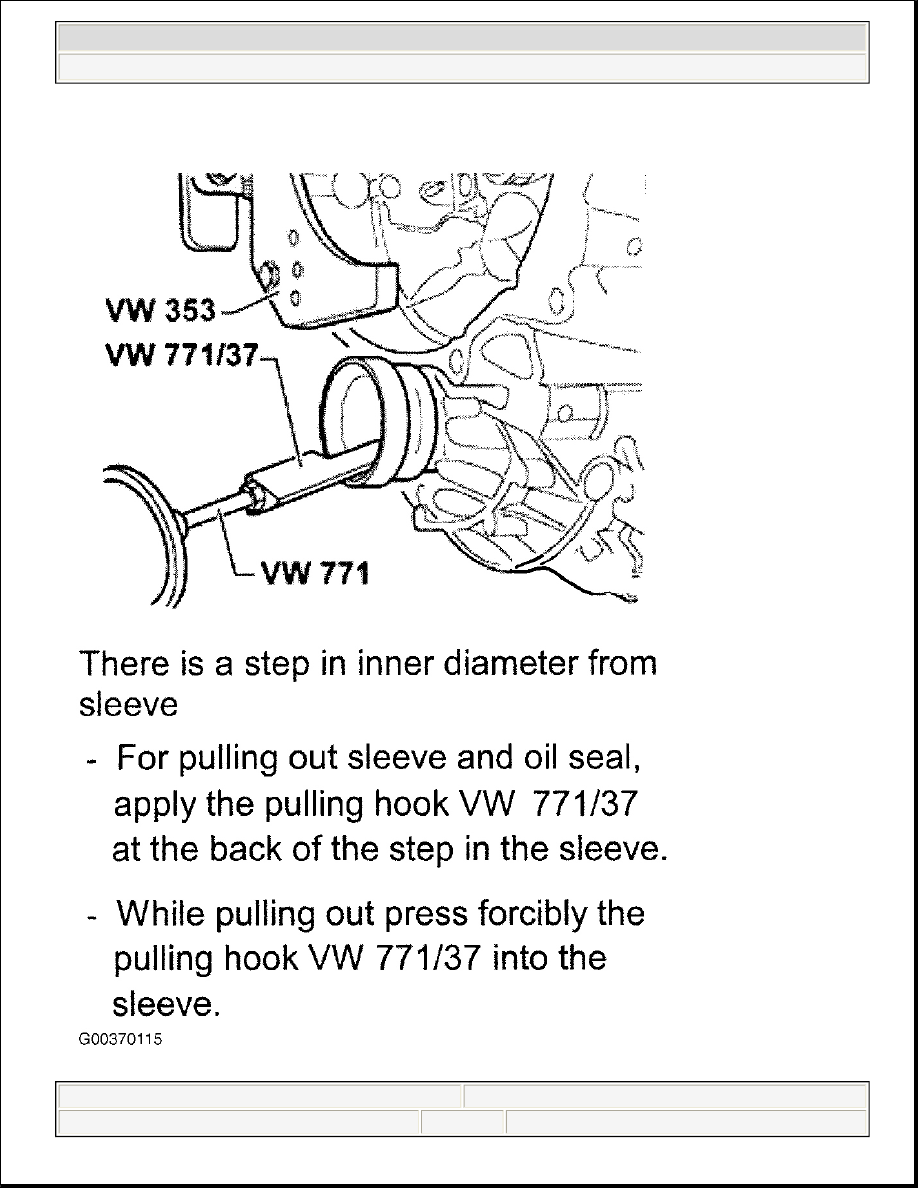

Fig. 53: Pulling Out Sleeve & Oil Seal (Oil Seal Attached)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

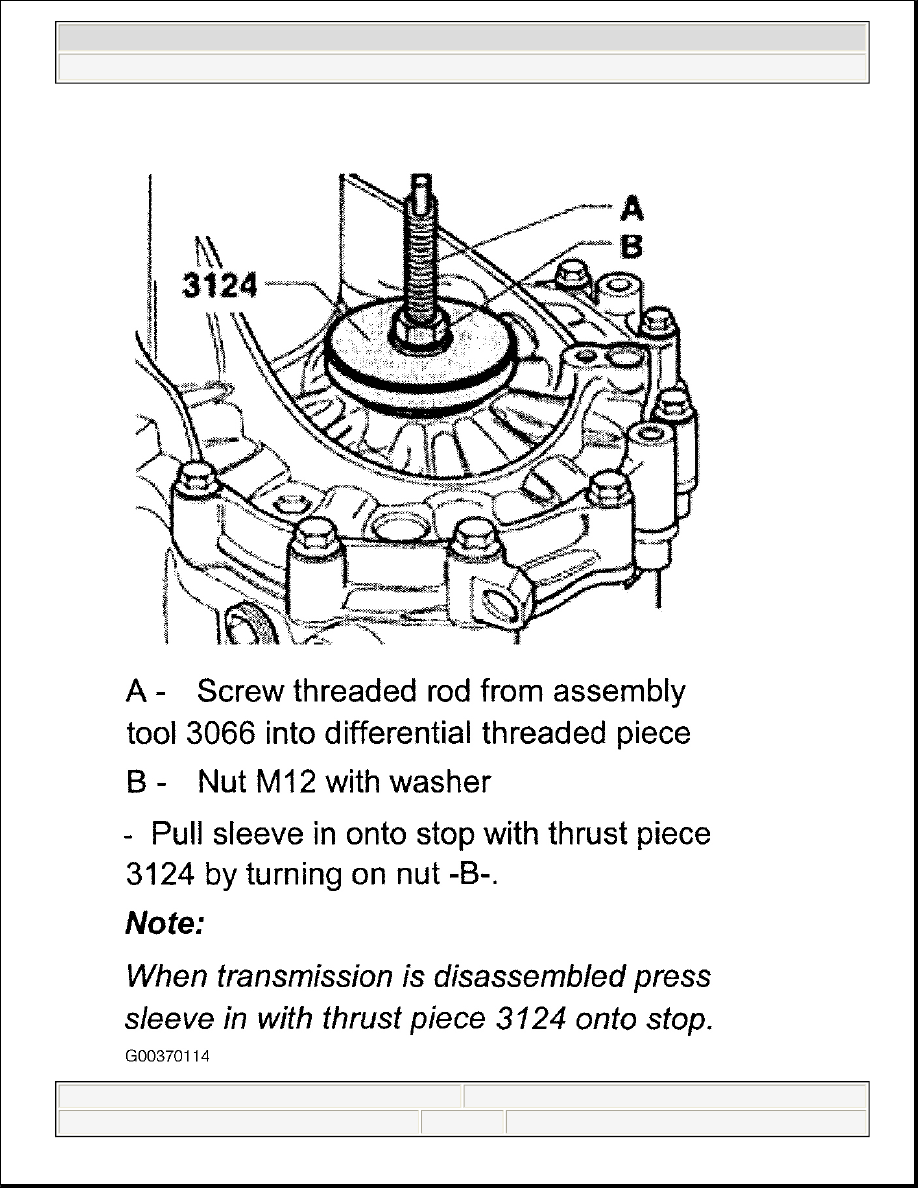

Fig. 54: Driving In Sleeve & Oil Seal (Oil Seal Attached)



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:09 AM

Page 63

© 2004 Mitchell Repair Information Company, LLC.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removal & Installation (Oil Seal Not Attached)

1. Remove axle shaft seal. See AXLE SEALS . Using a screwdriver (arrow), pry sleeve out. See Fig. 55 .

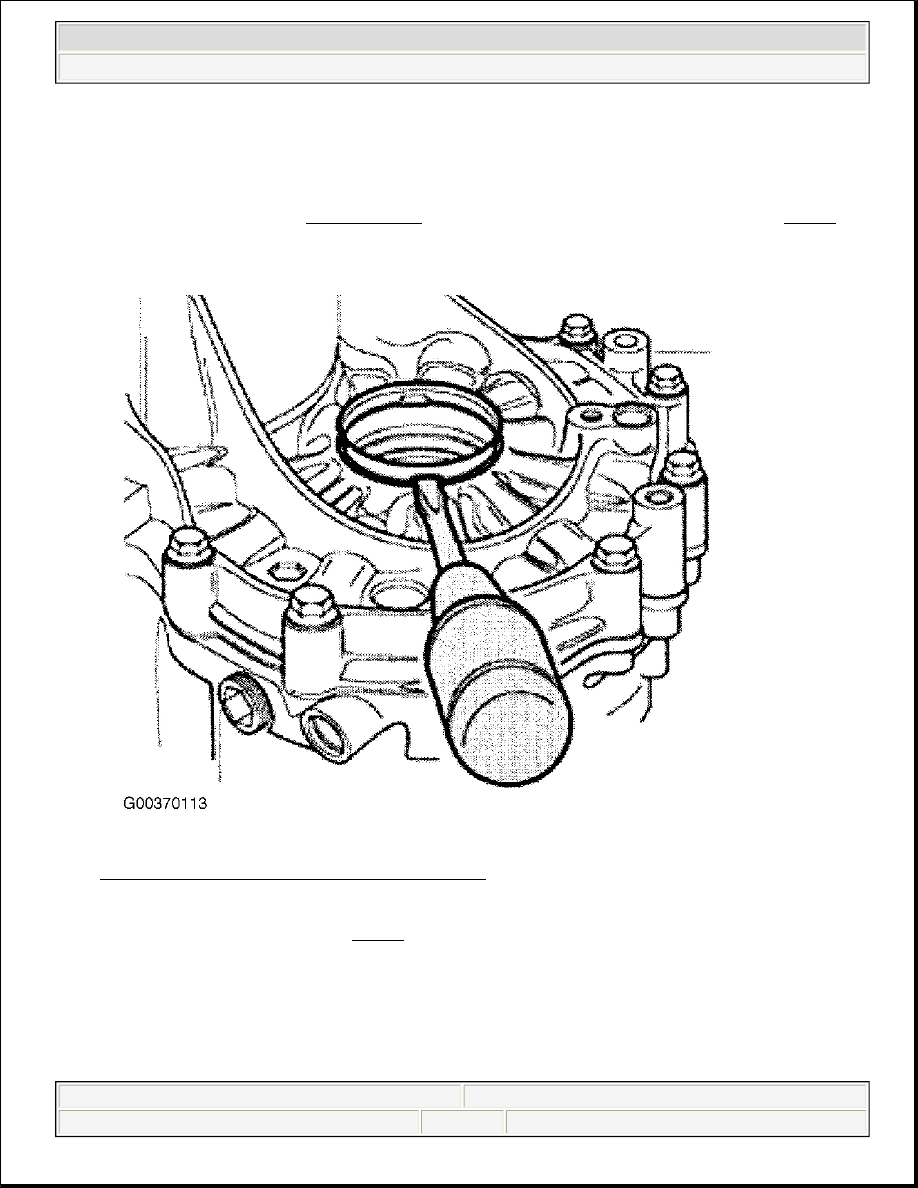

Fig. 55: Prying Out Sleeve (Oil Seal Not Attached)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

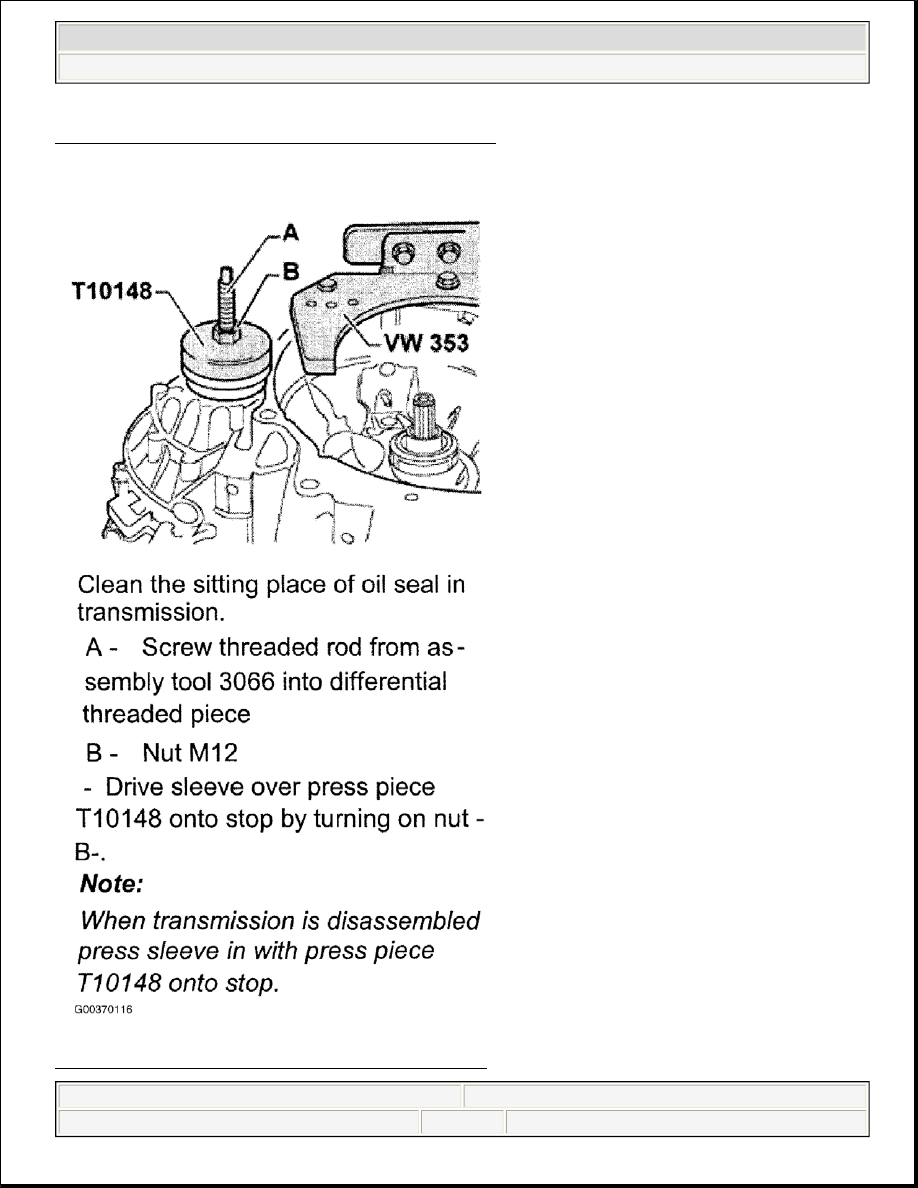

2. To install, refer to illustration. See Fig. 56 .
