Volkswagen New Beetle. Manual - part 256

z

Reinstall air grille.

See FRONT END, ASSEMBLY OVERVIEW .

z

Connect electrical connection.

z

Reconnect battery. See BATTERY, DISCONNECTING AND RECONNECTING .

z

Check fog lamp aim

See FOG LAMP, ALIGNMENT .

FOG LAMPS, ADJUSTING

See FOG LAMP, ALIGNMENT .

Fog lamp (left)

z

Turn adjustment screw -arrow- to adjust beam height. Lateral adjustments are not possible.

Adjustment screw on right fog lamp is a mirror image.

NOTE:

Always adjust fog lamps with optical headlight aimer VAS 5107, using detailed
aiming procedure and specifications



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

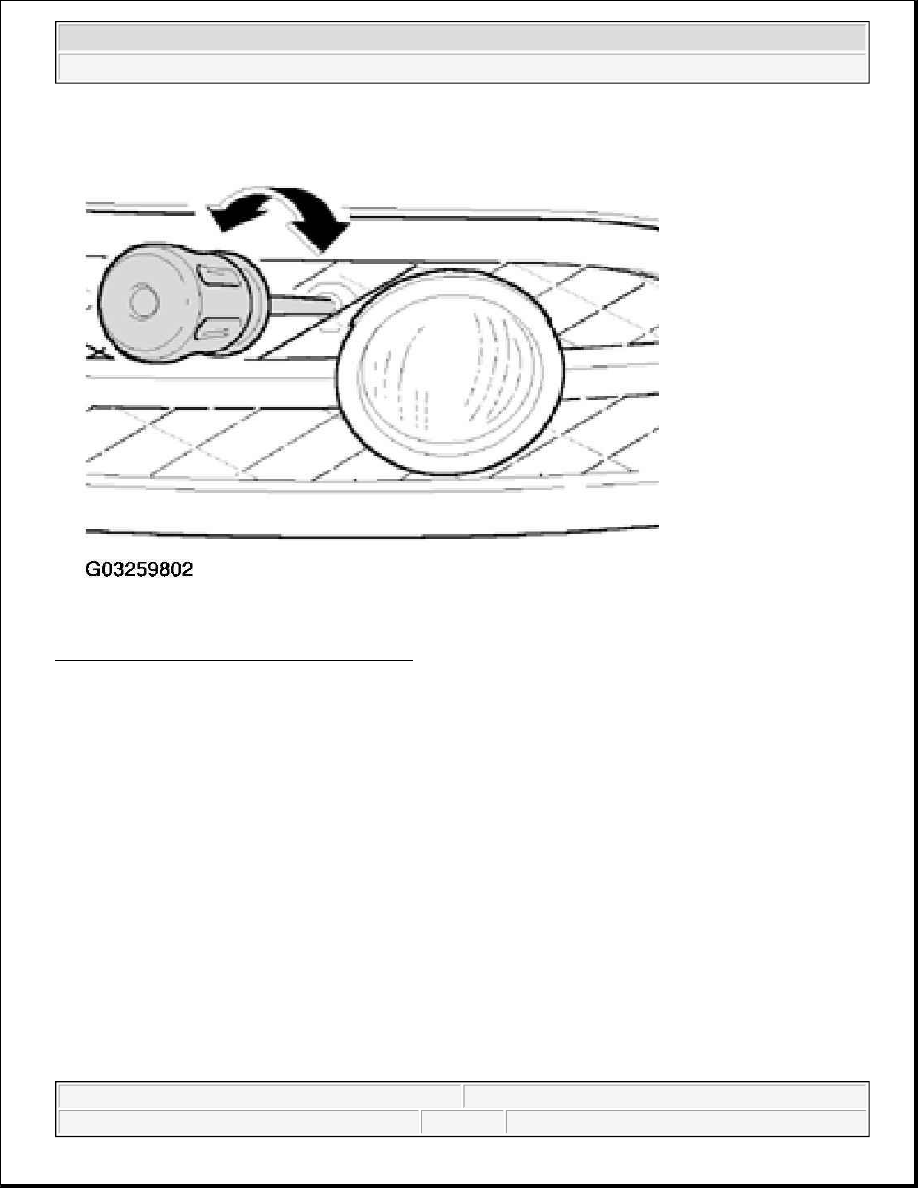

Fig. 16: Turning Fog Lamp Adjustment Screw
Courtesy of VOLKSWAGEN OF AMERICA, INC.

FOG LAMP BULB, REPLACING

Removing

z

Disconnect electrical connection at fog lamp assembly.

z

Turn sealing cap on rear of assembly and remove.

z

Disconnect electrical connection from fog lamp bulb.

z

Release spring retaining clip.

z

Remove bulb from reflector.

CAUTION:

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

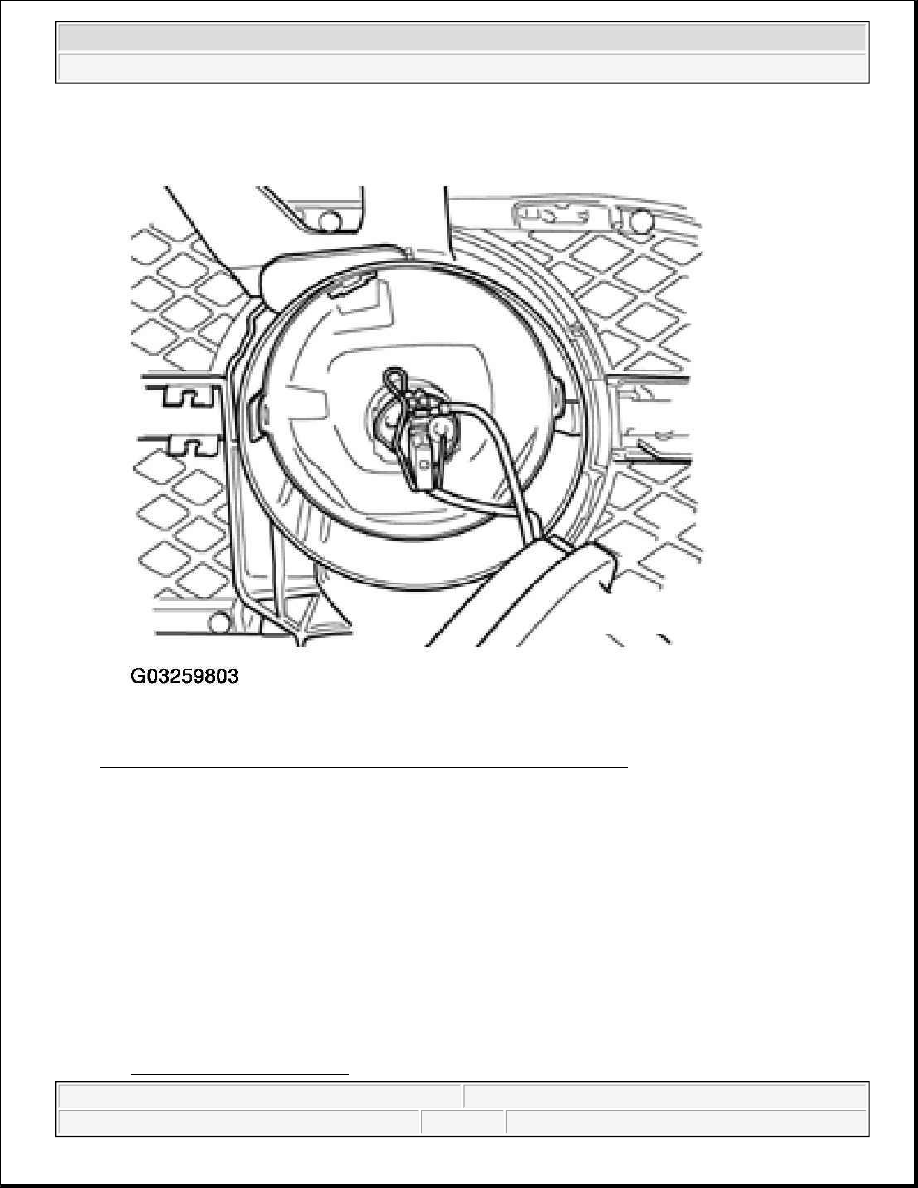

Fig. 17: Disconnecting Electrical Connection At Fog Lamp Assembly
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing

z

Insert new bulb so lugs on plate align with grooves in reflector.

z

Connect electrical connection to bulb and reinstall cap, on assembly.

z

Connect electrical connection to fog lamp assembly.

z

Check fog lamp aim

See FOG LAMP, ALIGNMENT .

CAUTION: Do not touch the glass portion of the bulb with bare hands. The moisture

and/or grease from fingers that evaporates on the bulb during operation,
can cause the glass to cloud over.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



HEADLIGHTS WITH HIGH INTENSITY GAS DISCHARGE (HID) LAMPS

GENERAL INFORMATION

ON BOARD DIAGNOSTIC (OBD), FUNCTION

The automatic vertical headlight beam adjusting control module of the HID headlight system is controlled by an
internal microprocessor with On Board Diagnostic (OBD) capability. If malfunctions occur in monitored
components, Diagnostic Trouble Codes (DTC) will be stored in memory.

Troubleshoot system malfunctions, code control modules or perform basic settings with OBD program. Use
VAS 5051 Vehicle Diagnostic Testing and Information System or VAS 5052 Vehicle Diagnostic and Service
System in mode "Guided Fault Finding".

z

Enter appropriate model, equipment and model year information and press ">" to confirm.

After the DTC memory of all control modules has been checked:

z

Press "Go to" button

z

Select "Function / Component Selection"

z

Select: "Body (Repair Group 01; 27; 50 to 97)"

z

Select: "Electrical System (Repair Group 01; 27; 90 to 97)"

z

Select: "01 - On Board Diagnostic (OBD) capable systems"

z

Select: "Automatic vertical headlight aim control"

WARNING:

z

HIGH VOLTAGE!

z

Always disconnect negative (-) battery terminal prior to servicing
any parts of the HID lamp system marked with the yellow "HIGH
VOLTAG!"symbol.

z

After disconnecting battery, briefly turn headlights on and off in
order to discharge any residual voltage.

z

The physical and mechanical properties of HID bulbs are very
sensitive. Internal pressure of HID glass bulb may exceed 100 bar (in
operation). Bulb temperature may exceed 700 degrees Celsius.

z

The control modules for HID lamps must never be operated
(headlights turned on) without an HID lamp.

z

HID bulbs must only be operated (headlights turned on) when
installed in the headlight housing.

z

Always wear safety glasses and gloves when removing and
installing HID bulb.

z

Never look directly at an operating HID bulb. The UV emissions of an
HID bulb are approximately 2.5 times that of a comparable halogen
bulb.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle
