Fig. 179: Installing Differential Side Gears And Pinion Gears
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Lubricate one piece thrust washer with transmission oil and install.

z

Install both side gears and secure (e.g. with flange shaft).

z

Insert pinion gears (180° apart) and pivot into position.

z

Push pinion shaft (arrow -A-) in until first pinion gear.

z

Position threaded pieces (arrow -B-) in side gears. Installation position: step faces side gear

z

Drive pinion shaft into final position and secure with spring pin.

Changed thrust washer for tapered ring



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 180: Identifying Changed Thrust Washer For Tapered Ring
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installation position:

When the pads -A- are not present, the shoulder (arrow) points to spring -B-.

ADJUSTMENT OVERVIEW



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



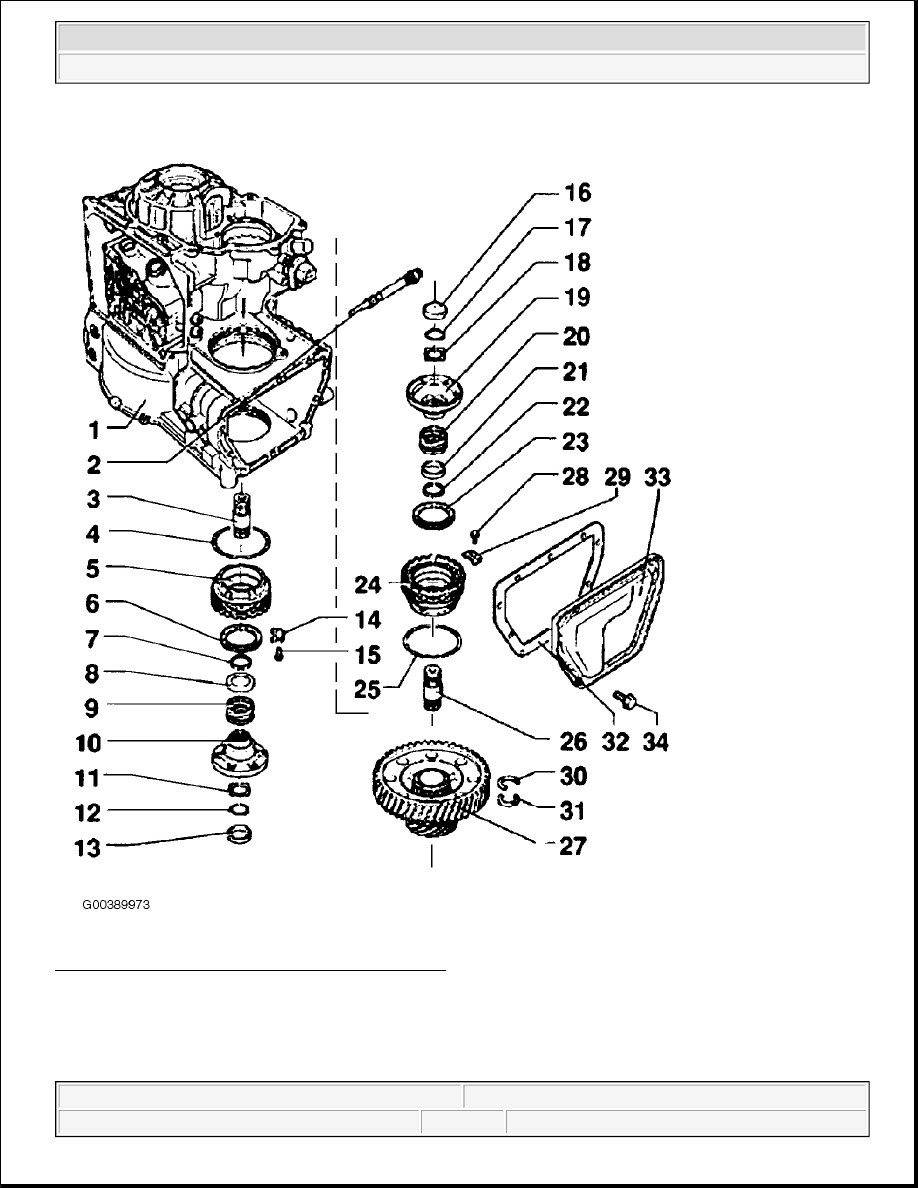

INPUT SHAFT, OUTPUT SHAFT AND DIFFERENTIAL - ADJUSTMENT OVERVIEW

DIFFERENTIAL, ADJUSTING

Special tools and equipment

z

VW 387 Universal dial gauge bracket

z

VW 385/17 End measuring plate

z

30-205 Thrust plate

z

VW 407 Press tool

z

Measuring dial gauge

NOTE:

If repairs have been carried out to the transmission it is necessary to adjust the
input shaft, output shaft or differential if components have been replaced which
have a direct effect on the adjustment of the transmission. Refer to the
following table to avoid unnecessary adjustment:



Input shaft

See INPUT SHAFT,

ADJUSTING

Output shaft

See OUTPUT

SHAFT,

ADJUSTING

Differential

See DIFFERENTIAL,

ADJUSTING

Parts
replaced:

Transmission

housing

x



x

Clutch housing

x

x

x

Input shaft

x





Output shaft (final

drive)



x



Differential housing





x

Input shaft tapered

roller bearing

x





Output shaft

tapered roller

bearing



x



Differential tapered

roller bearing





x

4th gear wheel

x







2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle

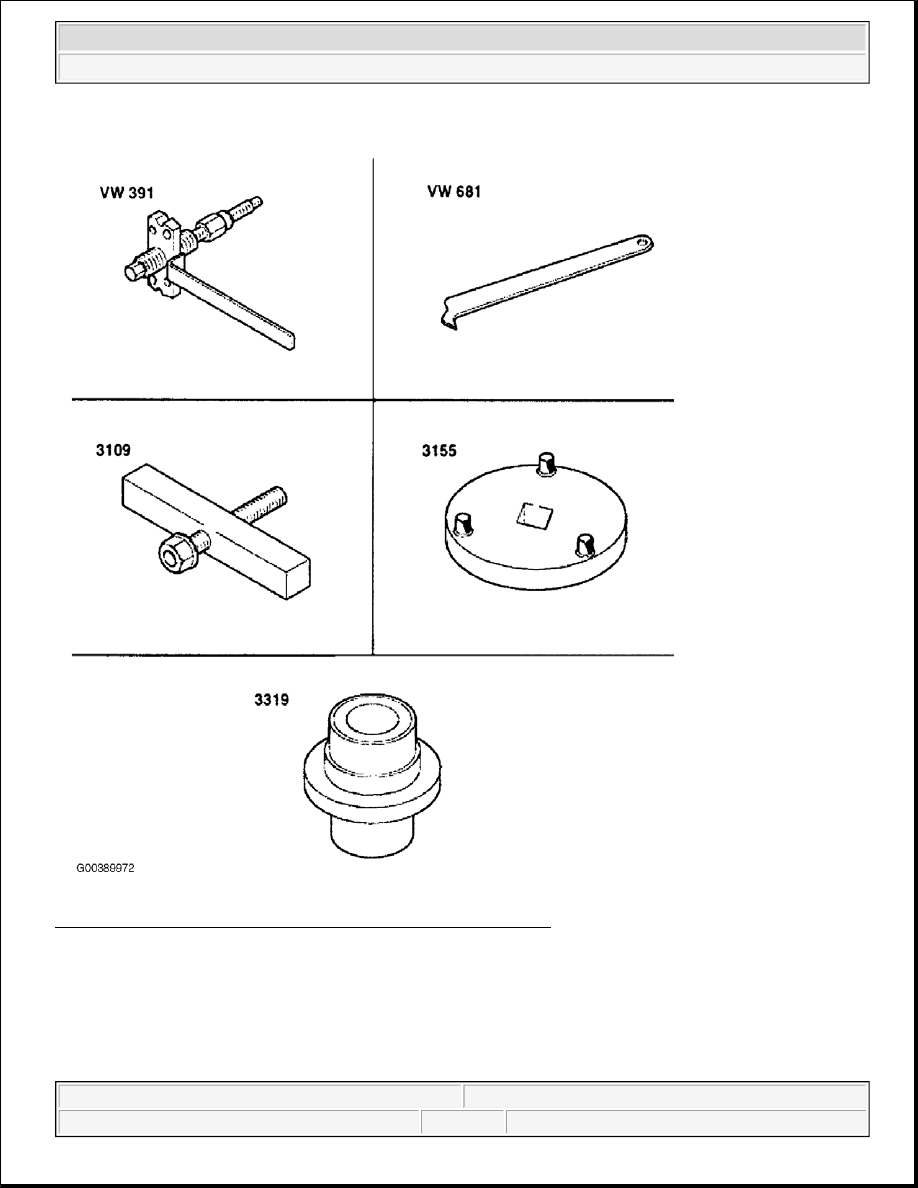

Fig. 181: Identifying Special Tools And Equipment
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The differential must be adjusted, when

z

Transmission housing
