Volkswagen New Beetle. Manual - part 253

z

Pull headlight housing -4- slightly forward.

z

Disconnect electrical connectors from headlight.

z

Remove headlight housing -4-.

Right headlight, installing

z

Connect electrical connectors to headlight.

z

Insert headlight into guide tracks (arrows) and push inward.

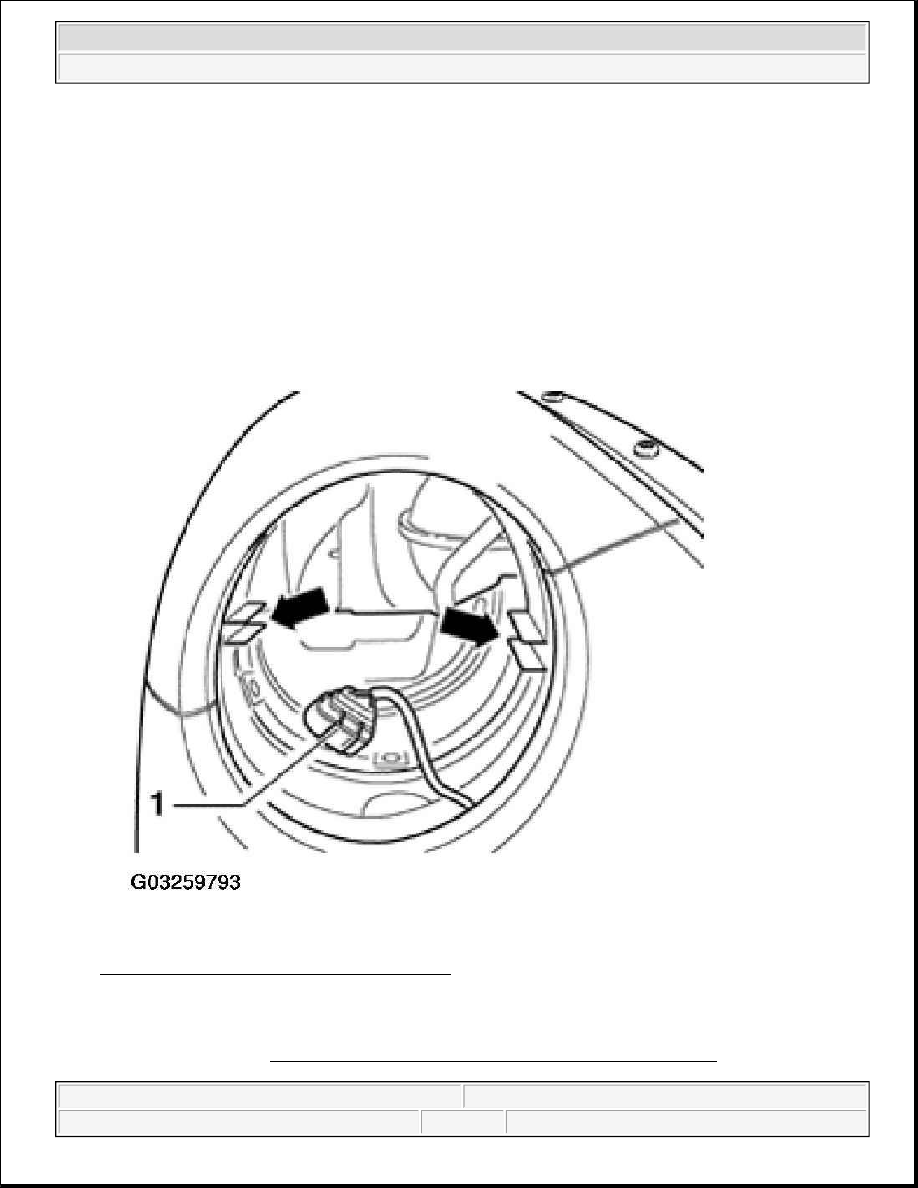

Fig. 7: Inserting Headlight Into Guide Tracks
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Push down on lever in engine compartment to lock headlight.

z

Reconnect battery. See BATTERY, DISCONNECTING AND RECONNECTING .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

Check headlight aim.

See HEADLIGHT ADJUSTMENT, CHECKING .

HEADLIGHTS FROM 09.98, REMOVING AND INSTALLING

Left headlight, removing

z

Disconnect battery, See .

z

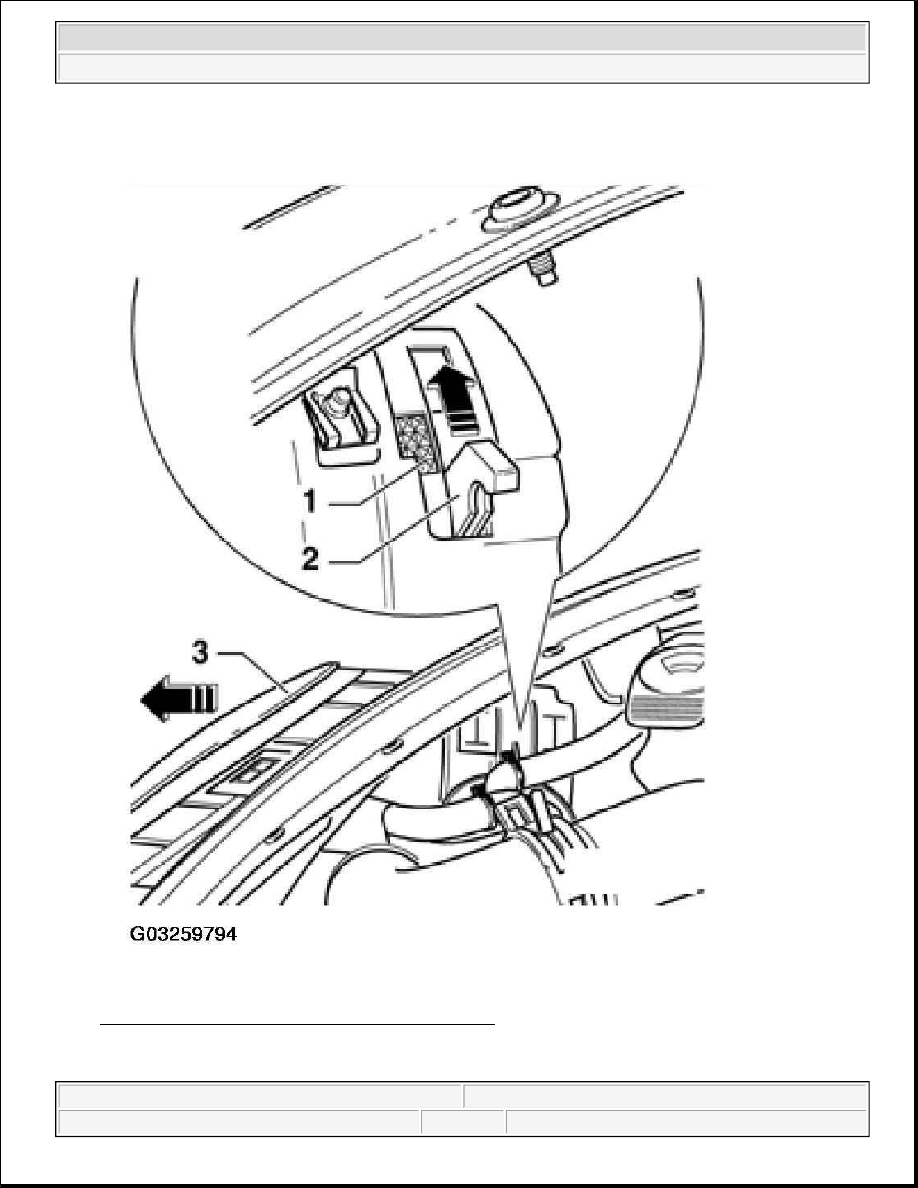

Press release button -1- and push up lever -2-.

z

Pull headlight housing -3- slightly forward.

z

Disconnect electrical connectors from headlight.

z

Remove headlight housing -3-.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



Fig. 8: Removing Button And Push Up Lever (Left)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Left headlight, installing



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

Connect electrical connectors -1- to headlight.

z

Insert headlight into guide tracks (arrows) and push inward.

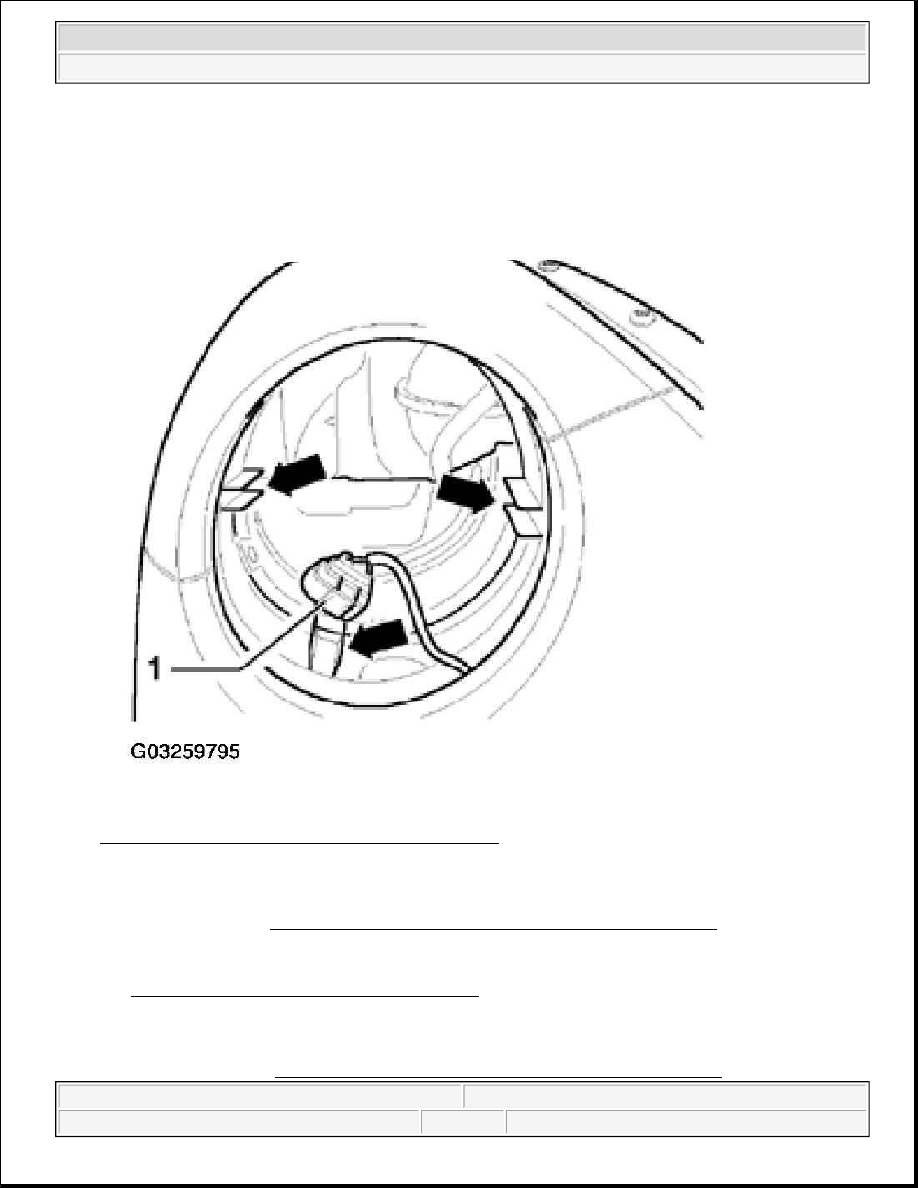

Fig. 9: Inserting Headlight Into Guide Tracks (Left)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Push down on lever in engine compartment to lock headlight.

z

Reconnect battery. See BATTERY, DISCONNECTING AND RECONNECTING .

z

Check headlight aim.

See HEADLIGHT ADJUSTMENT, CHECKING .

Right headlight, removing

z

Disconnect battery. See BATTERY, DISCONNECTING AND RECONNECTING .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle
