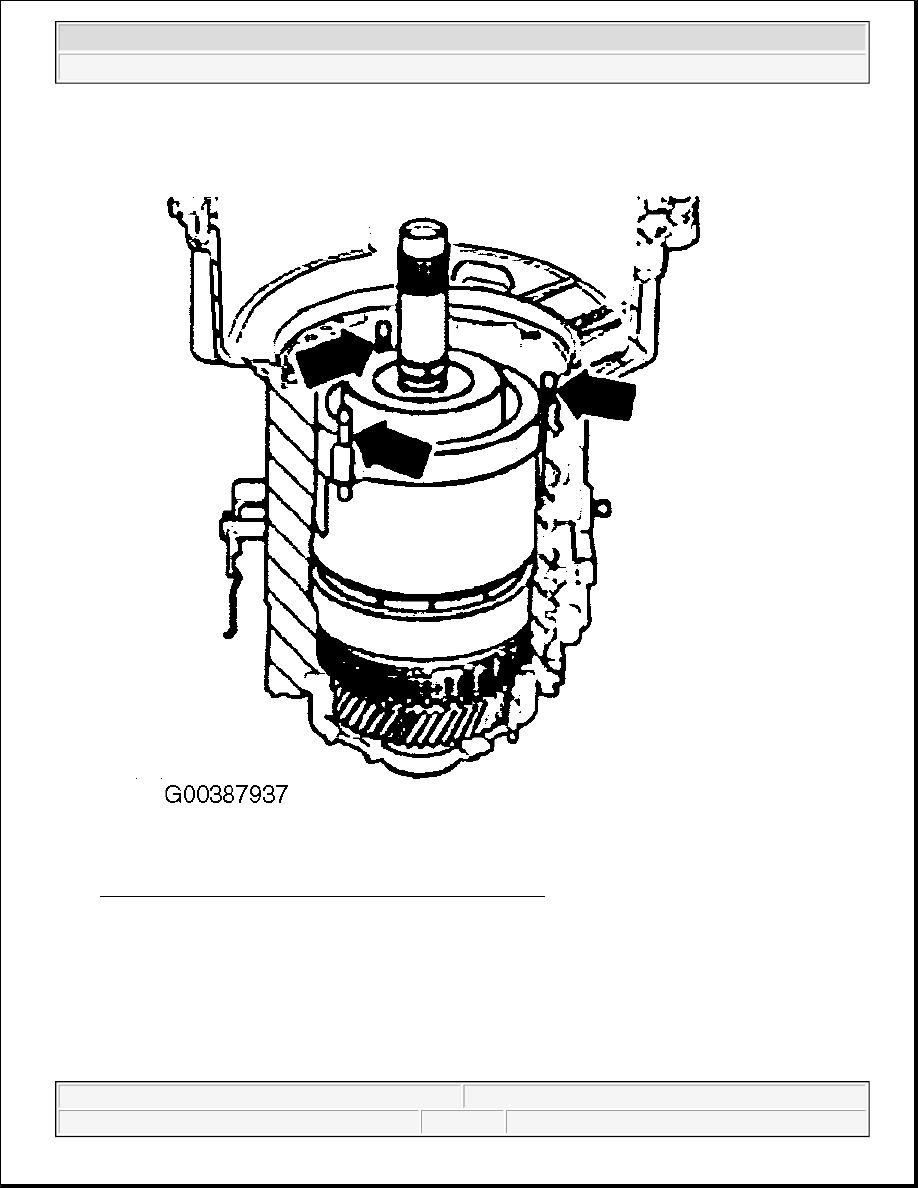

Selector segment assignment. See Identifying Selector Segments .

MANUAL TRANSMISSION - GEARS, SHAFTS

INPUT SHAFT, DISASSEMBLING AND ASSEMBLING

Special tools and equipment

z

VW 407 H Press tool

z

VW 447 H Press plate

z

VW412 Press tool

z

VW 422 Tube

z

VW 401 Press plate

z

VW 408 A Press tool

1st and 2nd gear selector segments with changed synchronization. See Changed springs
for 5th gear synchronizer from transmission manufacture date November 11 01

88.4 ... 89.1

3rd/4th gear selector forks

96.0 ... 96.7

(1)

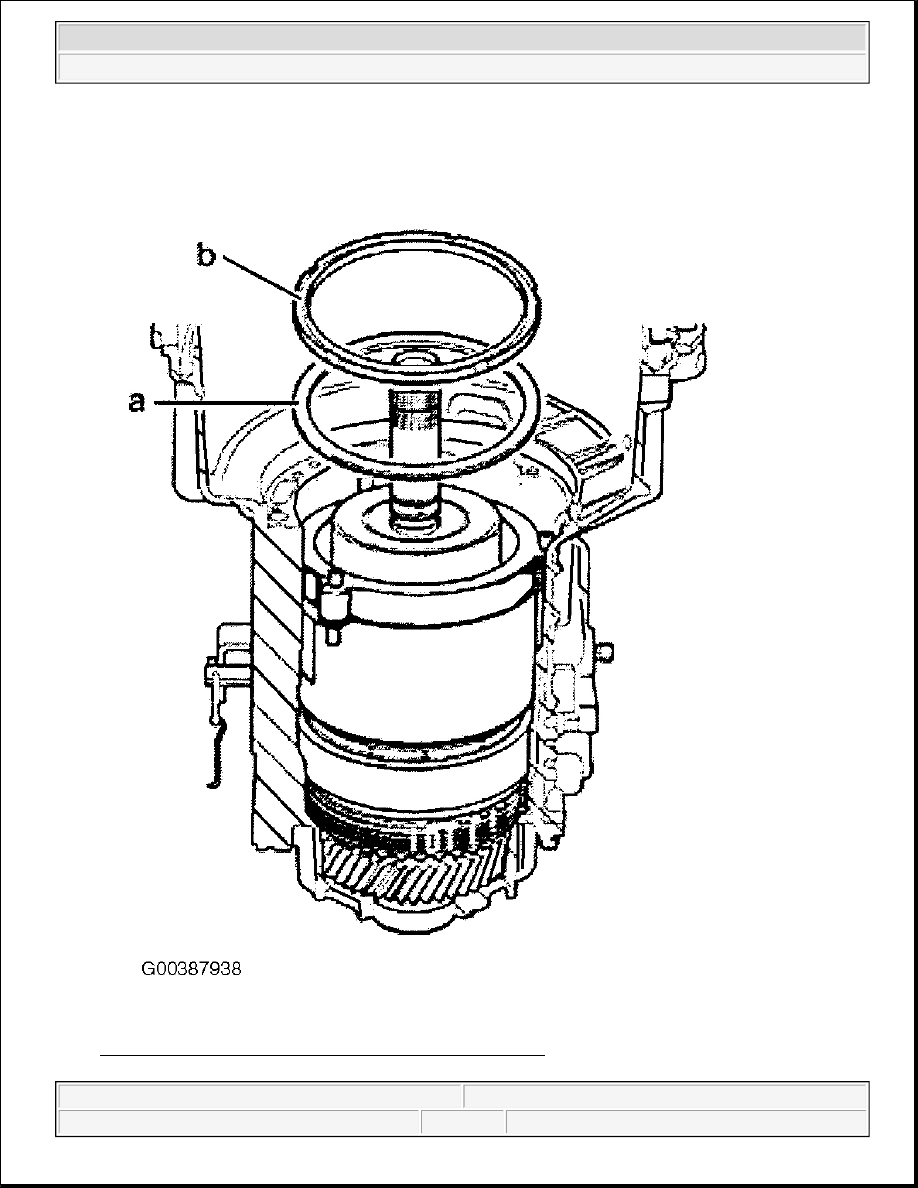

For dimension a, see Fig. 81 .



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 82: Identifying Special Tools And Equipment (1 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

VW 421 Tube

z

VW 454 Press piece

z

VW 447 i Thrust plate

z

VW510 Press piece

z

41-501 Drift sleeve



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



z

3-Kukko 17/1 Separating device

Fig. 83: Identifying Special Tools And Equipment (2 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



1. Clutch housing

2. Tapered roller bearing outer race

z

Removing. See Pressing out tapered roller bearing outer race

z

Pressing in. See Pressing in tapered roller bearing outer race

3. Tapered roller bearing inner race

z

Pressing off. See Pressing off tapered roller bearing inner race .

z

Pressing on Pressing on tapered roller bearing inner race .

4. Input shaft

z

Adjusting. See INPUT SHAFT, ADJUSTING

5. 3rd gear wheel

z

Shoulder points to 4th gear

z

Pressing off. See Pressing off 4th gear wheel with tapered roller bearing and sleeve

z

Pressing on Pressing on 3rd gear wheel

6. Circlip

z

Always replace

7. 4th gear wheel

z

Press off with tapered roller bearing inner race and sleeve. See Pressing off 4th gear wheel with
tapered roller bearing and sleeve

z

Pressing on Pressing on 4th gear wheel

z

Collar faces to 3rd gear

8. Tapered roller bearing inner race

z

Pressing off with 4th gear wheel and sleeve. See Pressing off 4th gear wheel with tapered roller
bearing and sleeve

z

Pressing on Pressing on tapered roller bearing inner race

9. Thrust washer

10. Tapered roller bearing outer race

z

Pressing out Pressing out tapered roller bearing outer race

z

Pressing in. See Pressing in tapered roller bearing outer race

11. Shim

z

Determining thickness adjusting input shaft. See INPUT SHAFT, ADJUSTING

NOTE:

z

When installing new gear wheels, consult technical data. See Code letters,
transmission application, ratios, capacities .

z

If the position of the tapered roller bearings is affected when exchanging
parts, the input shaft must be readjusted. See adjustment overview. See
Adjustment overview .

NOTE:

The following list refers to items in Fig. 84 .
