Volkswagen New Beetle. Manual - part 2482



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 159: Removing Right Flange Shaft Oil Seal And Sleeve
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

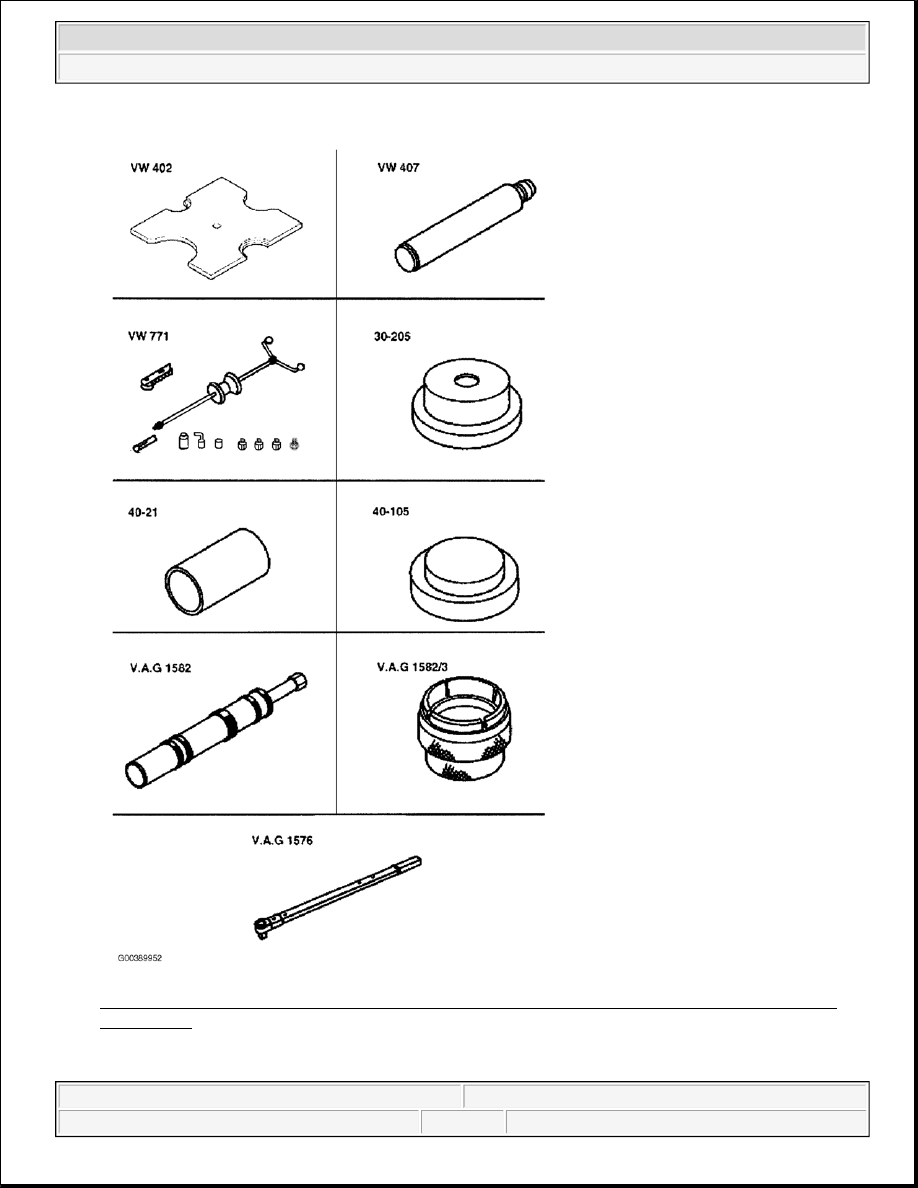

Install the puller hook VW 771/37 directly behind the pad in the sleeve.

z

Use force to press the puller hook VW 771/37 in the sleeve during the driving out sequence.

Installing

Seal and sleeve are driven out in two pieces:

z

Do not bend seal when driving new seal into sleeve onto stop.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 160: Installing Right Seal And Sleeve Into Flange Shaft (Seal And Sleeve Are Driven Out In
Two Pieces)
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



z

Fill space between sealing lip and dust lip with sealing grease G052 128 A1.

z

Insert flange shaft.

Seal and sleeve are driven out in one piece:

z

Clean the sitting place of seal in transmission.

z

Pull seal and sleeve together.
