Volkswagen New Beetle. Manual - part 2468

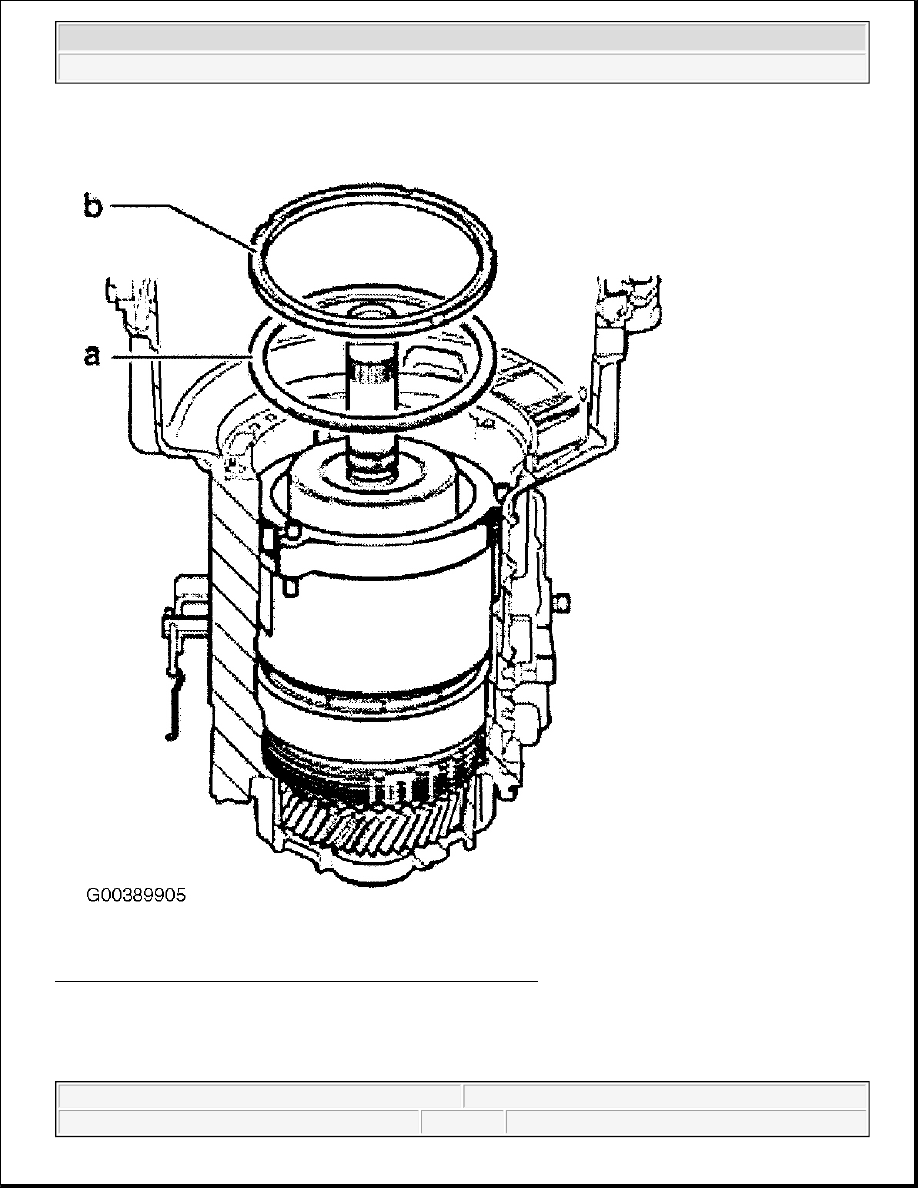

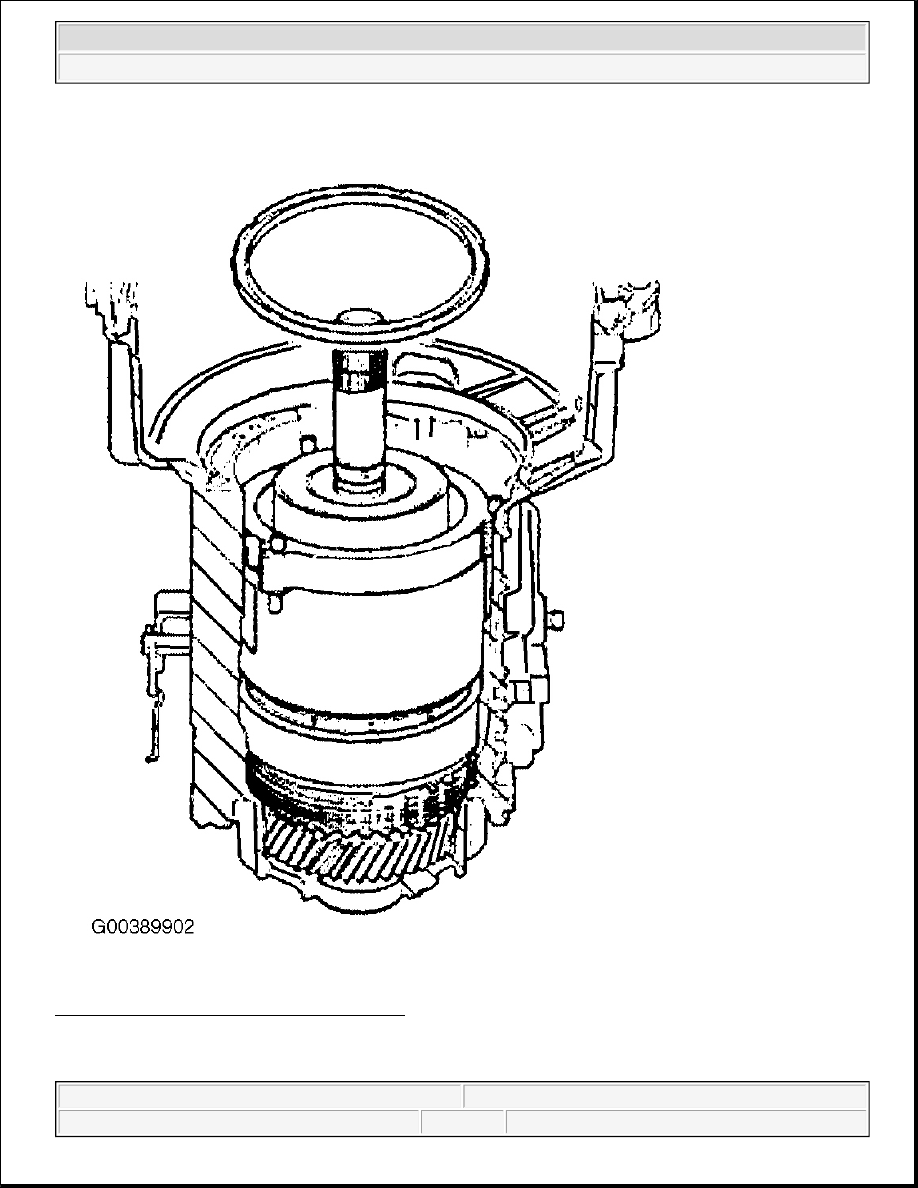

Fig. 109: Disassembled View Of Output Shaft
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Pulling out small tapered roller bearing outer race



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle

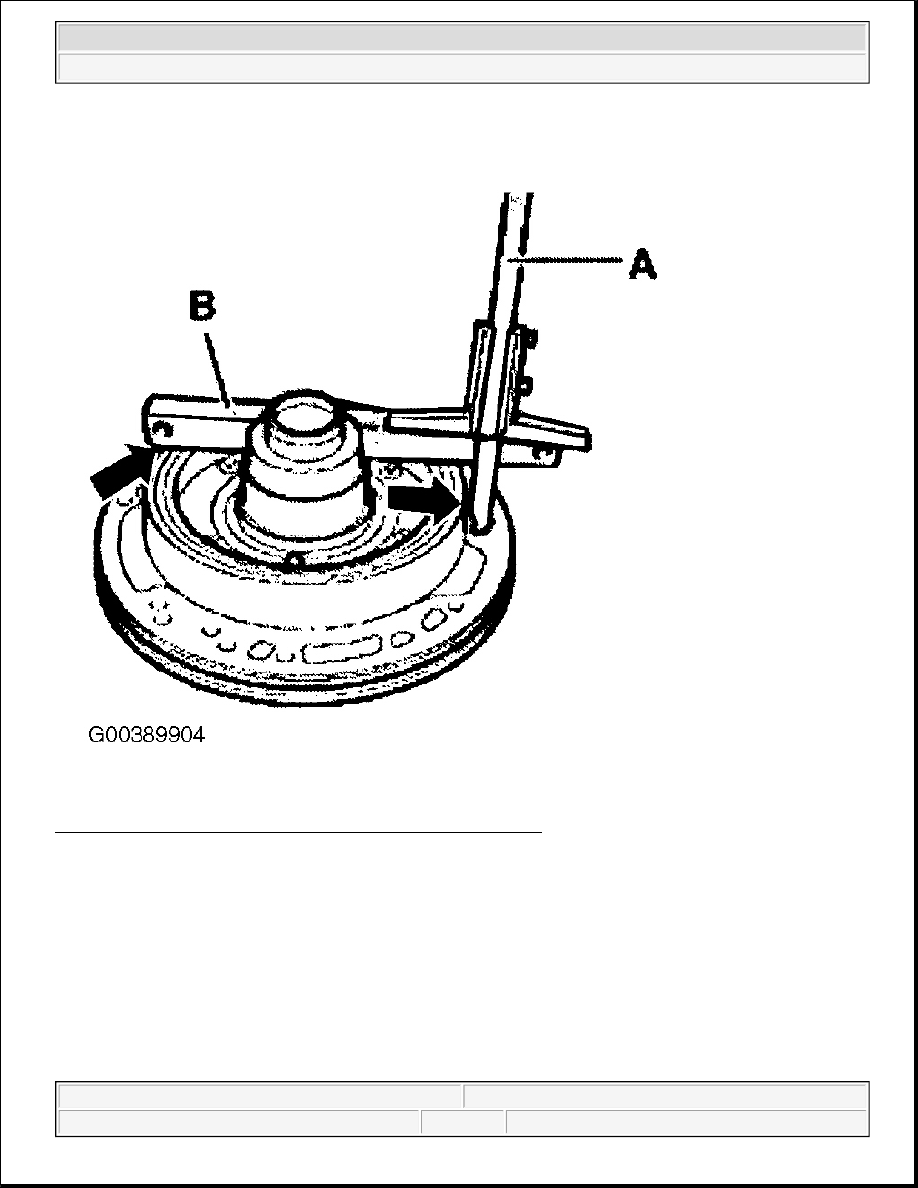

Fig. 110: Pulling Out Small Tapered Roller Bearing Outer Race
Courtesy of VOLKSWAGEN OF AMERICA, INC.

A. Internal extractor 37 ... 46 mm, e.g. Kukko 21/6

B. Counter support, e.g. Kukko 22/2

Pressing in small tapered roller bearing outer race



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle

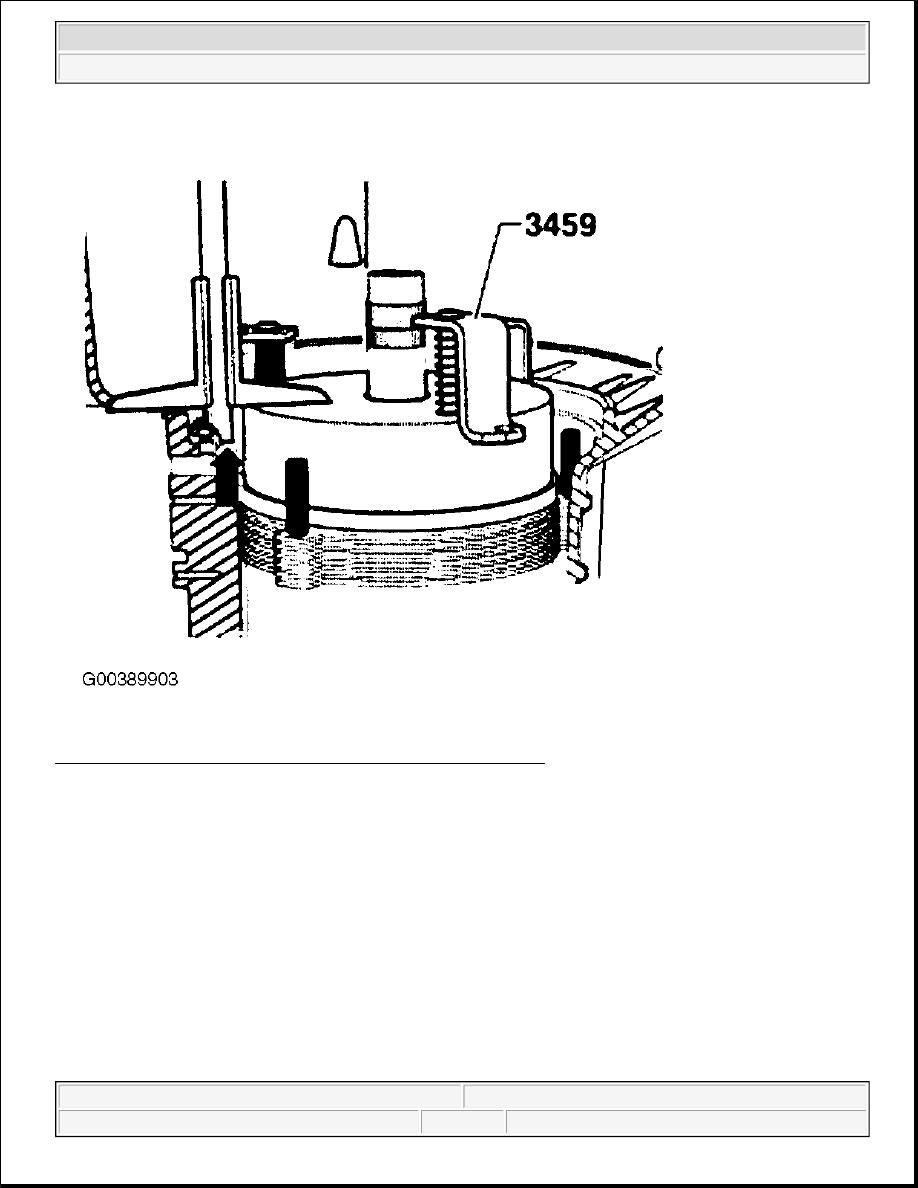

Fig. 111: Pressing In Small Tapered Roller Bearing Outer Race
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Pulling off small tapered roller bearing inner race



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 112: Pulling Off Small Tapered Roller Bearing Inner Race
Courtesy of VOLKSWAGEN OF AMERICA, INC.

A. Vice clamps/vice

{

Install gripping device and tension behind bearing rollers, then turn bearing and retension gripping



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle
