Volkswagen New Beetle. Manual - part 2400

Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Rotate input shaft so that tapered roller bearings settle.

z

Press input shaft in direction of dial gauge.

z

Bearing play should be min. 0.015 to max. 0.100 mm.

OUTPUT SHAFT, 1ST-4TH GEAR, DISASSEMBLING AND ASSEMBLING

Special tools and equipment

z

VW 401 Thrust plate

z

VW 402 Thrust plate

z

VW 407 Press tool

z

VW 408 A Press tool

z

VW 412 Press tool

z

VW 415 A Tube

NOTE:

If the bearing clearance cannot be measured, but input shaft play is
perceptible and the input shaft turns freely, the adjustment is acceptable.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



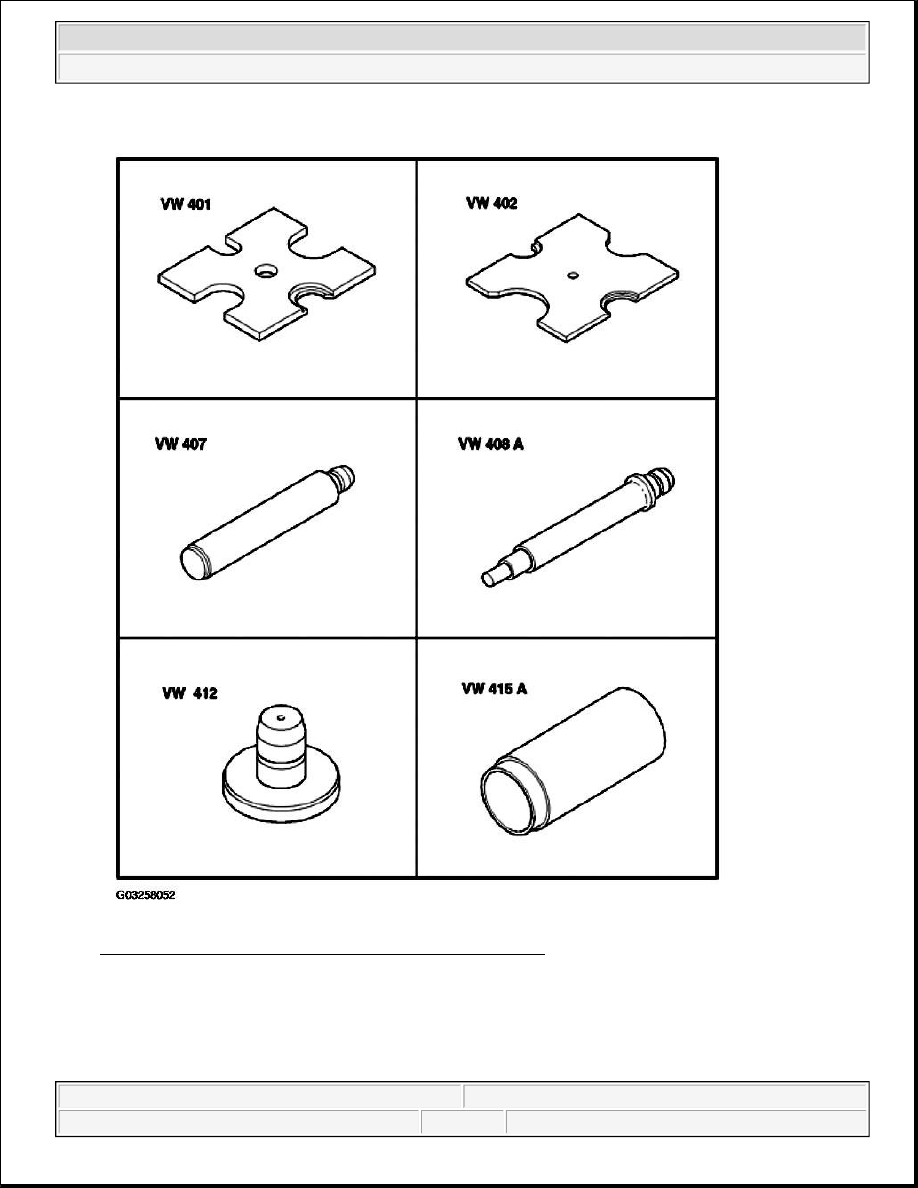

Fig. 83: Identifying Special Tools And Equipment (1 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

VW 309 Holding plate

z

VW 313 Support clamp

z

VW 353 Transmission support



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



z

VW 431 Press piece

z

VW 433 Press piece

z

VW 454 Press piece

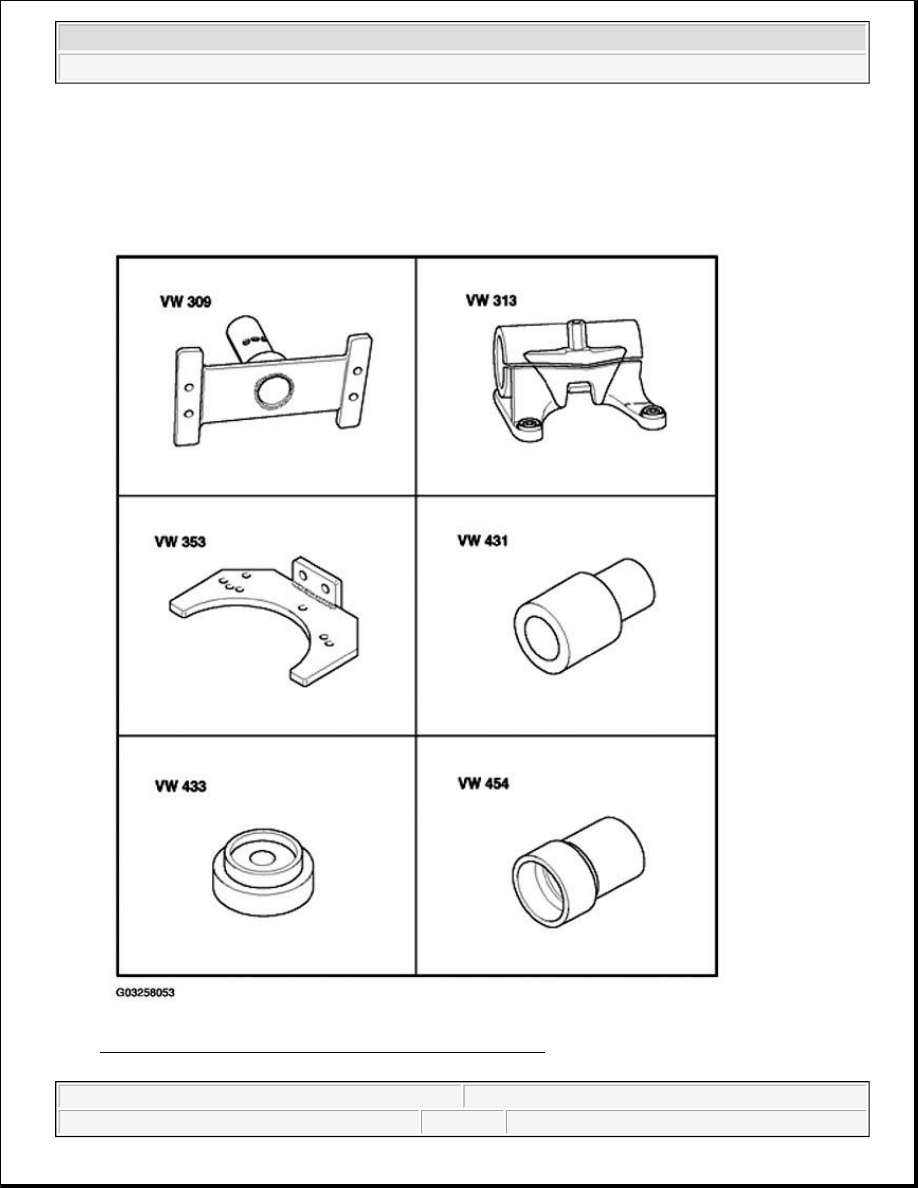

Fig. 84: Identifying Special Tools And Equipment (2 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



z

VW 512 Press disk

z

VW 516 Tube

z

VW 519 Tube

z

VW 771 Multipurpose tool

z

VW 801 Holding plate

z

40-105 Thrust plate



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle
