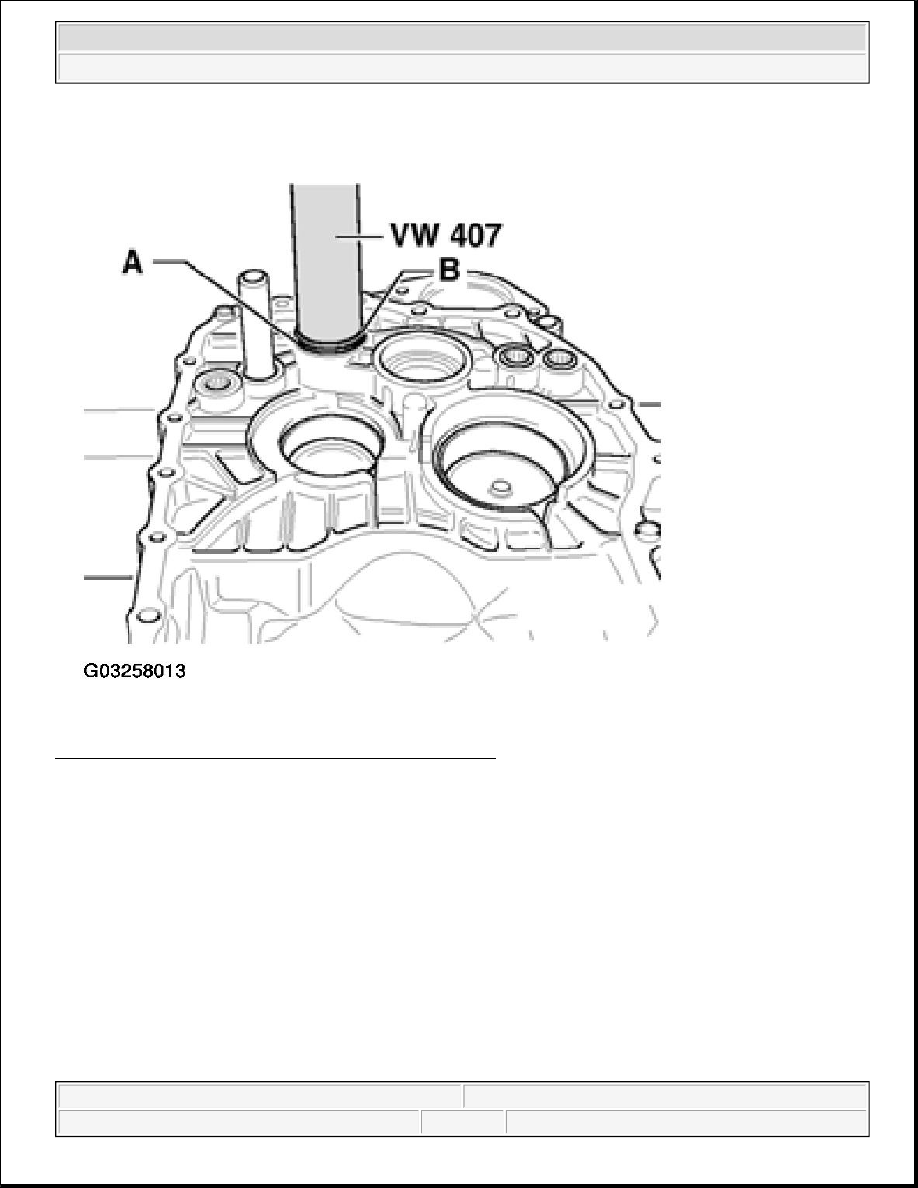

Fig. 44: Pressing Needle Bearing -A- Into Clutch Housing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Before pressing in, lay reverse shaft thrust washer -B- on needle bearing.

Removing Input Shaft Oil Seal



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

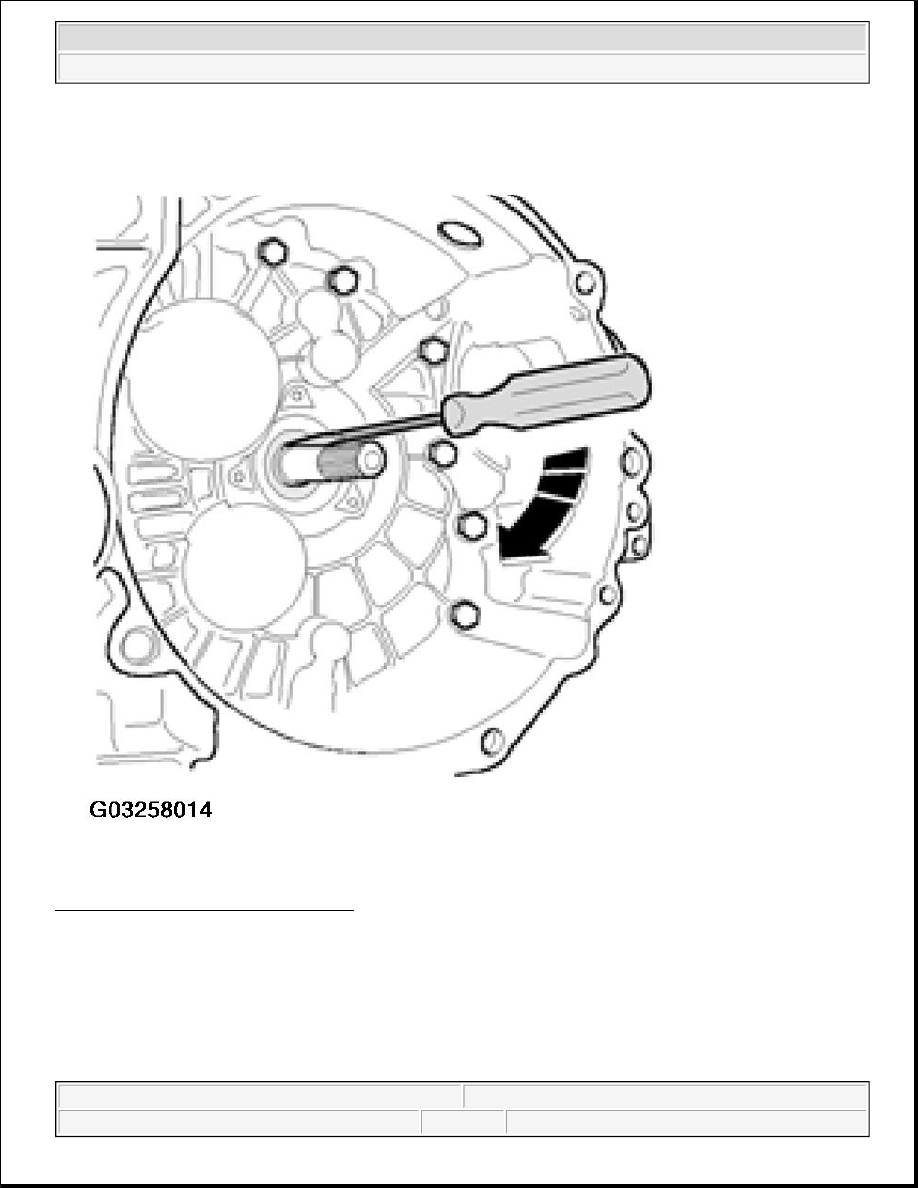

Fig. 45: Removing Input Shaft Oil Seal
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Lever oil seal out carefully with a screwdriver.

When transmission is disassembled, oil seal can be removed with sleeve 30-21.

Driving In Input Shaft Oil Seal Flush



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



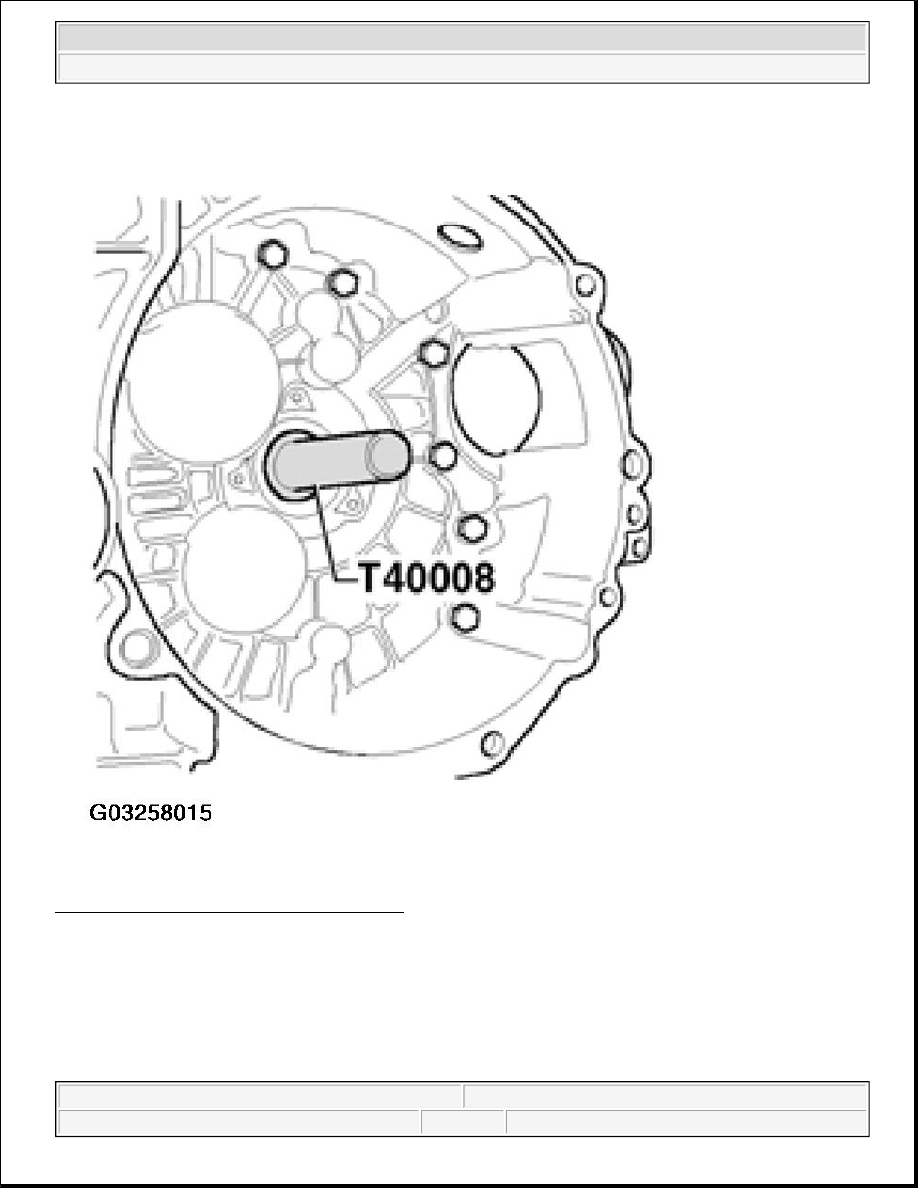

Fig. 46: Driving In Input Shaft Oil Seal Flush
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Pressing Reverse Gear Selector Fork Shaft Into Clutch Housing



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

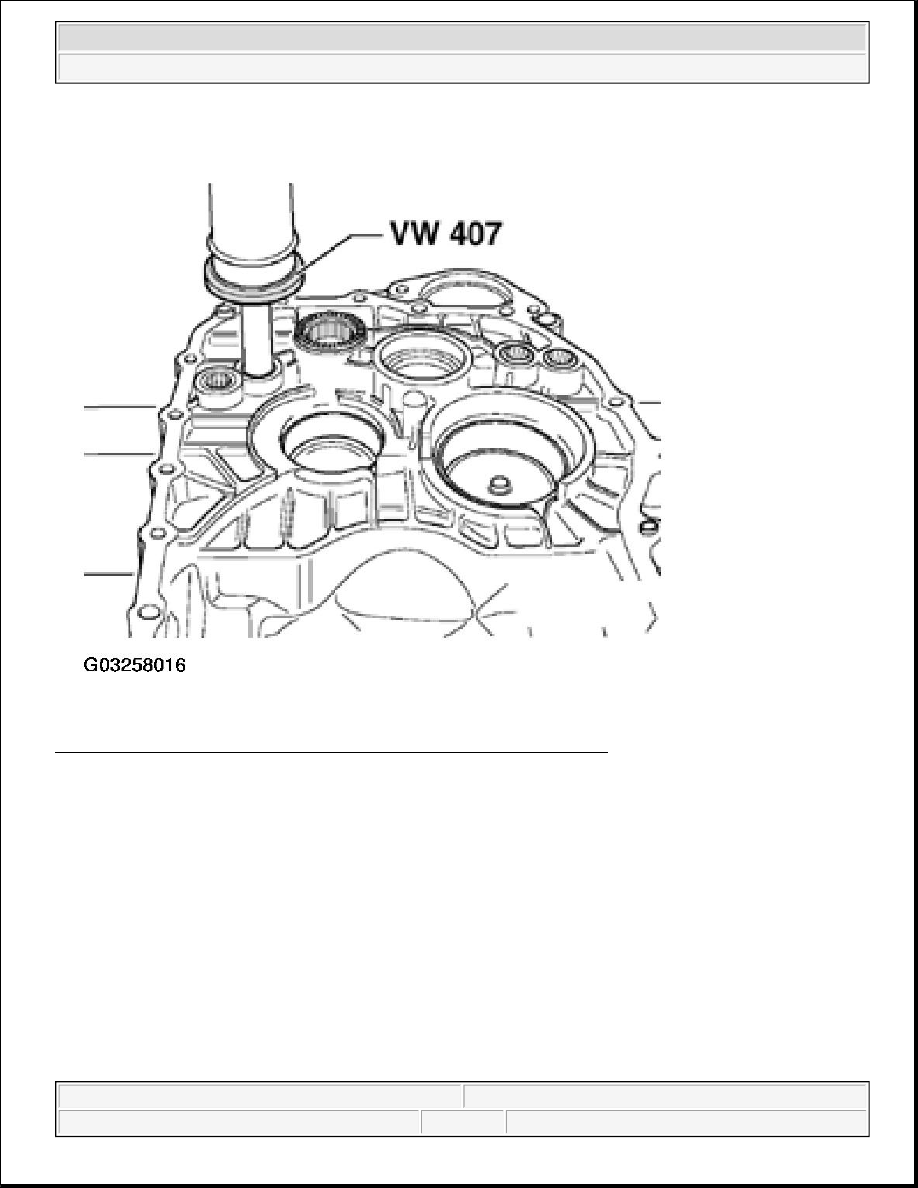

Fig. 47: Pressing Reverse Gear Selector Fork Shaft Into Clutch Housing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

TRANSMISSION SELECTOR MECHANISM, DISASSEMBLING AND ASSEMBLING

Special tools and equipment

z

VW 402 Thrust plate

z

VW 412 Press tool

z

VW 421 Tube

z

VW 423 Tube

z

3118 Tube
