Fig. 10: Identifying Input Shaft, Output Shafts (Pinion Shafts), Differential And Selector Rods
Courtesy of VOLKSWAGEN OF AMERICA, INC.

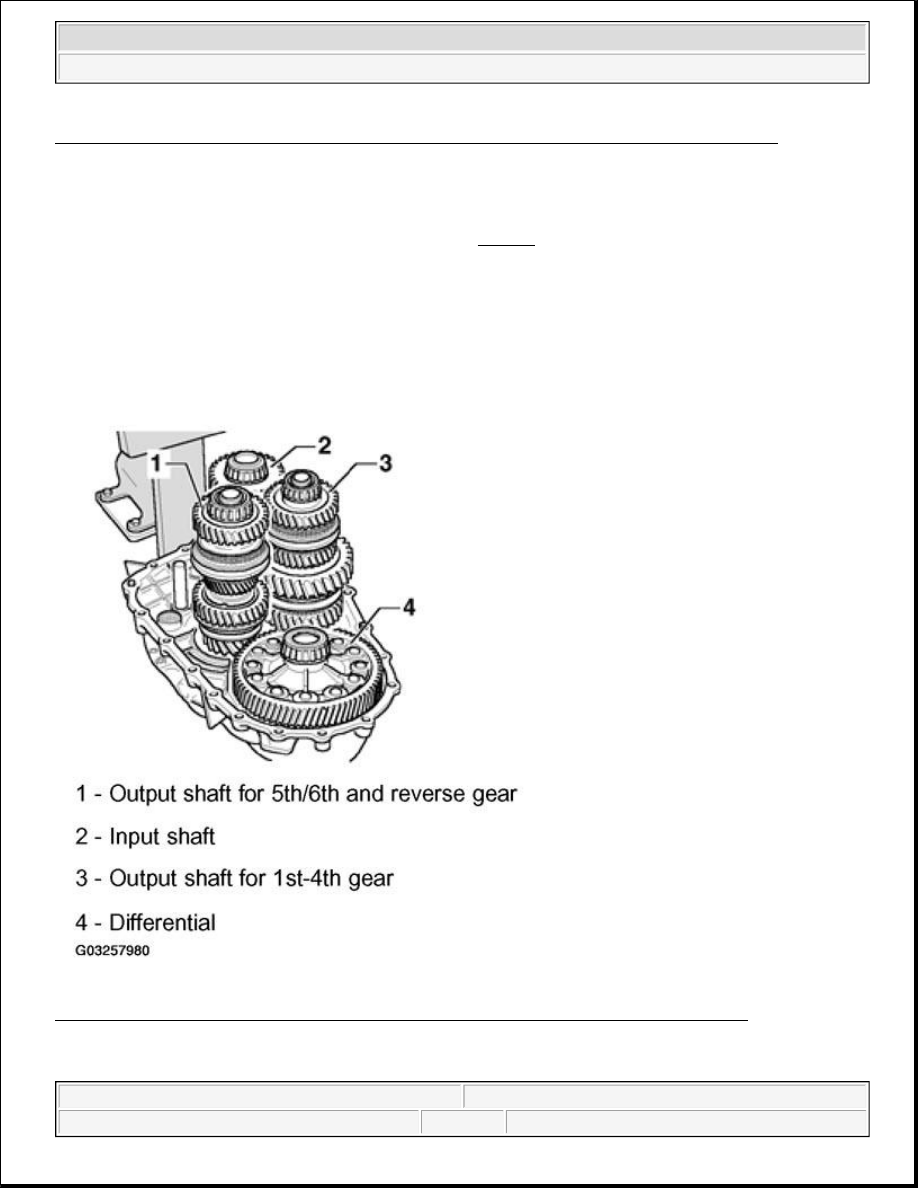

Installation position of output shafts (pinion shafts) in transmission

1. Output shaft for 5th/6th and reverse gear

2. Input shaft

3. Output shaft for 1st-4th gear

4. Differential

Fig. 11: Identifying Installation Position Of Output Shafts (Pinion Shafts) In Transmission
Courtesy of VOLKSWAGEN OF AMERICA, INC.

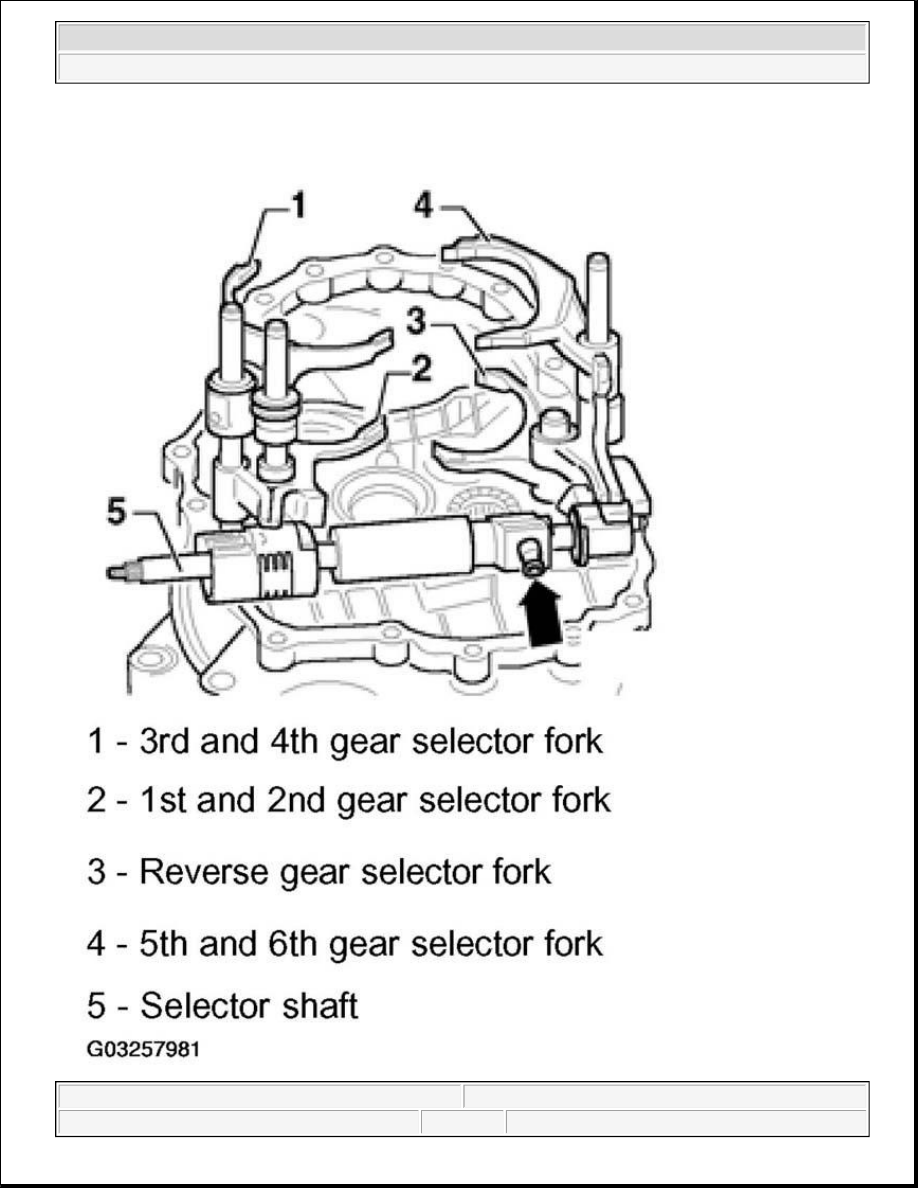

Installation position of complete selector mechanism in transmission

NOTE:

The following list refers to items in Fig. 11 .



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



1. 3rd and 4th gear selector fork

2. 1st and 2nd gear selector fork

3. Reverse gear selector fork

4. 5th and 6th gear selector fork

5. Selector shaft

The lower selector shaft mounting -arrow- is bolted to the cover plate.

NOTE:

The following list refers to items in Fig. 12 .



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle





2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



Fig. 12: Identifying Installation Position Of Complete Selector Mechanism In Transmission
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Assembly sequence

Disassembling and assembling transmission housing, selector mechanism, input shaft, output shafts,
differential and selector rods

Special tools and equipment

z

VW 309 Holding plate

z

VW 313 Support clamp

z

VW 353 Transmission support

z

30-21 Sleeve

z

T40008 Press piece
