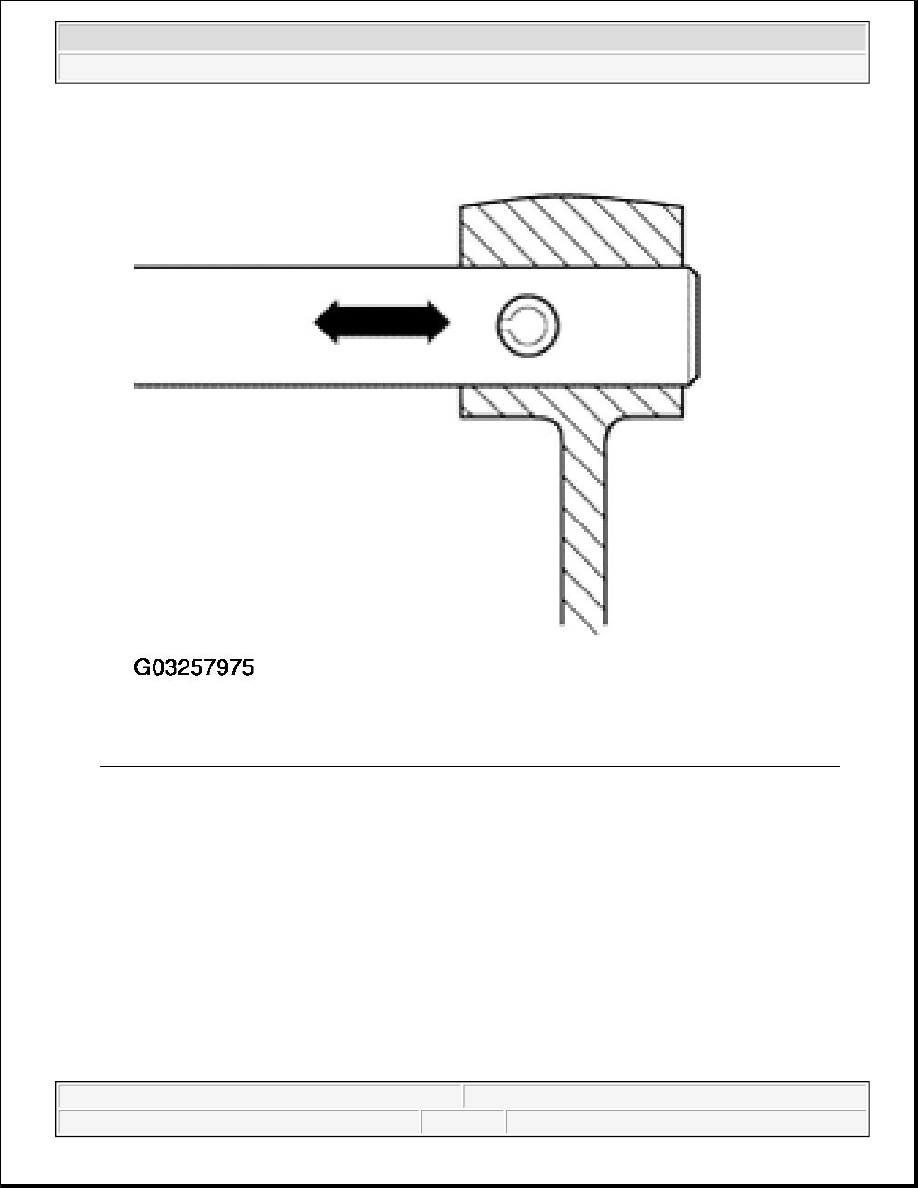

Fig. 6: Identifying Replace Spring Pins Installation Position: Slot Longitudinal To Line Of Force
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Bolts and nuts

z

Tighten and loosen bolts and nuts for securing covers and housings in a diagonal sequence.

z

Especially delicate parts, such as clutch pressure plates, must not be distorted. Loosen and tighten nuts
and bolts in stages in a diagonal sequence.

z

Tightening torques as specified are for unoiled bolts and nuts.

z

Replace self-locking bolts and nuts.

z

Ensure that on bolted connections the areas around the contact surfaces as well as the visible surfaces of
nuts and bolts are rewaxed after assembly, if necessary.

Bearings



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



z

Install new tapered roller bearings as supplied and do not lubricate additionally.

z

Install needle bearings with lettered side (thicker metal) towards fitting tool.

z

Tapered roller bearings fitted to one shaft must be replaced as a set. Use the same make of bearings.

z

Heat inner races to approx. 100° C before installing.

z

Do not interchange outer or inner races of bearings of the same size. The bearings are matched in pairs.

Shims

z

Measure shims at several points with a micrometer. Tolerance variations make it possible to find the
exact shim thickness required.

z

Check for burrs and damage.

z

Only install perfect shims.

Synchronizer rings

z

Do not interchange. When reusing always fit to the same gear.

z

Check for wear and replace if necessary.

z

Coat with gear oil before installing.

Selector gears

z

Before installing clean and heat on a hot plate to approx. 100° C.

z

Temperature can be checked with temperature tester V.A.G 1558.

MANUAL TRANSMISSION - CONTROLS, HOUSING

TRANSMISSION, DISASSEMBLING AND ASSEMBLING

Sequence for disassembling and assembling. See ASSEMBLY SEQUENCE .

Component overview

1. Clutch housing

2. Reverse shaft

3. Output shaft for 5th, 6th and reverse gear

4. Slave cylinder with release bearing

5. Input shaft

6. Output shaft for 1st-4th gear

7. Differential

8. Speedometer sender

NOTE:

The following list refers to items in Fig. 7 .



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



9. 2nd gear

10. 1st selector gear

11. Selector gear for 4th gear

12. Selector gear for 3rd gear

13. Selector gear for 5th gear

14. 6th gear

z

Spacer sleeve fitted in 5-speed transmission

15. Reverse sliding gear

16. Transmission housing



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

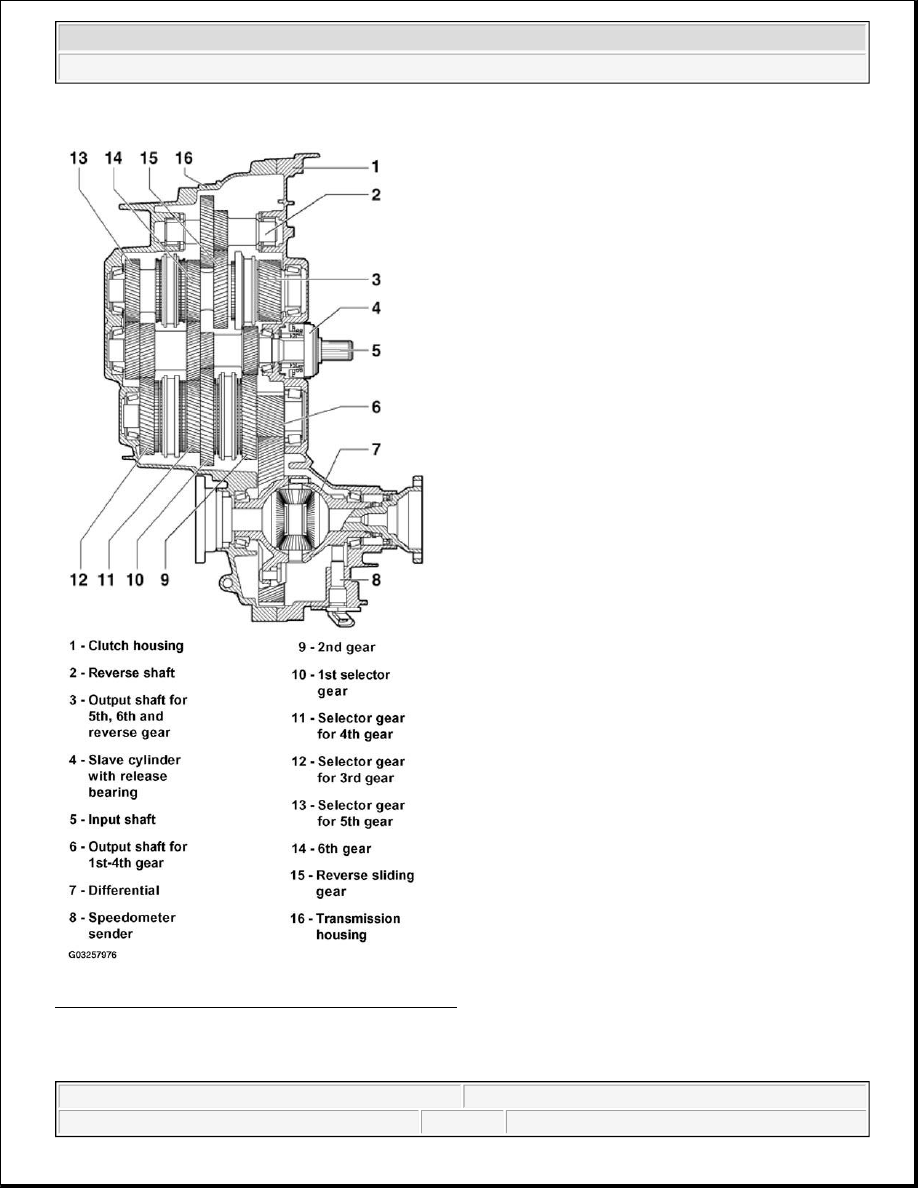

Fig. 7: Sectional View Of Transmission Components
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Assembly overview



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle
