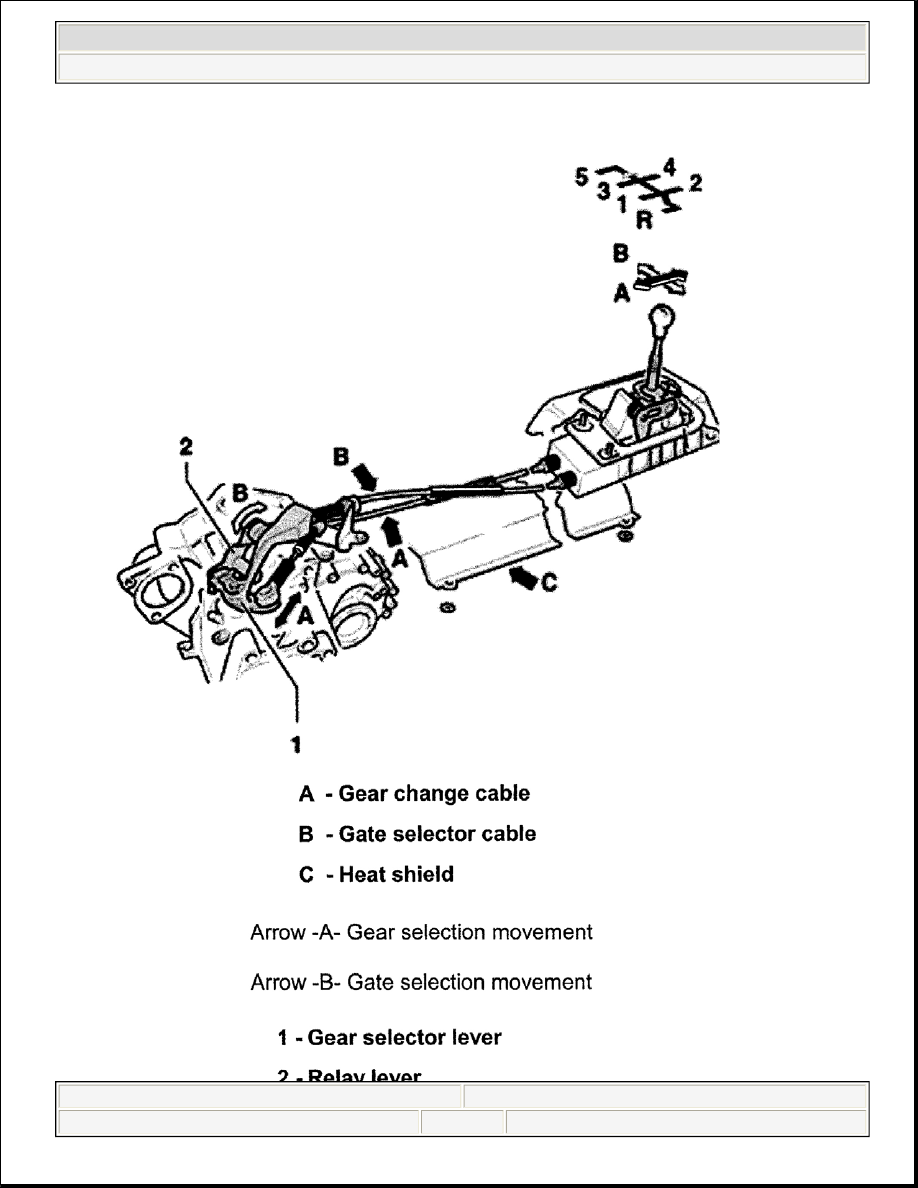

Fig. 16: Identifying Gear Selector Mechanism Components (Vehicles Built From June 1999)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig. 17: Securing Locking Mechanism (Vehicles Built From June 1999)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

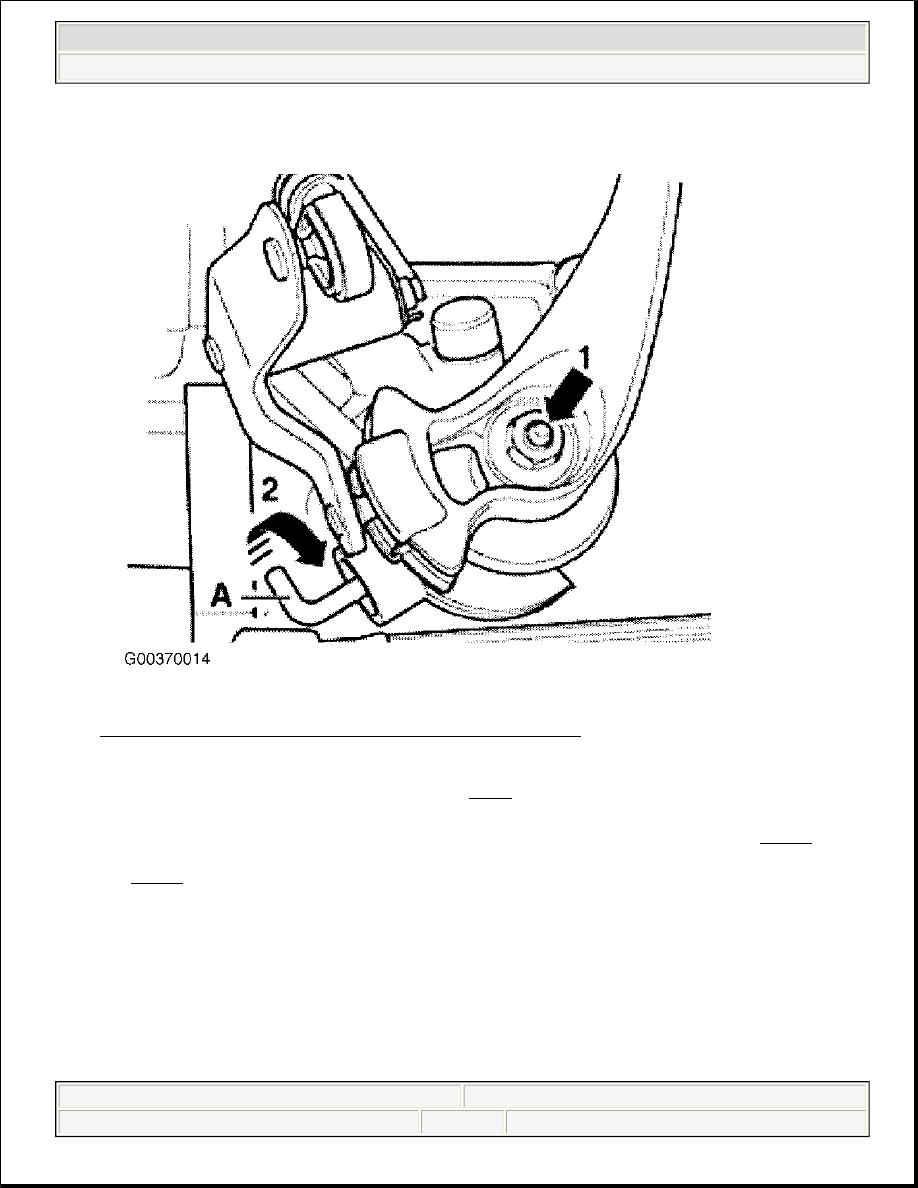

2. Press selector shaft down (direction of arrow 1). See Fig. 18 . Turn right-angle piece (A) in direction of

arrow (2), when pressing selector shaft down.



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:01 AM

Page 18

© 2004 Mitchell Repair Information Company, LLC.

Fig. 18: Setting Selector Shaft (Vehicles Built From June 1999)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

3. Pull gear shift boot off center console (arrow). See Fig. 7 . Pull rubber cover toward gear shift knob, if

part of original equipment.

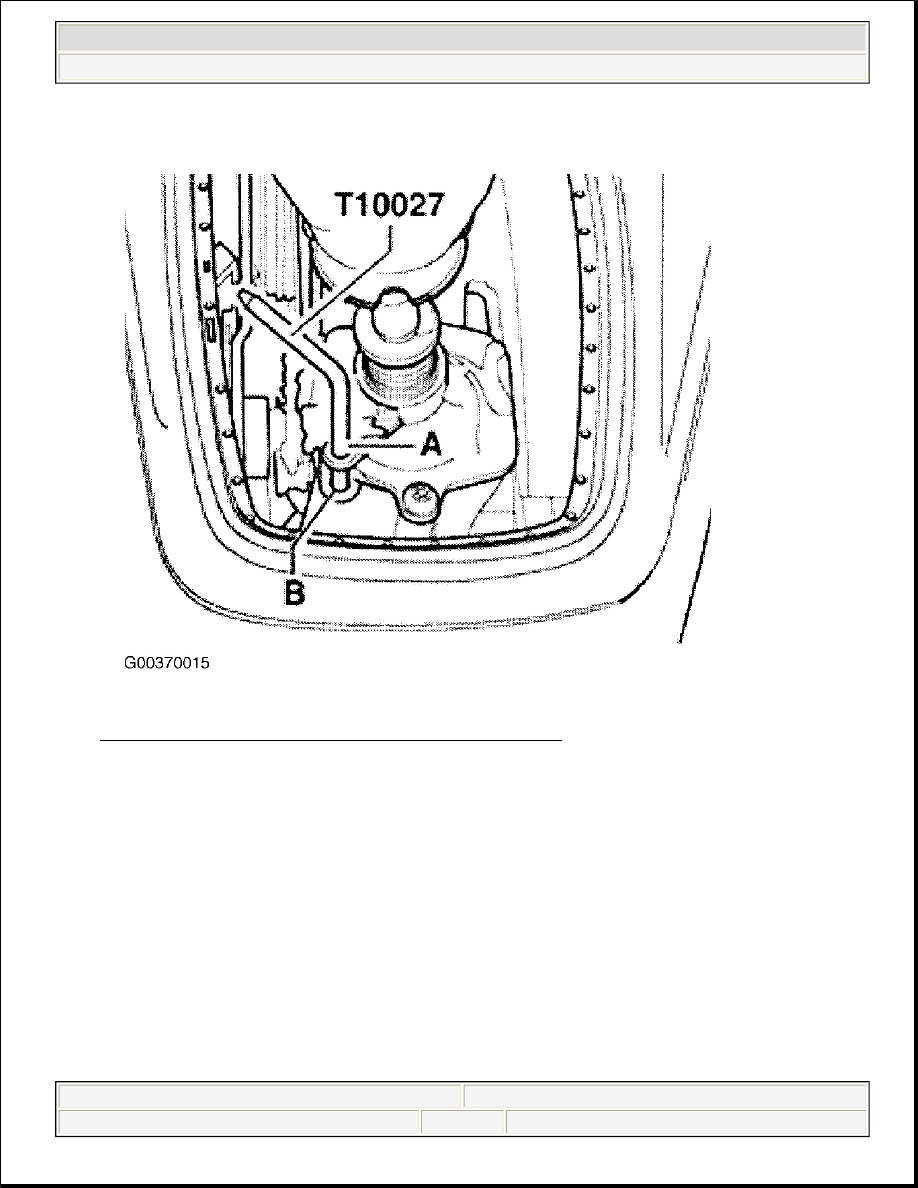

4. Select Neutral with gear lever. Guide pin (T10027) through hole (A) and into hole (B). See Fig. 19 . Turn

locking mechanism on gear selector cable and gate selector cable to right onto stop (direction of arrow).
See Fig. 20 . Spring presses locking mechanism into normal position.
