Volkswagen New Beetle. Manual - part 2352

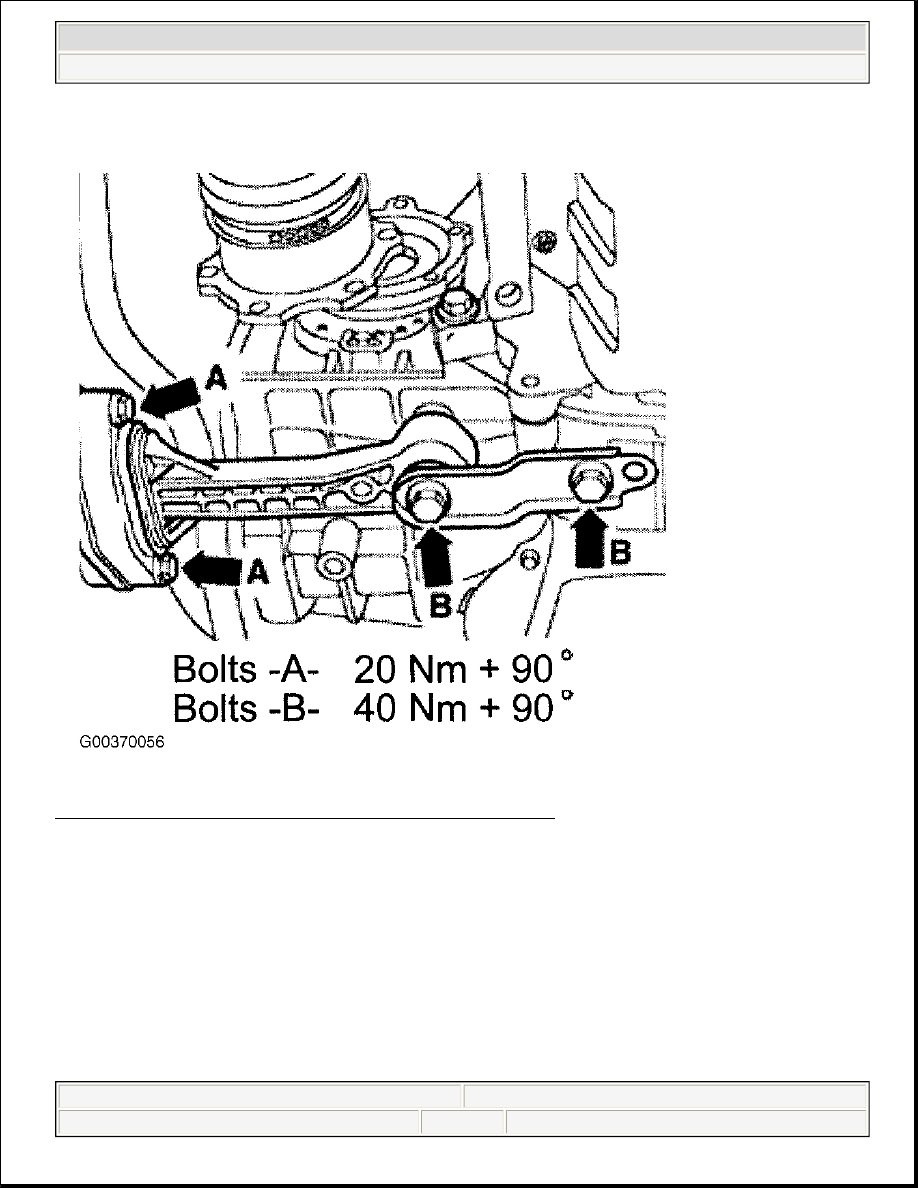

Fig. 64: Identifying Pendulum Support Bolt Torque Specification
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:55 AM

Page 69

© 2004 Mitchell Repair Information Company, LLC.

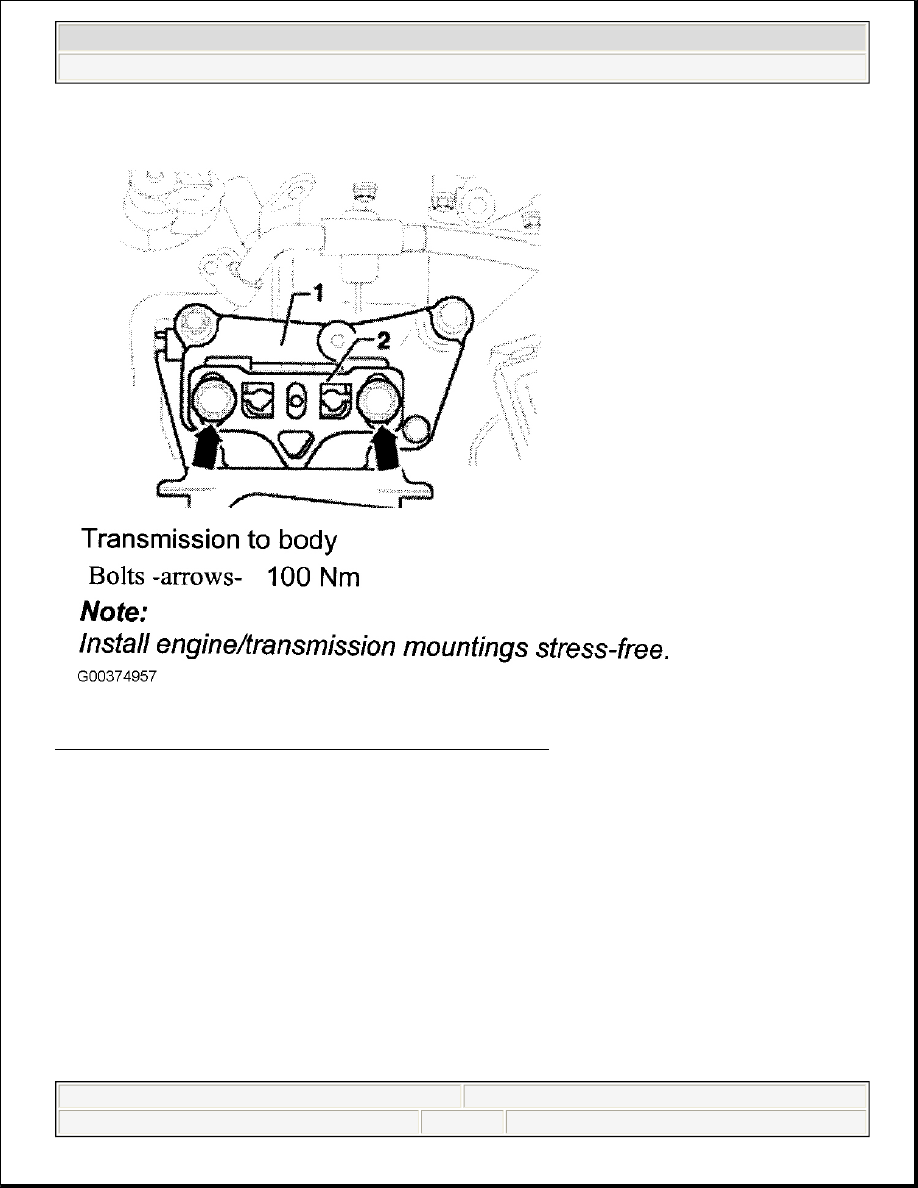

Fig. 65: Identifying Engine/Transmission Bolt Torque Specification
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:56 AM

Page 70

© 2004 Mitchell Repair Information Company, LLC.

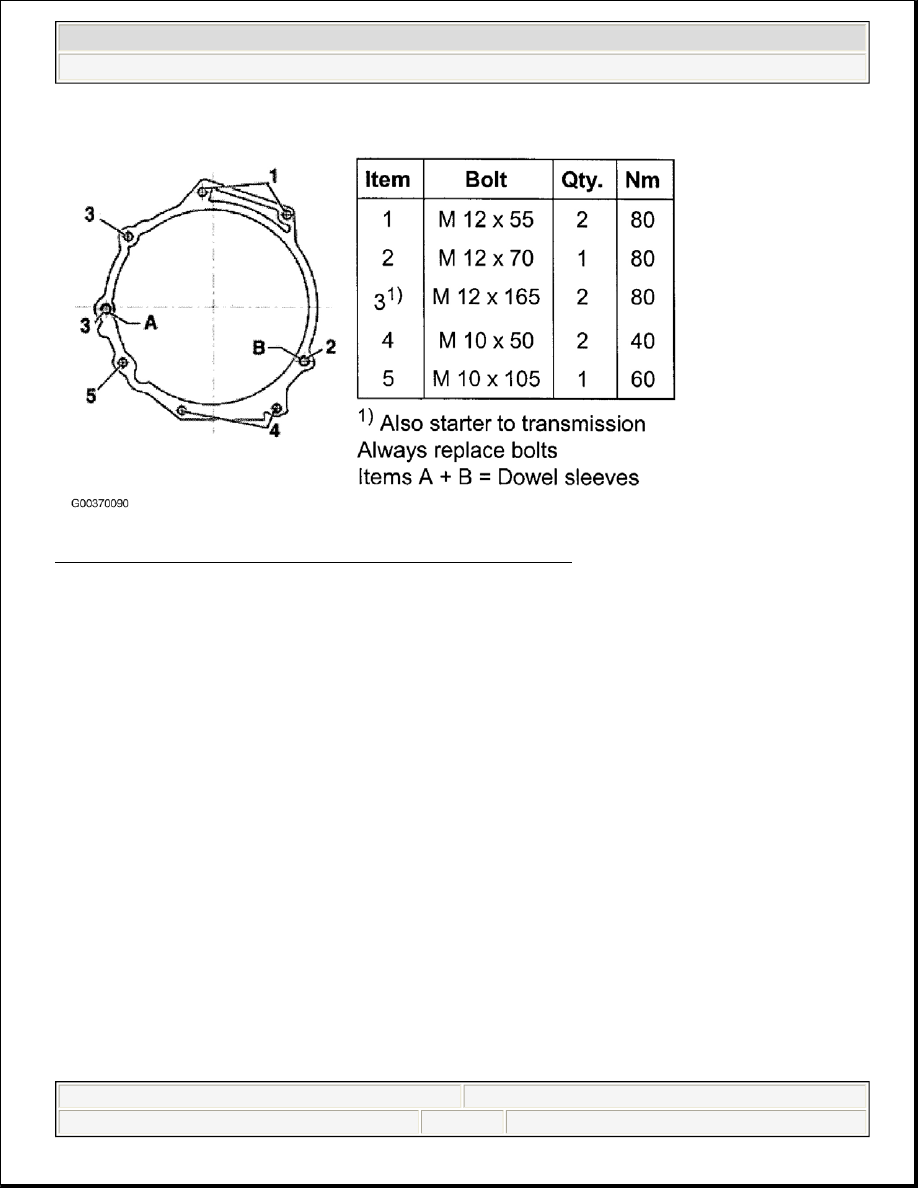

Fig. 66: Identifying Transmission-To-Body Torque Specification
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:56 AM

Page 71

© 2004 Mitchell Repair Information Company, LLC.

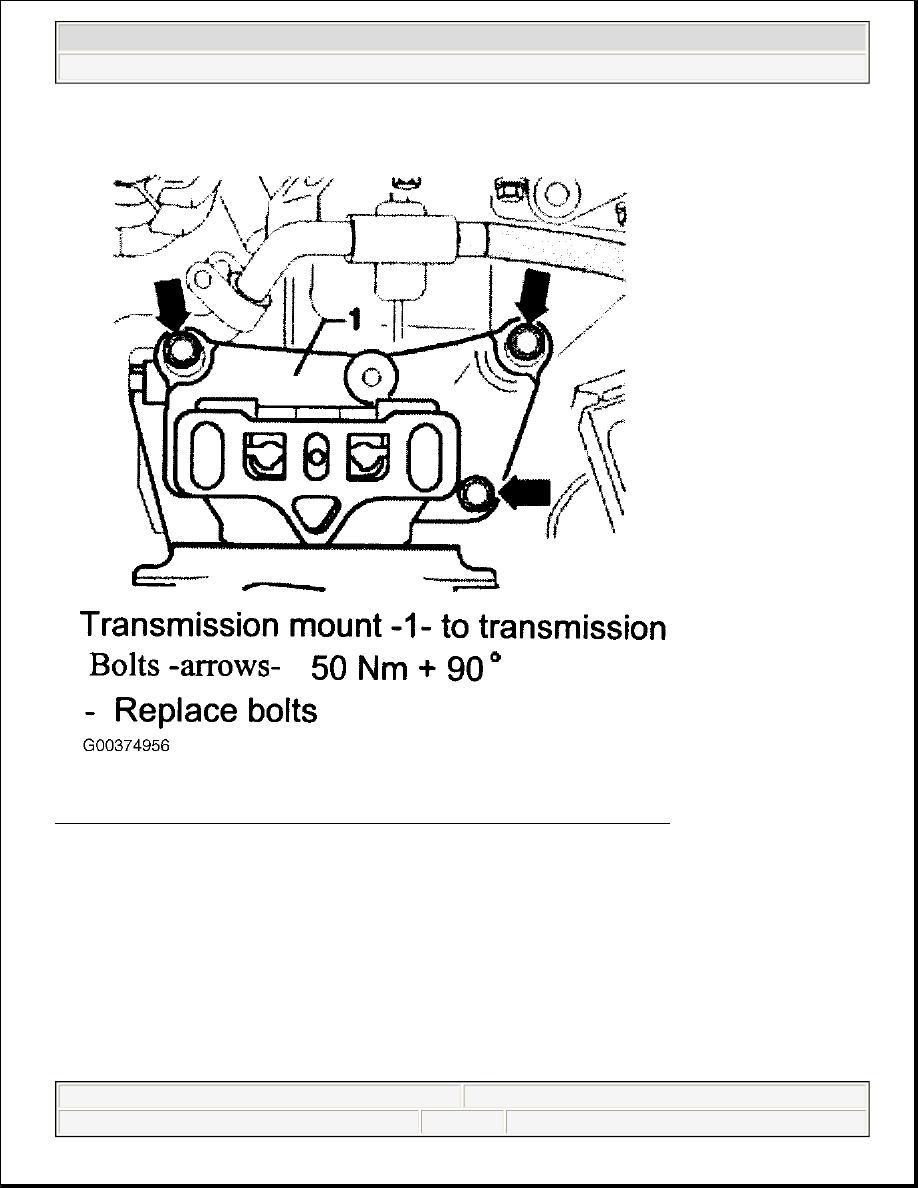

Fig. 67: Identifying Transmission Mount-To-Transmission Torque Specification
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:56 AM

Page 72

© 2004 Mitchell Repair Information Company, LLC.
