3. Remove driver's lower instrument panel cover. Turn clutch pedal switch 90 degrees to left and pull switch

out from support. Pull clutch pedal lightly toward passenger compartment. Press both sides of mounting
inward using Pliers (T10005). See Fig. 19 . Separate master cylinder operating rod from clutch pedal.

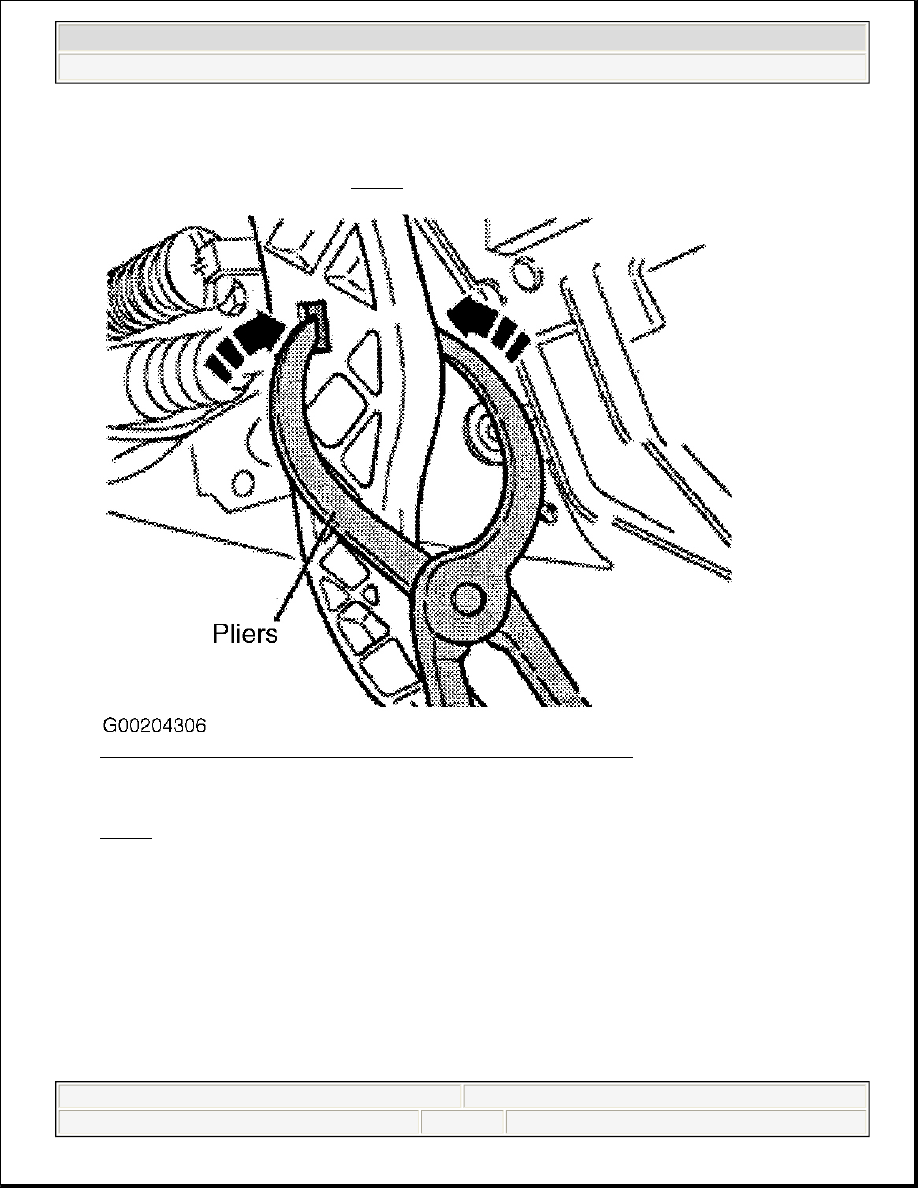

Fig. 19: Applying Pliers (T10005) To Clutch Pedal Support Mounting
Courtesy of VOLKSWAGEN UNITED STATES, INC.

4. Remove complete clutch pedal mounting bracket by removing connecting plate (A) first (arrows 1). See

Fig. 20 . Remove securing nuts (arrow 2) for support (B). Remove mounting bracket.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:53 AM

Page 21

© 2004 Mitchell Repair Information Company, LLC.

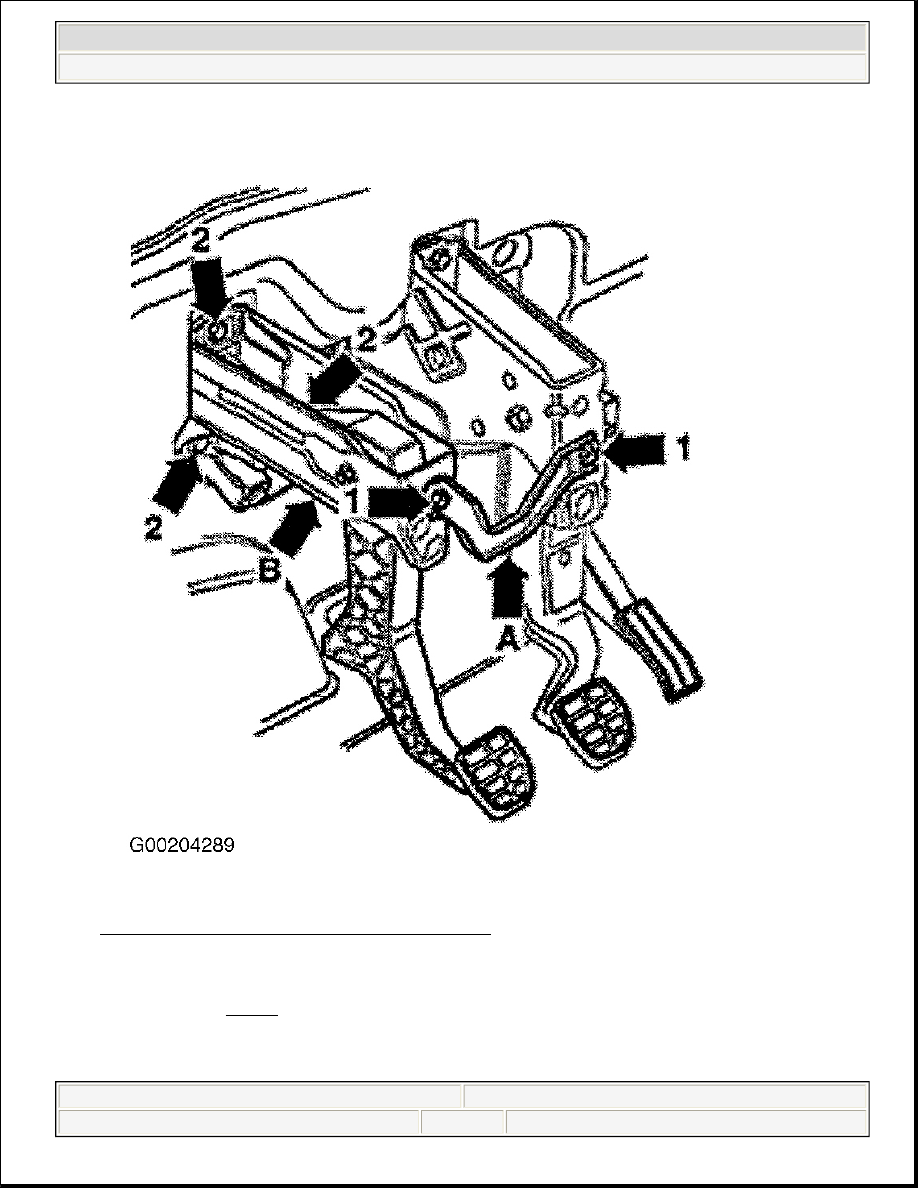

Fig. 20: Removing Clutch Pedal Mounting Bracket
Courtesy of VOLKSWAGEN UNITED STATES, INC.

5. Separate clutch master cylinder rod from clutch pedal by, inserting Release Tool (3309) into clutch pedal

cut outs (A). See Fig. 21 . Inscription (B, top/oben) on release tool points away from clutch pedal. Using
pliers positioned in recesses (C), press release tool together.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:53 AM

Page 22

© 2004 Mitchell Repair Information Company, LLC.

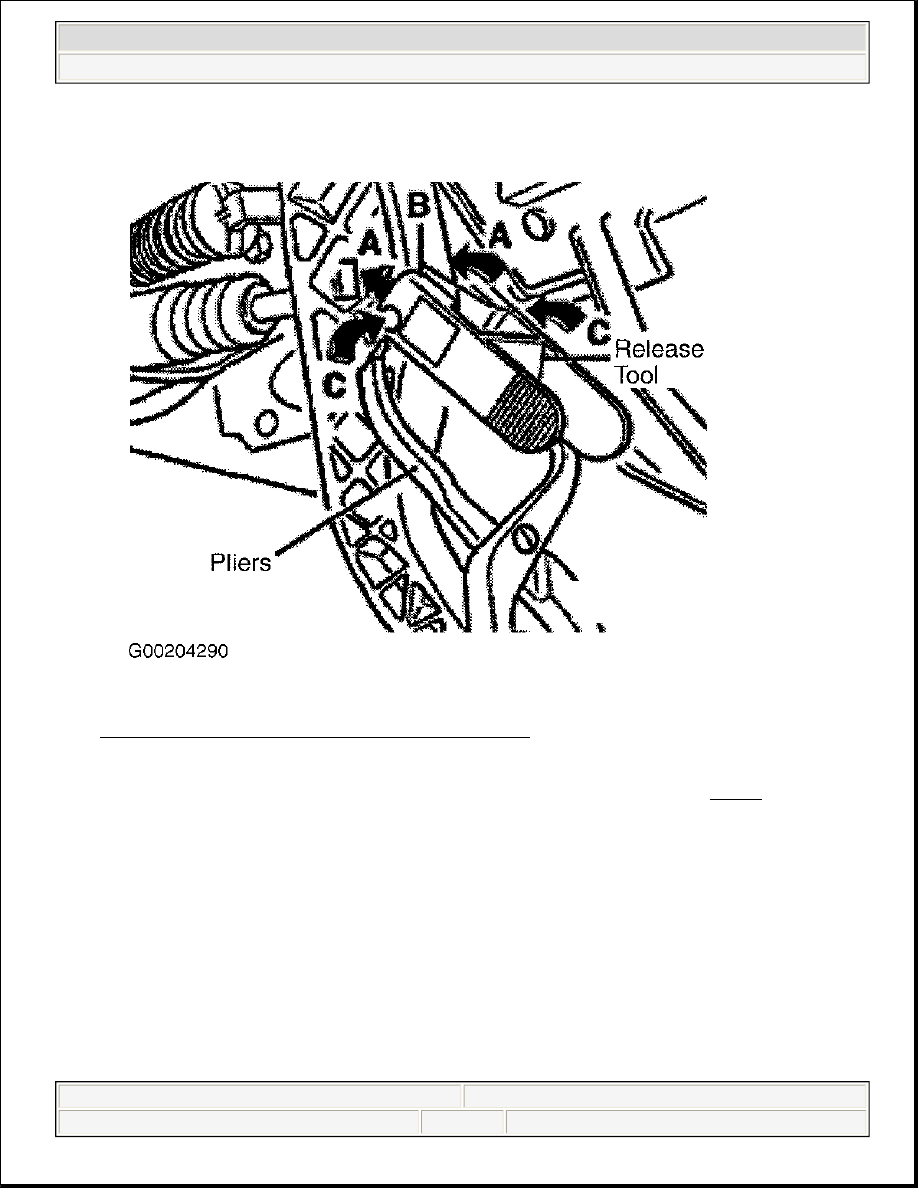

Fig. 21: Separating Master Cylinder From Clutch Pedal
Courtesy of VOLKSWAGEN UNITED STATES, INC.

6. Turn stop (A) for clutch pedal in a counterclockwise direction and remove stop. See Fig. 22 .



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:53 AM

Page 23

© 2004 Mitchell Repair Information Company, LLC.

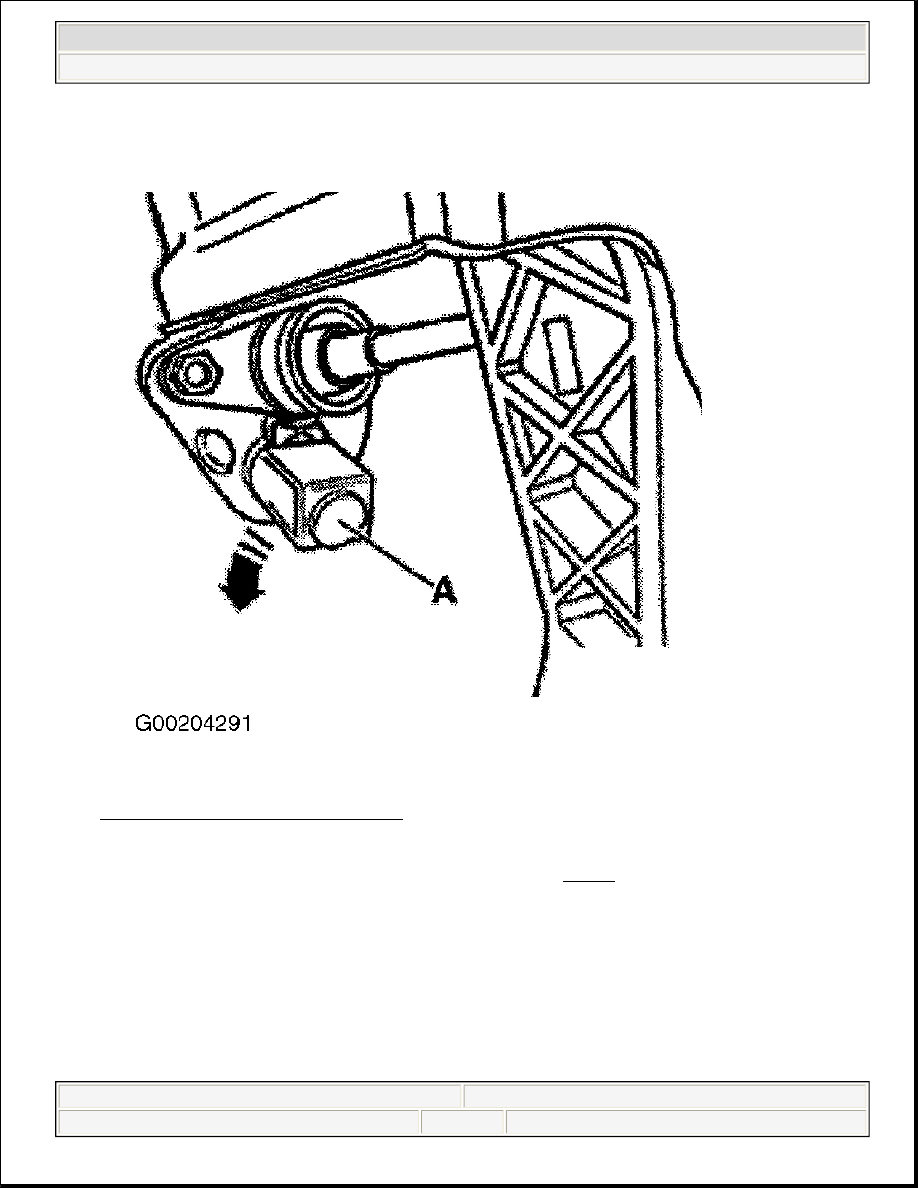

Fig. 22: Turning Stop For Clutch Pedal
Courtesy of VOLKSWAGEN UNITED STATES, INC.

7. Push clutch master cylinder downward (arrow 1) onto stop. See Fig. 23 . Clutch master cylinder must not

be covered in upper area by overcenter spring mounting (arrow 2). Swing clutch master cylinder in
direction of arrow (3) and remove from mounting bracket.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:53 AM

Page 24

© 2004 Mitchell Repair Information Company, LLC.
