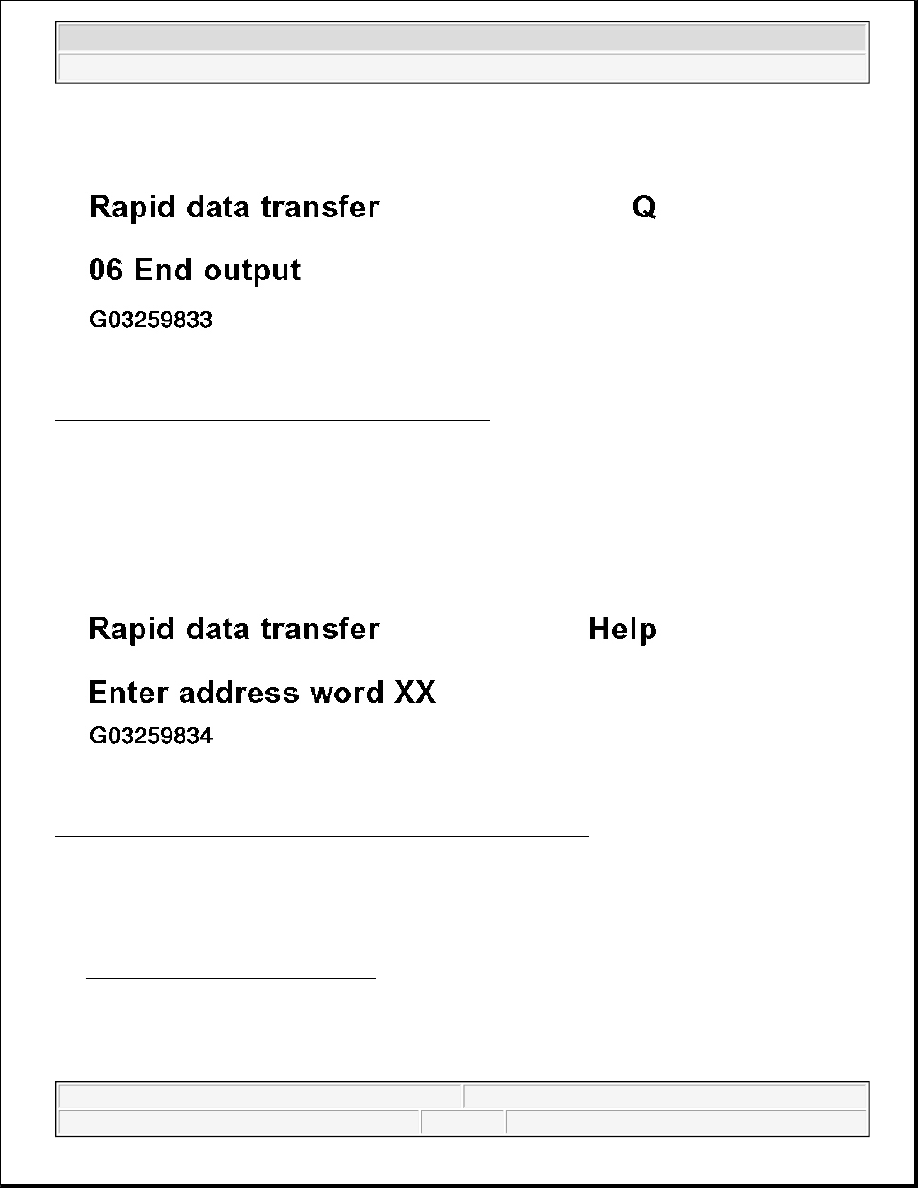

Fig. 47: VAG 1551/1552 Scan Tool Display - End Output
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -Q- button to confirm input.

Indicated on display.

Fig. 48: VAG 1551/1552 Scan Tool Display - Enter Address Word XX
Courtesy of VOLKSWAGEN OF AMERICA, INC.

After completing the mechanical adjustment of coupling rod, the related electrical components must adjusted to
the revised settings. Perform basic settings of the automatic headlight range control to adjust to the revised
settings.

See On Board Diagnostic (OBD), function .

LEFT REAR LEVEL CONTROL SYSTEM SENSOR -G76-, REMOVING AND INSTALLING

Removing



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

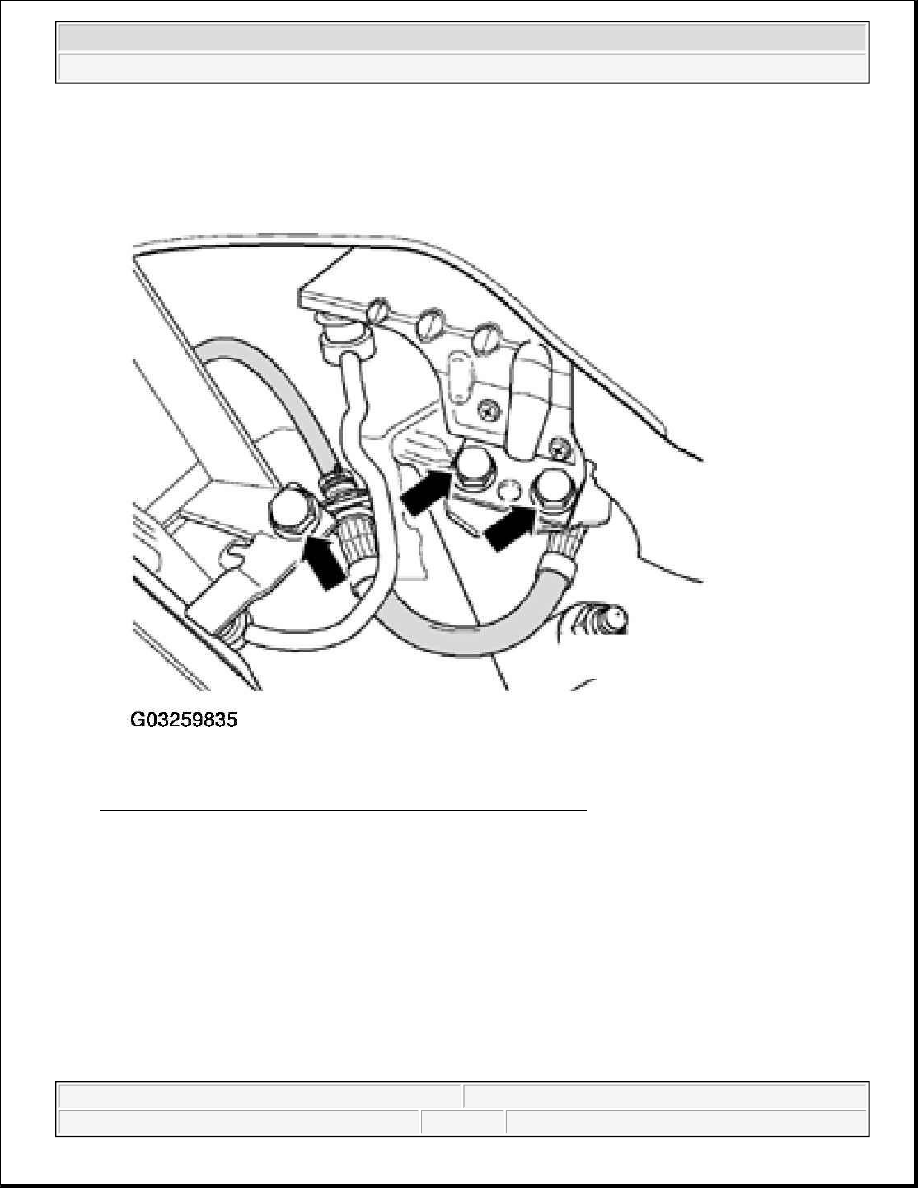

Remove nuts -arrows-.

Fig. 49: Removing Left Rear Level Control System Sensor Nuts
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove sensor with retainer.

z

Disconnect electrical connections.

Installing

Installation in reverse sequence of removal.

When installing, ensure coupling rod angle bracket on rear axle is seated correctly.

NOTE:

The rear level control system sensor is not externally adjustable. However, it



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

Check rear level sensor adjustment, See LEFT REAR LEVEL CONTROL SYSTEM SENSOR -G76-,
CHECKING .

LEFT REAR LEVEL CONTROL SYSTEM SENSOR -G76-, CHECKING

Special tool, testers, and auxiliary items needed

z

VAG 1551/1552 Scan Tool (ST) or VAS 5051 Vehicle Diagnostic Testing and Information System tester.

z

VAG 1551/3B Adapter Cable

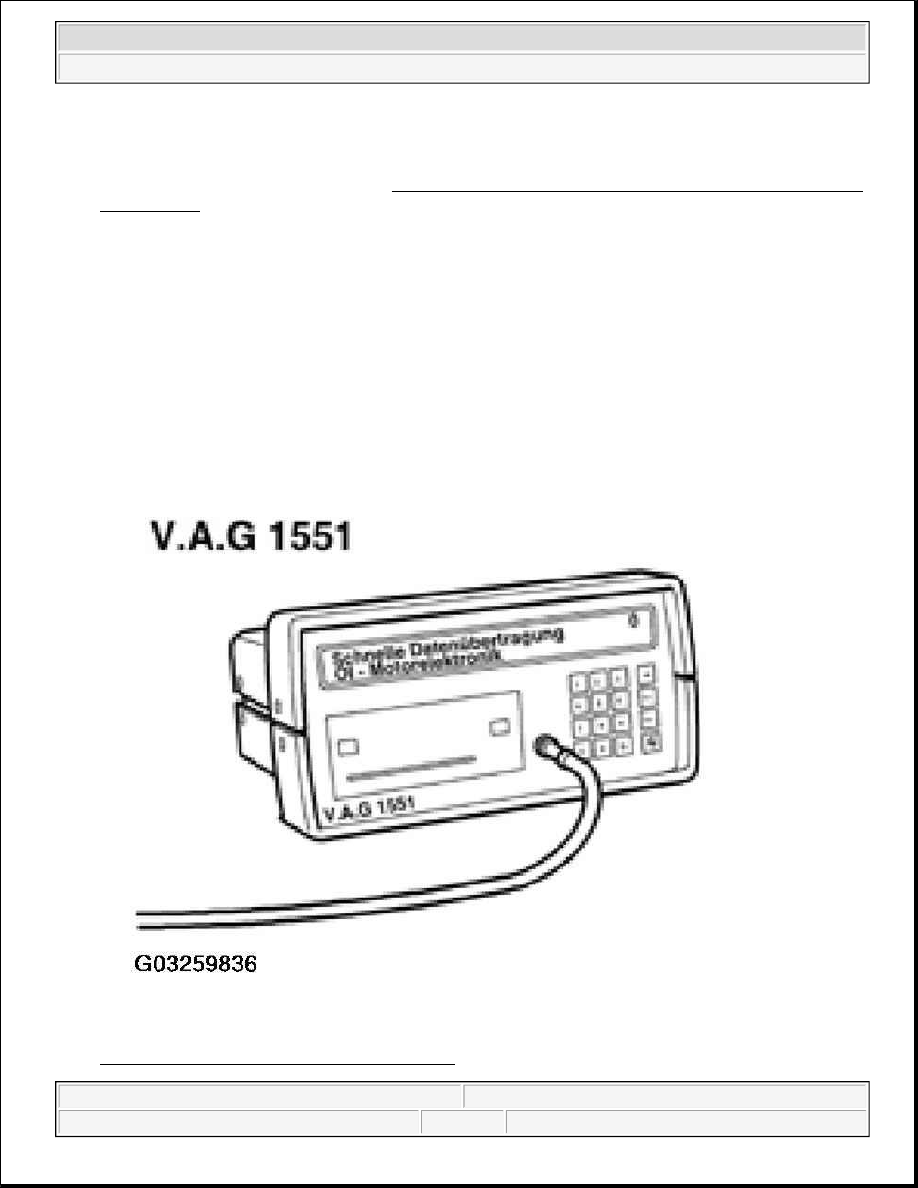

Fig. 50: Identifying VAG 1551/1552 Scan Tool

must be checked after installation is complete.

NOTE:

The rear level control system sensor is not externally adjustable. However, it
must be checked after installation is complete,



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



Courtesy of VOLKSWAGEN OF AMERICA, INC.

Prerequisites

z

Vehicle must be standing on all four wheels on a flat level surface.

z

Handbrake lever must be in off position and a drive gear must not be selected.

z

Steering must be in straight-ahead position.

z

Vehicle must be unoccupied and not loaded.

z

Vehicle must not be moved during basic settings process (i.e.: opening and closing of doors, people
leaning on vehicle, people entering vehicle is not permitted).

z

If vehicle was raised using a lifting platform/hoist or a vehicle/workshop jack, then it must be rolled back
and forth several times so that the springs etc. settle, before starting adjustments.

VAS 5051 Vehicle Diagnostic Testing and Information System or VAS 5052 Vehicle Diagnostic and Service System,
selecting functions

See ON BOARD DIAGNOSTIC (OBD), FUNCTION .

VAG 1551/1552 Scan Tool (ST), connecting and selecting functions (function 01)

Prerequisites:

z

All fuses OK., according to wiring diagram

z

Voltage supply OK. (minimum 9.0 V).

{

Connect Scan Tool (ST) using cable VAG 1551/3B.
