10. To install transaxle, reverse removal procedure. When installing the torque converter, ensure that both

drive pins engage in the ATF pump inner wheel recesses. Before installing, ensure the dowel sleeves are
correctly located. When installing transaxle, observe torque converter contact impression on drive plate.
Replace selector cable anchorage locking washer. Check selector lever cable adjustment, and adjust if
necessary. See SERVICING - 01M & 01V article. Tighten bolts and nuts to specification. See
TORQUE SPECIFICATIONS .

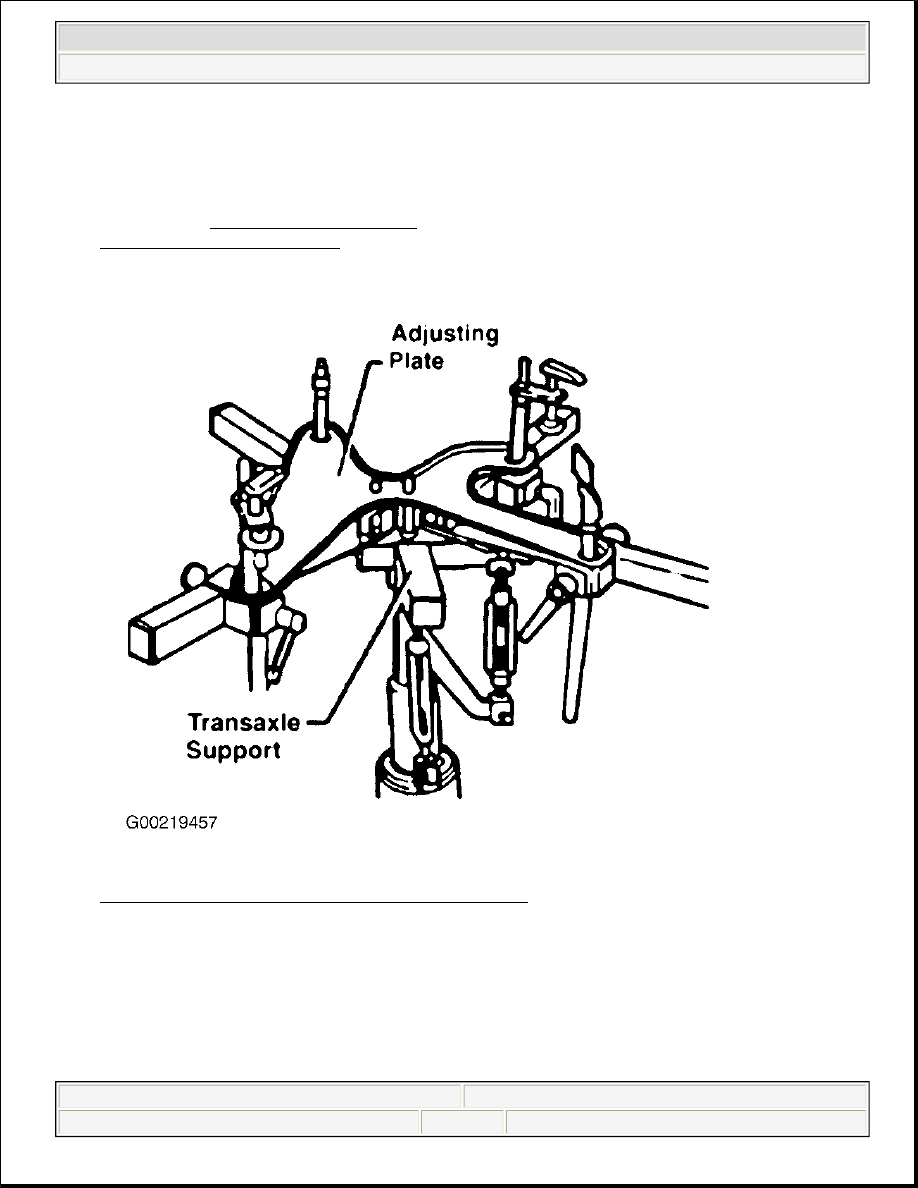

Fig. 7: Setting Up Transaxle Support & Adjusting Plate
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Removal & Installation - 01M



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:58:17 AM

Page 8

© 2004 Mitchell Repair Information Company, LLC.

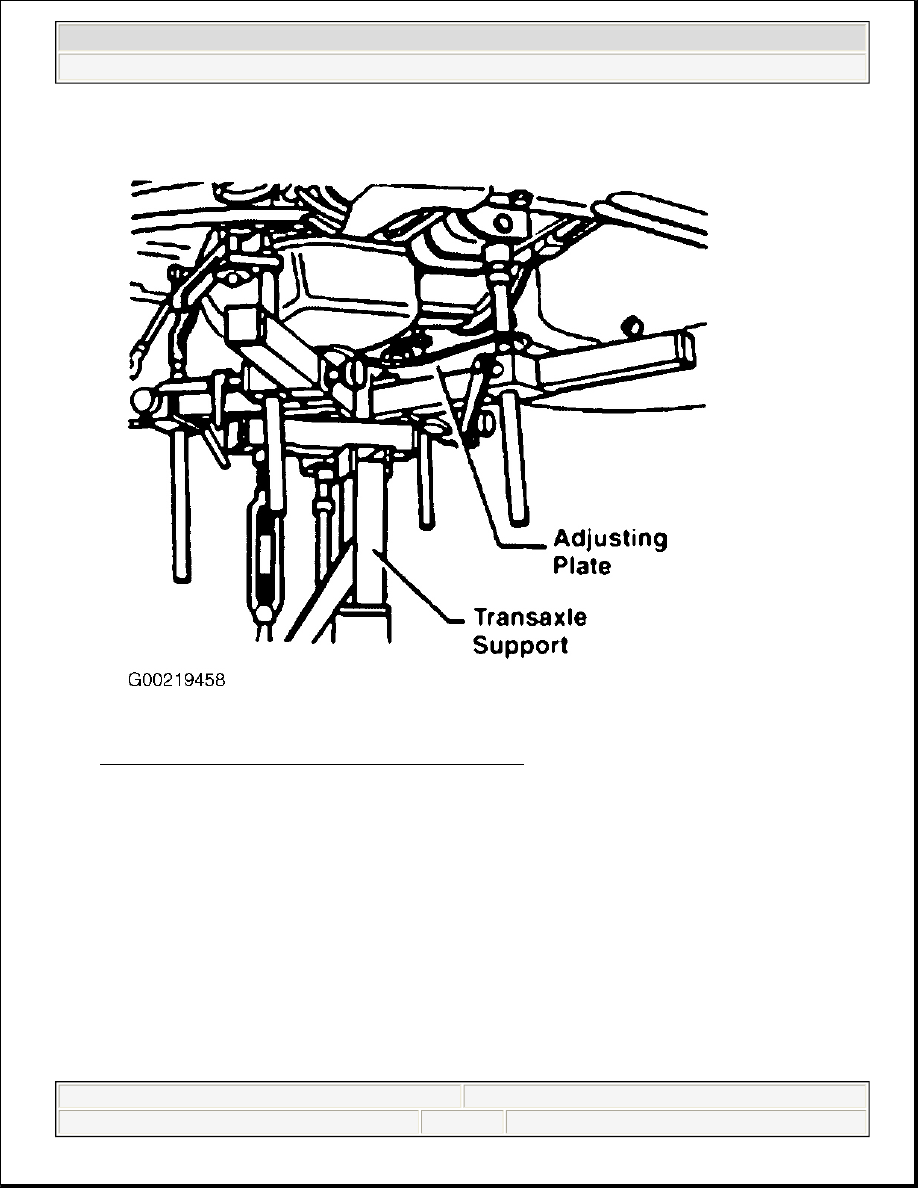

Fig. 8: Positioning Transaxle Support Under Transaxle
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Removal & Installation - 01M



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:58:17 AM

Page 9

© 2004 Mitchell Repair Information Company, LLC.

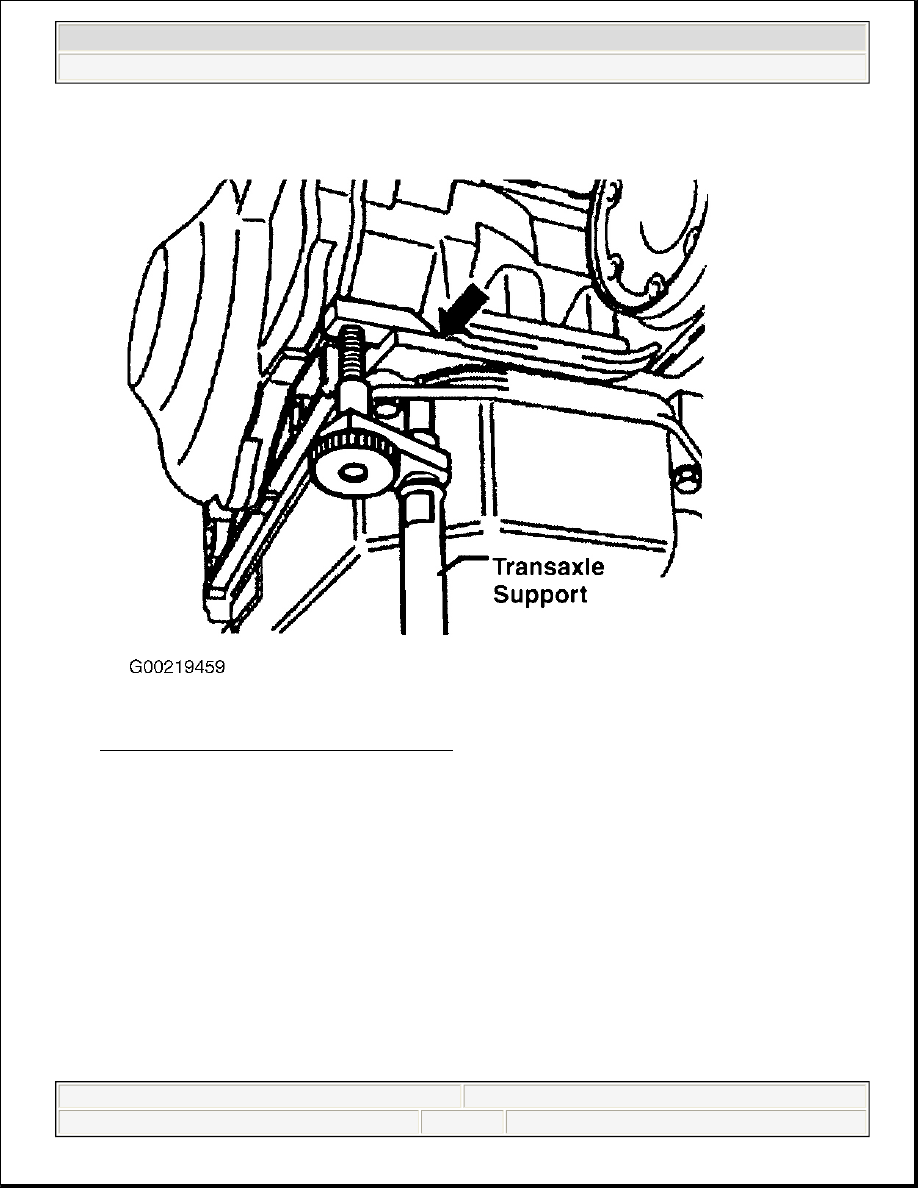

Fig. 9: Placing Safety Support Pin On Oil Pan
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Removal & Installation - 01M



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:58:17 AM

Page 10

© 2004 Mitchell Repair Information Company, LLC.

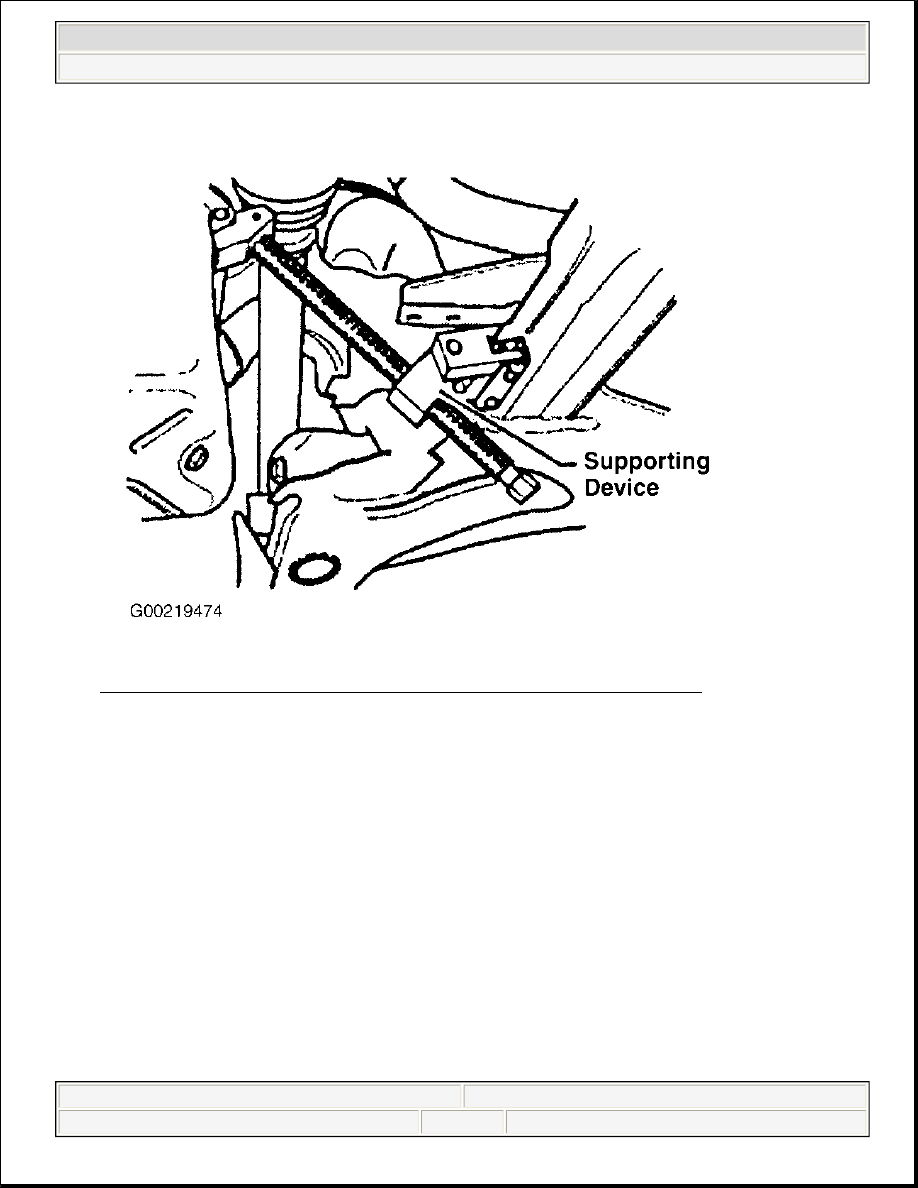

Fig. 10: Tilting Engine/Transaxle Assembly Forward Using Supporting Device
Courtesy of VOLKSWAGEN UNITED STATES, INC.

GOLF, GTI & JETTA

NOTE:

In the following procedures, letters and numbers in parenthesis are shown in
illustrations.

NOTE:

When battery is disconnected, vehicle computer and memory systems may lose
memory data. Driveability problems may exist until computer systems have
completed a relearn cycle.

CAUTION: Radio/cassette or radio/CD player is equipped with an anti-theft protection

circuit. Whenever battery is disconnected, radio will go into anti-theft
mode. When battery is reconnected, radio will display CODE, and will be
inoperative until proper code number is entered. Obtain security code
before disconnecting battery.
