Volkswagen New Beetle. Manual - part 2282

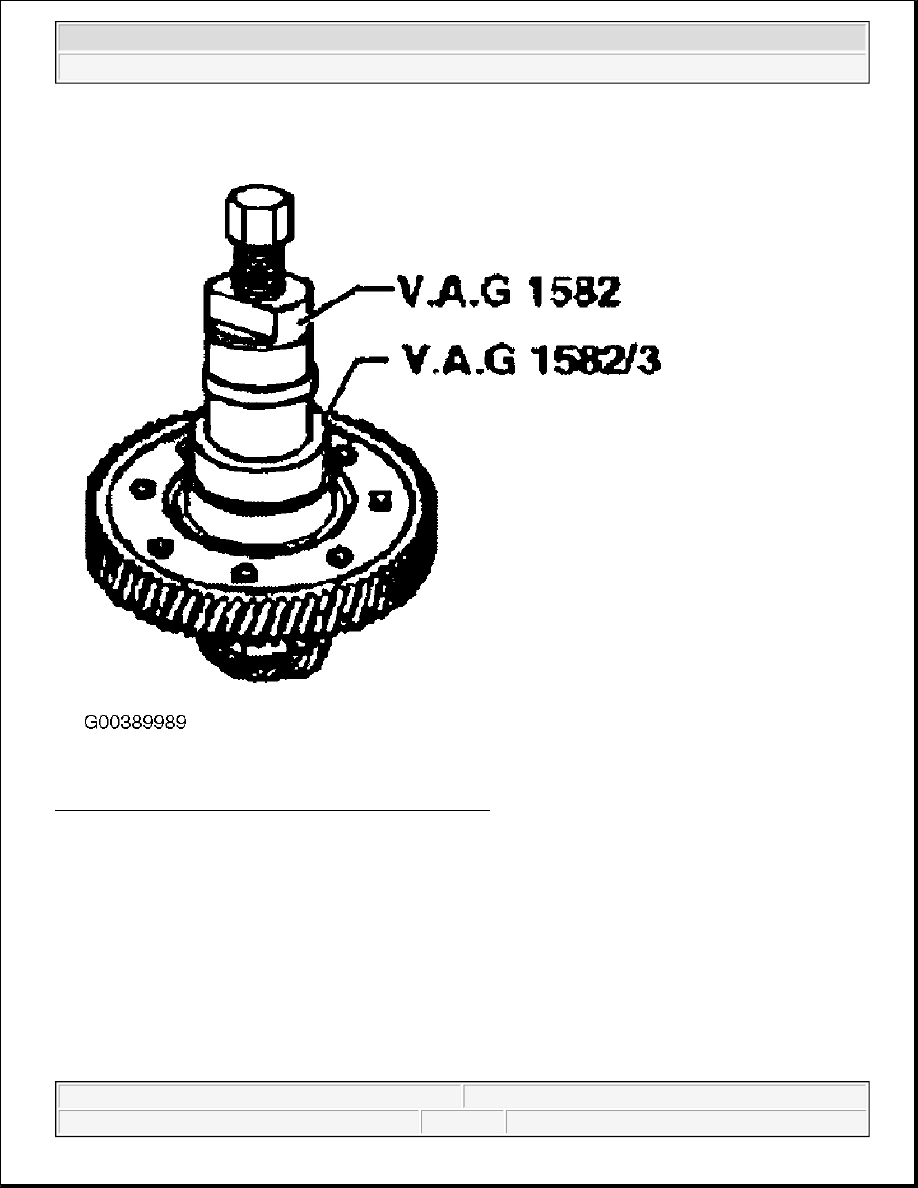

Fig. 197: Pulling Off Tapered Roller Bearing Inner Race
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pressing On Tapered Roller Bearing Inner Race

NOTE:

For transmissions produced from 04.98, the tool for removing the tapered roller
bearings in the final drive and differential is VAG 1582/8.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

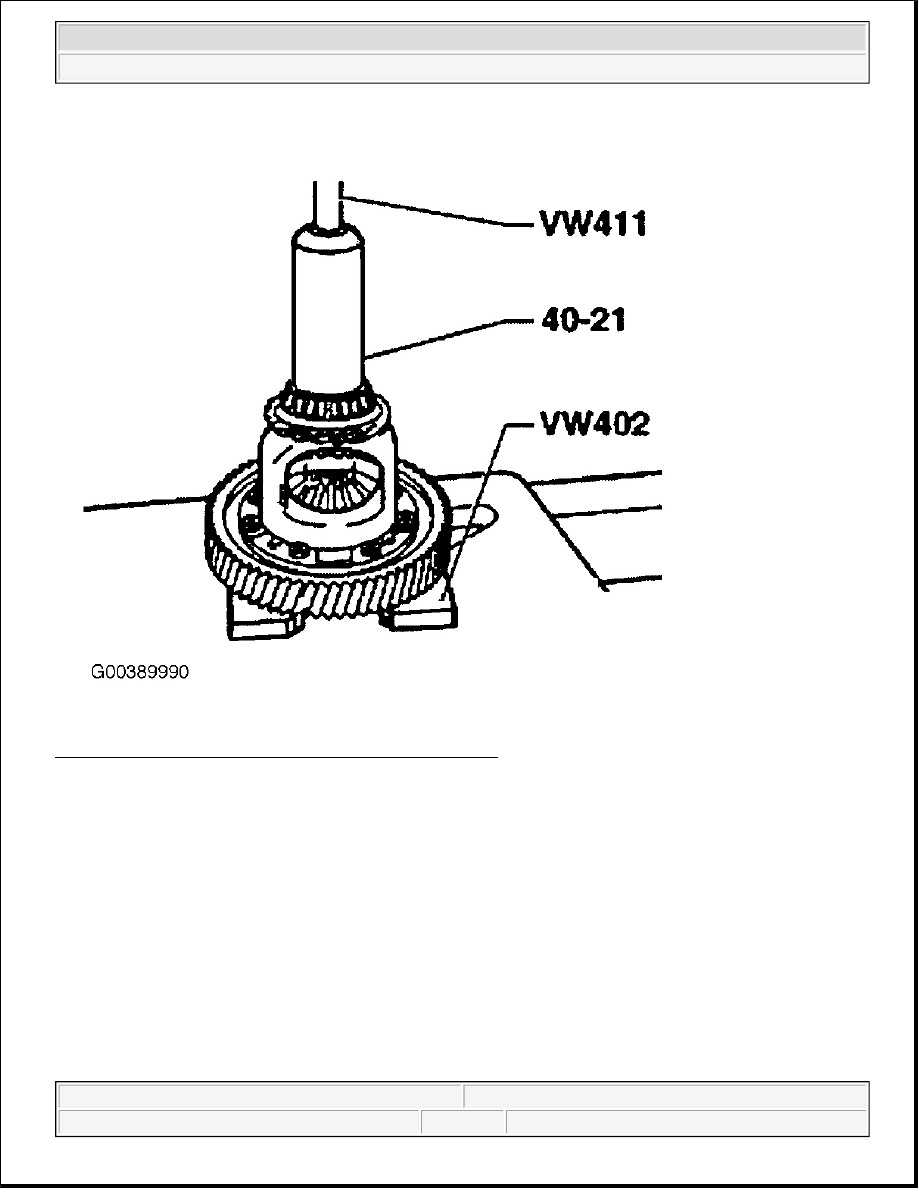

Fig. 198: Pressing On Tapered Roller Bearing Inner Race
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pulling Out Tapered Roller Bearing Outer Race



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

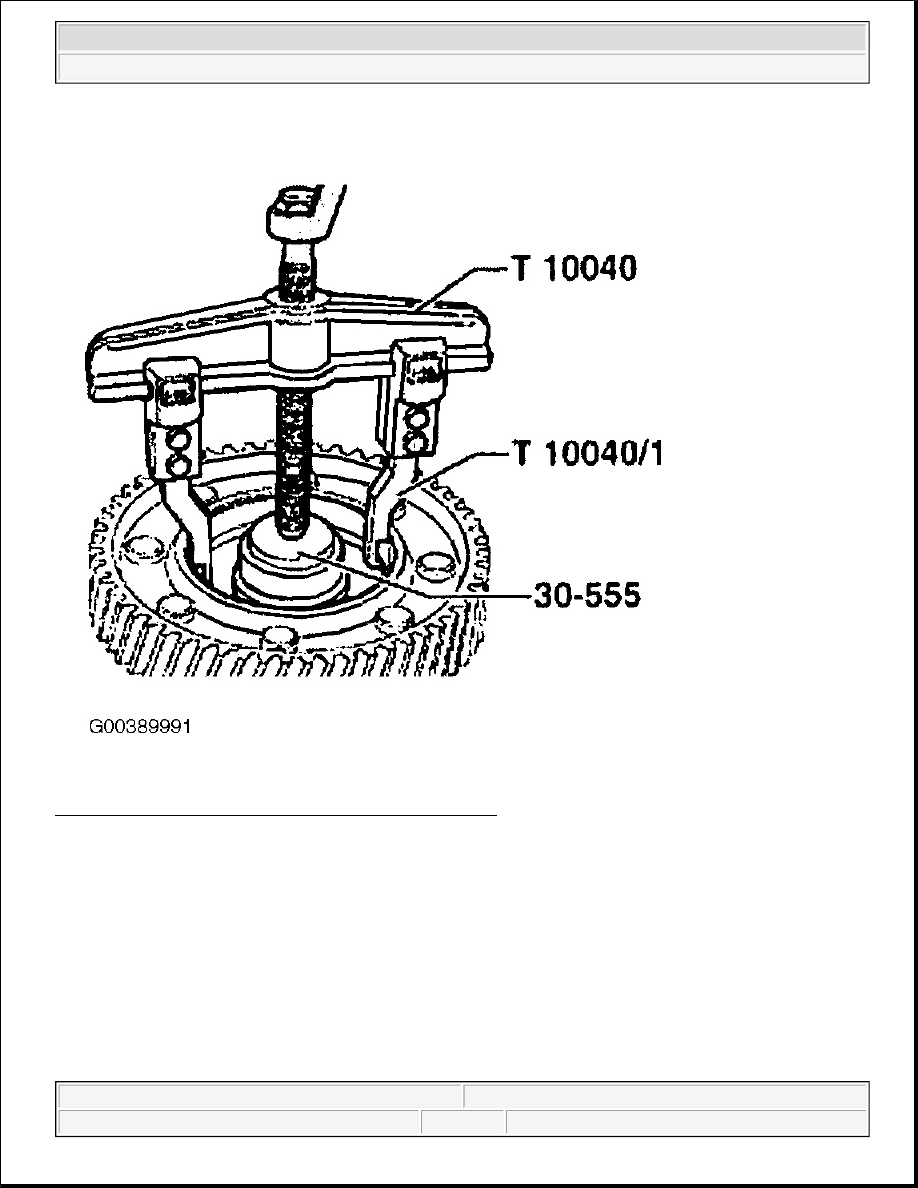

Fig. 199: Pulling Out Tapered Roller Bearing Outer Race
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pressing In Tapered Roller Bearing Outer Race



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

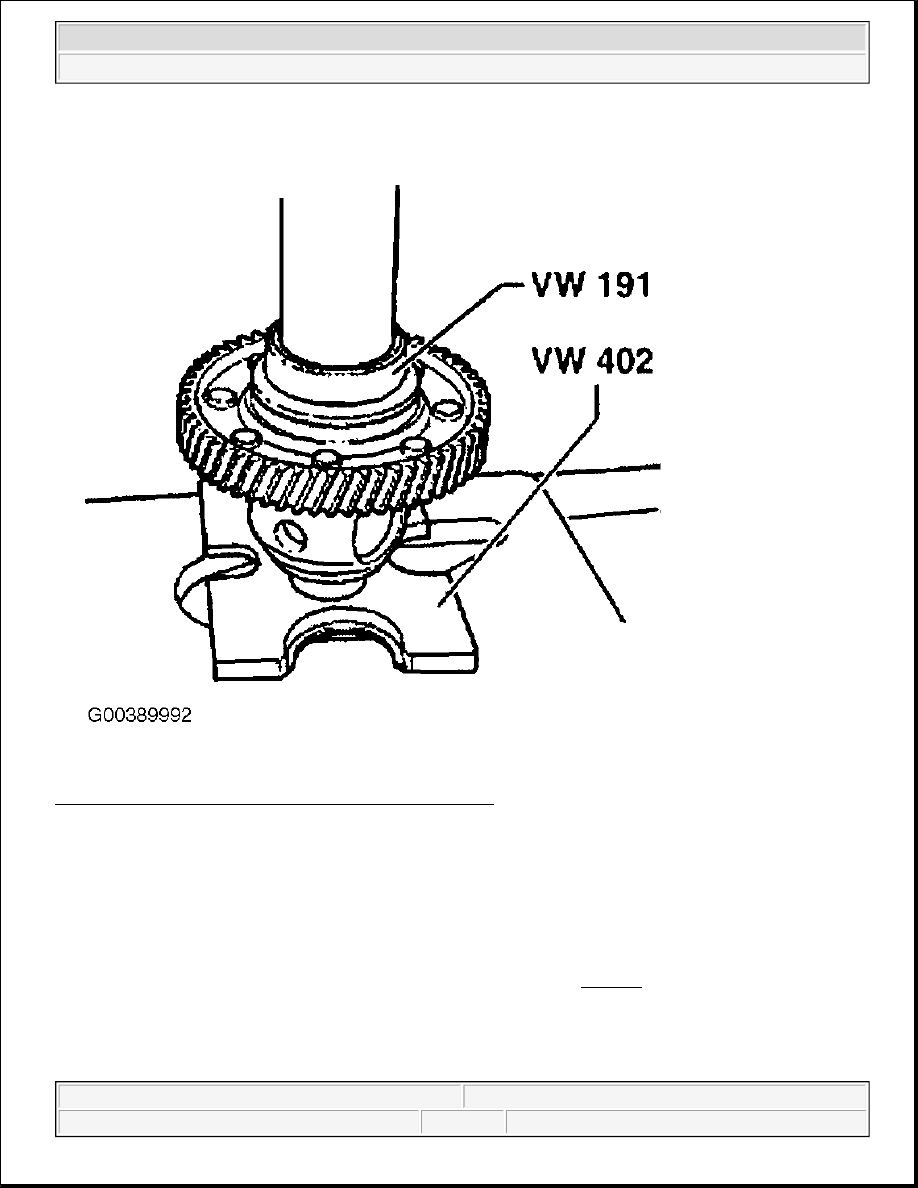

Fig. 200: Pressing In Tapered Roller Bearing Outer Race
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Inserting Differential Bevel Gears

Insert one-piece thrust washer with gear oil.

Insert small bevel gears, drive in shaft and secure with spring pin.

Insert large bevel gears offset 180° and swivel in direction of arrow. See Fig. 201 .
