Do not damage clutch housing ball valve.

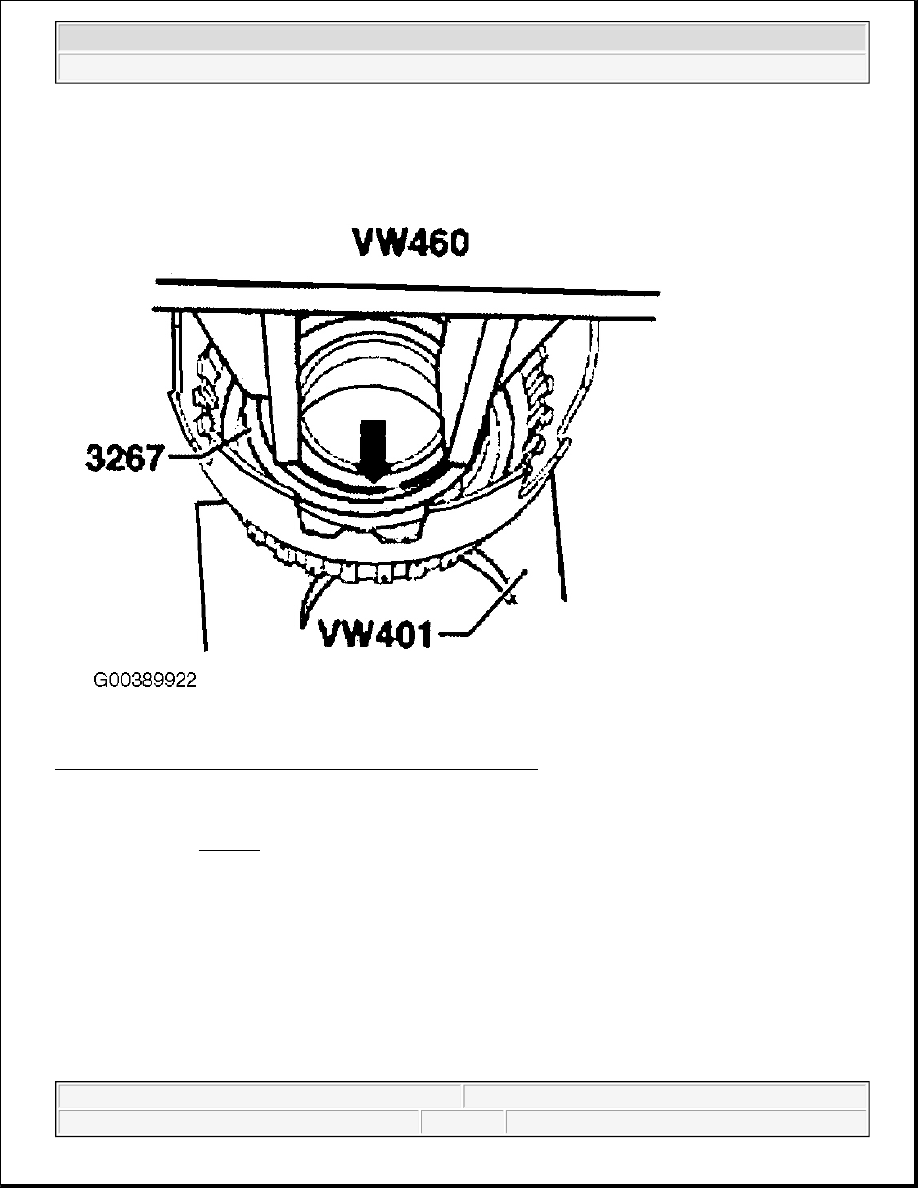

Fig. 129: Removing & Installing Circlip (Reverse Gear Clutch)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Circlip (arrow) must be seated in the groove of clutch housing. Spring supporting plate must be centered
relative to hub. See Fig. 130 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

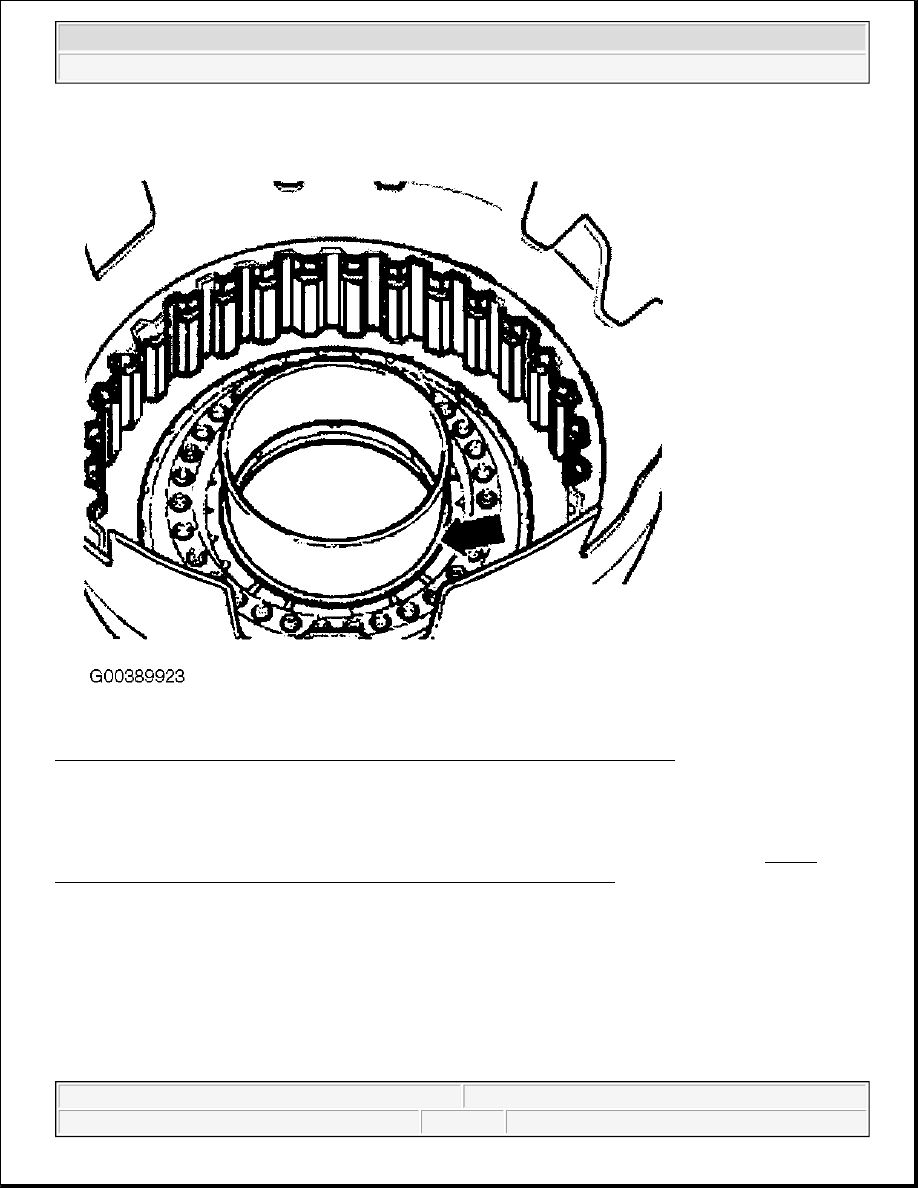

Fig. 130: Installation Position Of Spring Supporting Plate (Reverse Gear Clutch)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

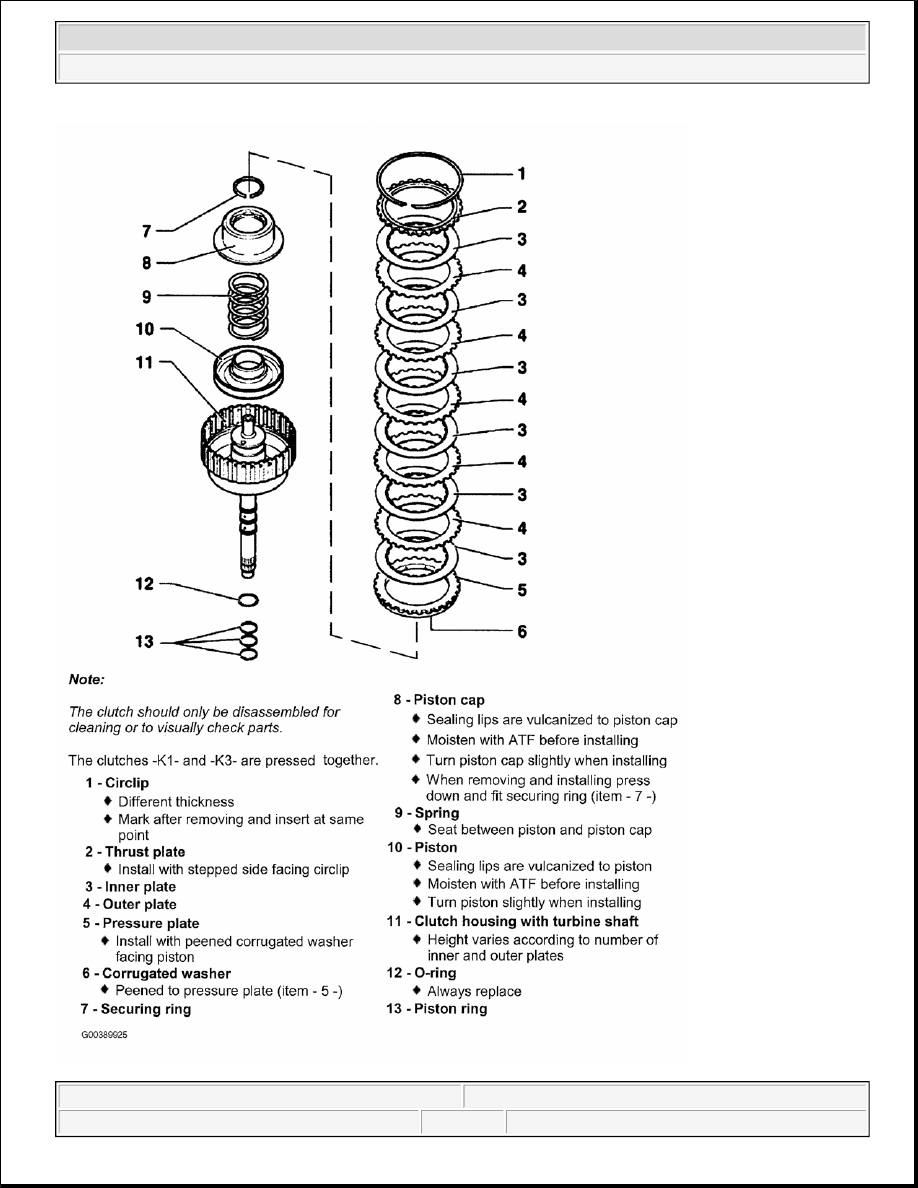

3RD AND 4TH GEAR CLUTCH -K3- WITH TURBINE SHAFT

Number of inner and outer plates varies based on transmission code. For correct number used, see CODE
LETTERS, TRANSMISSION APPLICATION, RATIOS, EQUIPMENT .

Special Tools And Equipment

z

VW 401 Thrust plate

z

VW 402 Thrust plate

z

VW 407 Press tool

z

3292/1 From assembly tool 3292



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

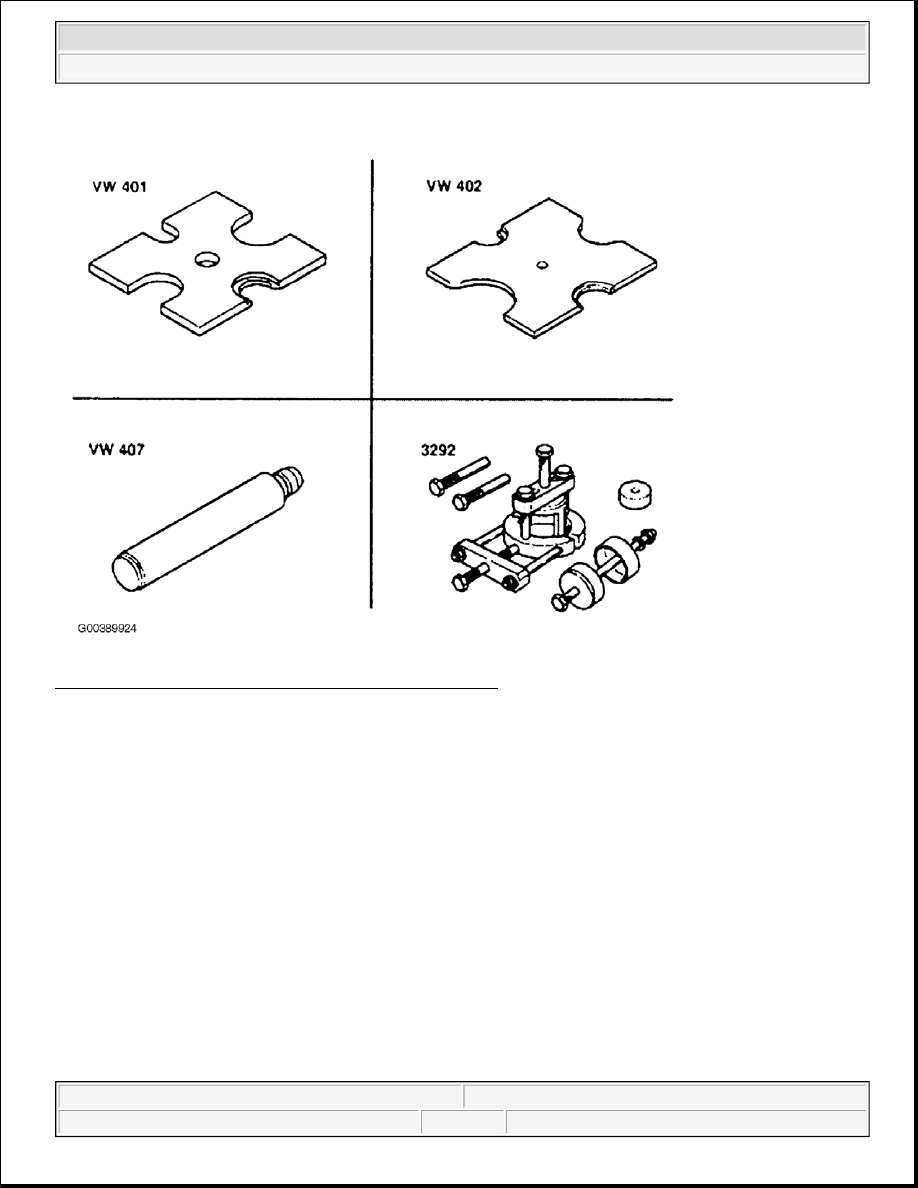

Fig. 131: Identifying 3rd & 4th Gear Clutch Special Tools
Courtesy of VOLKSWAGEN UNITED STATES, INC.
