Fig. 108: Determining 2nd & 4th Gear Brake Shims
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Determining dimension a: See Calculating Dimension "a": .

Determining dimension b: See Calculating Dimension "b": .

2.65 mm: The amount for settling is taken into account by force F.

Calculating Dimension "a" (2nd & 4th Gear Brake)

Assemble transmission up to the last -B2- inner plate. See Assembling Transmission . The last outer plate and
shim are not installed.

Place retaining ring with smooth side onto last inner plate. See Fig. 109 .

NOTE:

First outer plate -arrow- and last outer plate (do not install to measure!) are
always 3 mm thick.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

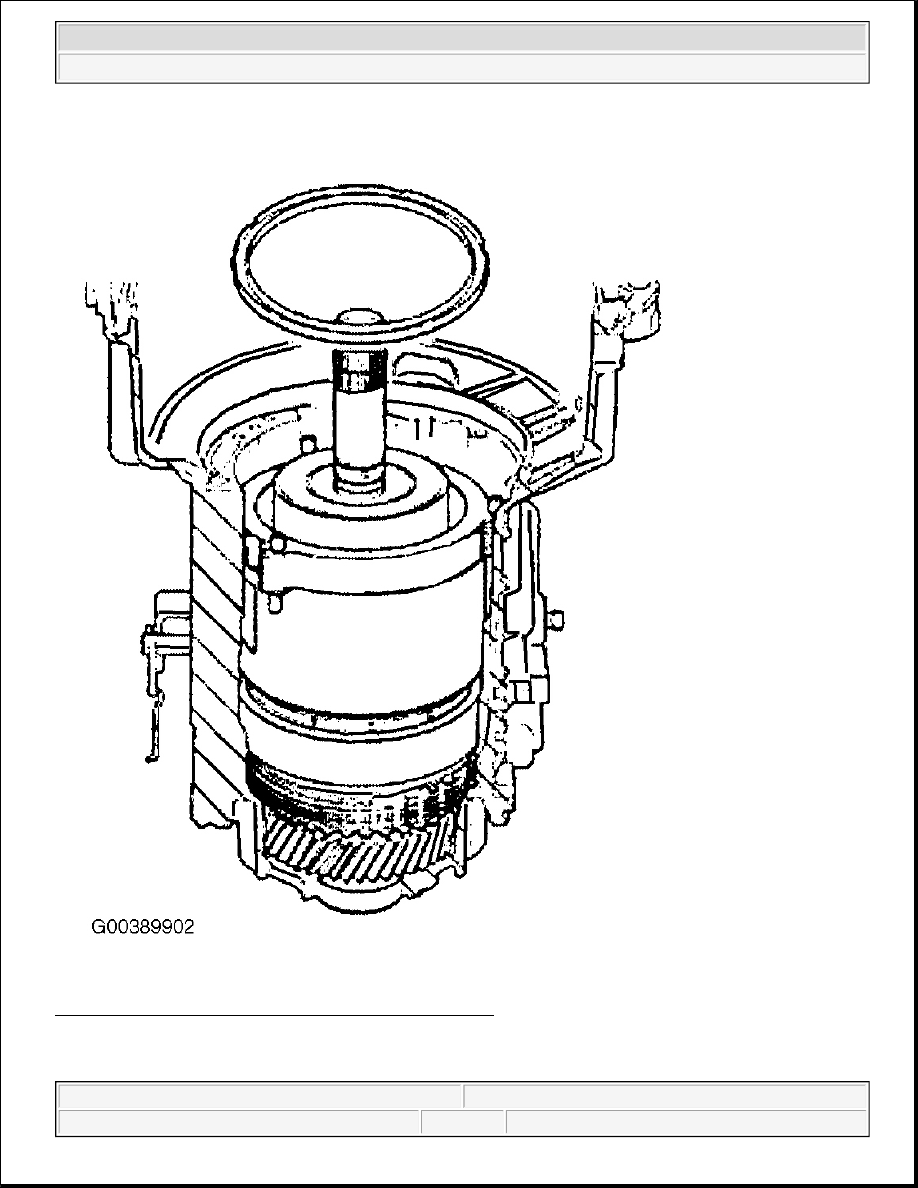

Fig. 109: Calculating Dimension "a" For 2nd & 4th Gear
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Place retaining ring with smooth side onto last inner plate.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



Place 3459 onto retaining ring and turn so that 3 clips align with 3 holes for ATF pump.

Bolt 3459 to flange for ATF pump with 5 Nm.

The plate packet for -B2- is now pressed together for the measurements.

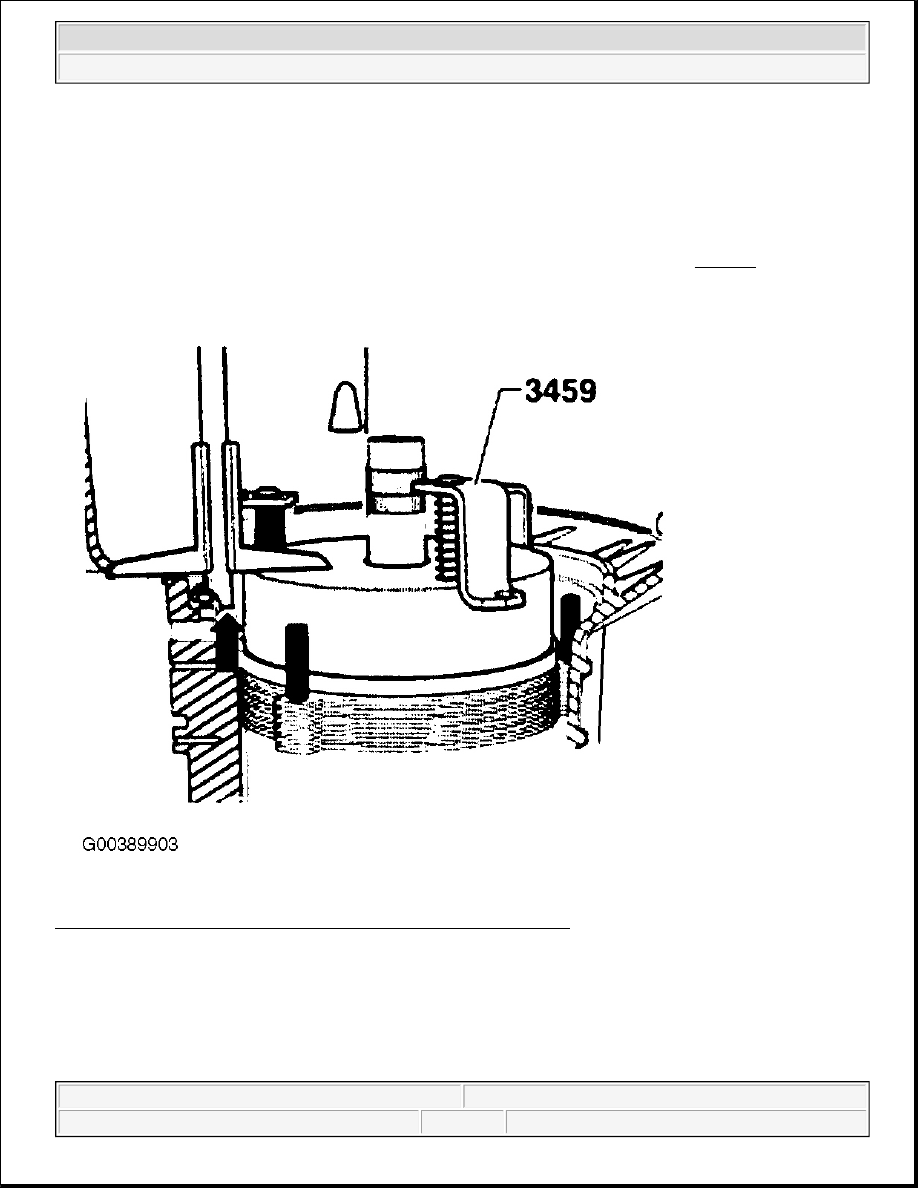

Measure from pump flange/transmission housing -arrow- to 3459 with depth gauge. See Fig. 110 .

Fig. 110: Measuring From Pump Flange-To-Transmission Housing
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Dimension a = Height of 3459 in mm - measured value

Example calculation:

z

"start" Height of 3459 = 60.0 mm



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



z

"minus" Measured value = 32.7 mm

z

"equals" Calculated value a = 27.3 mm

Note calculated value a.

Remove 3459.

Remove retaining ring.

Calculating Dimension "b" (2nd & 4th Gear Brake)

Push piston into ATF pump onto stop.

Place new paper gasket onto ATF pump.

Place straightedge "B" onto stator support (arrow) and measure with depth gauge "A" to gasket of pump flange.
See Fig. 111 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M
