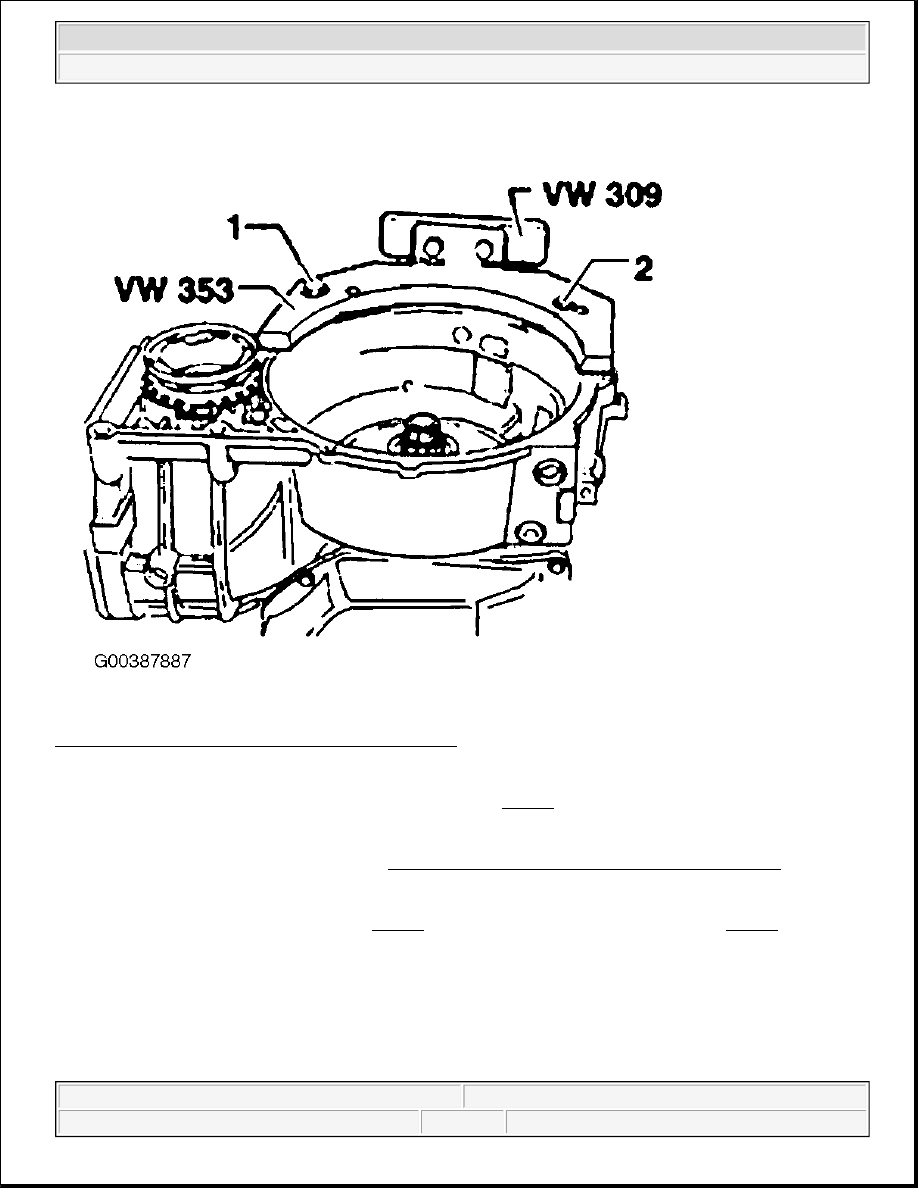

Fig. 53: Identifying Transmission Assembly Support
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove transmission housing cover with gasket (arrow). See Fig. 85 . Remove transmission oil pan. Remove
ATF screen.

Remove valve body with conductor strip. See VALVE BODY, REMOVING AND INSTALLING under
COMPONENT DISASSEMBLY & REASSEMBLY.

Pull out sealing plugs for -B1- (arrow). See Fig. 54 . Remove ATF pump bolts (arrows). See Fig. 55 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

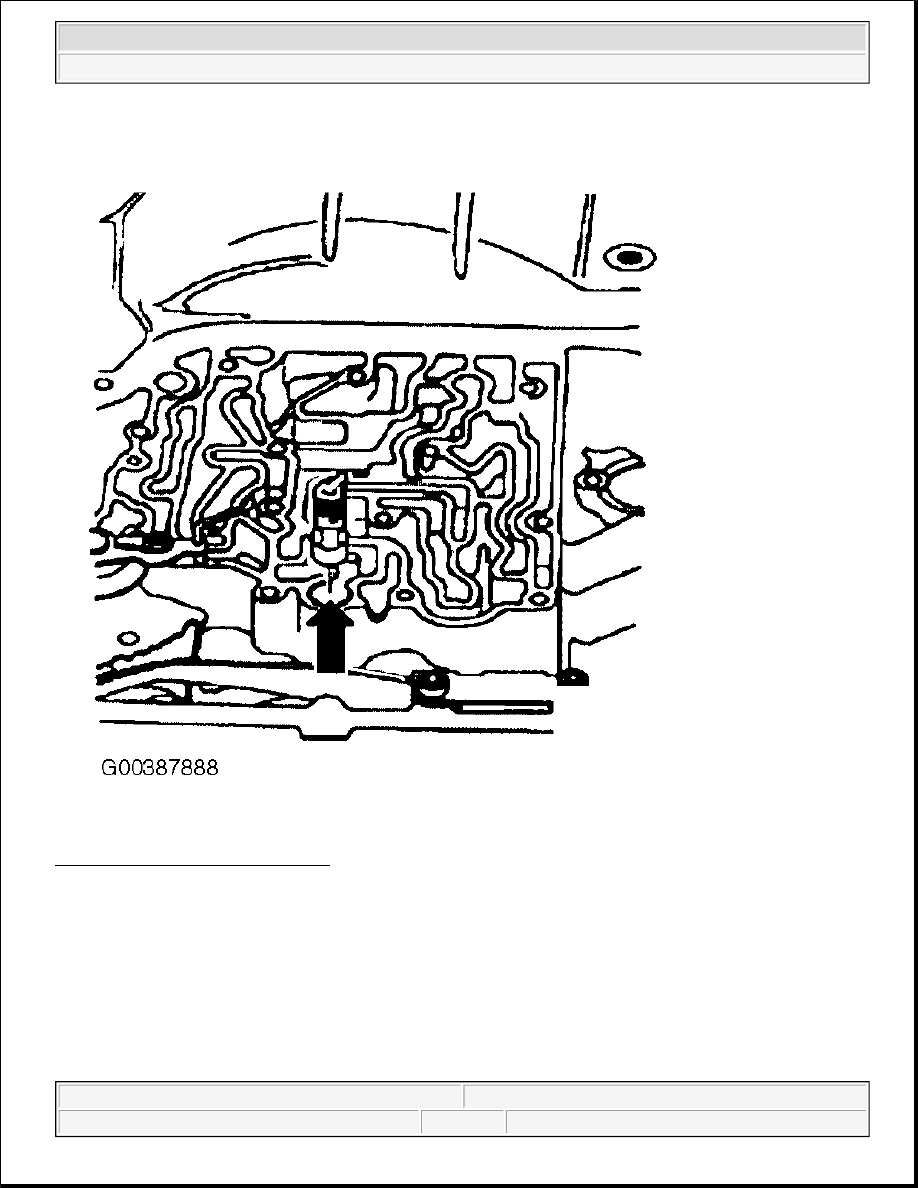

Fig. 54: Locating Sealing Plugs (B1)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

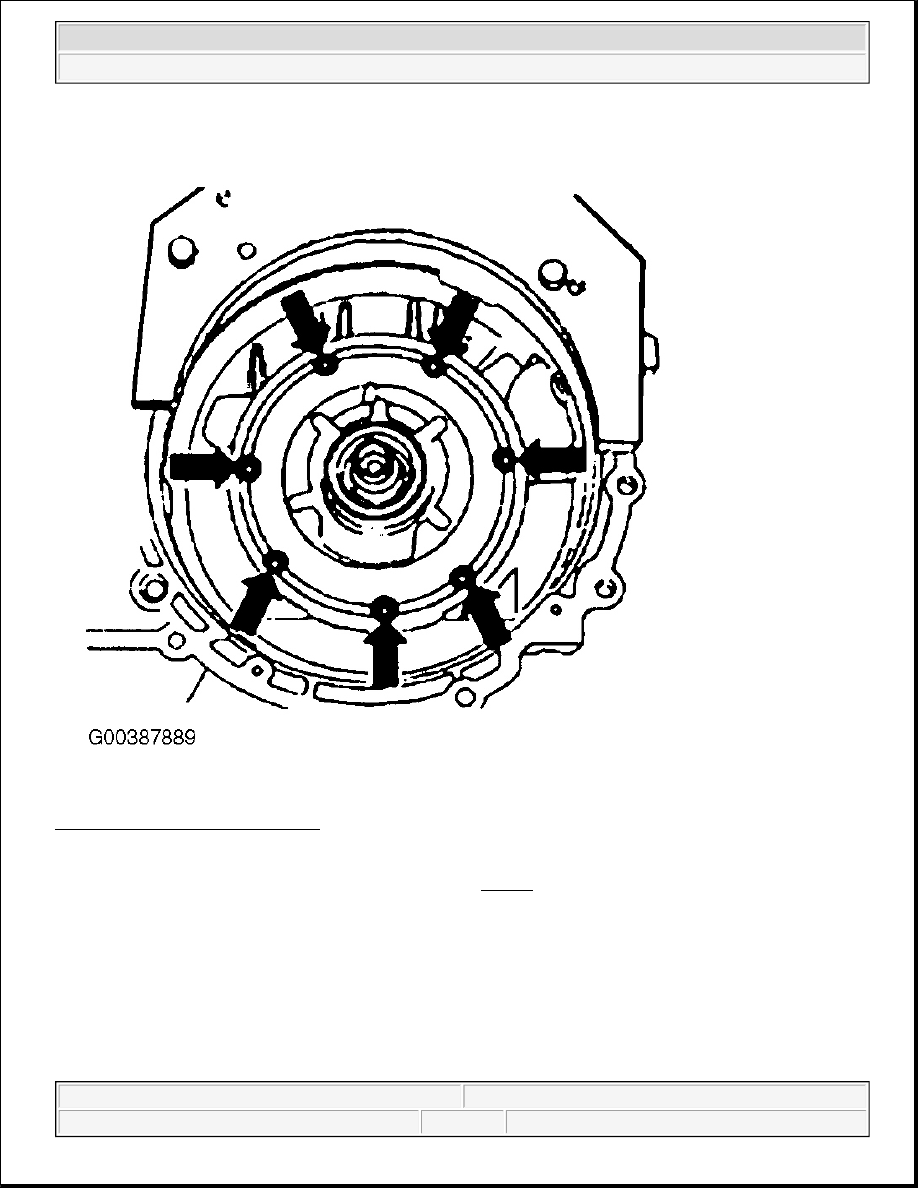

Fig. 55: Locating ATF Pump Bolts
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Screw bolts -A- (M8) into tapped holes of ATF pump. See Fig. 56 . Press ATF pump off transmission by
turning bolts -A- evenly.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

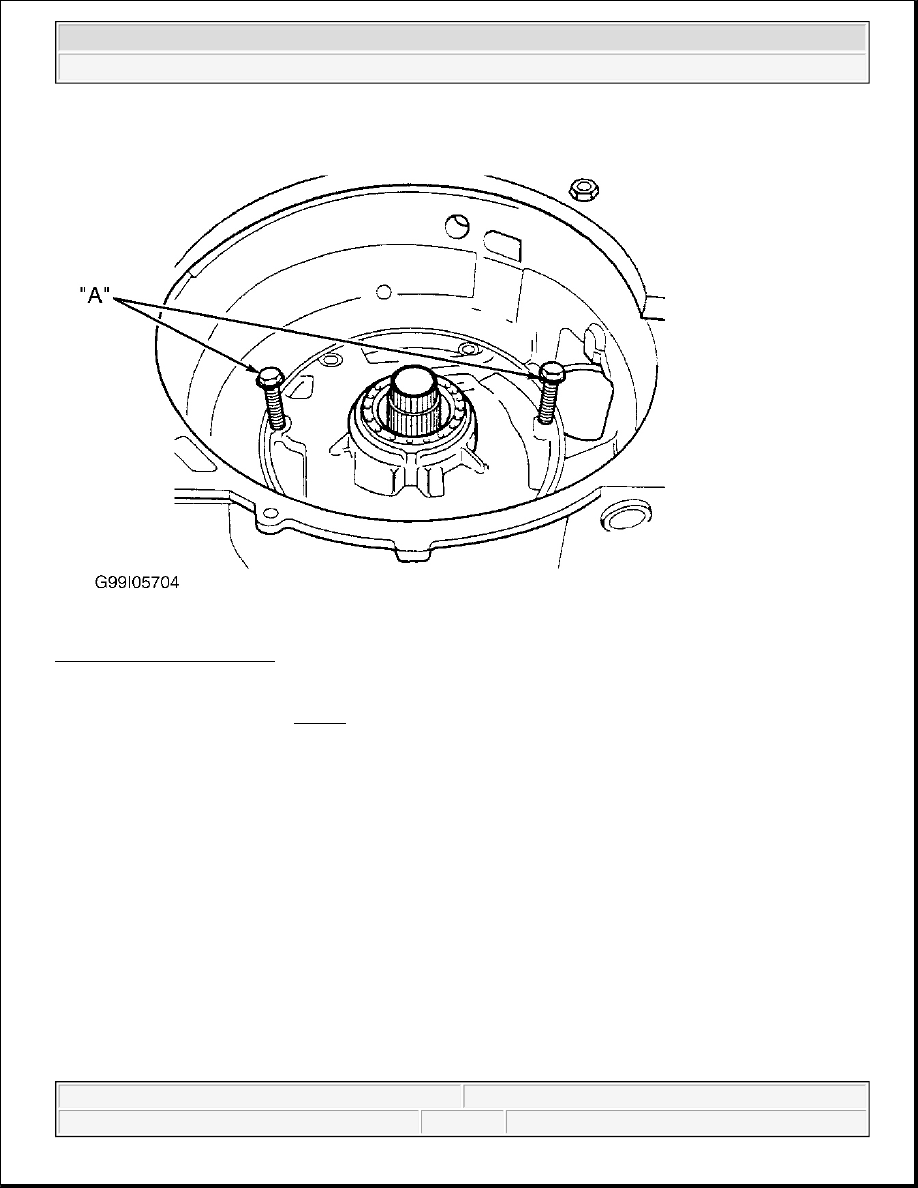

Fig. 56: Removing Oil Pump
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove strainer if installed. See Fig. 57 . The strainer is installed in ATF cooler line.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M
