Volkswagen New Beetle. Manual - part 224

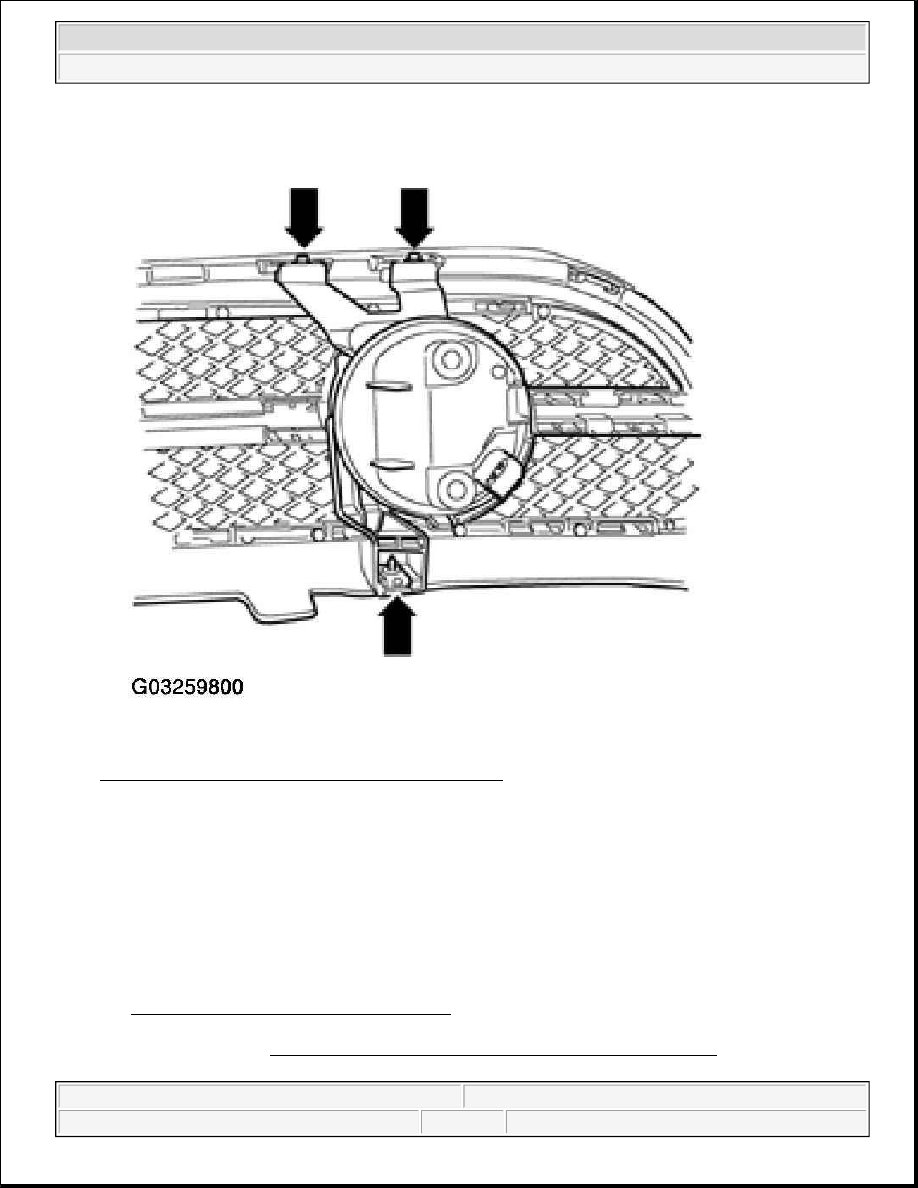

Fig. 14: Locating Fog Lamp Screws (Through 06.00)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove fog lamp assembly.

Installing

z

Insert fog lamp assembly into front bumper and secure with screws.

z

Connect electrical connection.

z

Reinstall front end.

See FRONT END, ASSEMBLY OVERVIEW .

z

Reconnect battery. See BATTERY, DISCONNECTING AND RECONNECTING .

z

Check fog lamp aim



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



See HEADLIGHT ADJUSTMENT, CHECKING .

FOG LAMPS FROM 07.00, REMOVING AND INSTALLING.

Removing

z

Disconnect battery. See BATTERY, DISCONNECTING AND RECONNECTING .

z

Disconnect electrical connections at fog lamp assembly.

z

Remove lower front air grille

See FRONT END, ASSEMBLY OVERVIEW .

z

Remove screws -arrows-.

z

Remove fog lamp assembly.

NOTE:

z

A revised front end with removable air grille was introduced from 07.00
production.

z

The air grille is unclipped from the lower portion of the front end and
removed together with the fog lamps.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



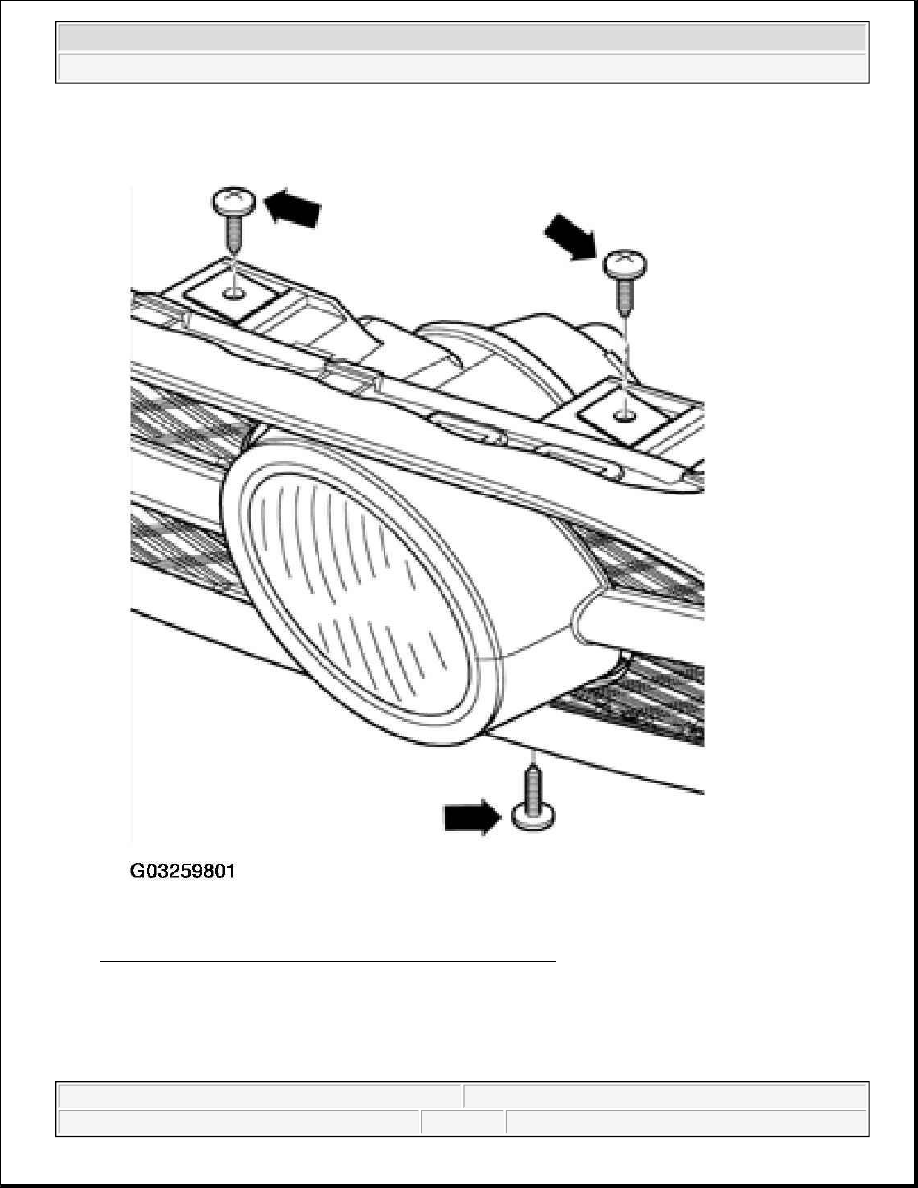

Fig. 15: Locating Fog Lamp Assembly Screws (From 07.00)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing

z

Insert fog lamp assembly in air grille and secure with screws.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

Reinstall air grille.

See FRONT END, ASSEMBLY OVERVIEW .

z

Connect electrical connection.

z

Reconnect battery. See BATTERY, DISCONNECTING AND RECONNECTING .

z

Check fog lamp aim

See FOG LAMP, ALIGNMENT .

FOG LAMPS, ADJUSTING

See FOG LAMP, ALIGNMENT .

Fog lamp (left)

z

Turn adjustment screw -arrow- to adjust beam height. Lateral adjustments are not possible.

Adjustment screw on right fog lamp is a mirror image.

NOTE:

Always adjust fog lamps with optical headlight aimer VAS 5107, using detailed
aiming procedure and specifications



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle
