When installing a transmission, make sure that the dowel sleeves are installed correctly.

TORQUE CONVERTER

The ATF pump is driven via the torque converter.

When installing the torque converter, ensure that both drive pins engage in the recesses in the ATF pump inner
wheel.

There are different types of torque converter, which can be identified by the code letters (arrow). See Fig. 30 .
For more information, see CODE LETTERS, TRANSMISSION APPLICATION, RATIOS,
EQUIPMENT .

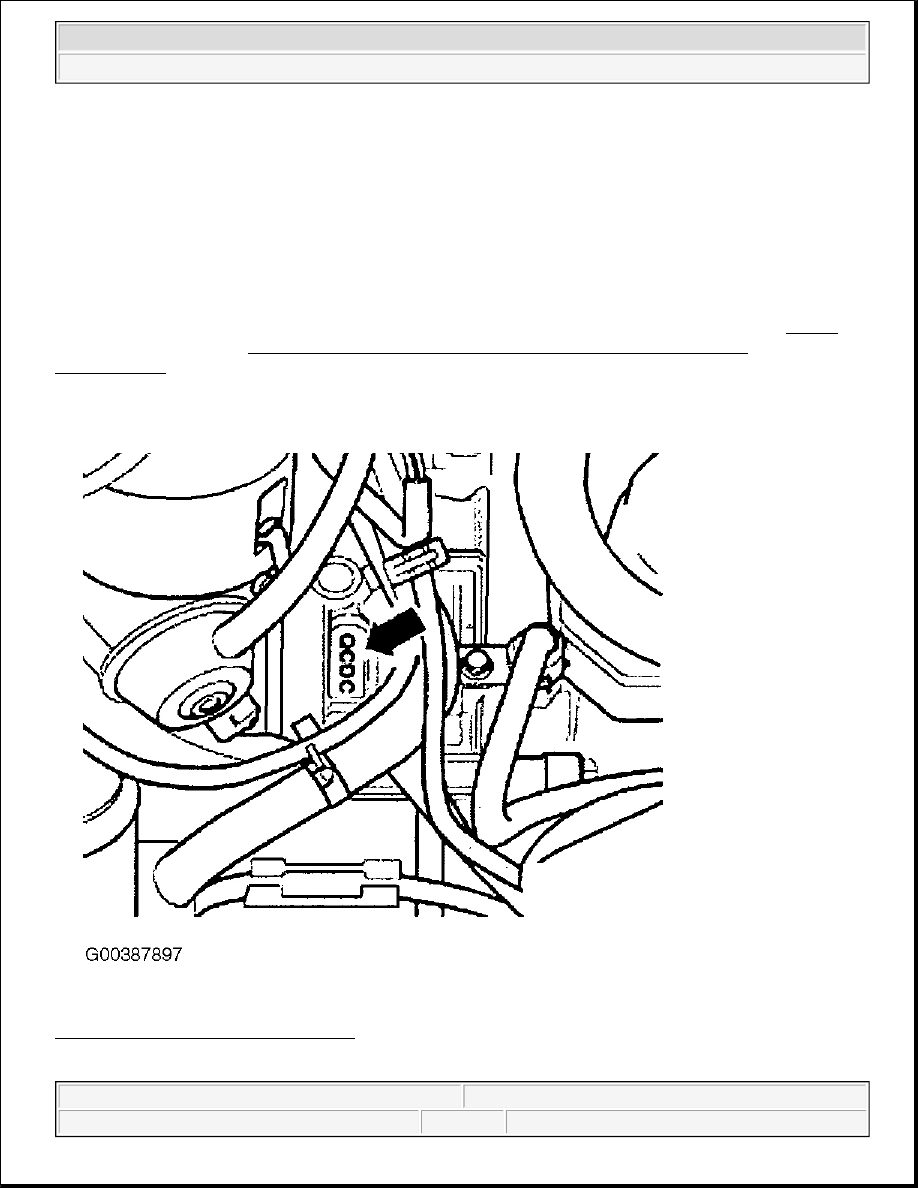

Fig. 30: Locating Torque Converter ID
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



TORQUE CONVERTER IDENTIFICATION

There are different types of torque converter. Current torque converter with sleeve bearing in turbine shaft of
transmission. New torque converter with integrated needle bearing. Identification is by means of the code
letters. See CODE LETTERS, TRANSMISSION APPLICATION, RATIOS, EQUIPMENT .

The current torque converter may only be installed in a transmission with a sleeve bearing in the turbine shaft. It
can be identified by the fourth letter, which is either a B, C, R, T or V. See Fig. 31 .

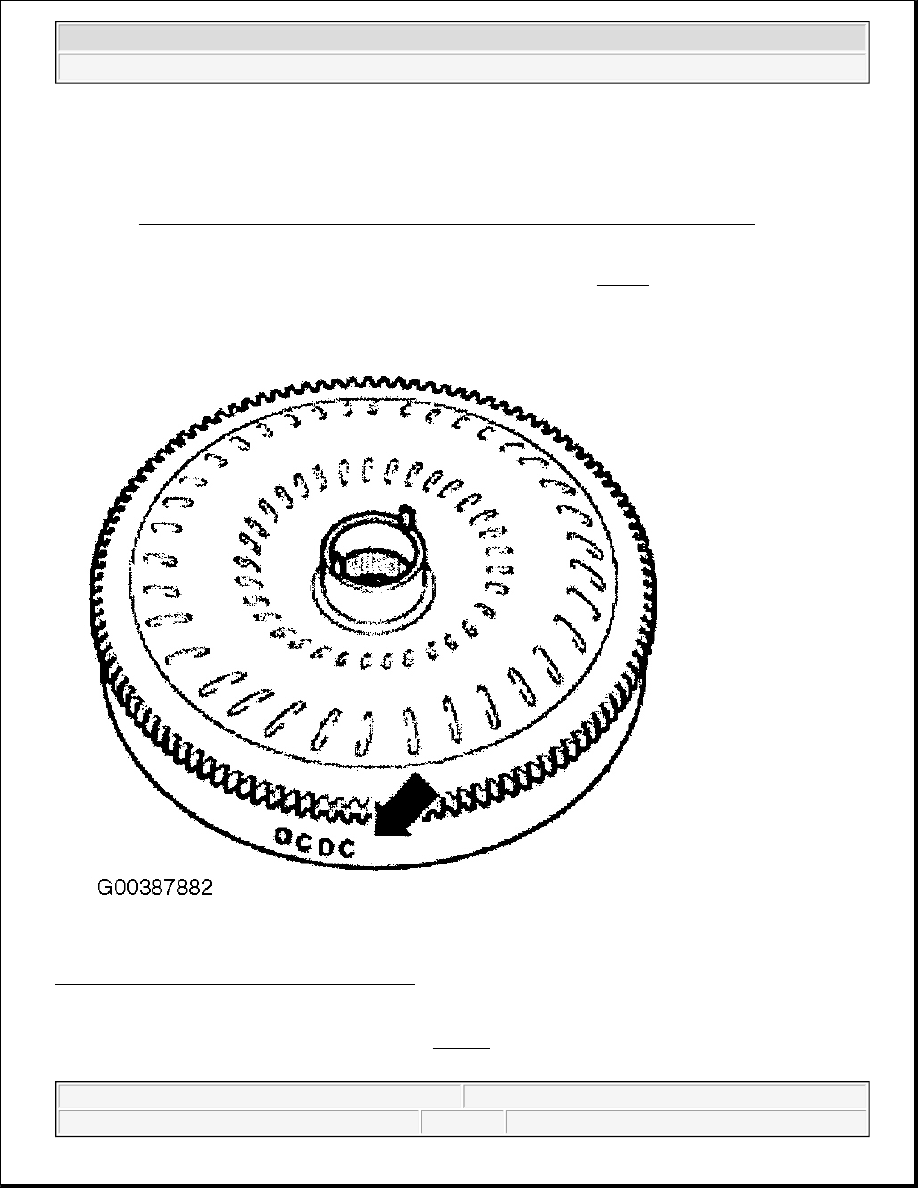

Fig. 31: Identifying Current Torque Converter
Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

Example (arrow) is a "C". See Fig. 31 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



The new torque converter may only be installed in a transmission without a sleeve bearing in the turbine shaft.
It can be identified by the fourth letter, which is either a D, H, or J. See Fig. 32 . Example (arrow) is a "D".

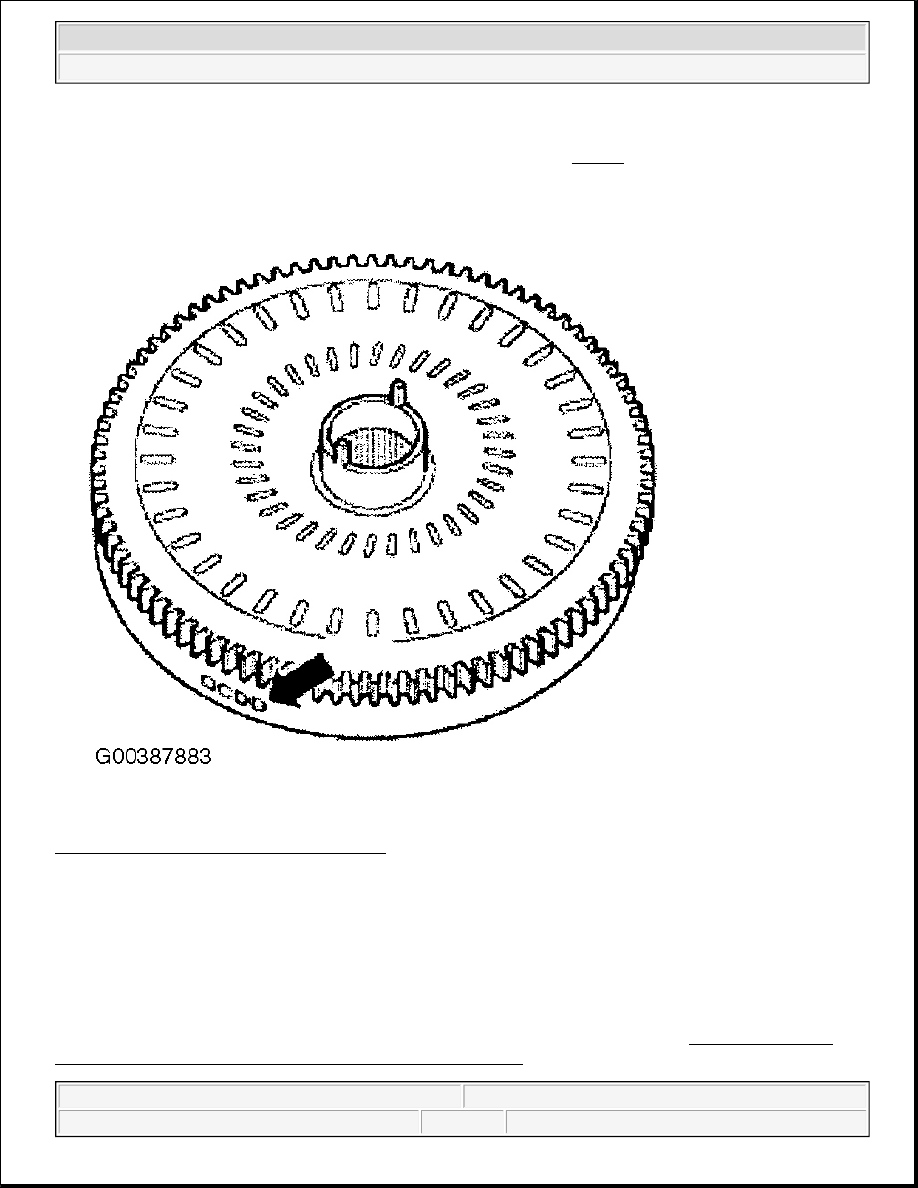

Fig. 32: Identifying New Torque Converter
Courtesy of VOLKSWAGEN UNITED STATES, INC.

TORQUE CONVERTER APPLICATIONS

There are two types, which are allocated according to the transmission code letters. See CODE LETTERS,
TRANSMISSION APPLICATION, RATIOS, EQUIPMENT .

NOTE:

If a new torque converter with an integrated needle bearing is installed in a
transmission with a sleeve bearing in the turbine shaft, the sleeve bearing must
be removed.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



Current torque converter with sleeve bearing in the turbine shaft of the transmission (arrow). See Fig. 33 .

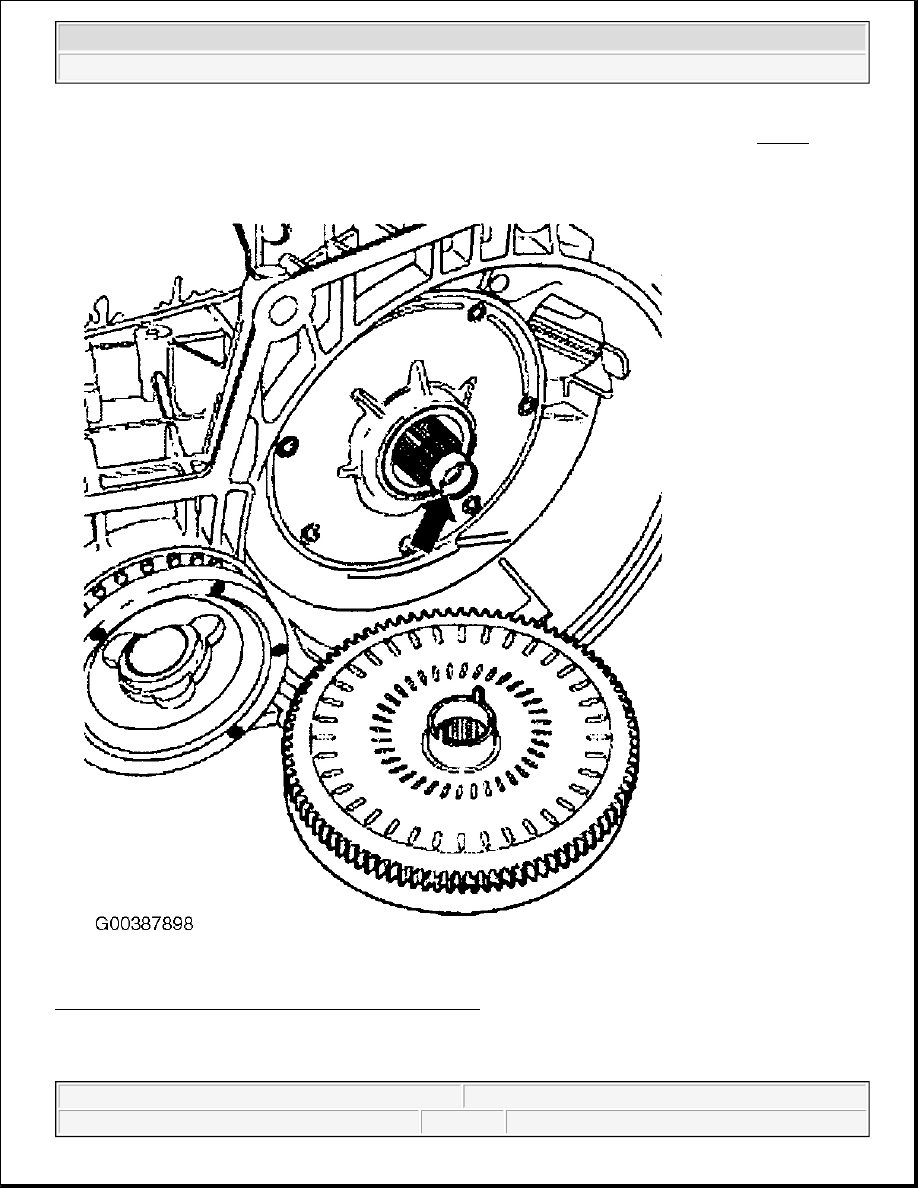

Fig. 33: Identifying Torque Converter with Sleeve Bear
Courtesy of VOLKSWAGEN UNITED STATES, INC.

For the new torque converter with an integrated needle bearing, a sleeve bearing (arrow) may not be installed in
