Volkswagen New Beetle. Manual - part 2224

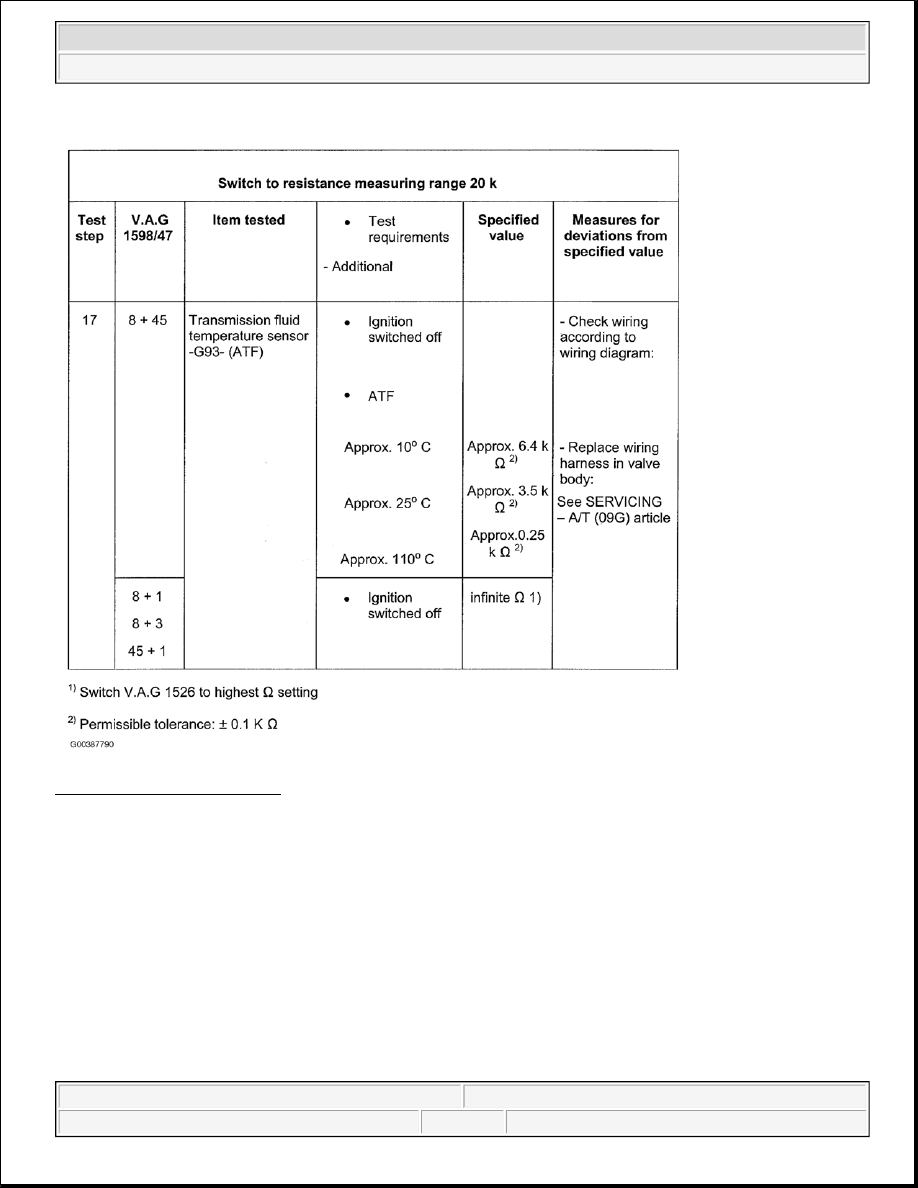

Fig. 123: Test Table (Step 17)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

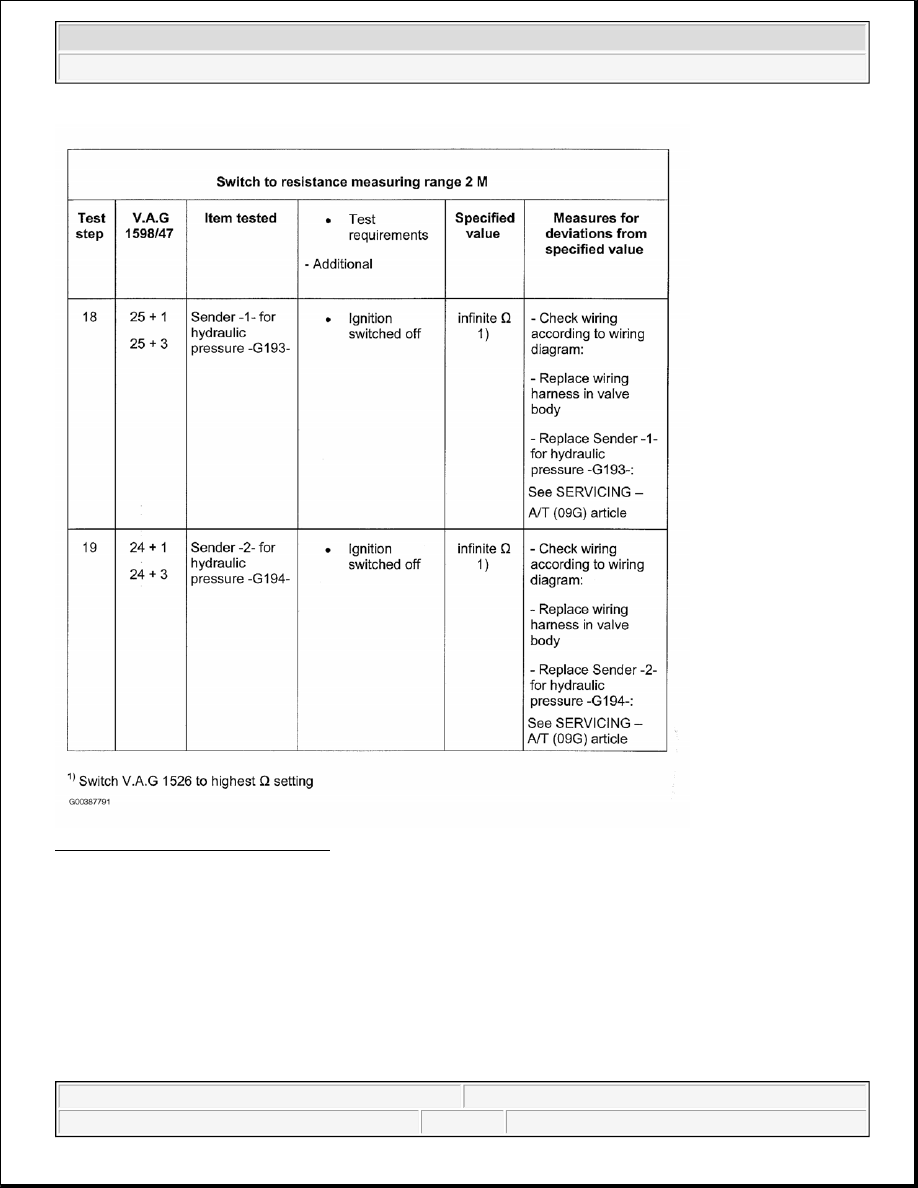

Fig. 124: Test Table (Steps 18 & 19)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

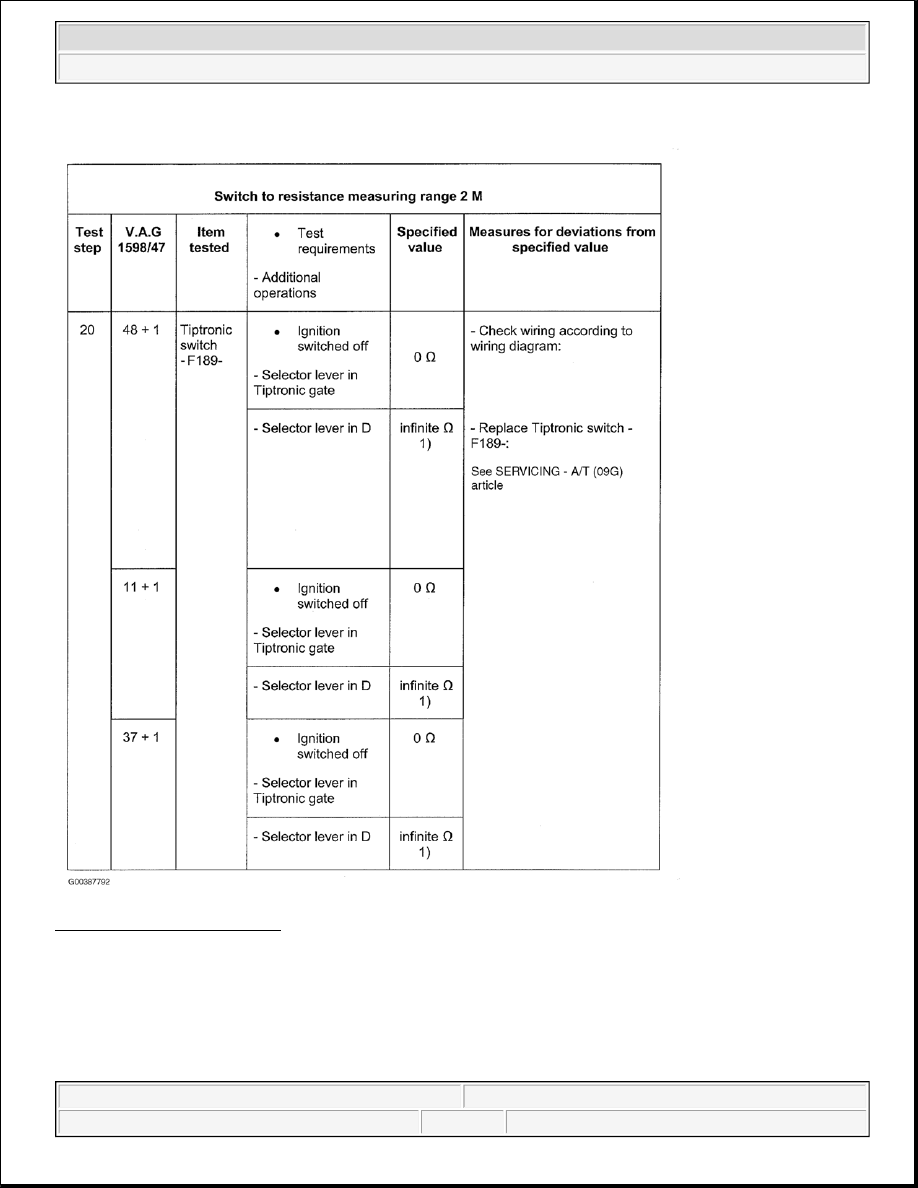

Fig. 125: Test Table (Step 20)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DEFINITIONS

NOTE:

These explanations refer only to this assembly group: 6-speed automatic
transmission 09G. These definitions are not necessarily valid generally.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G



ABS

Anti-locking brake system.

ATF (AUTOMATIC TRANSMISSION FLUID)

Transmission oil for automatic transmission

ATF LEVEL

Level of ATF in transmission when full. See SERVICING - A/T (09G) article.

AUTOMATIC TRANSMISSION 09G

A further development of the dynamic shift program and is equipped with planetary gear set and Ravigneaux
planetary gearbox.

DATA BUS LOW (HIGH)

The voltage used to transport data is low (high). Further information concerning this subject can be found in
Self-study program "CAN-BUS Operation".

TORQUE CONVERTER

Transfers the engine torque to the automatic transmission and acts as an hydraulic drive-away clutch. The
torque converter also contains the lock-up clutch.

DSP (DYNAMIC SHIFT PROGRAM)

Further information concerning this subject can be found in Self-study program No. 180

HILL CLIMBING PROGRAM

The hill program is an item of software in the control module which influences the shift points when the vehicle
is being driven up hill.

SHORT TO GROUND

Current flows incorrectly to a live component without supplying a consumer.

ON BOARD DIAGNOSTIC (OBD) OR SELF-DIAGNOSIS

The capability of the control module:

z

to detect faults

z

to react to faults



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G
