Volkswagen New Beetle. Manual - part 2217

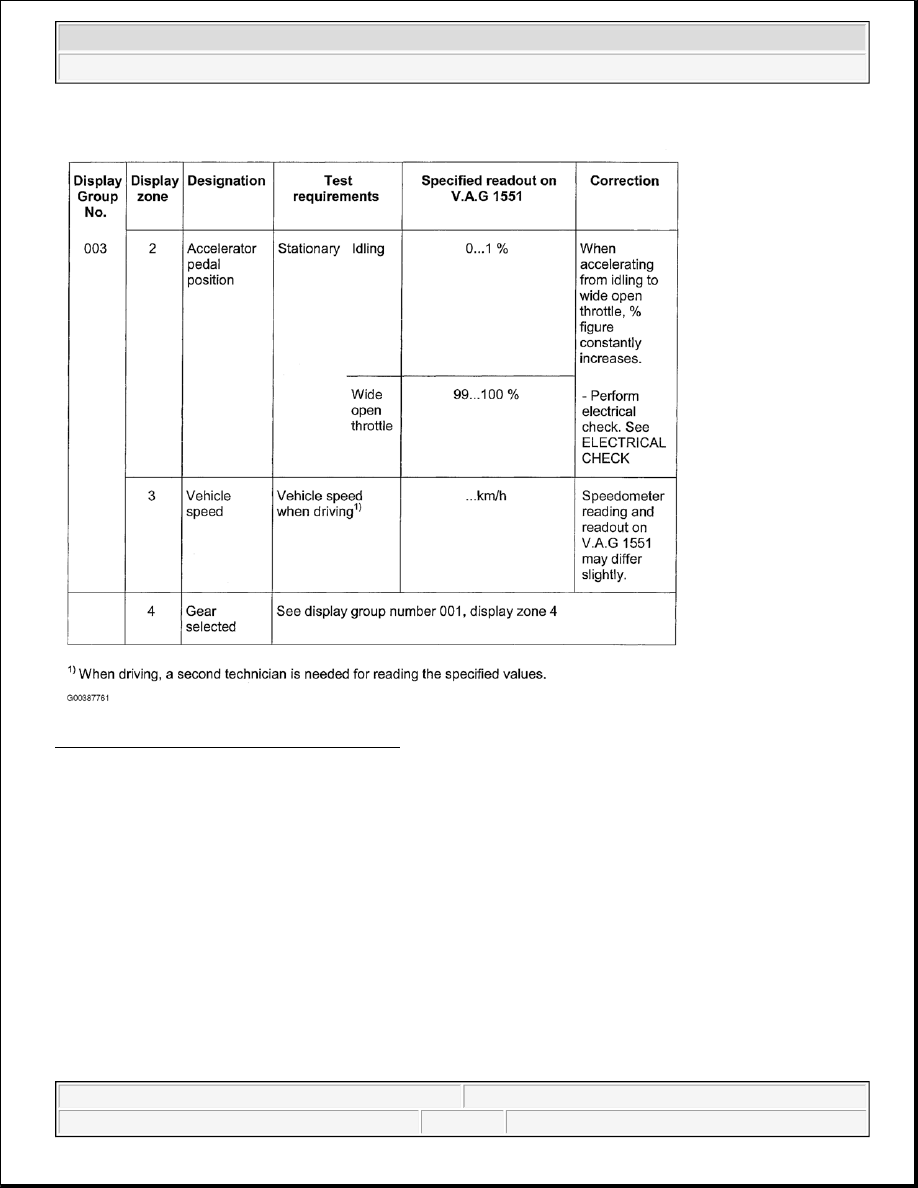

Fig. 94: Test Table (Group 3, Zones 2, 3 & 4)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

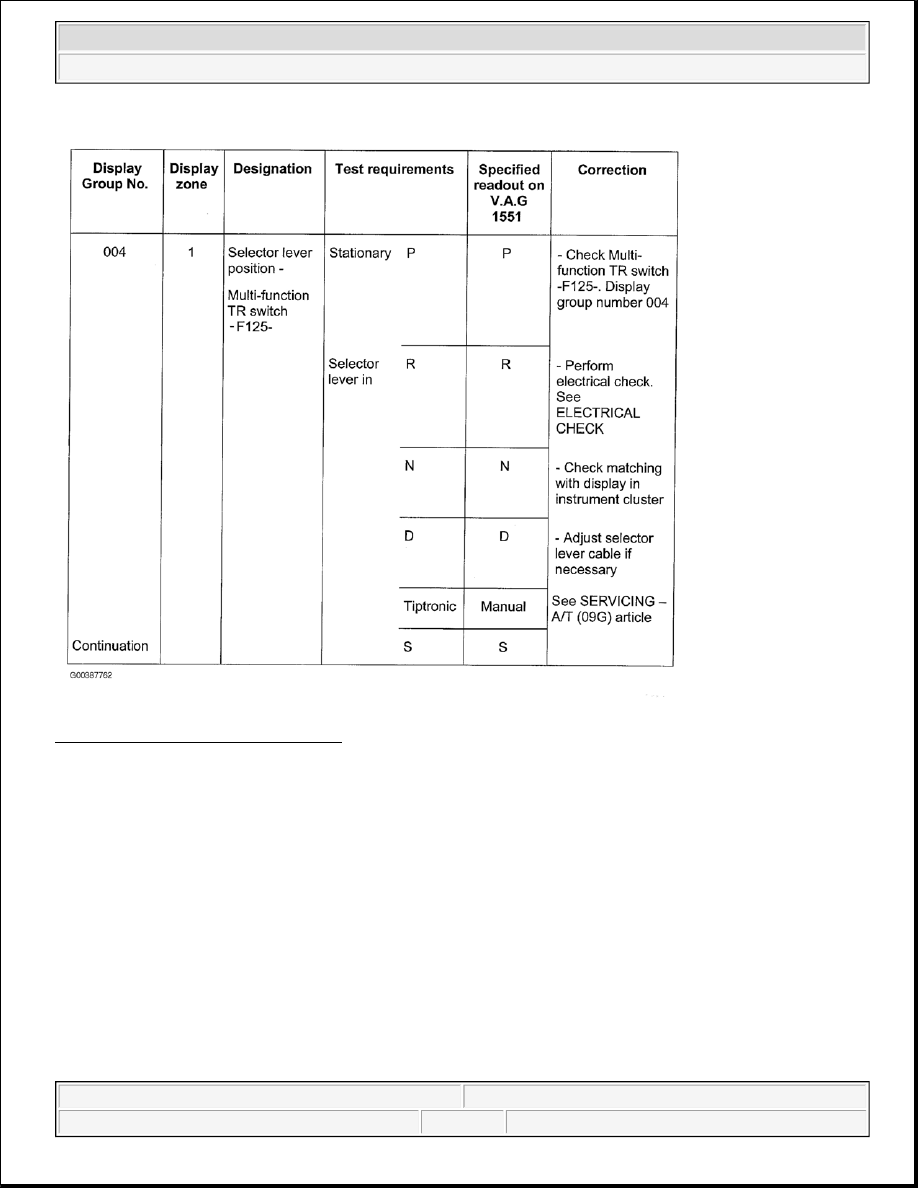

Fig. 95: Test Table (Group 4, Zone 1)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

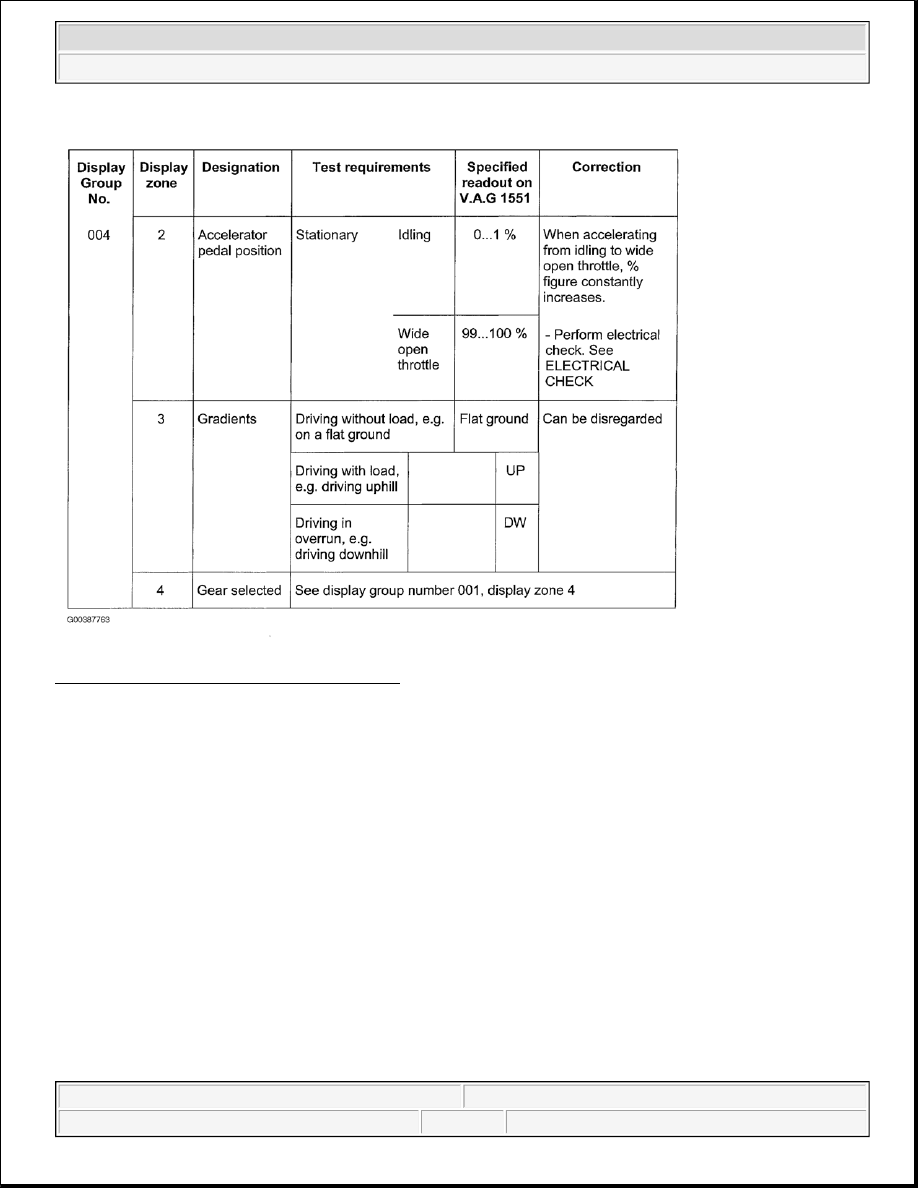

Fig. 96: Test Table (Group 4, Zones 2, 3 & 4)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

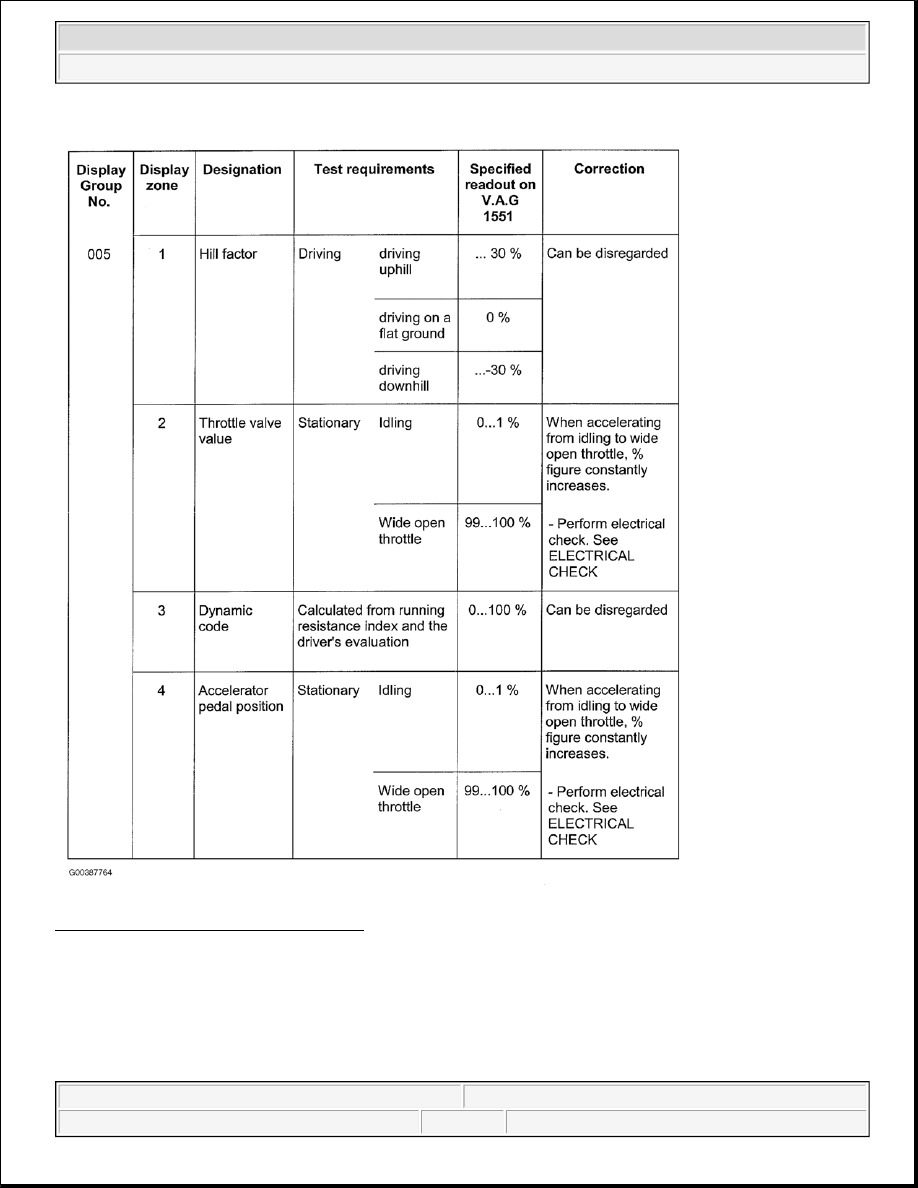

Fig. 97: Test Table (Group 5, Zones 1-4)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G
