Volkswagen New Beetle. Manual - part 2205

Fig. 43: DTC 01236 Diagnostic
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DTC 01312

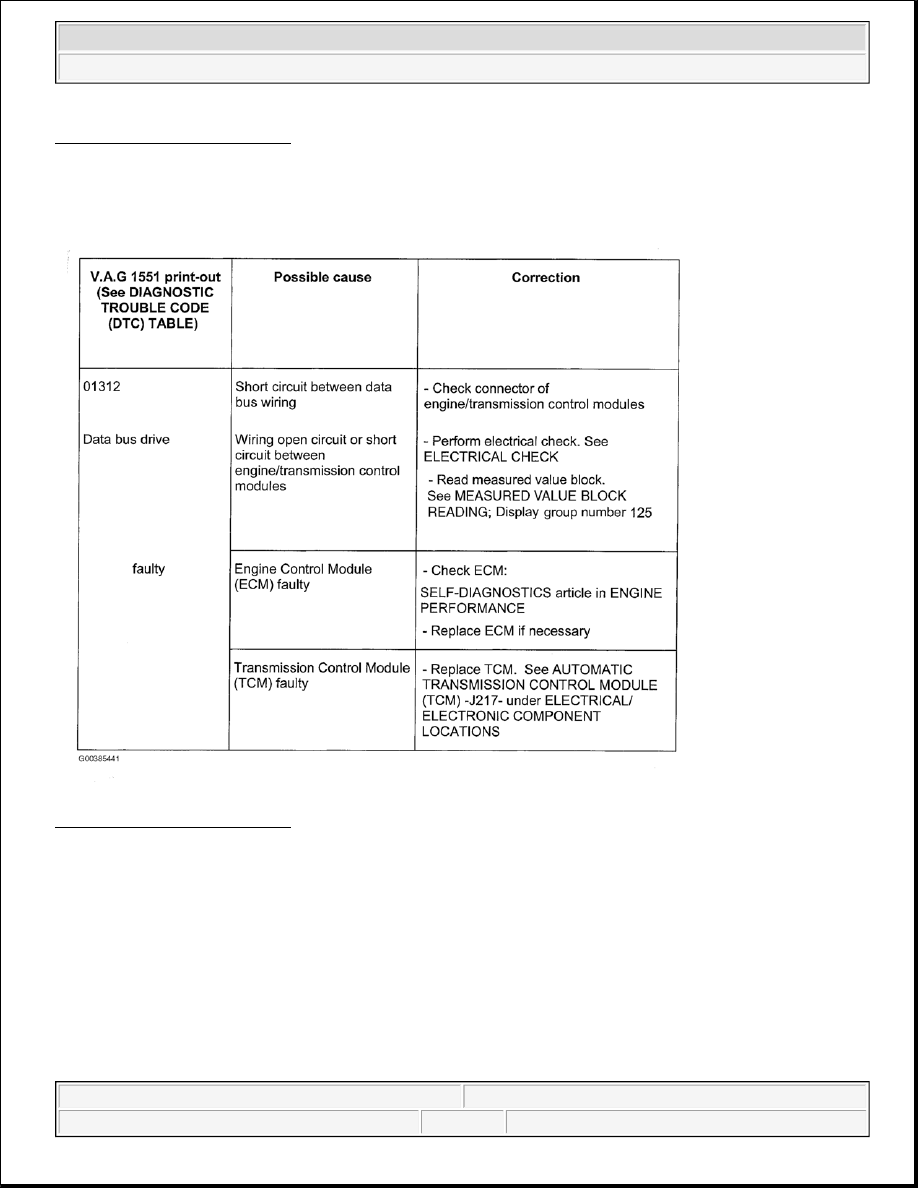

Fig. 44: DTC 01312 Diagnostic
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DTC 01312 & 01314



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

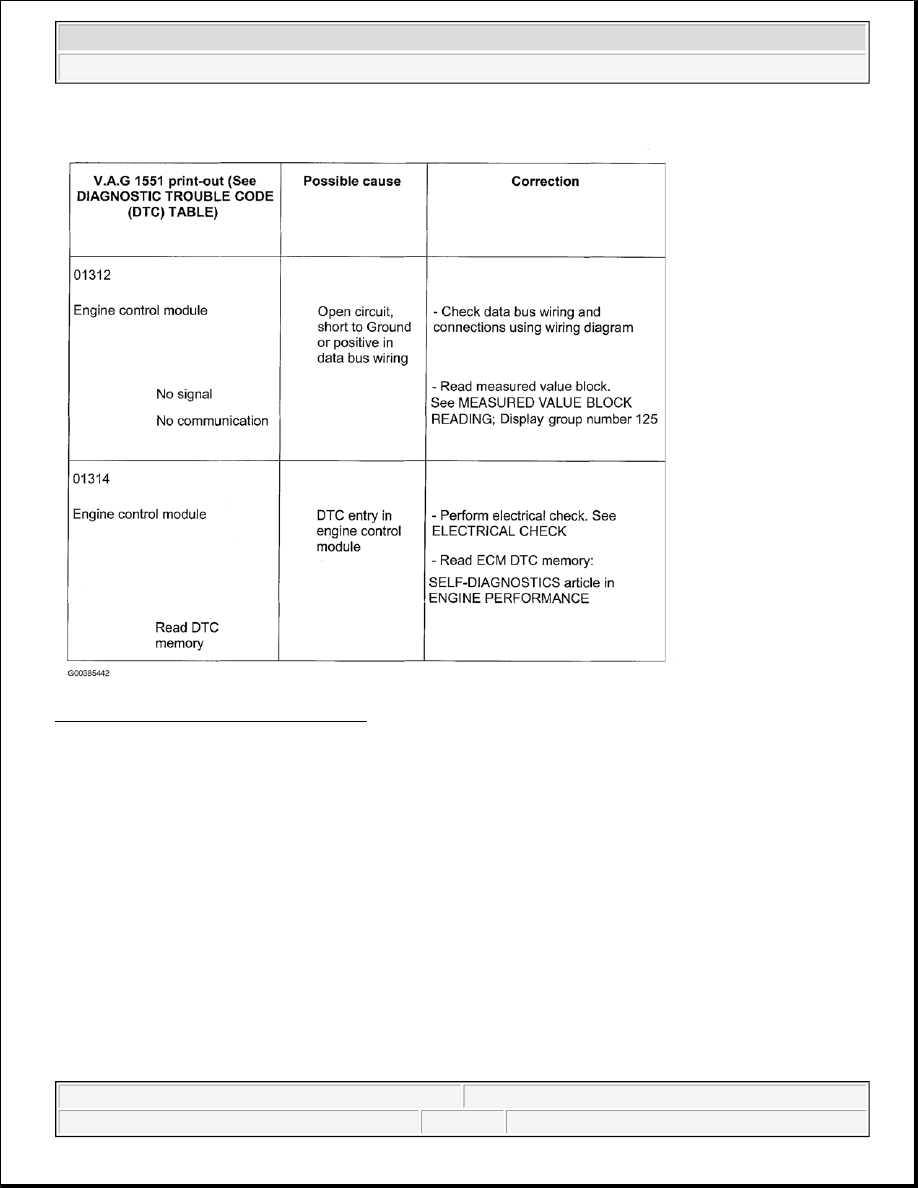

Fig. 45: DTC 01312 & 01314 Diagnostics
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DTC 01316



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

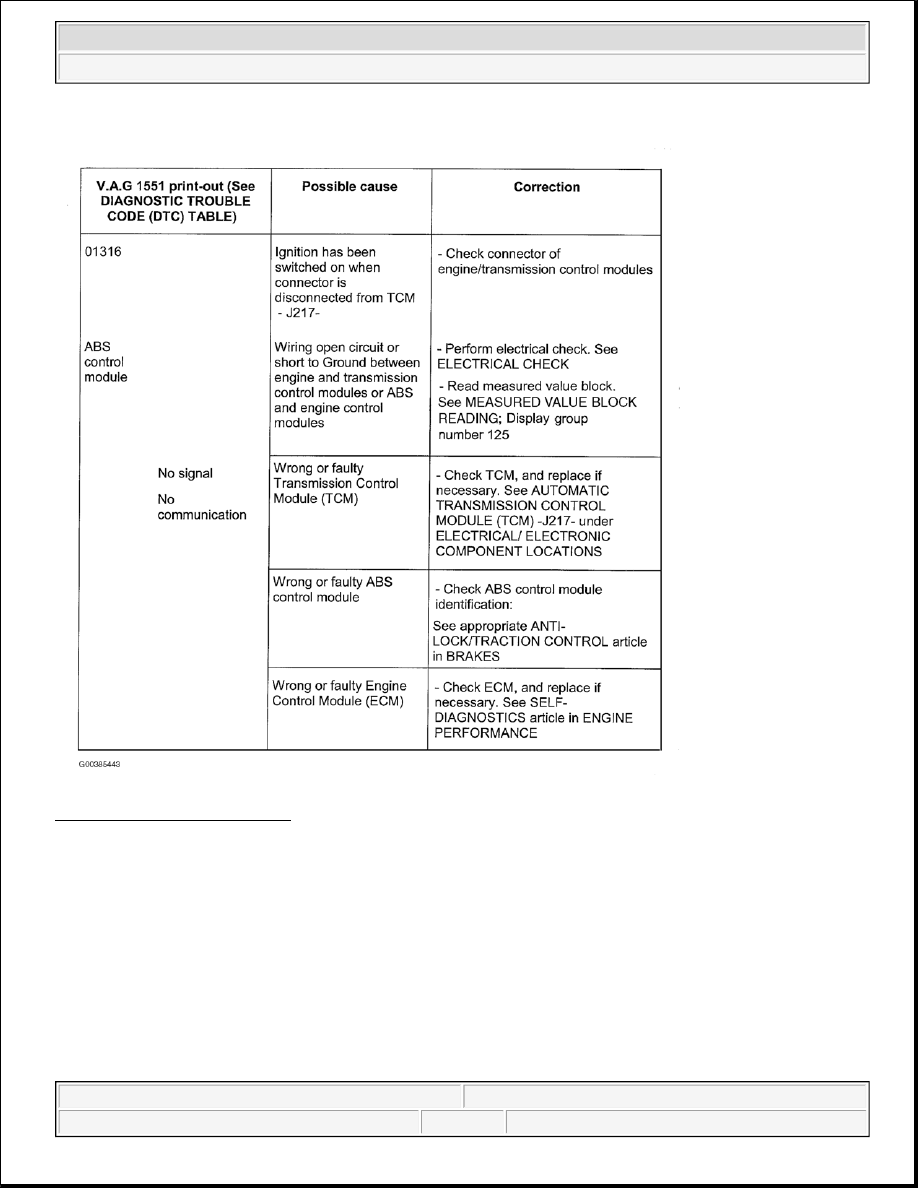

Fig. 46: DTC 01316 Diagnostic
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DTCs 01679 & 01680



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

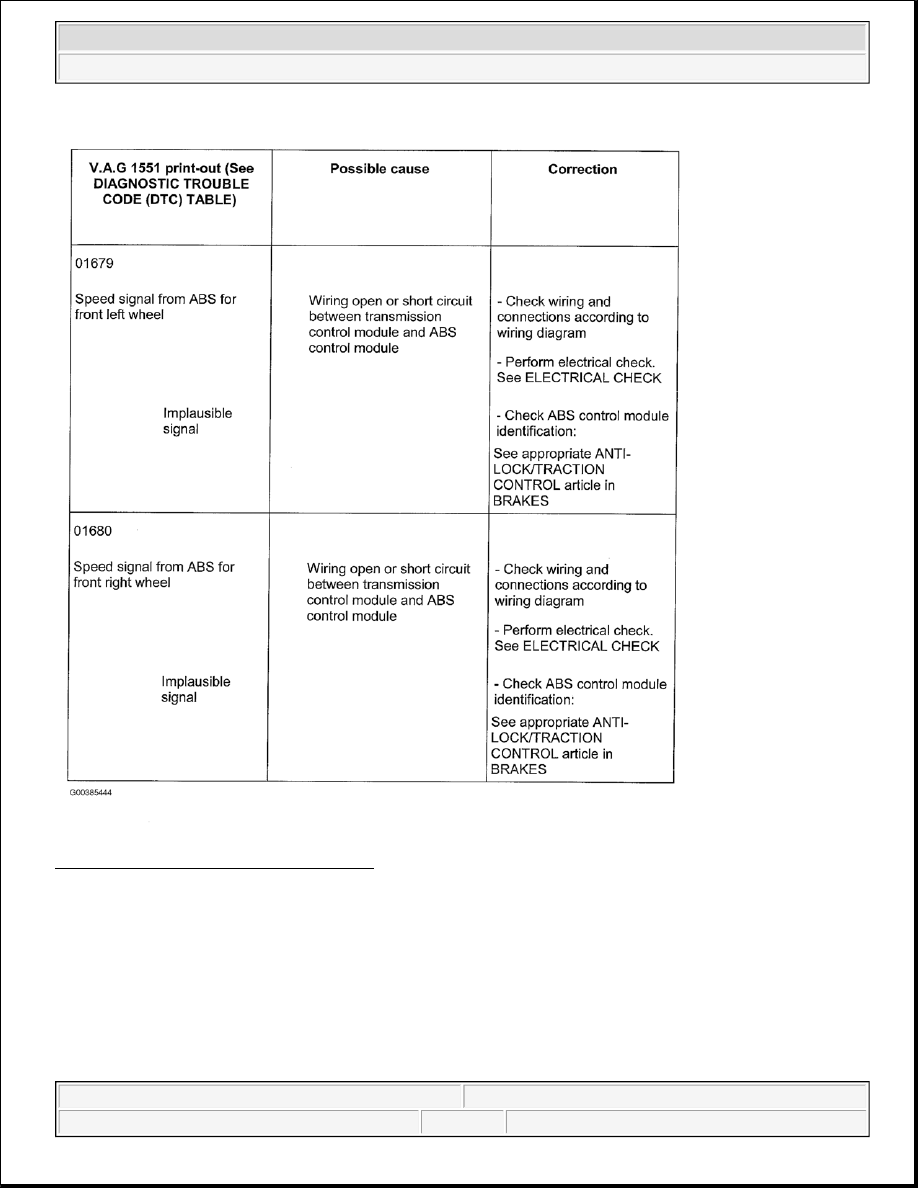

Fig. 47: DTCs 01679 & 01680 Diagnostics
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DTCs 01681 & 01682



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G
