Volkswagen New Beetle. Manual - part 2180

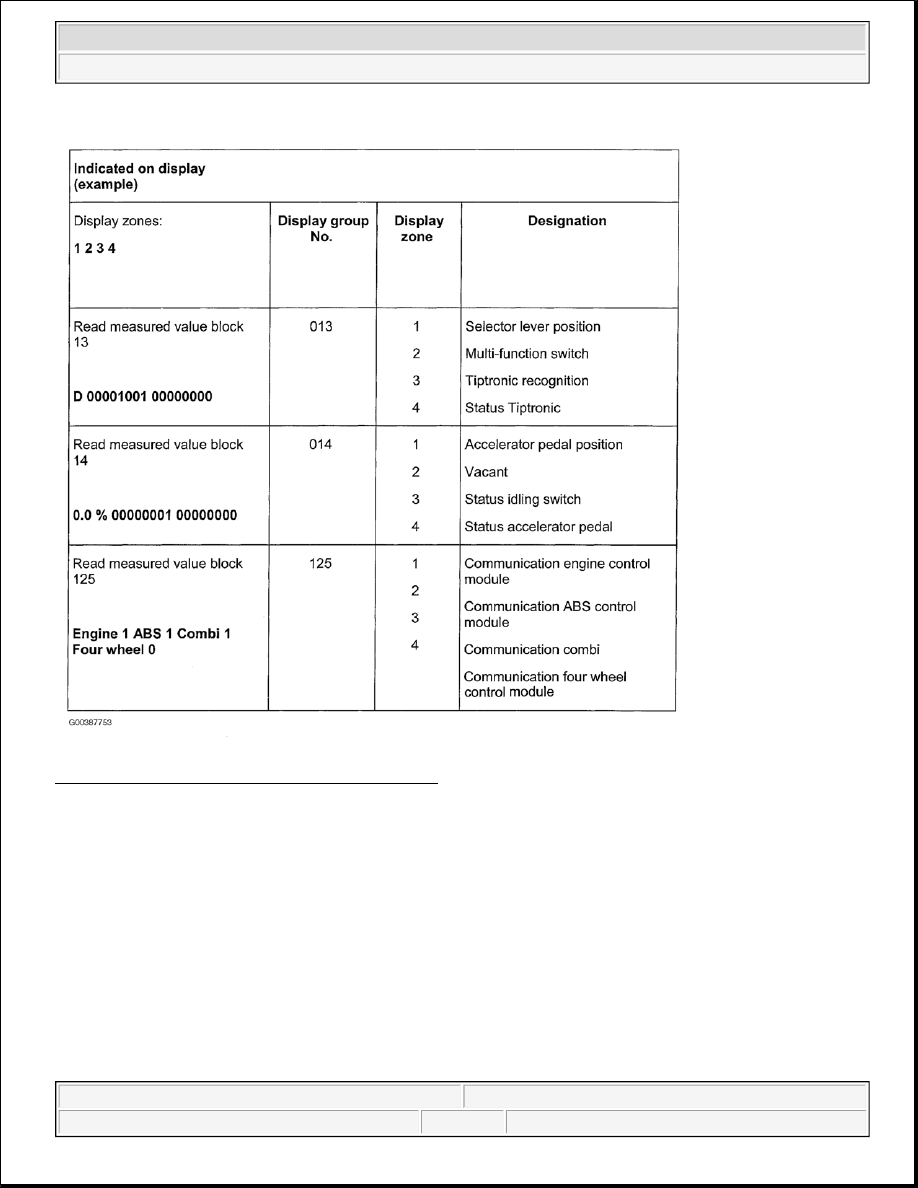

Fig. 86: Selectable Display Groups 013, 014 & 125
Courtesy of VOLKSWAGEN UNITED STATES, INC.

If the specified values are reached in all the display field, press "right arrow" key. Indicated on display:

z

Rapid data transfer HELP

z

Select function XX

TEST TABLE

NOTE:

When the printer is switched on the actual display is printed out on a voucher.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

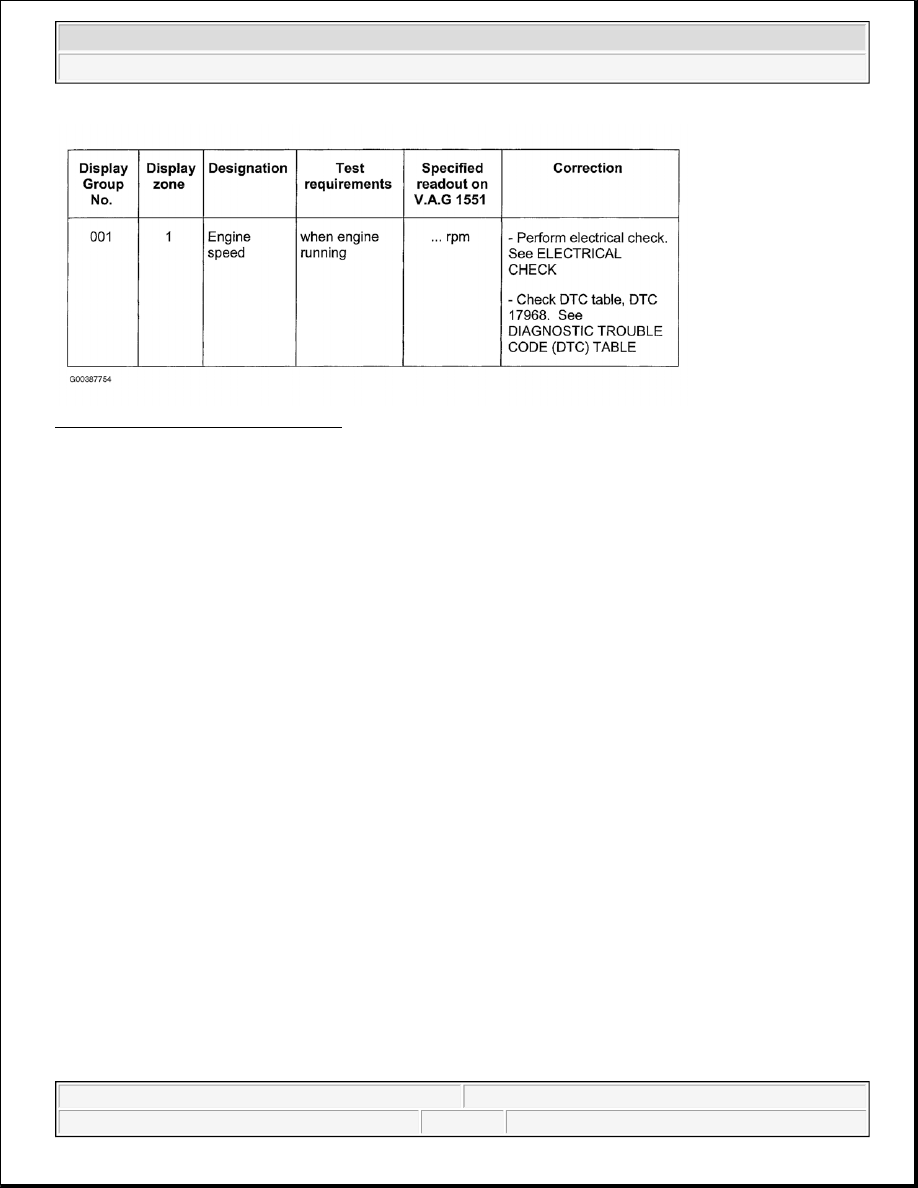

Fig. 87: Test Table (Group 1, Zone 1)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

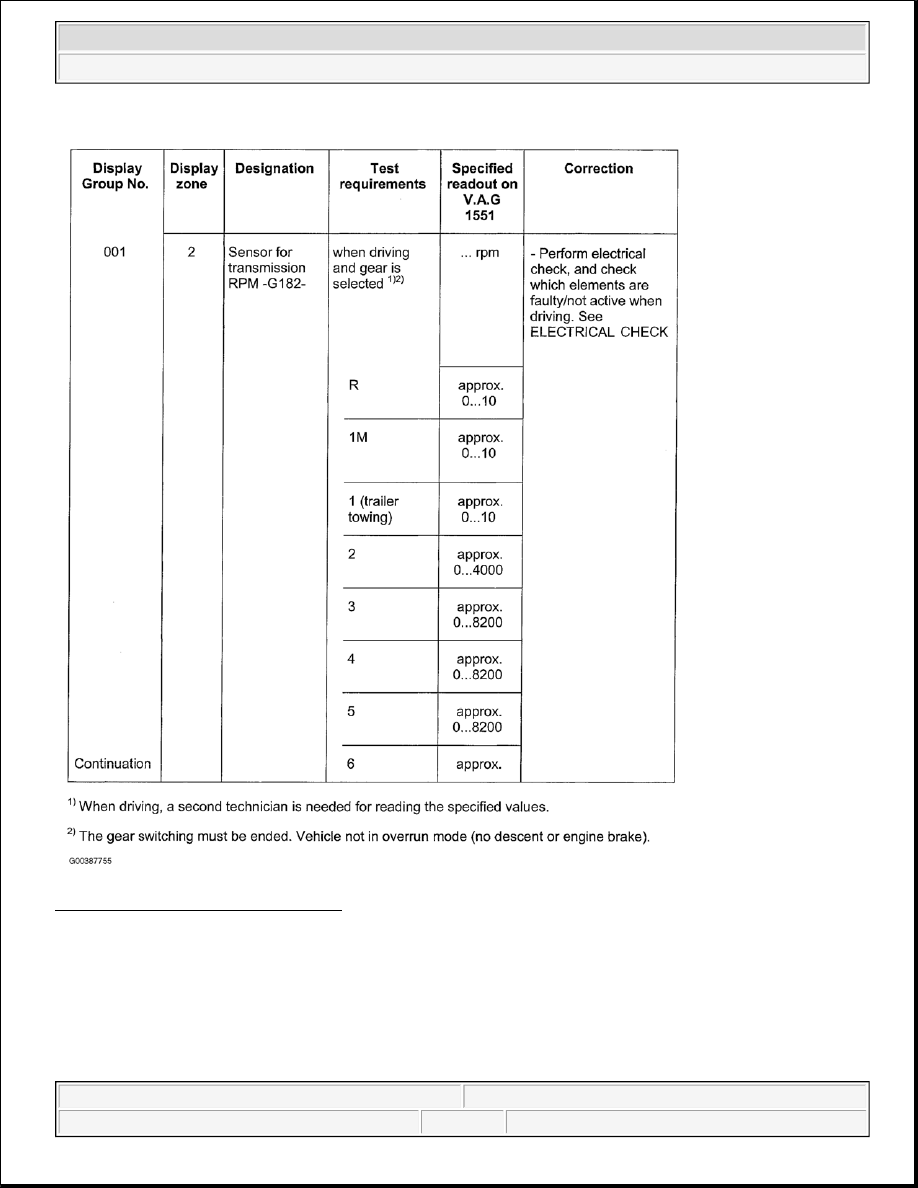

Fig. 88: Test Table (Group 1, Zone 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

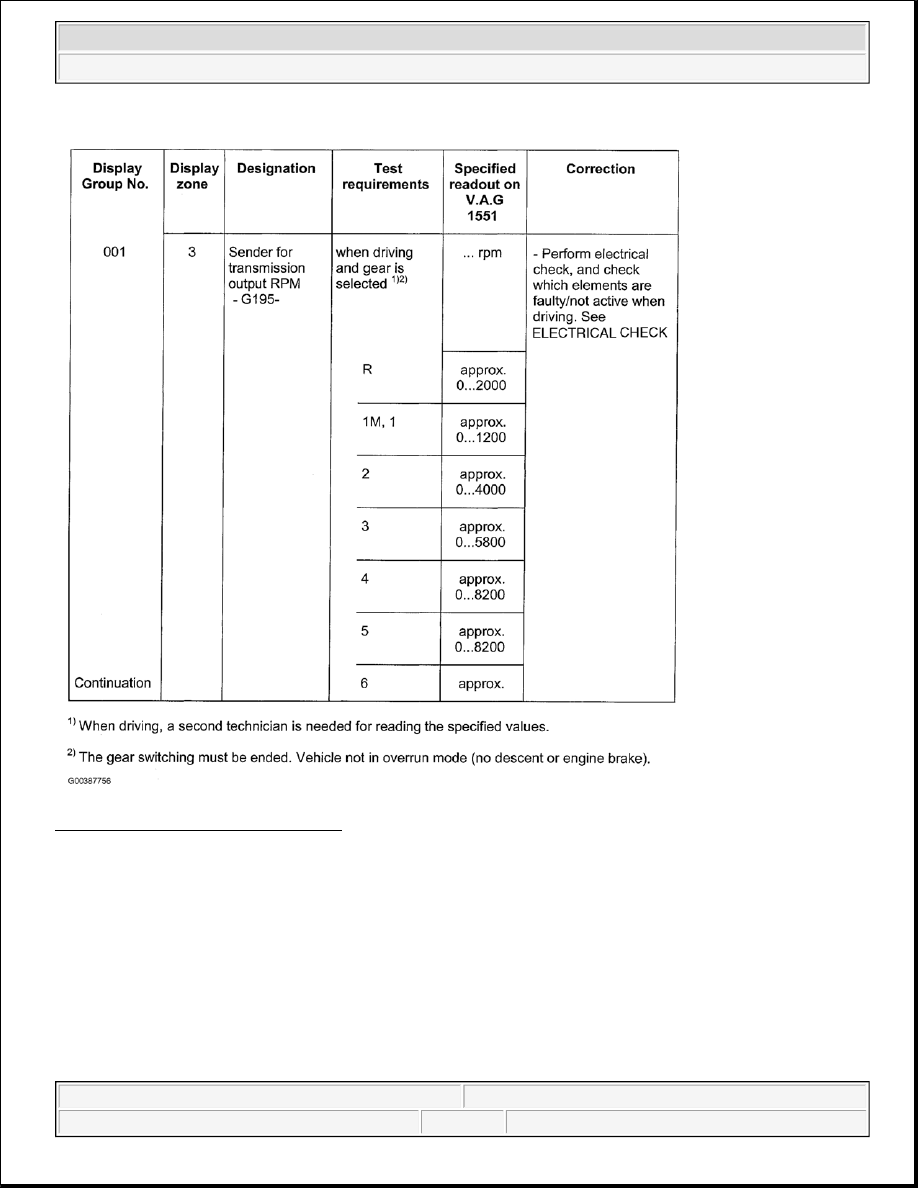

Fig. 89: Test Table (Group 1, Zone 3)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G
