SELECTING FUNCTION

Special Tools And Equipment

z

VAS 5051 Vehicle Diagnosis, Testing and Information System. See Fig. 29 .

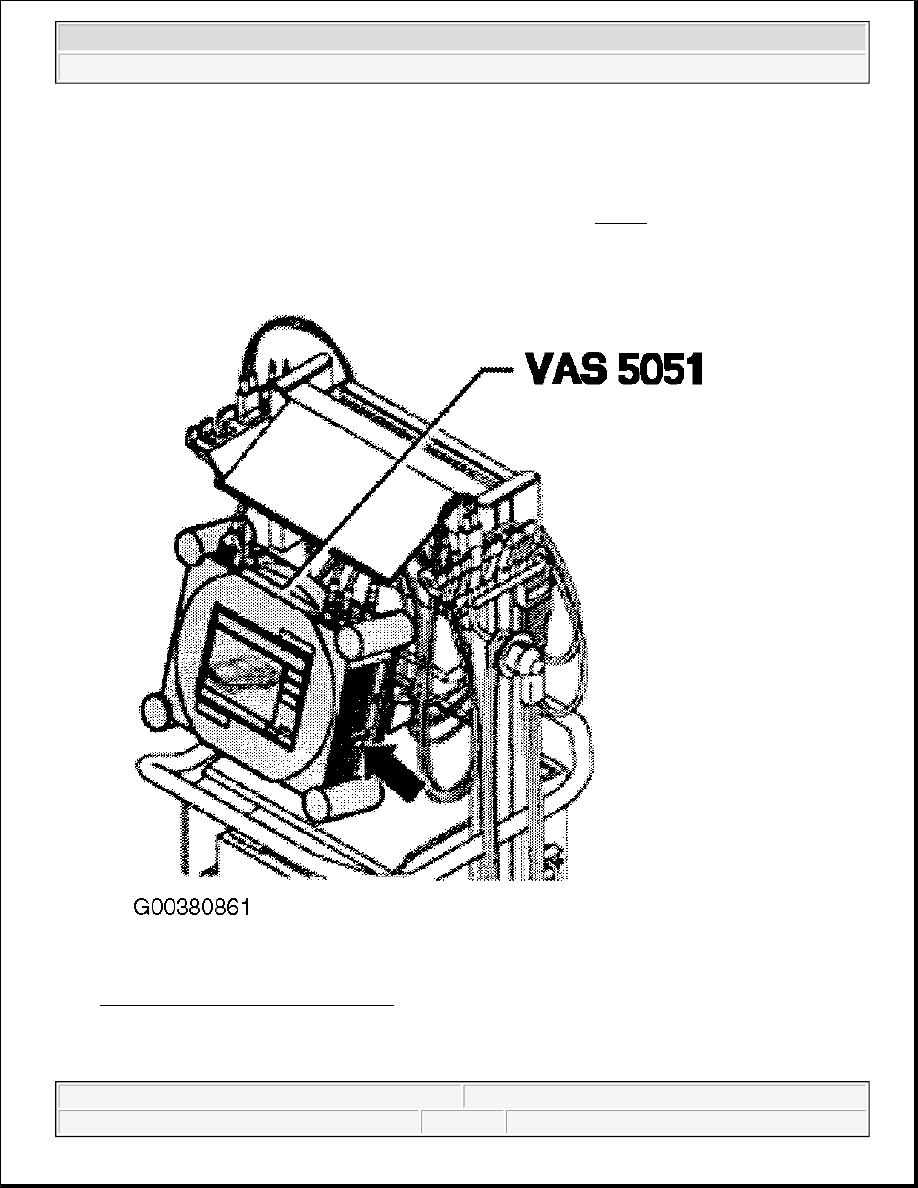

Fig. 29: Identifying Tester (VAS 5051)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Diagnostic cable VAS 5051/1 or VAS 5051/3



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G



Connecting & Selecting Function

VAS 5051

Connect tester VAS 5051 to Data Link Connector (DLC) using diagnostic cable VAS 5051/1 or VAS 5051/3
with ignition switched off. See Fig. 30 .

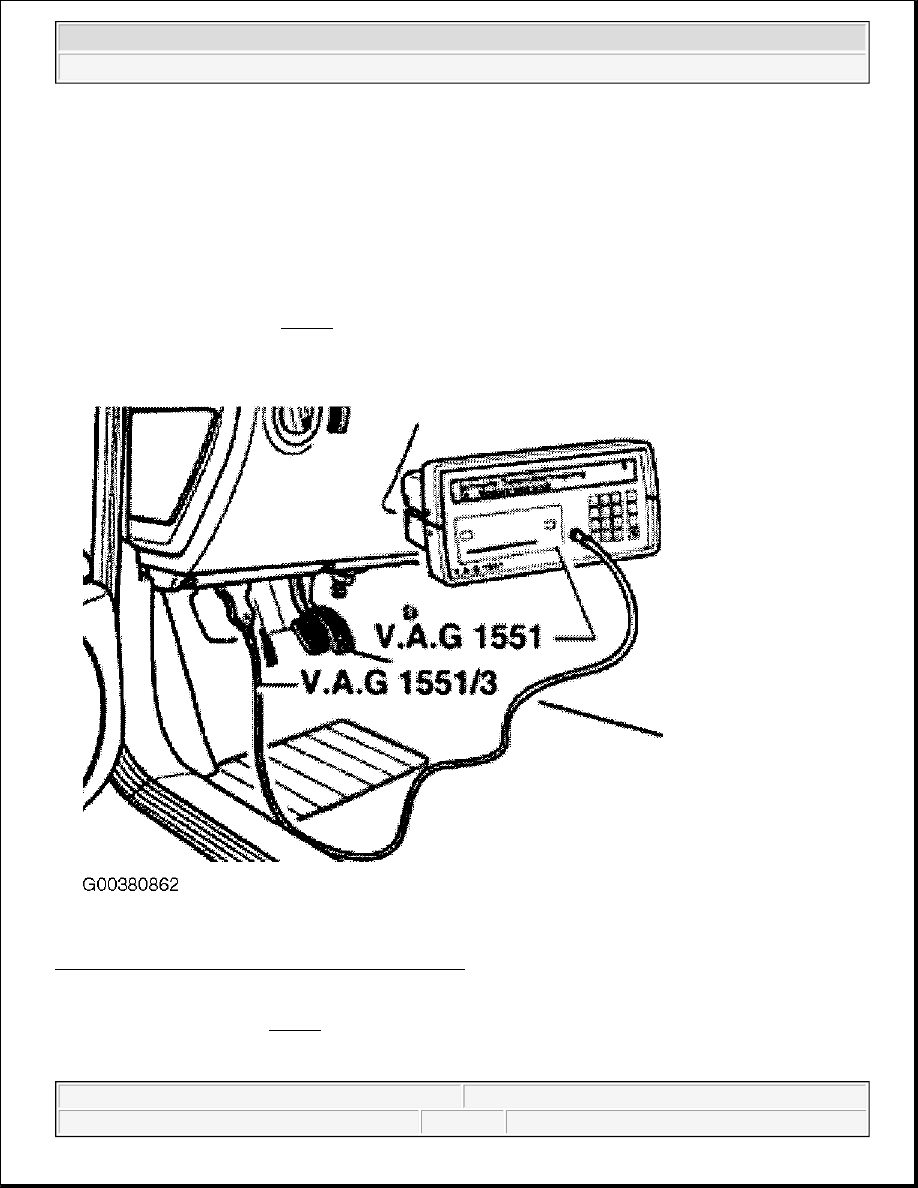

Fig. 30: Connecting Diagnostic Cable (VAG 1551/3A)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Switch tester on (arrow). See Fig. 29 . The tester is operationally ready when a picture (photograph) of a vehicle
appears on the display.

WARNING:

When performing a road test the test and measuring units must be
secured on the rear seat. During the road test only one person must
operate these units.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G



Switch ignition on.

Touch key on screen for: Guided Fault Finding.

Select one after another:

z

Brand

z

Model

z

Model year

z

Variant

z

Engine code

Confirm data as entered:

Using "Go to" key, select "Function/component selection"

Follow instructions on screen to start functions desired.

V.A.G. 1551

Switch ignition on.

Operate brake pedal once.

Switch on printer with Print key (indicator lamp in key lights up).

Press key 1 for "Rapid data transfer" mode.

Indicated on display:

z

Rapid data transfer HELP

z

Enter address word XX

Press keys 0 and 2. ("02" enters address word "transmission electronics").

Indicated on display:

z

Rapid data transfer Q

z

02 transmission electronics

NOTE:

Wait until the tester has read all the available control modules.

NOTE:

The following description is for displays and V.A.G 1551 printouts.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G



Confirm entry with Q key.

Indicated on display:

z

09G927750N AQ 250 6F 0250 "right arrow"

z

Codierung 00008 WSC 00000

The control module identification, coding and the Dealership number are shown on the V.A.G 1551 display.

Control Module Identification

z

09G927750N: Part number

z

AQ 250 6F: 6-speed automatic transmission 09G

z

0250: EPROM (program level)

z

Coding 00008: Coding

z

WSC 00000: Dealership code of V.A.G 1551 with which the last coding was performed

Indicated on display:

z

Control module does not answer! HELP

By pressing "HELP" key a list of possible fault causes is printed out.

After eliminating possible causes of faults, again enter address word 02 for "transmission electronics" and
confirm.

If "Control module does not answer!" again appears:

z

Indicated on display: Control module does not answer! HELP

z

Check control module voltage supply.

z

Perform test step 1. See ELECTRICAL CHECK .

z

Check wiring connections to diagnostic sockets. See appropriate SYSTEM WIRING DIAGRAM article
in ELECTICAL.

z

Refer to DTC table. See DIAGNOSTIC TROUBLE CODE (DTC) TABLE under DTC 65535: control
module faulty!

Press "right arrow" key.

Indicated on display:

NOTE:

Depending upon build level (program level) the control module can indicate a
different control module identification from that shown in the example.
Allocation of control module. See available parts catalog.
