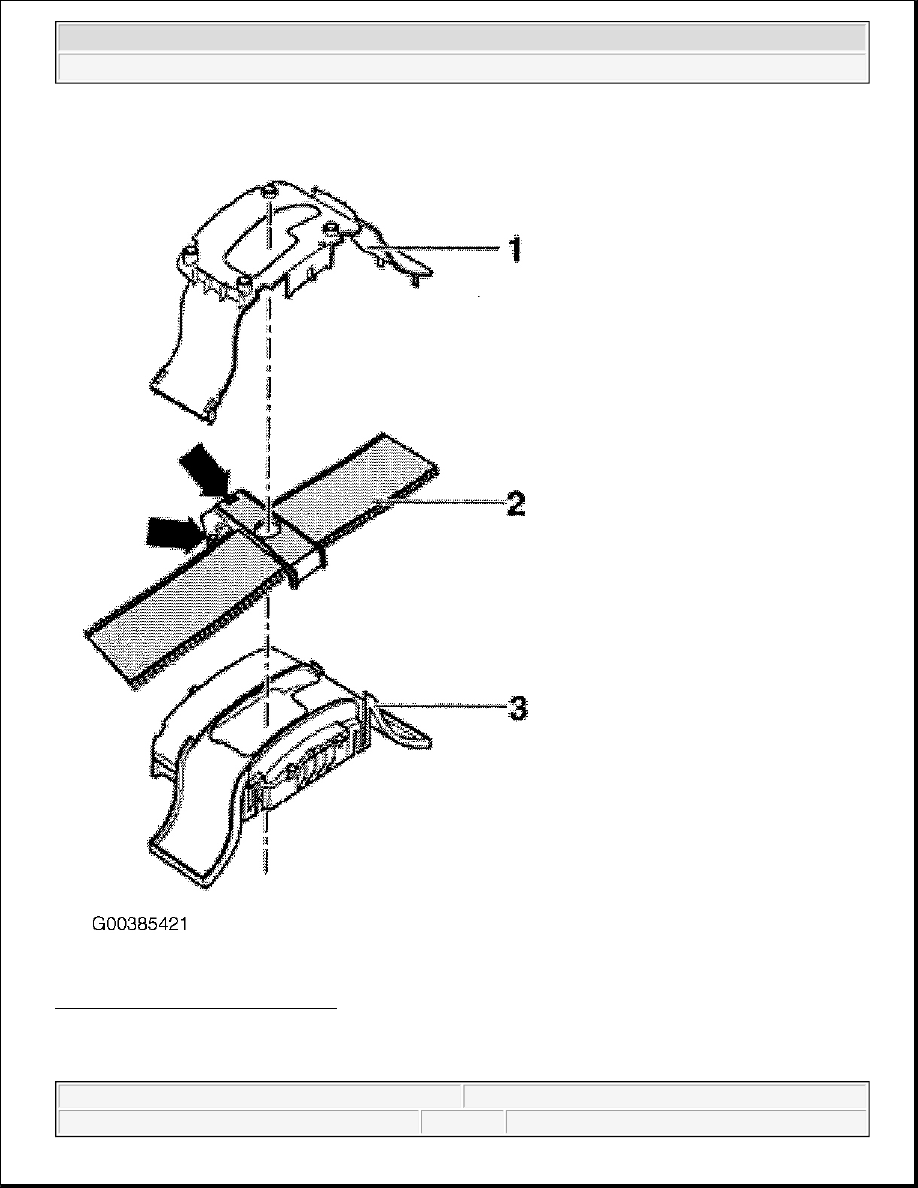

Fig. 13: Identifying Tiptronic Switch
Courtesy of VOLKSWAGEN UNITED STATES, INC.

If malfunctioning, first ensure that the magnet (arrow) is securely attached to the cover strip sliding cover -2-.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G



See Fig. 13 . Replace the cover strip if necessary. The selector mechanism cover with integrated printed circuit
must only be replaced once the wiring has been checked.

On models with a multi-function steering wheel, the buttons on the steering wheel must also be checked along
with the wiring connections.

DATA LINK CONNECTOR (DLC)

Location: (arrow) under shelf on the driver's side. See Fig. 14 .

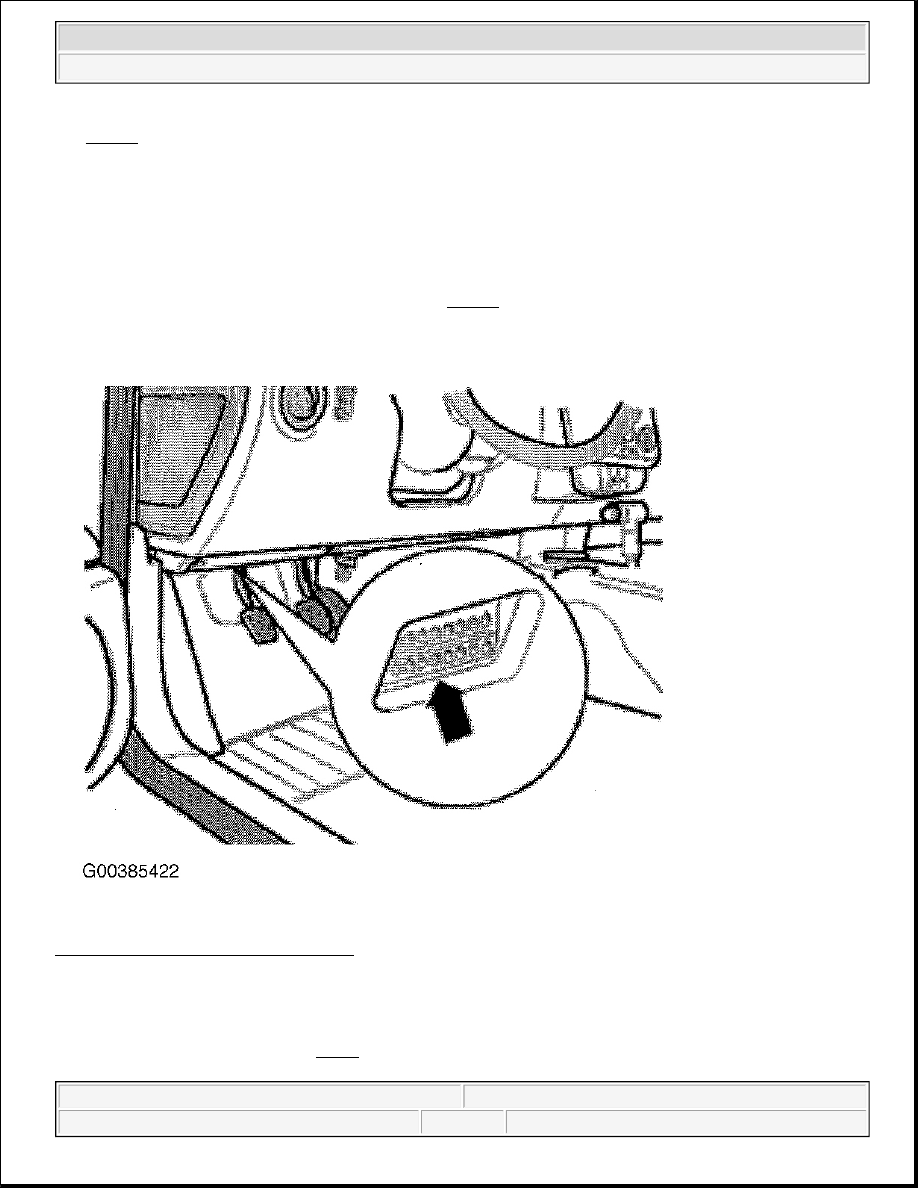

Fig. 14: Locating Data Link Connector
Courtesy of VOLKSWAGEN UNITED STATES, INC.

TRANSMISSION RANGE (TR) SELECTOR LEVER DISPLAY -Y6-

Location: in instrument cluster. See Fig. 2 .



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G



Removing & Installing

For selector lever display removal and installation, see appropriate GAUGES & INSTRUMENT PANEL article
in ACCESSORIES & EQUIPMENT.

AUTOMATIC TRANSMISSION CONTROL MODULE (TCM) -J217-

Location: (arrow) under inner plenum chamber cover. See Fig. 15 .

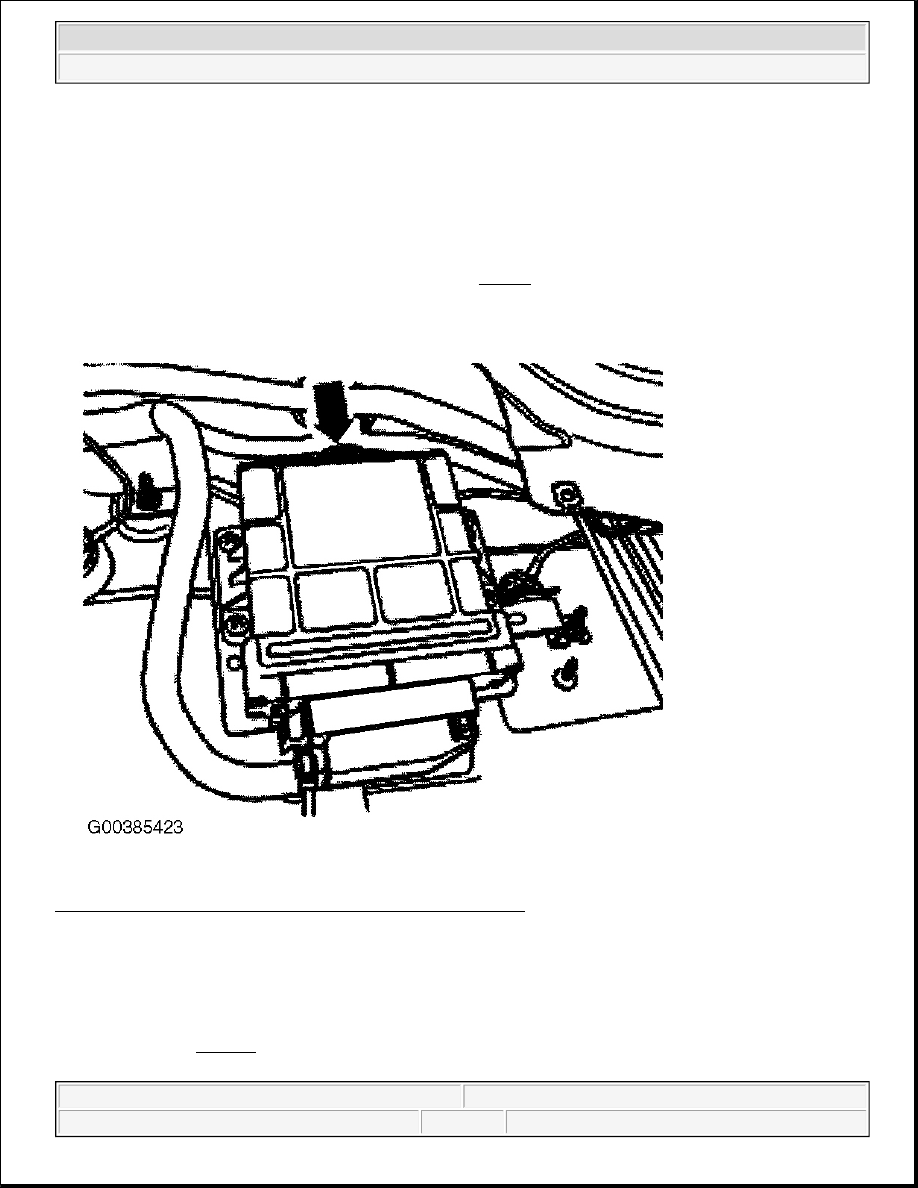

Fig. 15: Identifying Automatic Transmission Control Module
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removal & Installation

Switch ignition off.

Remove radio. See RADIO .



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G



Remove center air outlet console. See Fig. 16 .
