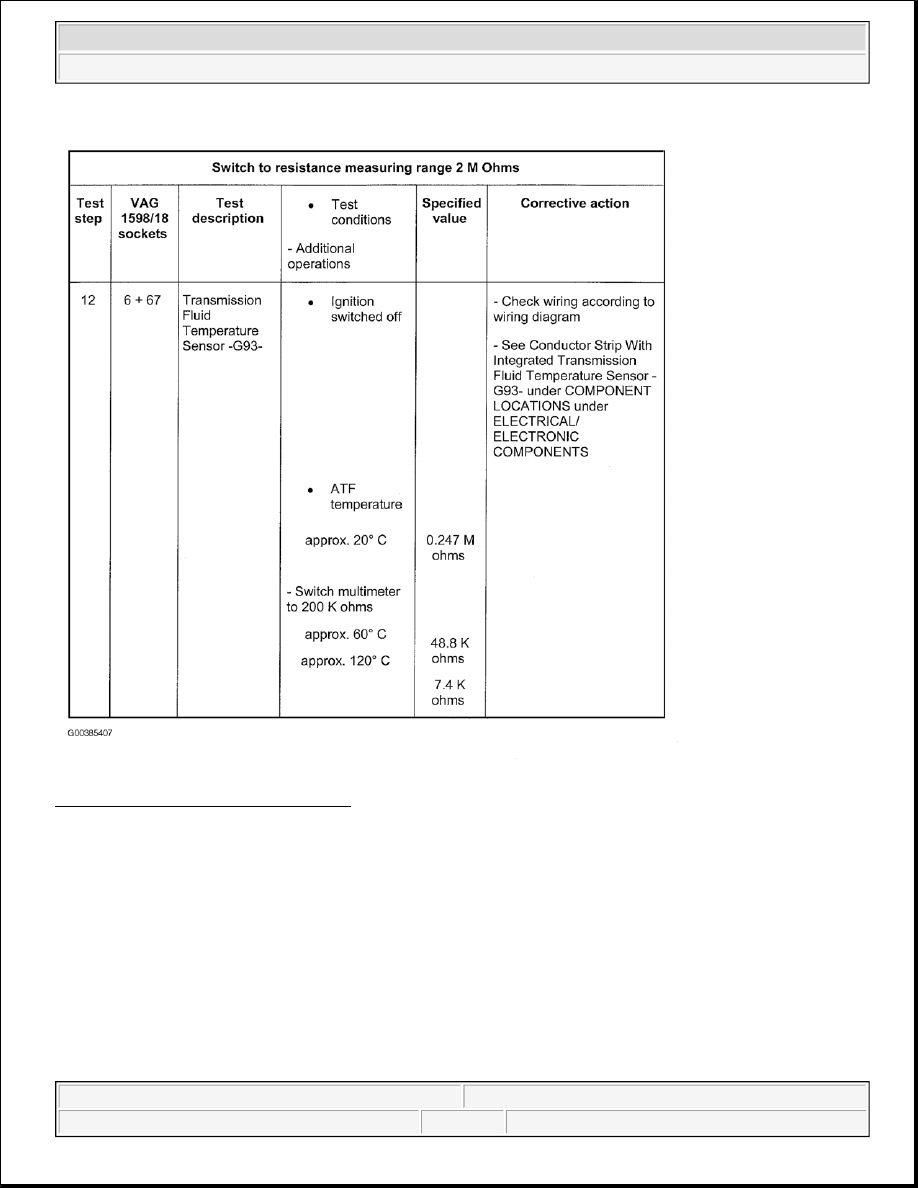

Fig. 92: Electrical Test Table (Step 12)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M

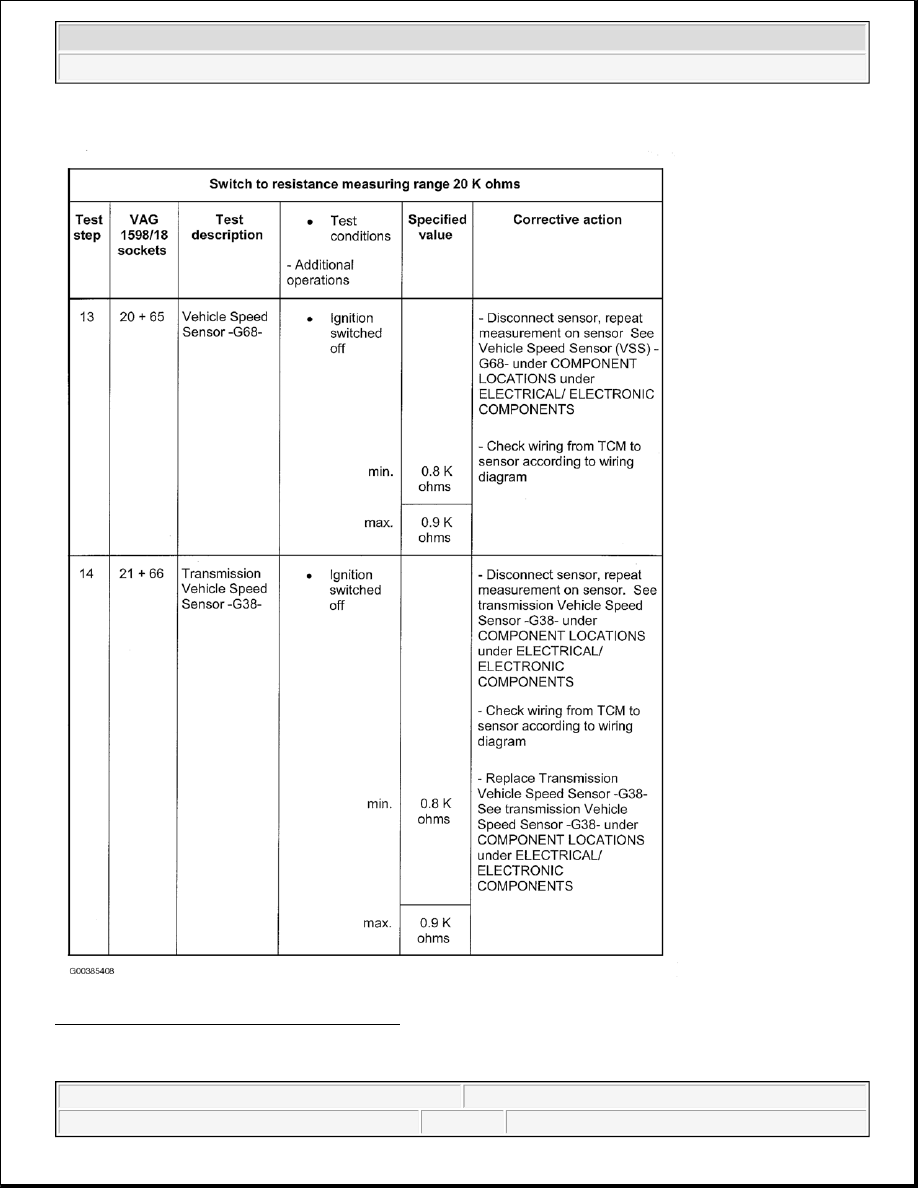

Fig. 93: Electrical Test Table (Steps 13 & 14)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Test Step 15: Multi-Function Transmission Range (TR) Switch -F125-



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M



Disconnect connector from multi-function TR switch. See Fig. 94 .

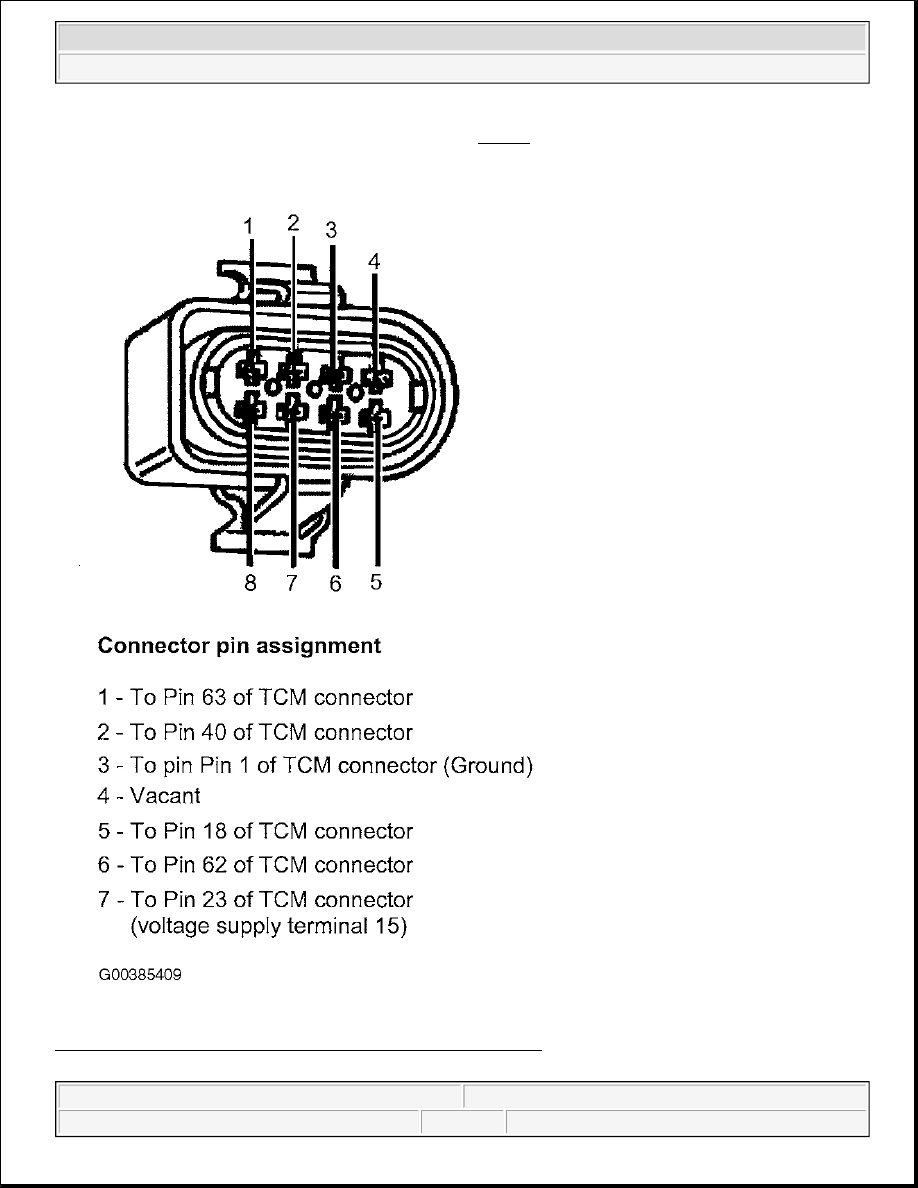

Fig. 94: Transmission Range Switch Connector Pin Assignment
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M



Checking Supply Voltage

1. Connect VAG 1598/18 test box.

2. Switch multimeter to 20 V measuring range.

3. Switch ignition on.

4. Measure between terminal 7 and terminal 3 (Ground) on disconnected multi-function TR switch

connector. See Fig. 94 . Specification: Battery voltage.

5. Measure from terminal 7 of connector to socket 1 on 1598/18 (Ground).

6. Measure from socket 23 (terminal 15) on 1598/18 to socket 1 on 1598/18 (Ground). Specification:

Battery voltage.

7. If the specifications are not obtained: Repair wiring according to wiring diagram.

8. If the specifications are obtained: Check wiring further.

9. Switch ignition off.

10. Remove relay for Park/Neutral Position (PNP) Relay -J226-.

11. Set multimeter to 200 ohms resistance measuring range.

12. Check the wiring between the multi-pin connector on the TCM and the connector on the multi-function

TR switch.

13. Measure between sockets 1 and 18 on VAG 1598/18. Specification: Infinity ohms.

14. Measure between sockets 23 and 18 on VAG 1598/18. Specification: Infinity ohms.

15. Measure between socket 18 on VAG 1598/18 and terminal 5 on connector. See Fig. 94 . Specification:

Less than 1.5 ohms.

16. If the specifications are not obtained: Repair wiring using wiring diagram.

17. If the specifications are obtained: Check wiring further.

18. Measure between sockets 1 and 63 on VAG 1598/18. Specification: Infinity ohms.

19. Measure between sockets 23 and 63 on VAG 1598/18. Specification: Infinity ohms.

20. Measure between socket 63 on VAG 1598/18 and terminal 1 on connector. See Fig. 94 . Specification:

Less than 1.5 ohms.

21. If the specifications are not obtained: Repair wiring according to the wiring diagram.

22. If the specifications are obtained: Check wiring further.

23. Measure between sockets 1 and 62 on VAG 1598/18. Specification: Infinity ohms.

24. Measure between sockets 23 and 62 on VAG 1598/18. Specification: Infinity ohms.

25. Measure between socket 62 on VAG 1598/18 and terminal 6 on connector. See Fig. 94 . Specification:

Less than 1.5 ohms.

26. If the specifications are not obtained: Repair wiring using wiring diagram.

27. If the specifications are obtained: Check wiring further.

28. Measure between sockets 1 and 40 on VAG 1598/18. Specification: Infinity ohms.

29. Measure between sockets 23 and 40 on VAG 1598/18. Specification: Infinity ohms.

30. Measure between socket 40 on VAG 1598/18 and terminal 2 on connector. See Fig. 94 . Specification:

Less than 1.5 ohms
