Throttle valve replacement/adjustment (setting idling speed)

z

Throttle Position (TP) Sensor -G69- replacement

z

TP Sensor -G69- setting alteration, e.g. when adjusting Closed Throttle Position (CTP) Switch (engine)

z

Transmission Control Module (TCM) -J217- replacement

1. Connect VAG 1551 Scan Tool and enter address word "02 transmission electronics" . Advance until

"Select function XX" appears in display. See VAG 1551 SCAN TOOL, CONNECTING AND
SELECTING FUNCTIONS .

2. Scan tool display should be similar to illustration. See Fig. 38 . Press buttons -0- and -4- to select

"Initiating basic setting" function 04.

3. Scan tool display should be similar to illustration (A). See Fig. 58 . Confirm entry with -Q- button.

NOTE:

The accelerator pedal must remain in the idling position.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M



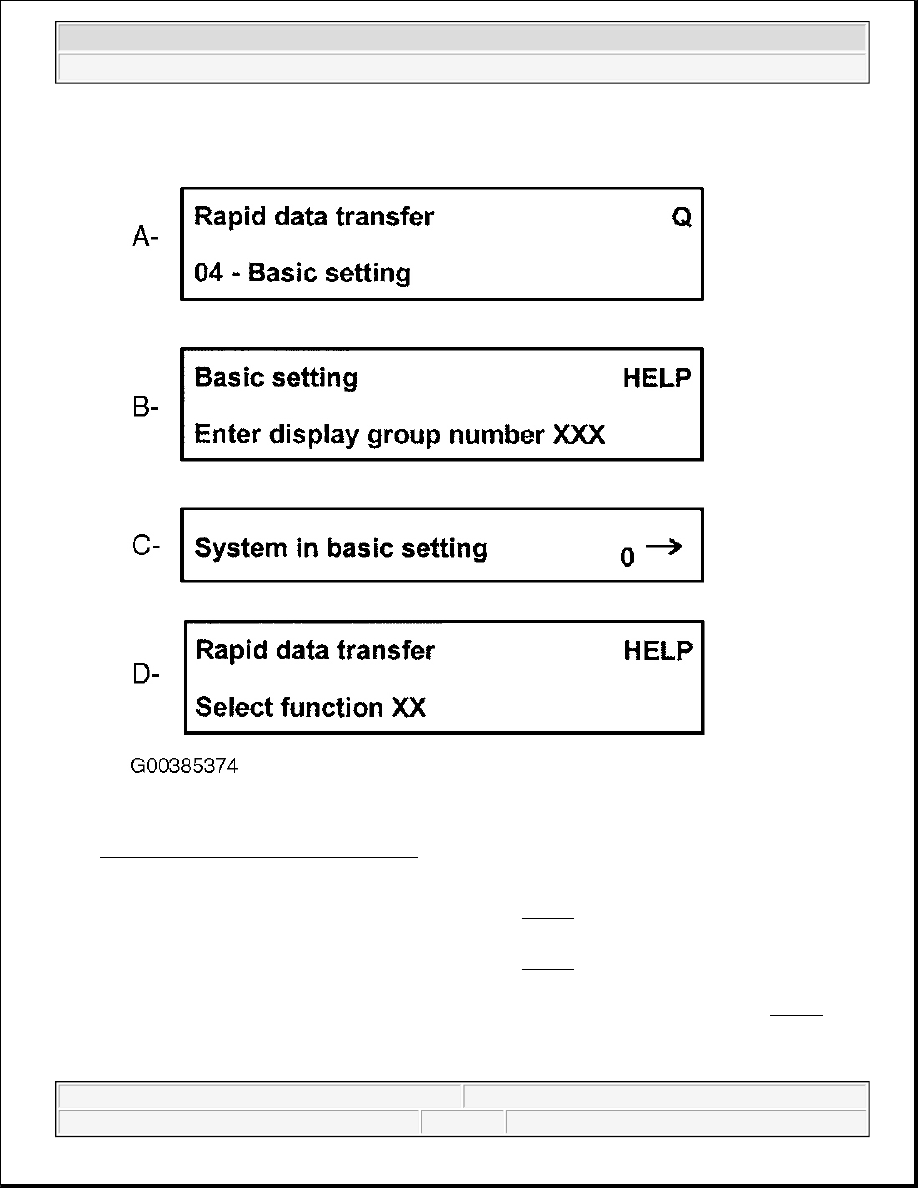

Fig. 58: Scan Tool Display (Basic Setting)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

4. Scan tool display should be similar to illustration (B). See Fig. 58 . Press button -0-, -0- and -0-.

5. Confirm entry with -Q- button.

6. Scan tool display should be similar to illustration (C). See Fig. 58 . The system is now in the basic

setting. Depress accelerator pedal as far as kickdown and hold in this position for 3 seconds.

7. Press button "right arrow" button. Scan tool display should be similar to illustration (D). See Fig. 58 .

MEASURED VALUE BLOCK, READING



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M



1. Connect VAG 1551 Scan Tool and enter address word "02 transmission electronics". Advance until

"Select function XX" indicated on display. See VAG 1551 SCAN TOOL, CONNECTING AND
SELECTING FUNCTIONS .

2. Scan tool display should be similar to illustration (A). See Fig. 59 . Press buttons -0- and -8- to select

"Read measured value block" function 08.

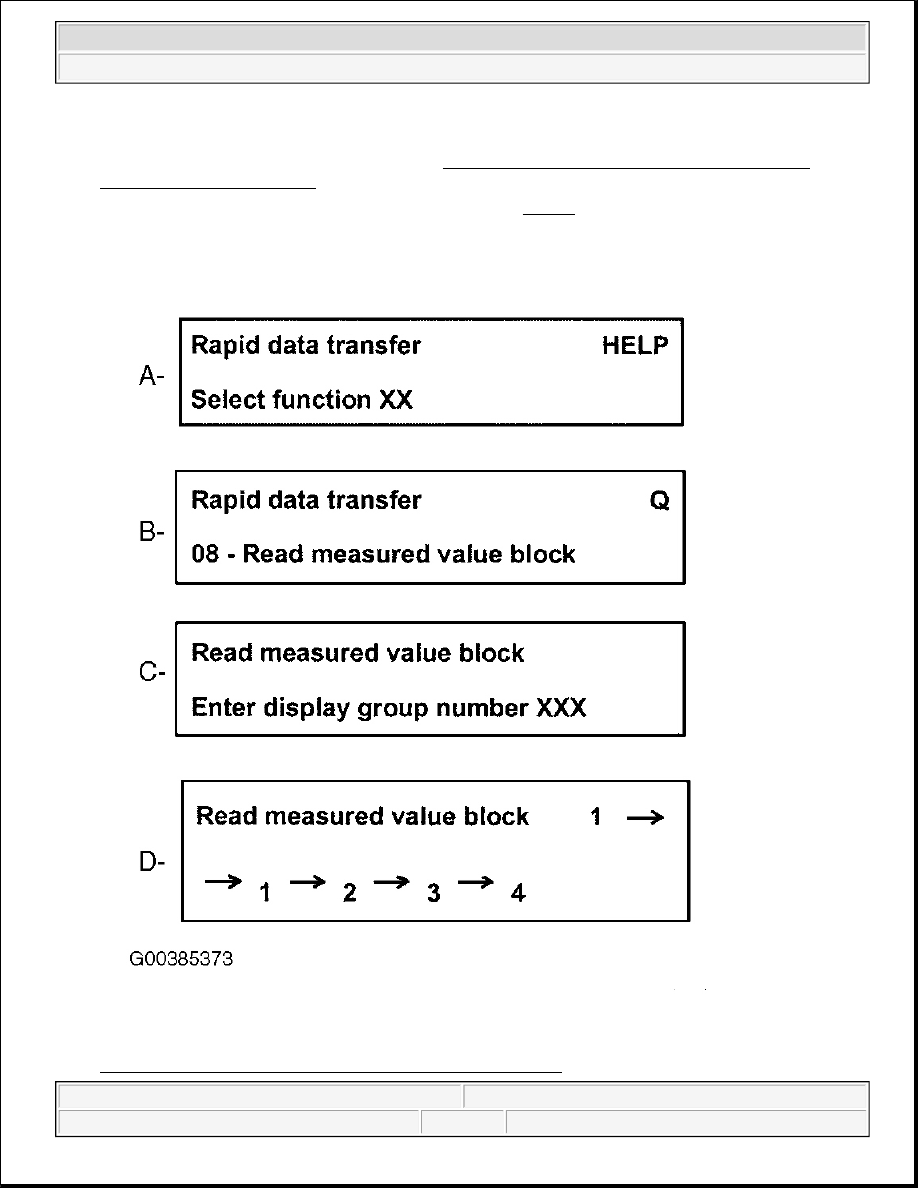

Fig. 59: Scan Tool Display (Measured Value Block Reading)



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M



Courtesy of VOLKSWAGEN UNITED STATES, INC.

3. Scan tool display should be similar to illustration (B). See Fig. 59 . Confirm entry with -Q- button.

4. Scan tool display should be similar to illustration (C). Enter display group number. See LIST OF

SELECTABLE DISPLAY GROUP NUMBERS . Confirm entry with -Q- button.

5. Four display fields (D) always appear in the measured value block (in physical values if necessary). See

Fig. 59 . Decoding the individual values in display fields 1 to 4, see TEST TABLE .

List Of Selectable Display Group Numbers

If the specified values are reached in all the display fields, press "right arrow" button. Scan tool display should
be similar to illustration. See Fig. 38 .

NOTE:

If the printer is switched on, the current display is printed out.
