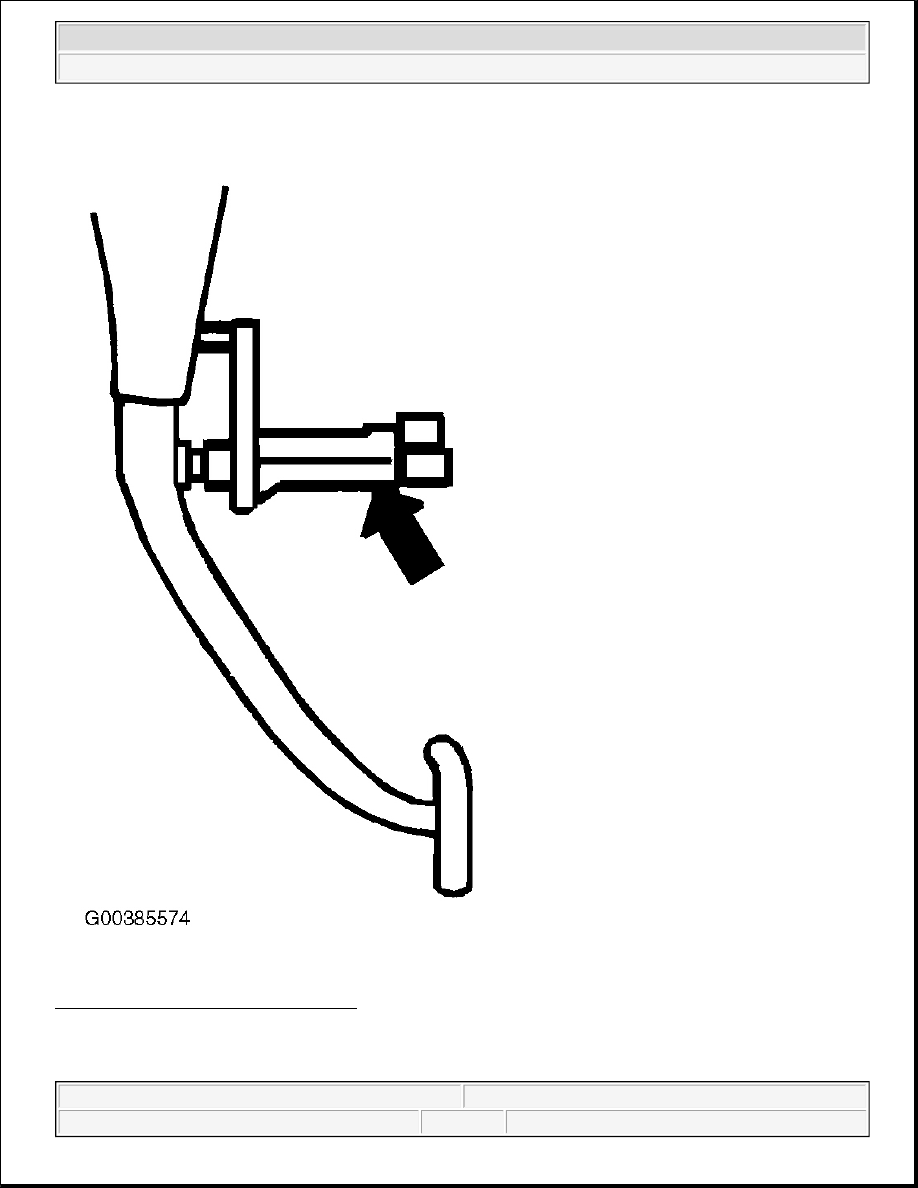

Fig. 22: Identifying Brake Light Switch
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removal & Installation



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M



For removal and installation procedures, see DISC article in BRAKES.

Park/Neutral Position (PNP) Relay -J226-

Location: on additional relay carrier under instrument panel, left side. Relay is marked with number
"175" (arrow). See Fig. 23 .

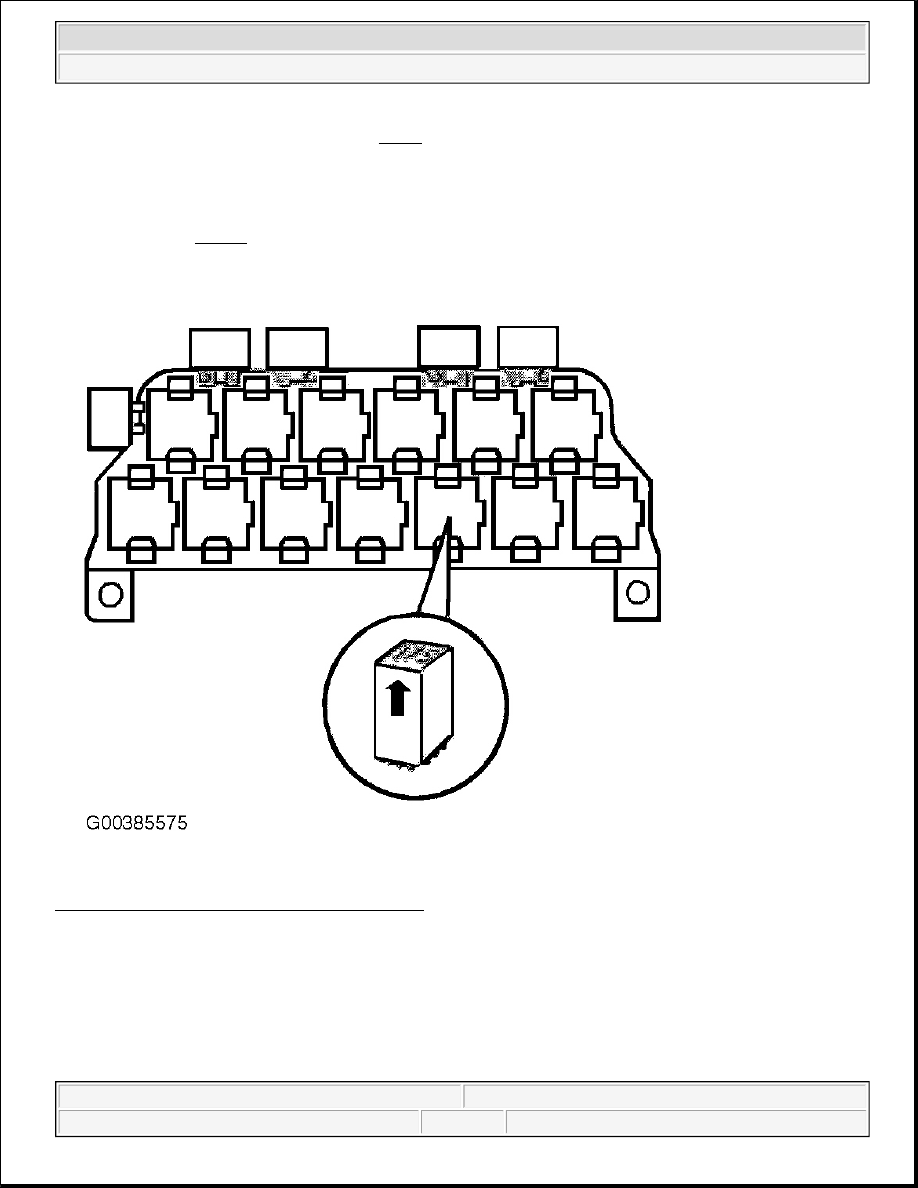

Fig. 23: Identifying Park/Neutral Position Relay
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Transmission Vehicle Speed Sensor -G38-

Location: on top of transmission.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M

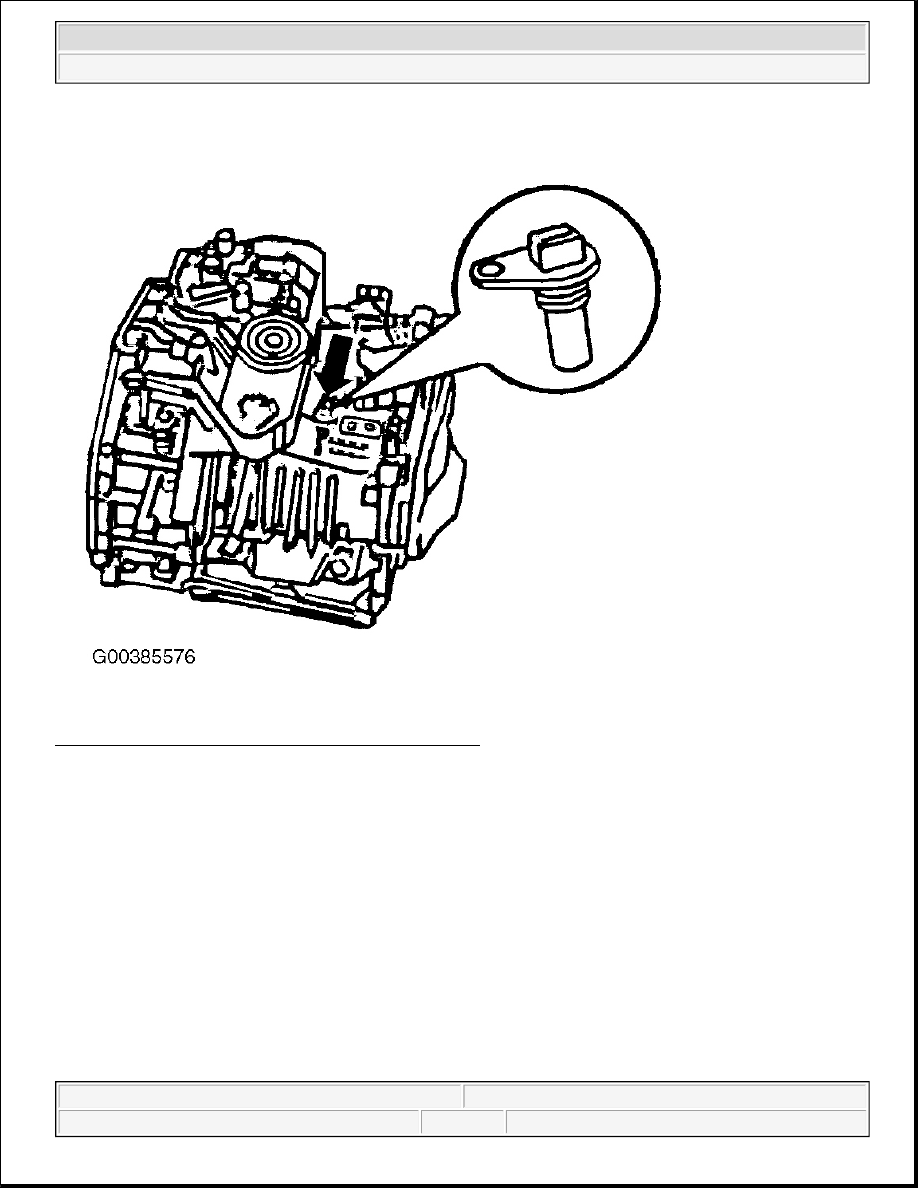

Fig. 24: Identifying Transmission Vehicle Speed Sensor
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removal & Installation

1. Switch off ignition.

2. Disconnect connector from sensor.

3. Remove bolt and take out sensor.

4. Replace seal.

5. Installation is performed in the reverse order.

6. Tighten bolt to 10 Nm (7 ft lb).

Vehicle Speed Sensor (VSS) -G68-

Location: on top of transmission. When the transmission is installed the sensor is covered by the left
transmission mount.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M

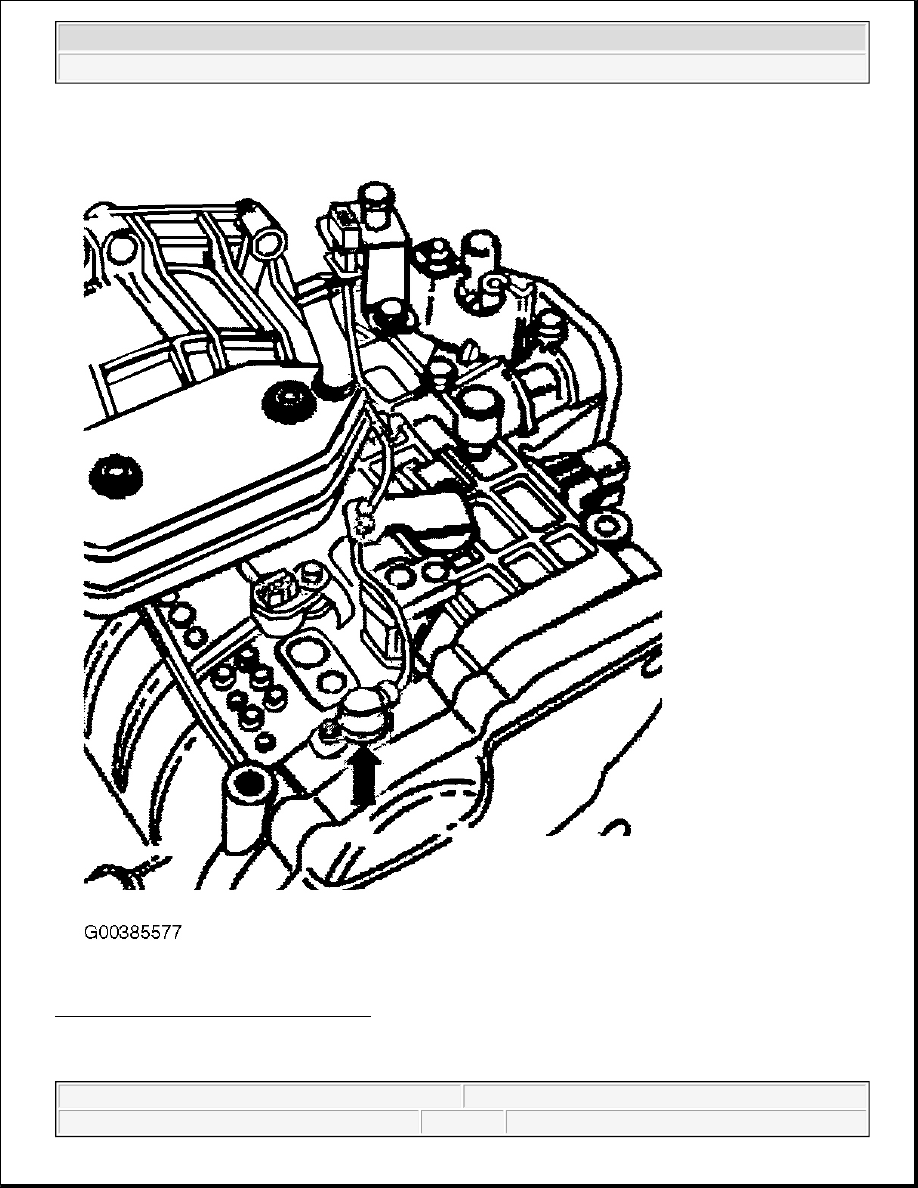

Fig. 25: Identifying Vehicle Speed Sensor
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removal & Installation
